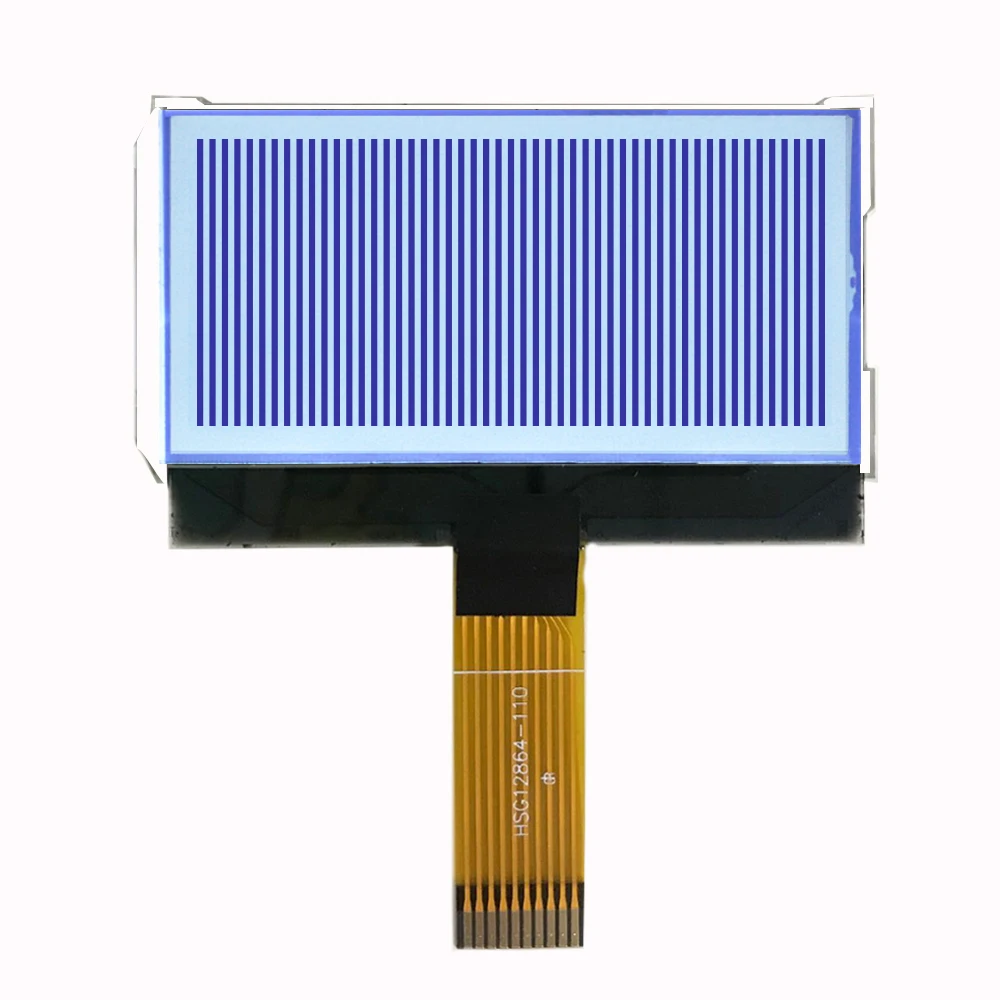

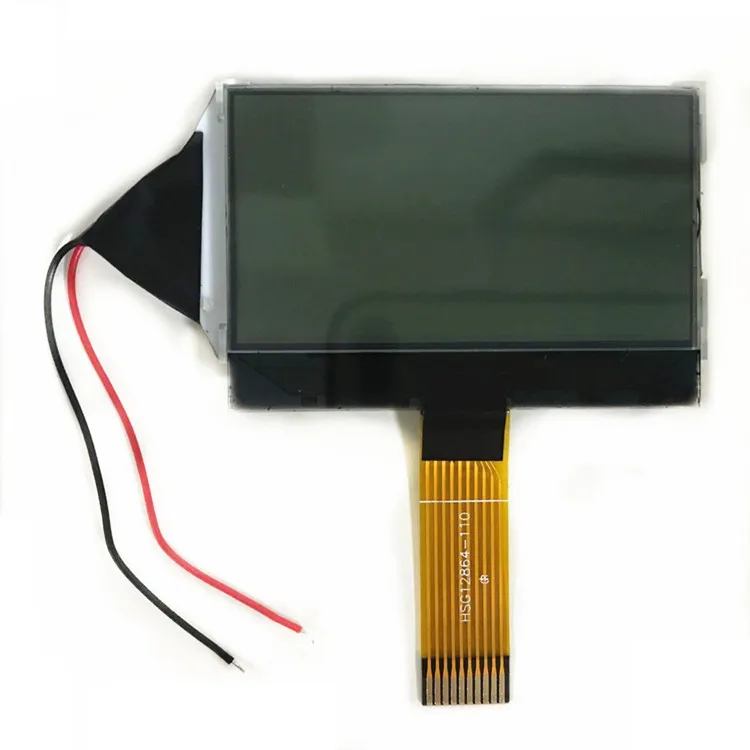

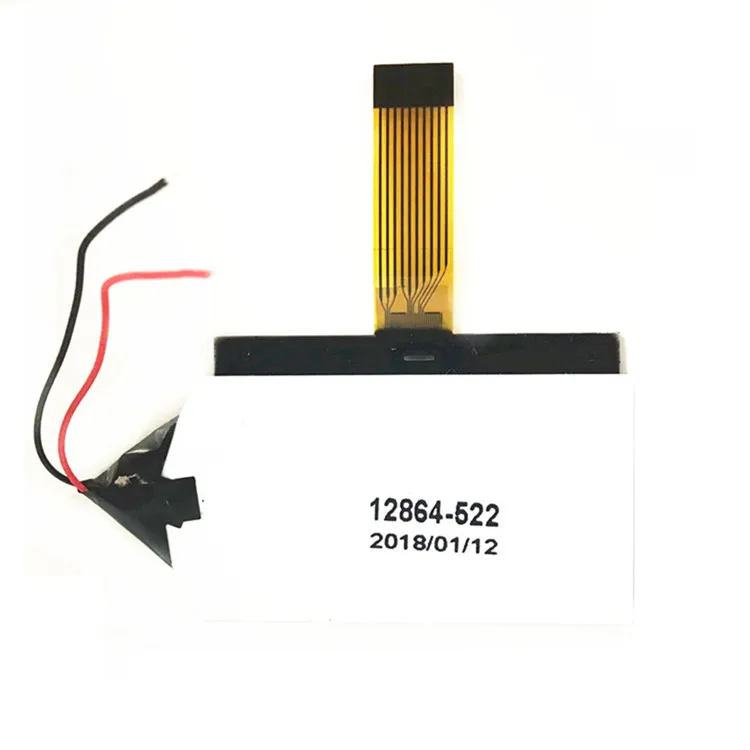

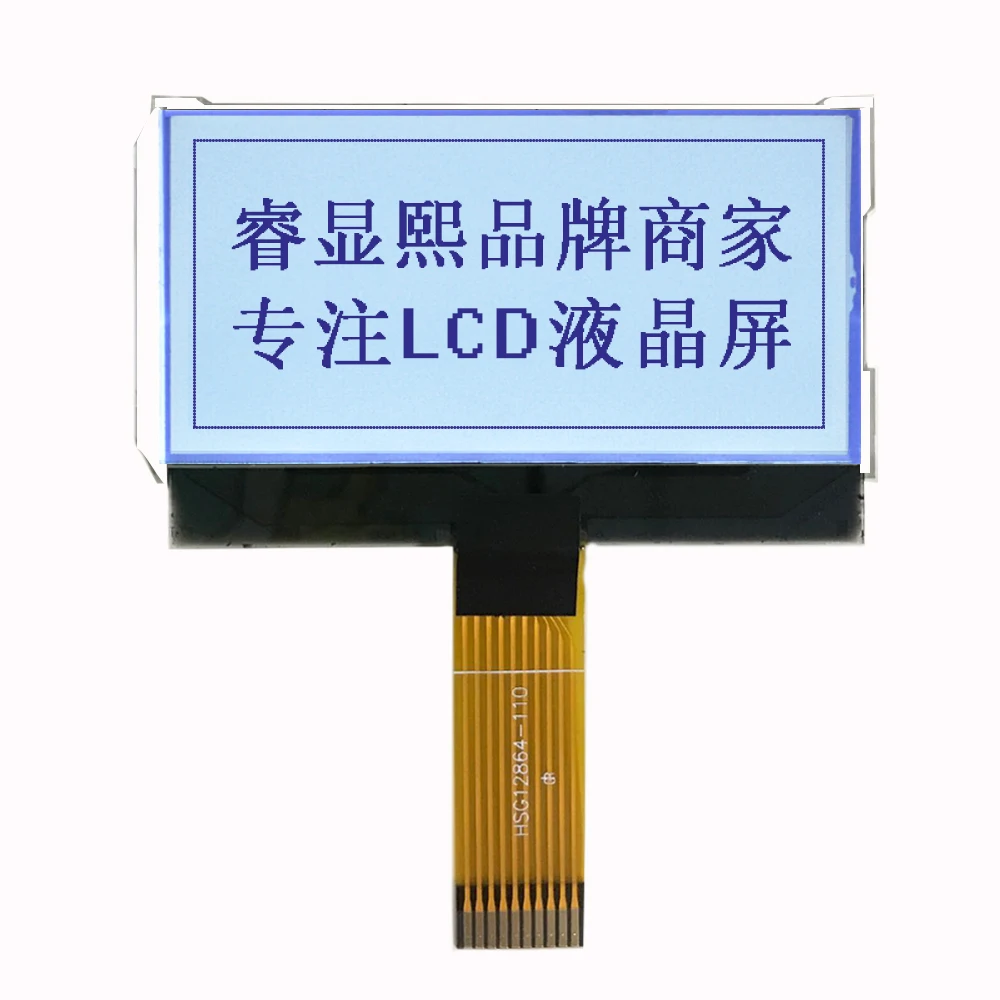

Monochrome lcd display positive graphic 128x64 LCD with white LED backlight
- Category: >>>
- Supplier: Shenzhen Enrich Electronics Co. Ltd.
Share on (1600131681985):
Product Overview
Description
Company Information

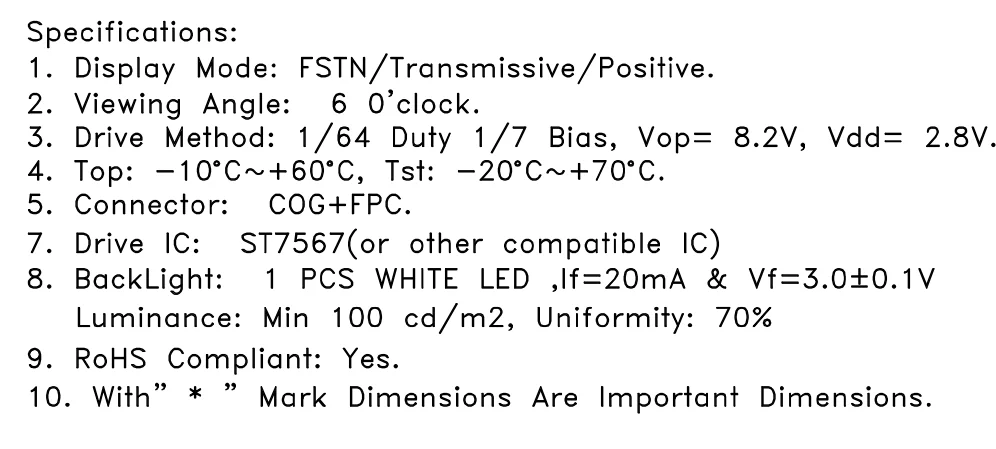

Product Description
| Product model: | ENH-DG128064-78 |

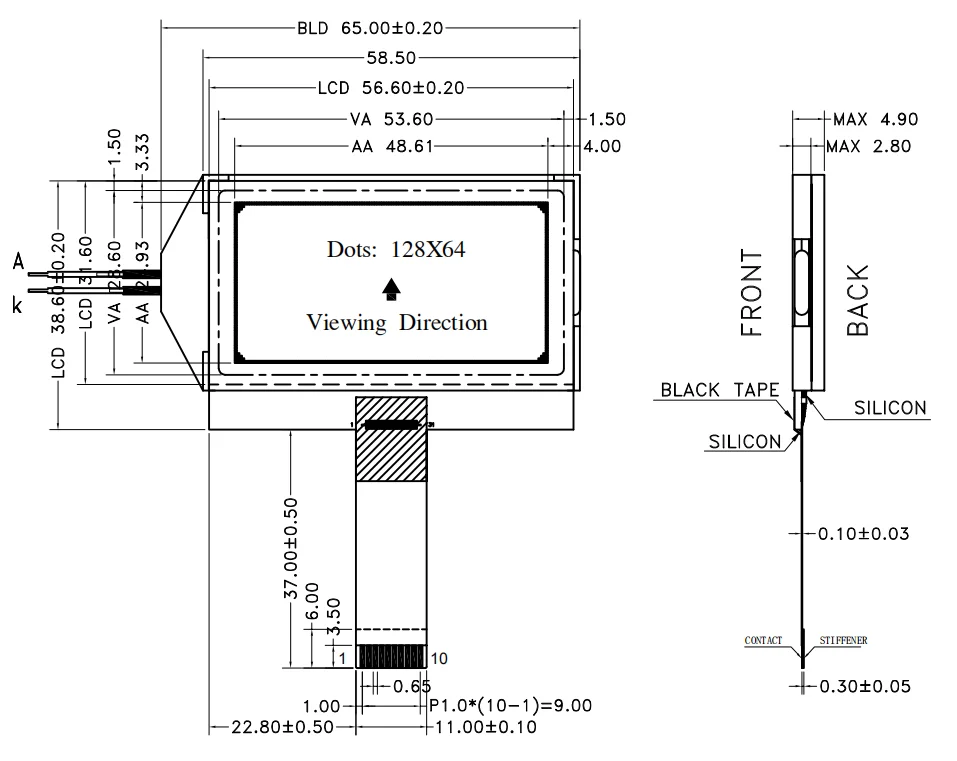

| Viewing Area: | 53.60*28.60mm |
| Drive Method: | 1/64 Duty 1/7 Bias |
| Viewing angle: | 6 o'clock |
| Top: | -10℃ TO + 60℃ |
| Tst: | -20℃ TO + 70℃ |
| Drive IC: | ST7567 |
| Connector: | COG+FPC |
| Backlight: | White led |
