Algae Tubular Separator Centrifuge
US $6800
Horizontal Ti centrifuge for the industry of calcium hypochlorite
- Category: Separation Equipment >>>
- Supplier: Jiangsu,Hanpu,Mechanical,Technology,Co.,Ltd
Share on:
Product Overview
Description

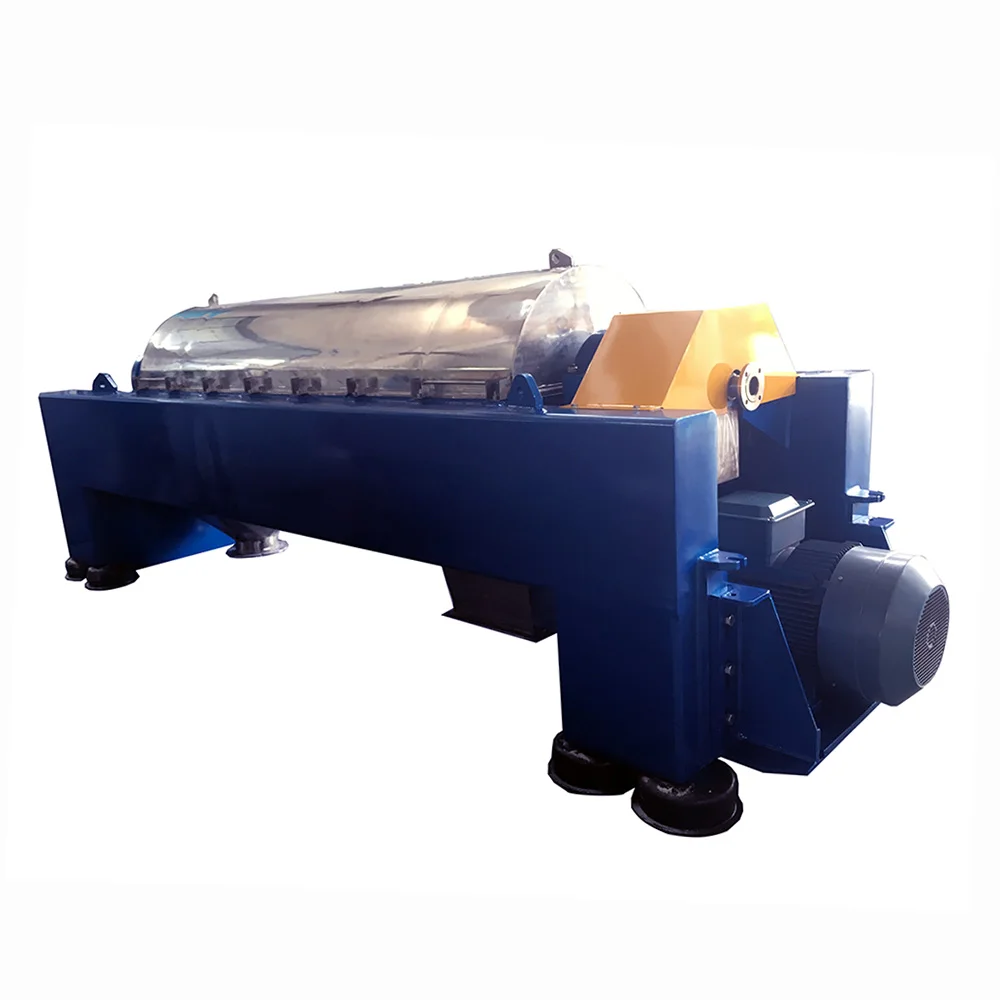

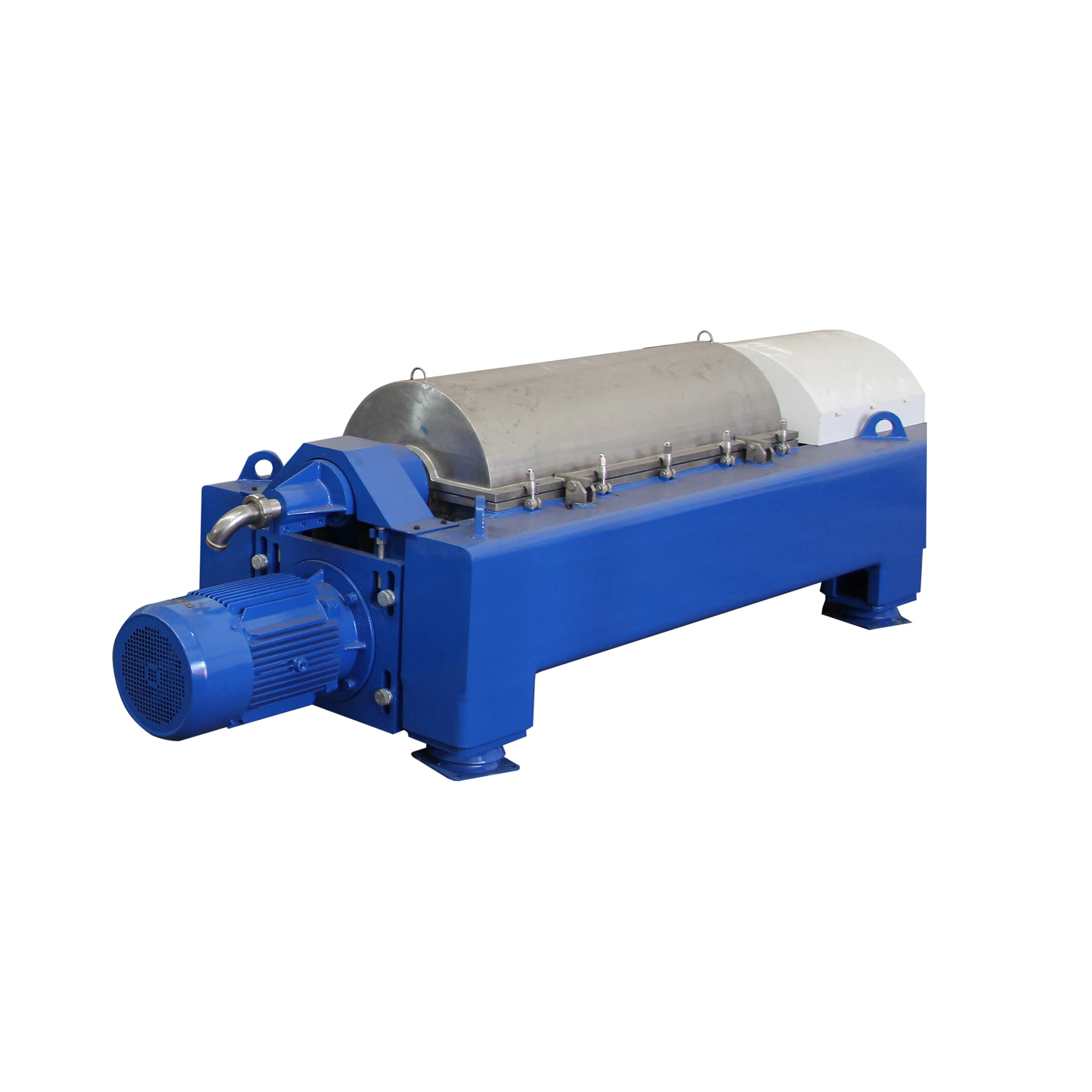

PDC Series Sedimentation Centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge. It is used in a variety or industries for separating all kinds of solid liquid suspension, defecating liquid phase with graded grains, and dehydrating sludge.
Decanter design
Type: 2-phase separation
Material: titanium for all wet parts, such as hood, drum, conveyor, big and small end bowl, feeding and discharging port, etc.
Bearing: famous brand. A special selection and arrangement of bearings provides for long life and exceptional reliability
Wear protection: welded hard facing or spray coating, ceramic technology
Application: salt chemical industry, calcium hypochlorite, material with high % of Cl-
Type: 2-phase separation
Material: titanium for all wet parts, such as hood, drum, conveyor, big and small end bowl, feeding and discharging port, etc.
Bearing: famous brand. A special selection and arrangement of bearings provides for long life and exceptional reliability
Wear protection: welded hard facing or spray coating, ceramic technology
Application: salt chemical industry, calcium hypochlorite, material with high % of Cl-
Main technical parameters
Features
Model | PDC18-3T |
Drum diameter | 450 mm |
Speed | 3200 rpm |
G-force | 2600 |
Capacity | 3-10 m3/h |
Motor power | 30/11 kw |
Weight | 2500 kg |
Overall dimension | 3716*1080*1420 mm (L*W*H) |
Features
1.Continuous working, spiral discharging,high capacity.
2.Controlled by two motors, revolving drum can be adjustable two stage separately.
3.Wide applicability for chemical,oil,foodstuff,pharmacy industries and green industry in which solid-liquid separation is required.
4.Suitable for various products,capable for separating wide ranging solid phase grains(0.002-2mm),especially when separating solid phase has different size grains.

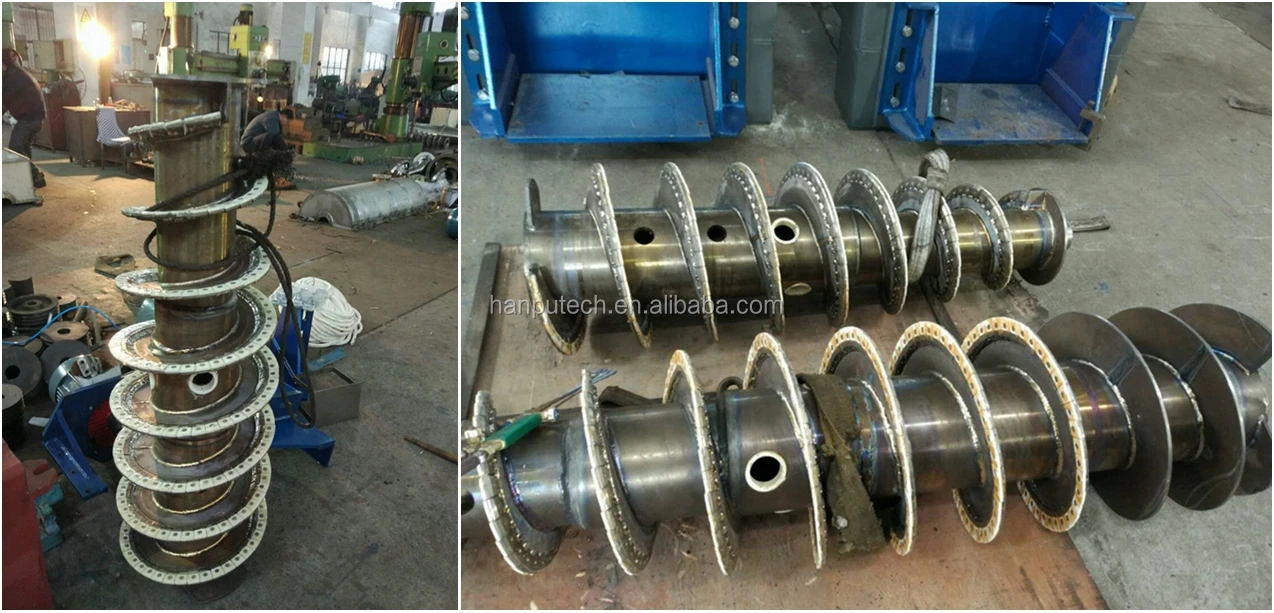

Detailed Images
Processing Equipment
Company Introduction
Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
Certifications
Exhibition
Related Products
FAQ
1. Do you have OEM service? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
2. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
3. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
4. What is your advantage compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader famous brands.
5. How do you protect the quality?
My factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission&electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.
6. Can we visit your end user or contact them?
Yes,users are in domestic and abroad, we can provide you the name list. You can go there or contact to get more info.
