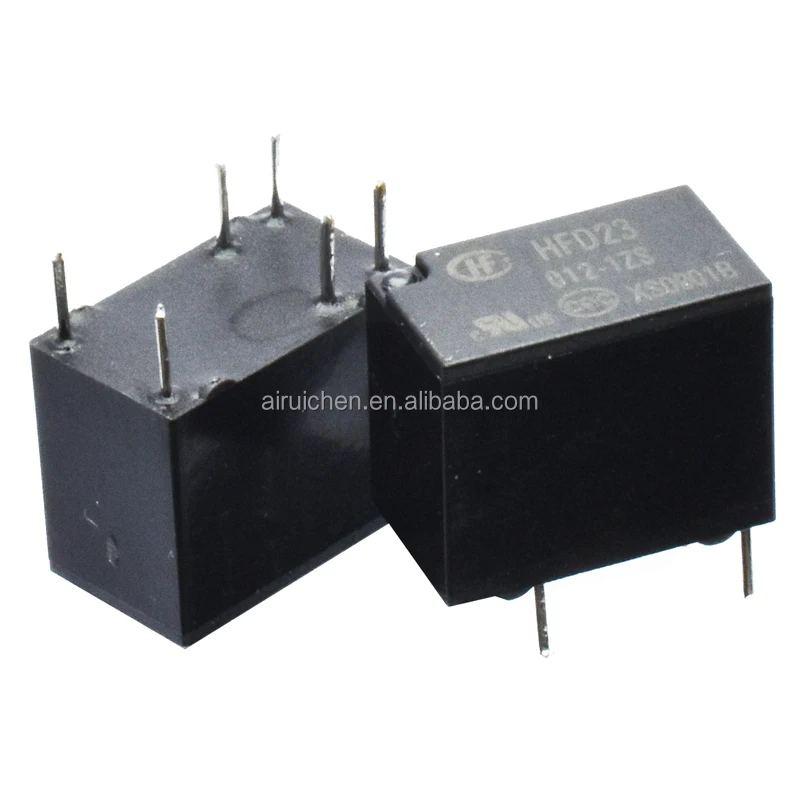

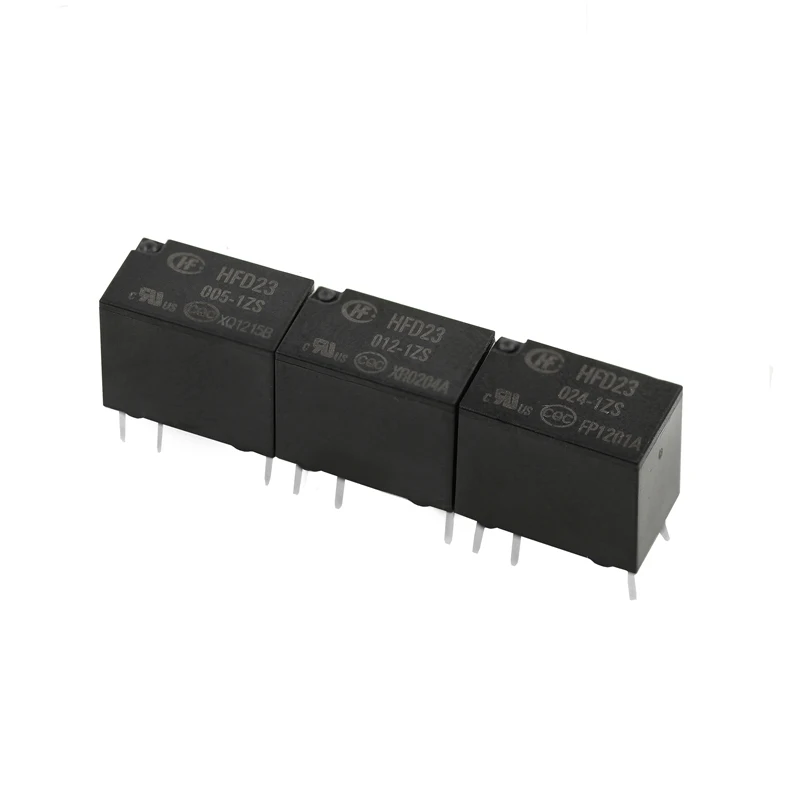

Xiamen Hongfa Relay 2A SPDT 12VDC HFD23 Subminiature PCB Highly Sensitive HFD23 012 HFD23 012 1ZS Signal Relay
- Category: >>>
- Supplier: Shenzhen Airuichen Technology Co. Limited
Share on (1600132190865):

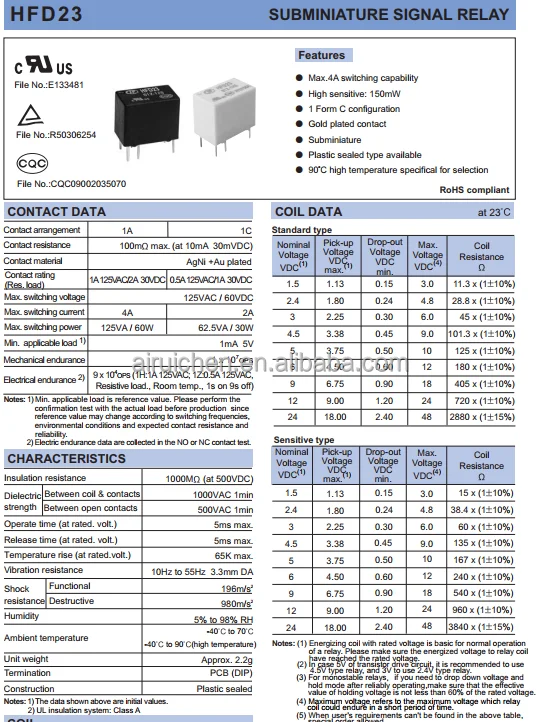

Product Overview
Description
| Type | HFD23 |
| Coil voltage form | DC |
| Coil voltage | 12, 5, 3, 6, 9, 4.5, 2.4, 24, 1.5 |
| Contact arrangement | 1 Form A, 1 Form C |
| Contact version | Single contact |
| Terminal type | DIP |
| Mounting | DIP |
| Construction | Plastic sealed |
| Coil power | Standard(0.2W), Sensitive(0.15W) |
| Sort | Non-polarized monostable |
| Contact capacity | AgNi+Au plated |
| Contact plating | Au plated |
| Packing method | Tube packing |
| Coil power | Approx.0.15 |
| Approx.0.2 | |
| Dielectric strength (between coil & contacts) (VAC 1min) | 1000VAC 1min |
| Operate time(ms) | ≤5 |
| Release time(ms) | ≤5 |
| Insulation resistance(MΩ) | 1000 |
| Max. switching Current(AC) | 1Z:0.5 |
| 1H:1 | |
| Max. switching Current(DC) | 1Z:1 |
| 1H:2 | |
| Max. switching voltage(VAC) | 125 |
| Max. switching voltage(VDC) | 60 |
| Ambient temperature (max)(℃) | -40 |
| Ambient temperature (min)(℃) | 70 |
| Mechanical endurance min | 10000000 |
| Electrial eddurance min | 90000(See approval reports for more details) |
| IEC60335-1 | YES |
| Explosion-proof certification | IBExU |
| Product Description | Monostable non-polarized DC electromagnetic relay. |
| Application | Program control switch |
| fax machine | |
| telephone | |
| instrument and meter | |
| smart home | |
| temperature controller | |
| industrial and office automation control | |
| access control/security control and other fields. | |
| Weight(g) | Approx.2.2 |
| Volume(mm³) | 12.5×7.5×10.0 |
| Product approval | UL |
| TUV | |
| CQC | |
| File No. | UL E133481 |
| CQC CQC09002035070 | |
| TUV R50306254 |
