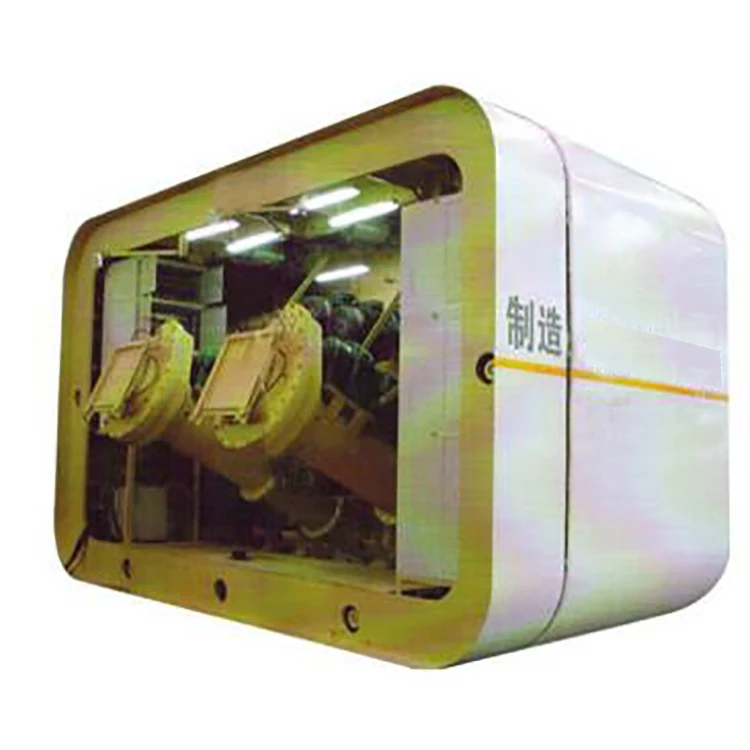

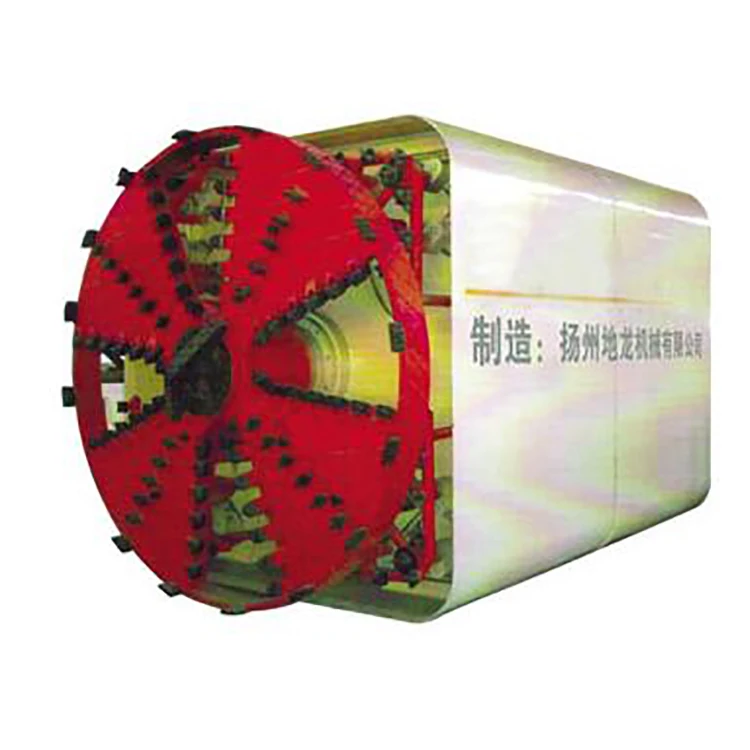

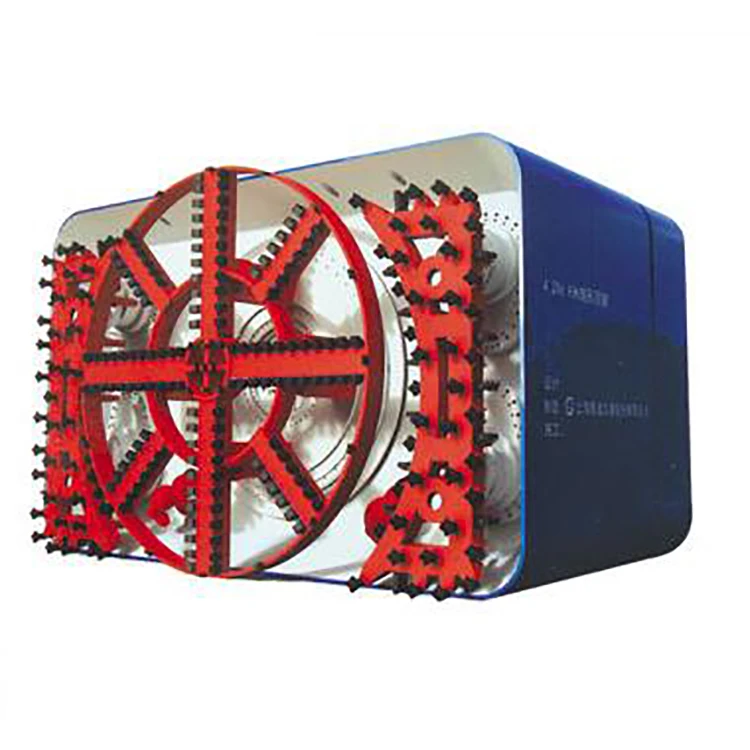

Rectangular Rectangle Shield Pipe Jacking Tunnel Boring Machine
Rectangular Rectangle Shield Pipe Jacking Tunnel Boring Machine
Rectangular Rectangle Shield Pipe Jacking Tunnel Boring Machine
Rectangular Rectangle Shield Pipe Jacking Tunnel Boring Machine
Rectangular Rectangle Shield Pipe Jacking Tunnel Boring Machine

Rectangular Rectangle Shield Pipe Jacking Tunnel Boring Machine

Share on (1600132250992):


Price:RUB 17,838,504.00

Quantity:


Product Overview

Description

The soil quality changes in a larger range of conditions, the general diameter of 800mm-4000mm between is a kind of cut with the whole section of soil, mud water pressure to balance the earth pressure and groundwater pressure, and mud water as the transport of abandoned soil medium mechanical automatic pipe jacking construction equipment.The mud water balance pipe jacking system is mainly composed of pipe jacking machine head, ground operation platform and other auxiliary equipment. There is a PLC control box inside the machine head, and the ground operation platform gives the movement signal to control the movement of the machine head.The mud discharge system will remove the abandoned soil, crane down the pipe, the hydraulic system will be the main jacking pipe into sections.
Cutter, steering system, jacking cylinder, screw conveyors can be customized!
1. Applicable to a wide range of soil, soft soil, clay, sand, gravel soil, hard soil, backfill soil can be applied.
2. Strong crushing capacity, large particle size and large number of crushing particles.
3. Independent water injection and grouting system.
4, the jacking speed is fast, the fastest jacking speed is 200mm per minute.
5, high construction accuracy, upper, lower, left and right deviation correction, maximum deviation correction Angle up to 2.5°.
6. Centralized ground control system, safe, intuitive and convenient.
Product Paramenters
Machine Type
RPB5400
RPB5000
RPB4650
RPB4500
RPB4300
Cutter Head
Diameter (mm)
3350
2950
2800
2800
2700
2300
2850
2700
2300
4520
1660
1180
4320
2150
Cutter
Motor Power*QTY.
30*4
30*3*2
30*3*3
30*3
30*3*2
30*3*3
30*3
30*3*2
30*3*3
30*7
37*4
15*2
37*6
30*2*4
Rated Torque (kn.m)
955,540,540
540,540,540
540,540,540
1570,102,46
1570,200
Revolution (rpm)
1.2,1.58,1.58
1.58,1.58,1.58
1.58,1.58,1.58
1.35,3.46,3.06
1.35,2.6
Steering System
Cylinder Thrust(T)*QTY.
200*16
200*16
200*16
200*16
200*16
Max.Angle (°)
↕2.4，↔1.7
↕2.2，↔1.4
↕2.2，↔1.4
↕2.2, ↔1.7
↕2.31,↔1.24
Motor Power (kw)
15
15
15
15
15
Screw Conveyer
Motor Power (kw)
37*2
30*2
30*2
30*2
30*2
Speed (rpm/min)
16
16.3
16.3
15.3
15.3
Excavated Earth Volume(m³/h)
70
50
50
50
50
Disengage-ment
Device
Cylinder Stroke
350
350
350
350
350
Cylinder QTY.
4
4
4
4
4
Cylinder Thrust
150
150
150
150
150
Machine Total Power（kw）
645
615
615
463
537
Machine Type
RPB4200
RPB3000
RPB2900
TPD3000
TPD3500
Cutter Head
Diameter(mm)
4220
2100
3020
2950
2820
2750
Cutter
Motor Power*QTY.
37*6
30*2*4
30*4
30*4
30*4
30*4
Rated Torque (kn.m)
1570,220
640
640
640
640
Revolution (rpm)
1.35,2.6
1.79
1.79
1.79
1.79
Steering
System
Thrust(T)*QTY.
200*16
120*8
150*8
120*8
120*8
Max.Angle (°)
↕2.38, ↔1.36
↕2.5,↔2.5
↕2.1,↔2.1
↕2.5,↔ 2.5
↕2.4,↔2.4
Motor Power (kw)
15
7.5
7.5
7.5
4
Screw Conveyer
Motor Power (kw)
30*2
30*1
30*1
30*1
22*1
Speed (rpm/min)
15.3
15.3
15.3
15.3
16.3
Excavated Earth Volume(m³/h)
70
50
50
50
40
Disengage-ment
Device
Cylinder Stroke
350
350
350
350
350
Cylinder QTY.
4
4
4
4
4
Cyliner Thrust
150
64
64
64
60
Machine Total Power（kw）
537
157.5
157.5
157.5
157.5
Related Products
Company Introduction
Since its establishment in 2017, Xuzhou Pluto Construction Machinery Co., Ltd. has been adhering to the corporate philosophy of "Quality First, Service First", gathering the resources of Xuzhou's industrial clusters, the construction machinery base, and committed to creating world-class construction machinery sales and services The team provides customers with a one-stop service of construction machinery sales, parts supply, technical consultation, after-sales maintenance and on-site construction guidance. The company's main non-excavation engineering machinery and equipment, including three series of pipe jacking machine, horizontal directional drilling and rotary drilling rig and related accessories, products are widely used in highways, subways, oil and gas pipelines, cable laying, bridges, construction, Infrastructure construction such as municipal engineering. In 2018, a branch was established in Bangkok, Thailand. Products are sold to Thailand, Indonesia, Singapore, India, Cambodia, Vietnam, Malaysia and other countries to provide value-added services to the local market and customers. In the future, the company aims to become the leader of the global non-excavation construction machinery supplier under the excellent trade environment created by the "Belt and Road" initiative!
Construction site
Service

Pre-sales service: 1. Recommend the most suitable equipment for different buyers. 2. personalized machinery available according to special construction demands. 3. Training your technicians to operate our equipment, 4. Providing instructions to ensure equipment running well in various construction. environments, Sales service: 1. Any kinds of transportation as per buyers choice. 2. All products will be debugged well before shipment. 3. Introduce our service system to customers. After-sales service: 1. Making the first construction scheme, 2. Installing and debugging your equipment, 3. Troubleshooting on site, prompt and initiative, 4. Engineers overseas service provided.
Packing&Delivery
FAQ
1. What about the warranty time?
A:12 months after shipment or 500m working distance, whichever occurs first.
2. What about the delivery time?
A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
A: On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or against the copy of original BL for old client.On L/C term, 100% irrevocable L/C without "soft clause" can be accepted.
4.What logistics ways we can work for shipment?
A: We can ship machine by sea and road.
5. What about the after-sales service?
A: We have office and professional after-sales service team in many countries. After you receive the new machine, we will provide you one engineering training installation and debugging service for 3-5days. If there are some problems, our after-sales service personnels will arrive the project site in shortest time.
