1ton Mini Portable Indoor Spider Crane For Narrow Working Space With CE Certificates
- Category: >>>
- Supplier: BOOM Intelligent (Hubei) Industrial Equipment Co. Ltd.
Share on (1600132467433):
Product Overview
Description
Products Description
1 ton boom telescopic mini crane mobile crawler crane small lifting hydraulic spider crane for sale
Product Features

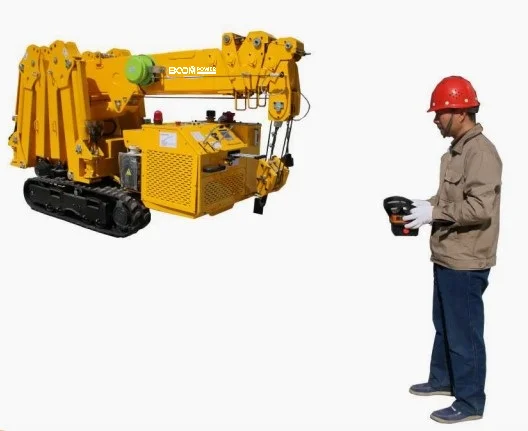

1. It can control the hoist from a long distance and can make the hoisted weight move gradually. It is especially suitable for mechanical installation and used in places with high position accuracy requirements.
2. Accurately display the weight of the object to be hoisted. When hoisting, make sure to have a "number" in mind to protect the safety of the boom.
3. The outriggers can be controlled at close range to avoid accidents when the outriggers cannot be seen during operations in complex environments.
4. Reasonable structure, 1 welding seam, large contact area between booms, high strength and long life.
5. The outriggers can be operated individually according to the surrounding environment, or the computer can be used to control 4 outriggers at the same time to achieve one-key leveling, so that the car body is always in a horizontal state.

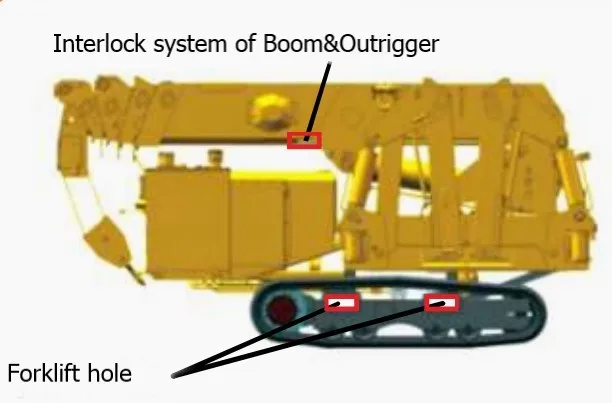

6. After the boom is reset, the outriggers can be operated and travel to protect the safety of the crane.
7. It is convenient for forklift to transport, and the crane is provided with a plug-in position.
1. It can control the hoist from a long distance and can make the hoisted weight move gradually. It is especially suitable for mechanical installation and used in places with high position accuracy requirements.
2. Accurately display the weight of the object to be hoisted. When hoisting, make sure to have a "number" in mind to protect the safety of the boom.
3. The outriggers can be controlled at close range to avoid accidents when the outriggers cannot be seen during operations in complex environments.
4. Reasonable structure, 1 welding seam, large contact area between booms, high strength and long life.
5. The outriggers can be operated individually according to the surrounding environment, or the computer can be used to control 4 outriggers at the same time to achieve one-key leveling, so that the car body is always in a horizontal state.
6. After the boom is reset, the outriggers can be operated and travel to protect the safety of the crane.
7. It is convenient for forklift to transport, and the crane is provided with a plug-in position.
The outriggers can be operated individually according to the surrounding environment, or the computer can be used to control 4 outriggers at the same time to achieve one-key leveling, so that the car body is always in a horizontal state.
After the boom is reset, the outriggers can be operated and travel to protect the safety of the crane.
Product Paramenters
Specifications | ||||
Model | KB1.0 | |||
Specification | 1.0Tx 1.5m | |||
Maximum Working Radius | 5.07m x0.2T | |||
Maximum Ground Lifting Height | 5.6m | |||
Maximum Underground Lifting Height | 18m | |||
Winch Device | Hook Speed | 10m/min(2 fall) | ||
Rope | 07.7mm x 48m | |||
Telescopic System | Boom Type | Full automatic 4 section | ||
Boom Length | 2.08m-5.5m | |||
Up and Downs | Boom Angle/Time | 0° ~75°/14sec | ||
Slew System | Slew Angle/Time | 0° 〜360° (Continuous )/40sec | ||
Outrigger Active Form | Automatic for the 1 section, manual adjustment for 2,3 section | |||
Outrigger | Maximum Extended Dimensions | 3600mm x 3200mm | ||
Walking Way | Hydraulic motor driven | |||
Walking Speed | 0-3.2km/h | |||
Grade Ability | 20° | |||
Ground Length x Width x 2 | 960mm x 180 mm x 2 | |||
Ground Pressure | 35.6kpa (0.356 kgf/cm2) | |||
Model | (HONDA) GX270 | |||
Displacement | 270ml | |||
Maximum Output | 5.1Kw/1800rpm | |||
Starting Method | Electric starting | |||
Fuel/Tank Capacity | Petrol/6L | |||
Safety Devices | Outrigger automatic detection alarm^ levek Intelligent levelingx Emergency stop button | |||
System Voltage | DC12V | |||

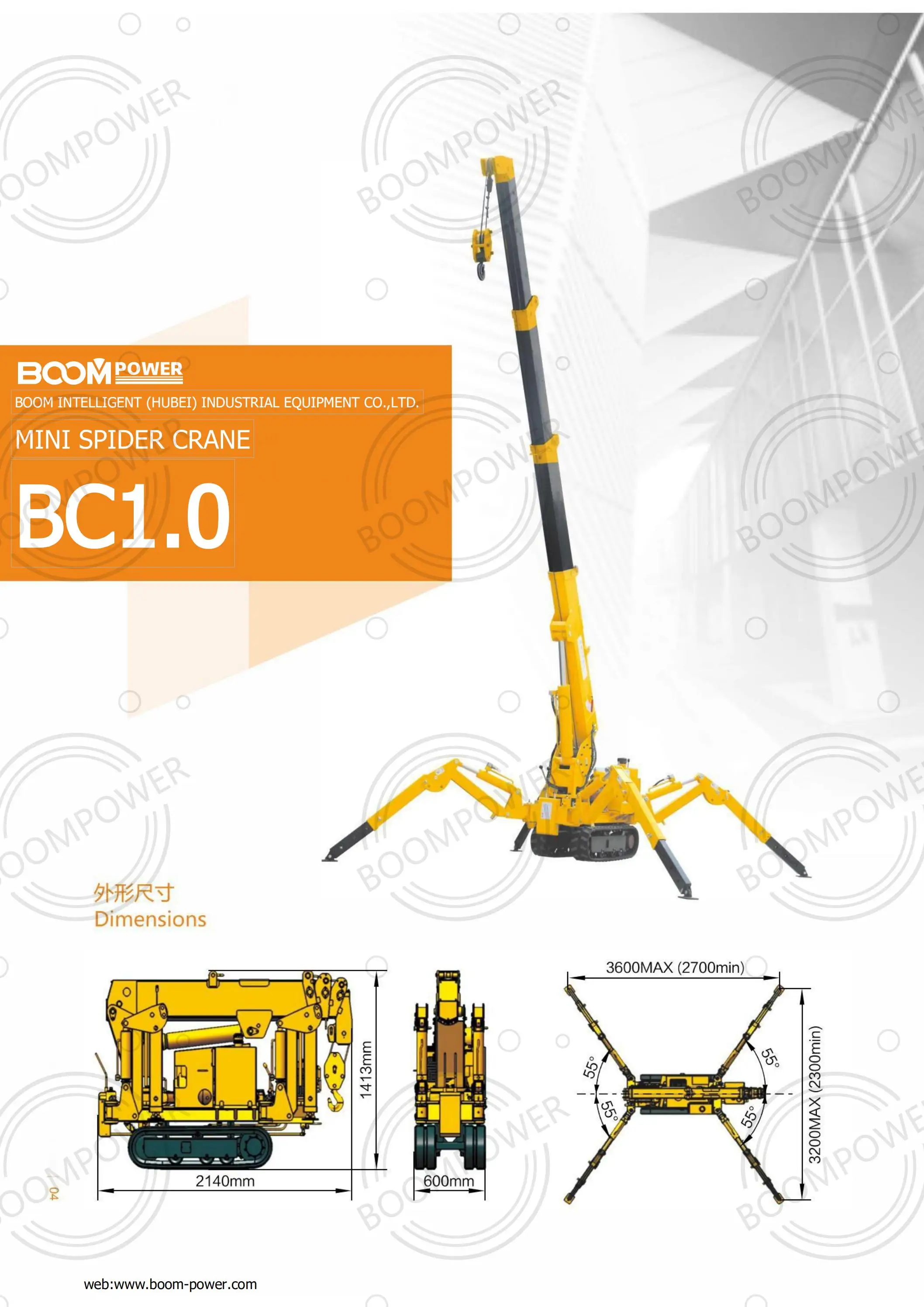

Dimension | Length x Width x Height | 2140mm x 600mm x 1413mm | ||

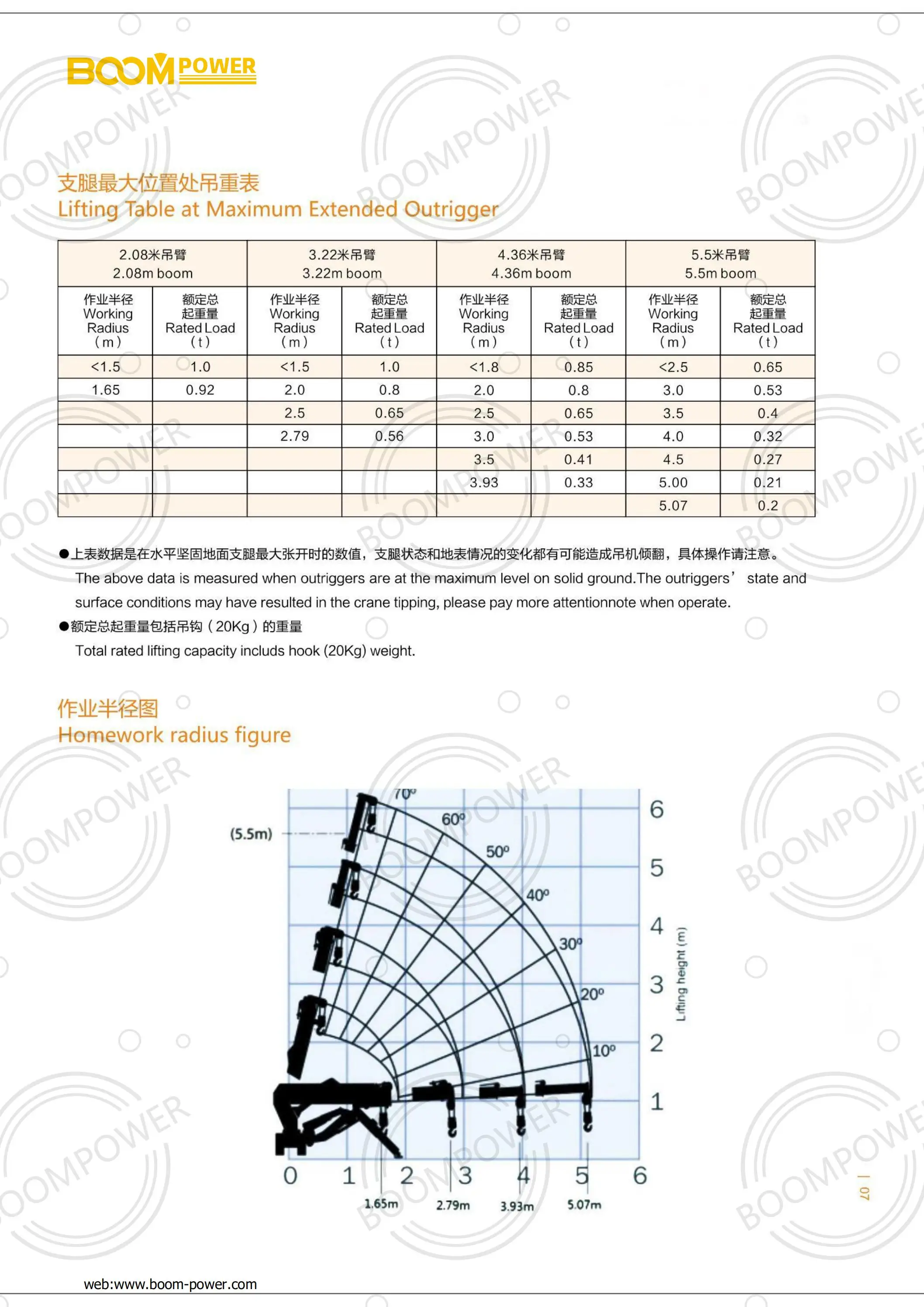

2.08m boom | 3.22m boom | 4.36m boom | 5.5m boom | ||||||||
Working Radius (m) | Rated Load (t) | Working Radius (m) | Rated Load (t) | Working Radius (m) | Rated Load (t) | Working Radius (m) | Rated Load (t) | ||||
<1.5 | 1.0 | <1.5 | 1.0 | <1.8 | 0.85 | <2.5 | 0.65 | ||||
1.65 | 0.92 | 2.0 | 0.8 | 2.0 | 0.8 | 3.0 | 0.53 | ||||
2.5 | 0.65 | 2.5 | 0.65 | 3.5 | 0.4 | ||||||
2.79 | 0.56 | 3.0 | 0.53 | 4.0 | 0.32 | ||||||
3.5 | 0.41 | 4.5 | 0.27 | ||||||||
3.93 | 0.33 | 5.00 | 0.21 | ||||||||
5.07 | 0.2 | ||||||||||

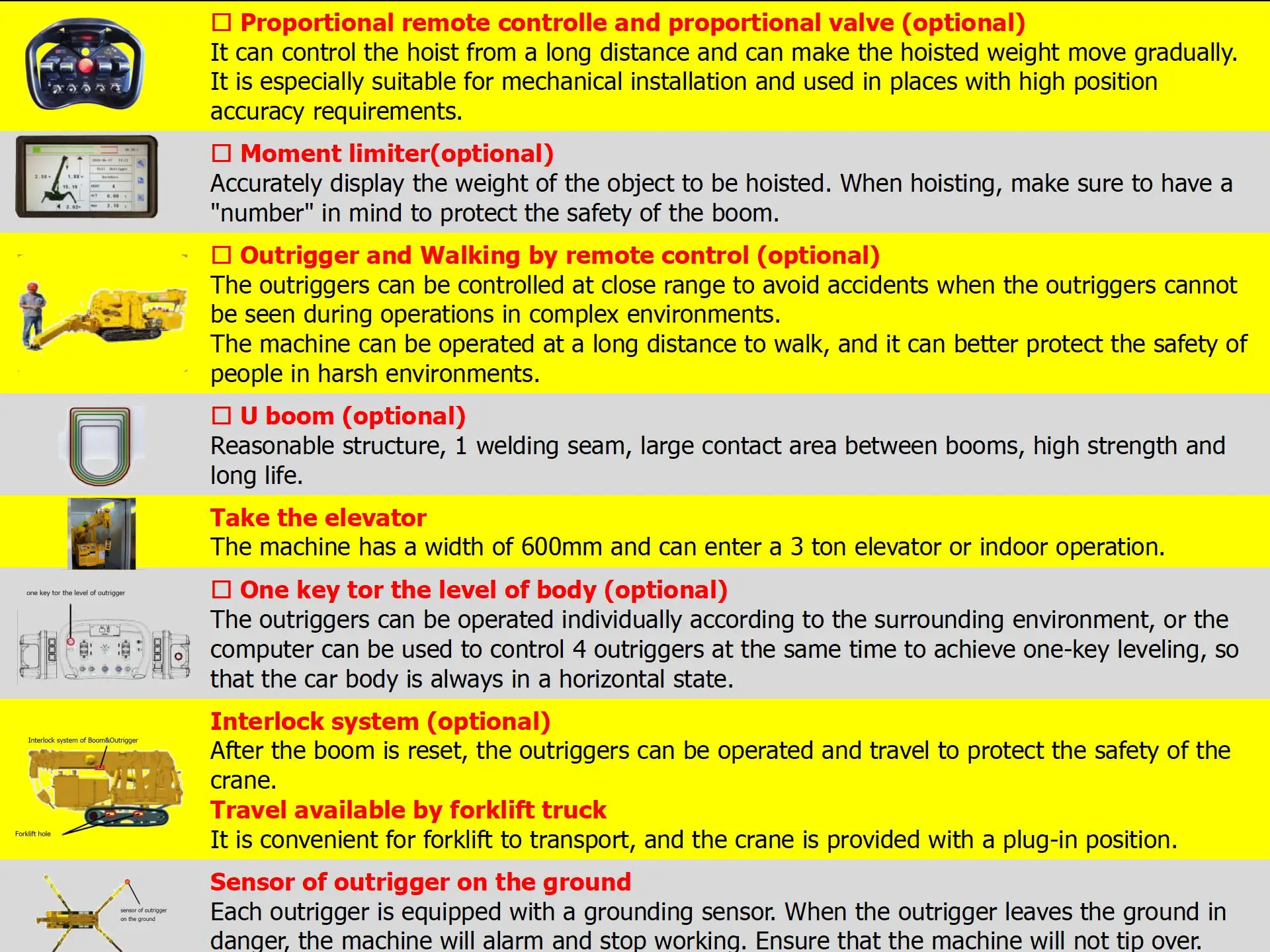

Product configuration options and their characteristics

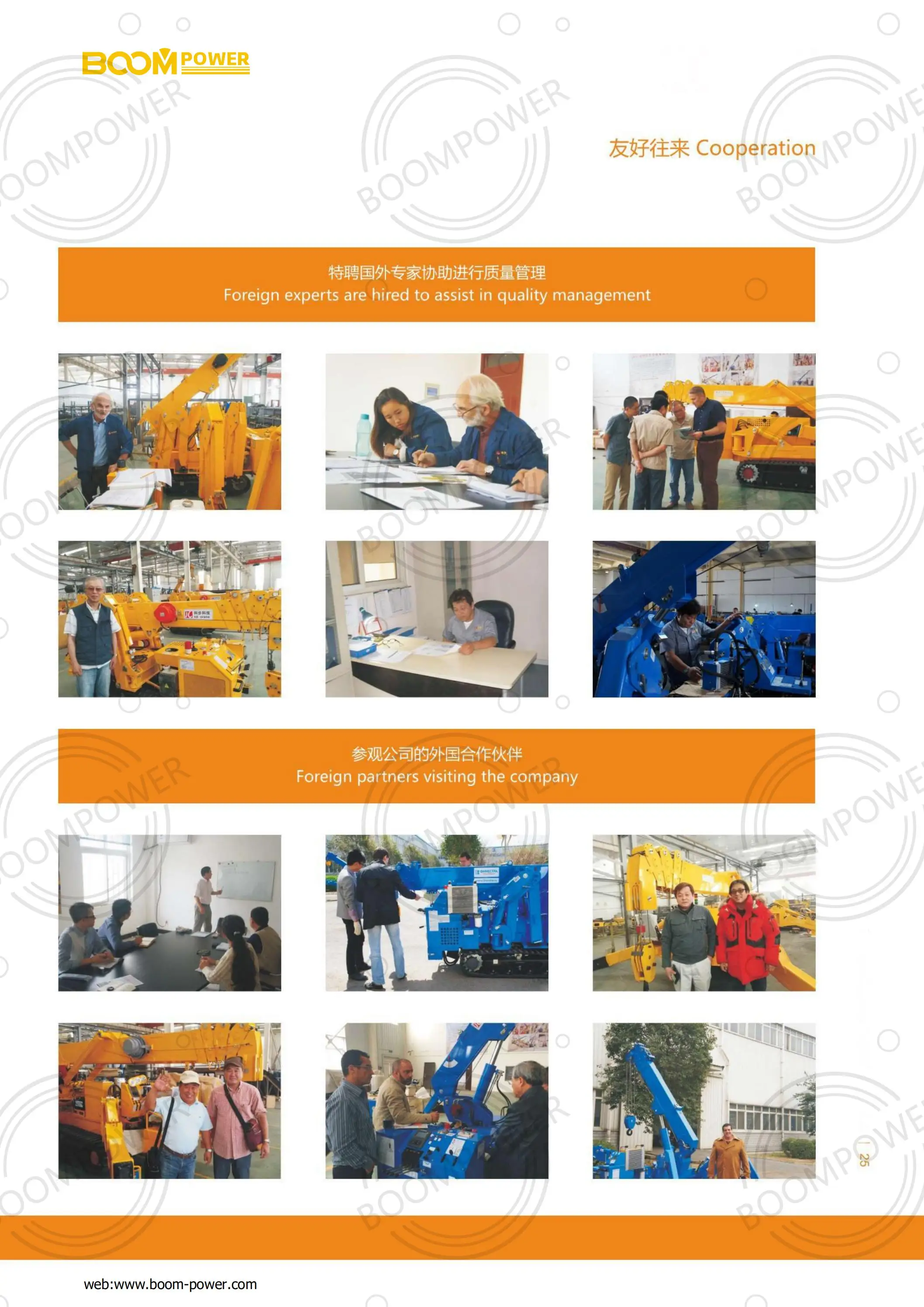

Company Profile

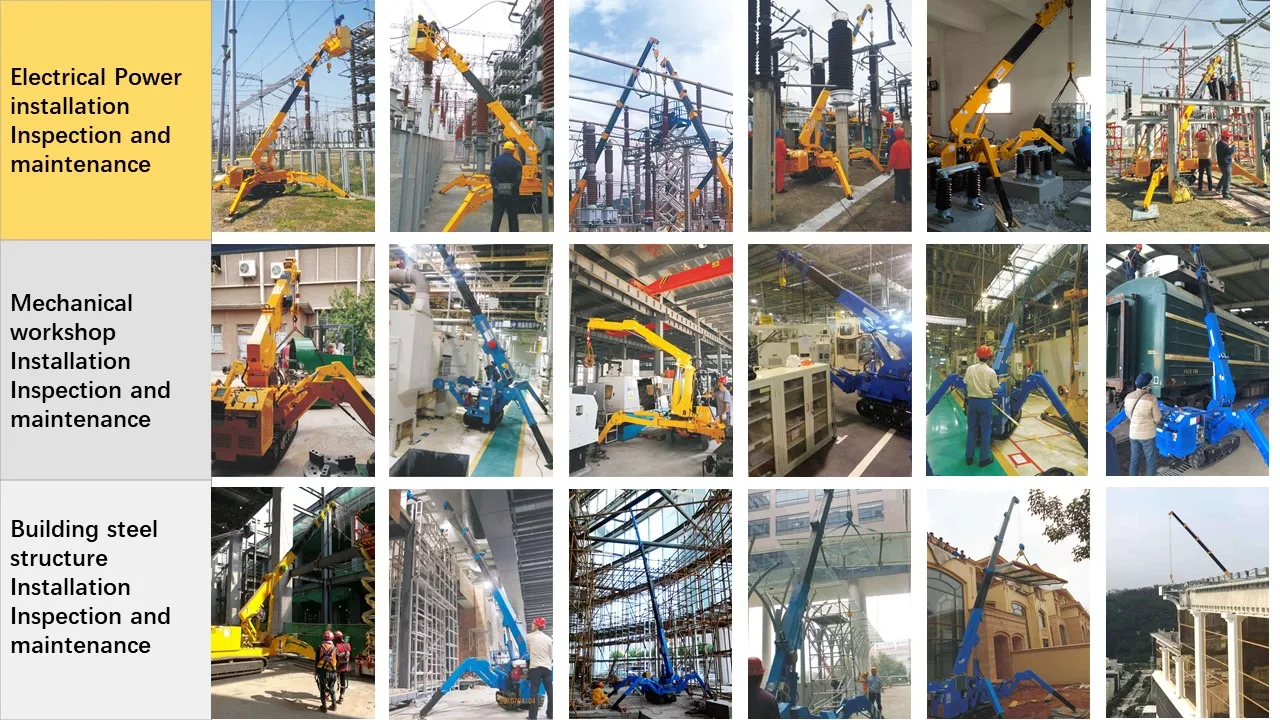

Applications
