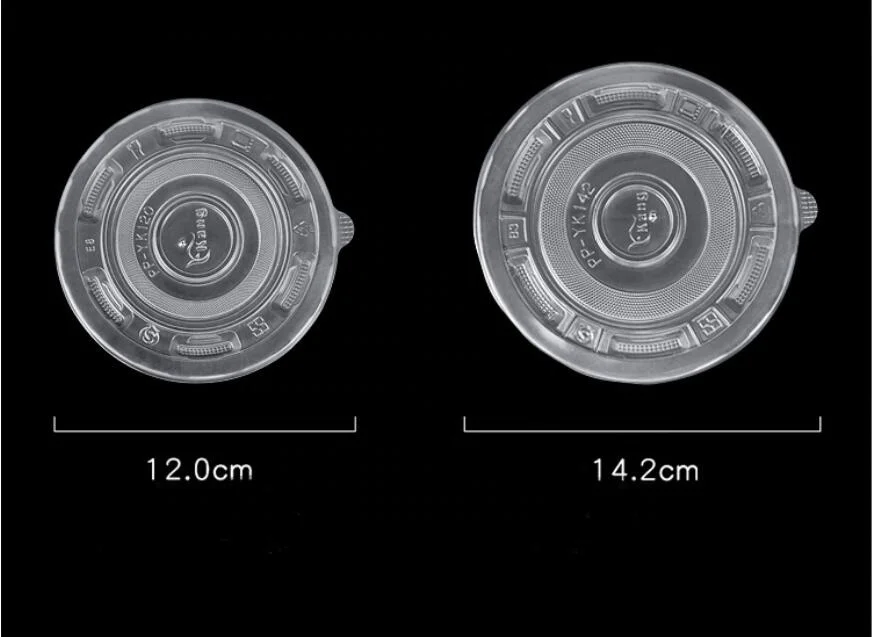

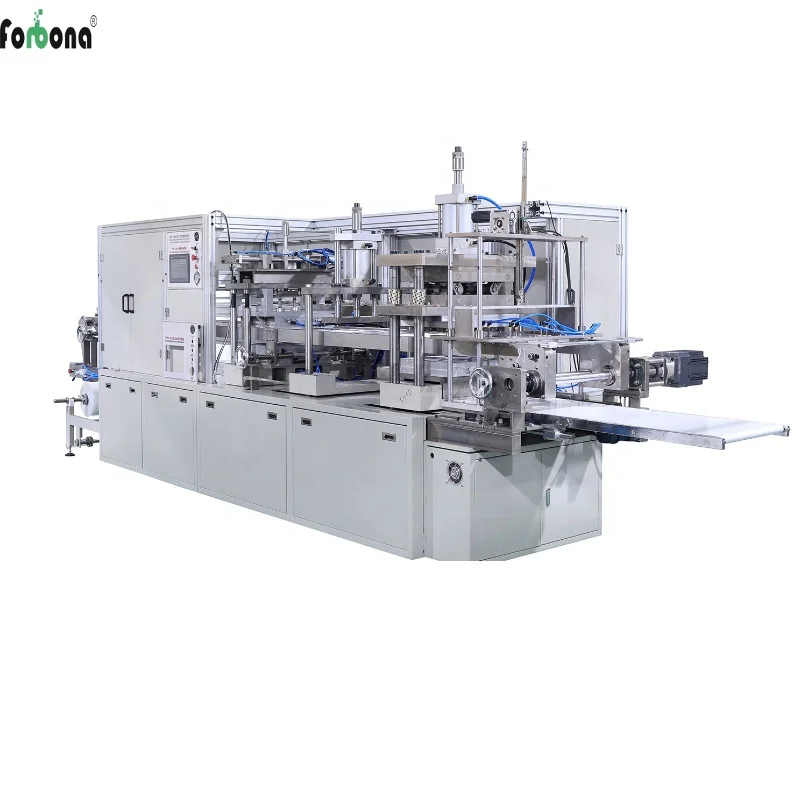

good quality pp plastic cup lids thermoforming machine

Product Overview

Description

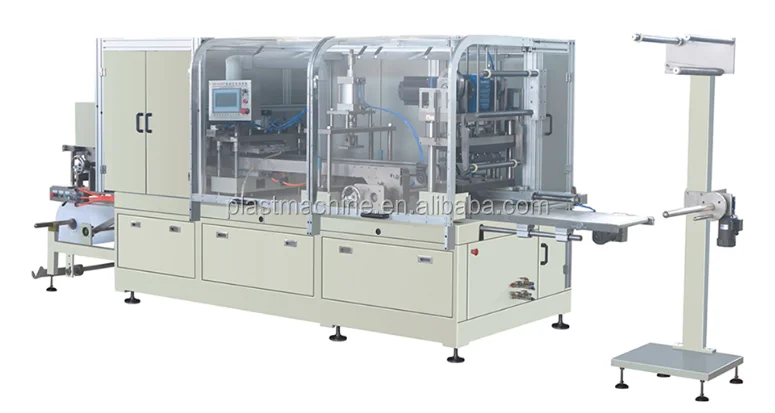

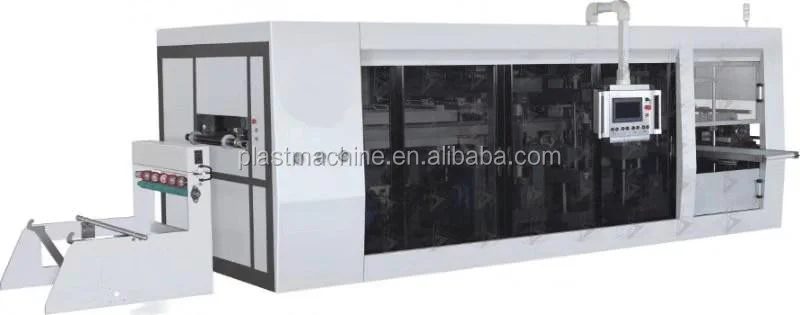

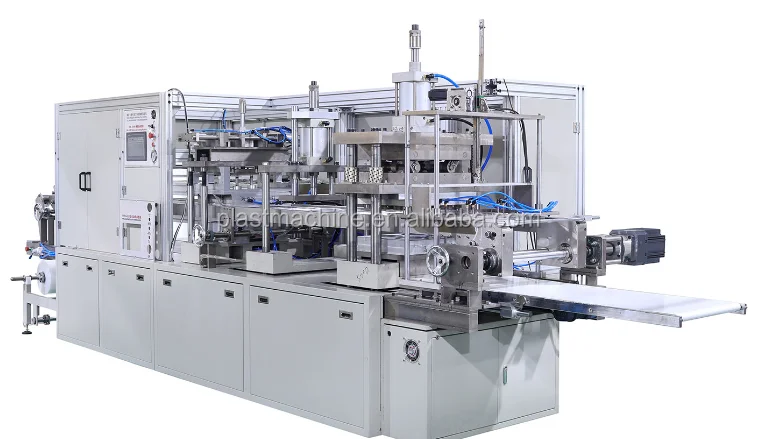

Forbona pp lid making machine

in our factoy there have three kinds model pp lid making machine for you choice ,different machine ,different capacity ,dfferent price

pp lid making macine model	FBN-470
PP lid making machine model	FBN-520
PP lid making machine model	FBN-600



Forbona PP lid making machine .as the first domestic new -type machine .is researched and developed by our scientific researcher according to the market demands and our past production technology .this machine isa multi-station with independence servo motor with slove the problems of food packaging hygienic products .such us large capital investment .large labor input .complicated  production process.lower hygienic security .ETC.but also has exstensive usage .it can be used in the production of pp,ps ,pet ,PVC,PLA plastic products using in metals ,food, pharmaceutical .etc.the machine enjoys beautiful apperance and good price .it is popular with the customers at home and abroad.

Forbona PP lid making machine technical parameter :

Description	FBN470	FBN-520	FBN-600

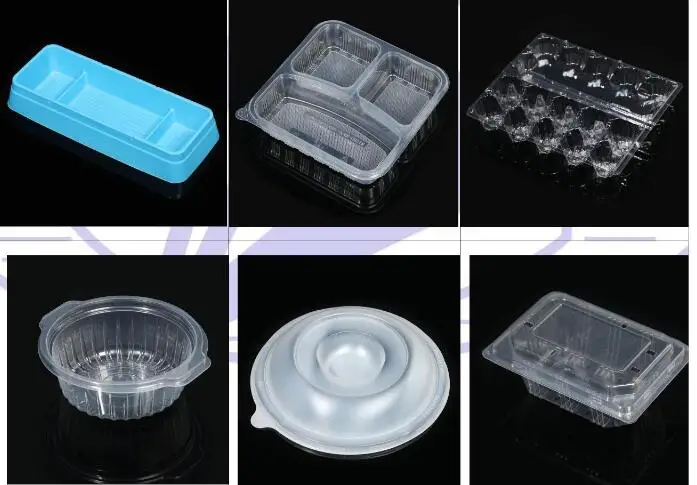

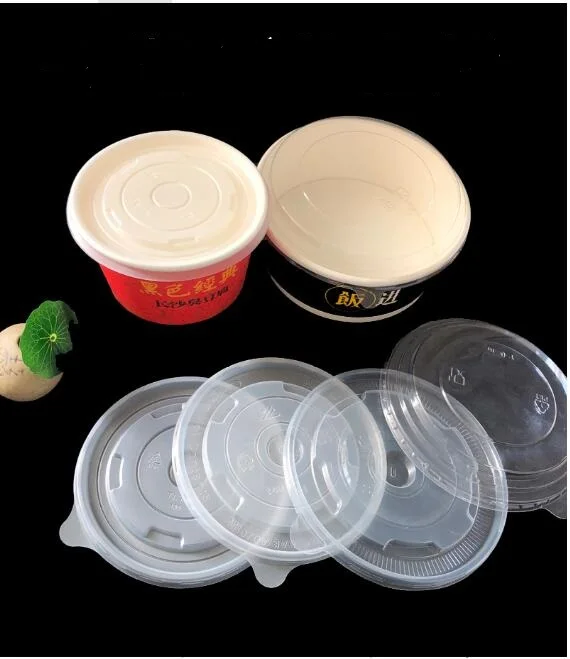

suitable  product	disposable plastic lids ,clamshell box.plates egg tray, ETC
suitable material	PP ,PS ,PET ,PVC,EPS AND PLA
Max.width of material	510mm	560mm	610mm
Max.forming width	4700mm	530mm	580mm
Max.forming length	260mm	350mm	460mm
Max.forming depth	50mm	80mm	80mm
Max.cutting speed	10-35 crycle/min	10-35 crycle/min	10-35 crycle/min
material thickness	0.1-1.5mm
power	380v 50hz three phase four wire
pressure of water supply	0.2MPA
water consumption	0.3m3/h (Tap water or Circulating cooling water)
air exhaust volume	≥0.8m3/min
air pressure	0.6-0.8MPA
machine installation size	5000X1600X2000mm	6000x1800x2100mm	6000x1800x2100mm
machine packing size	4700x1680x2100mm	6200x2000x2300mm	5670x1900x2200m
weight	3500kg	5000kg	6500kg
