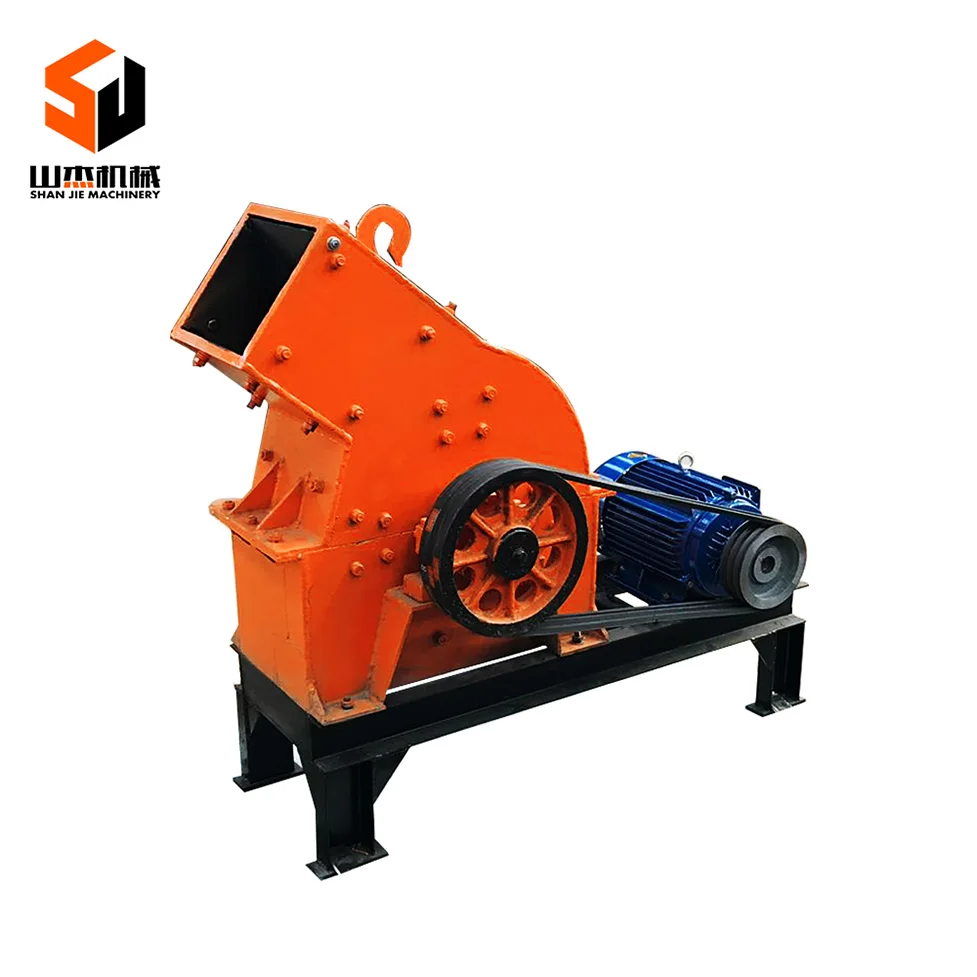

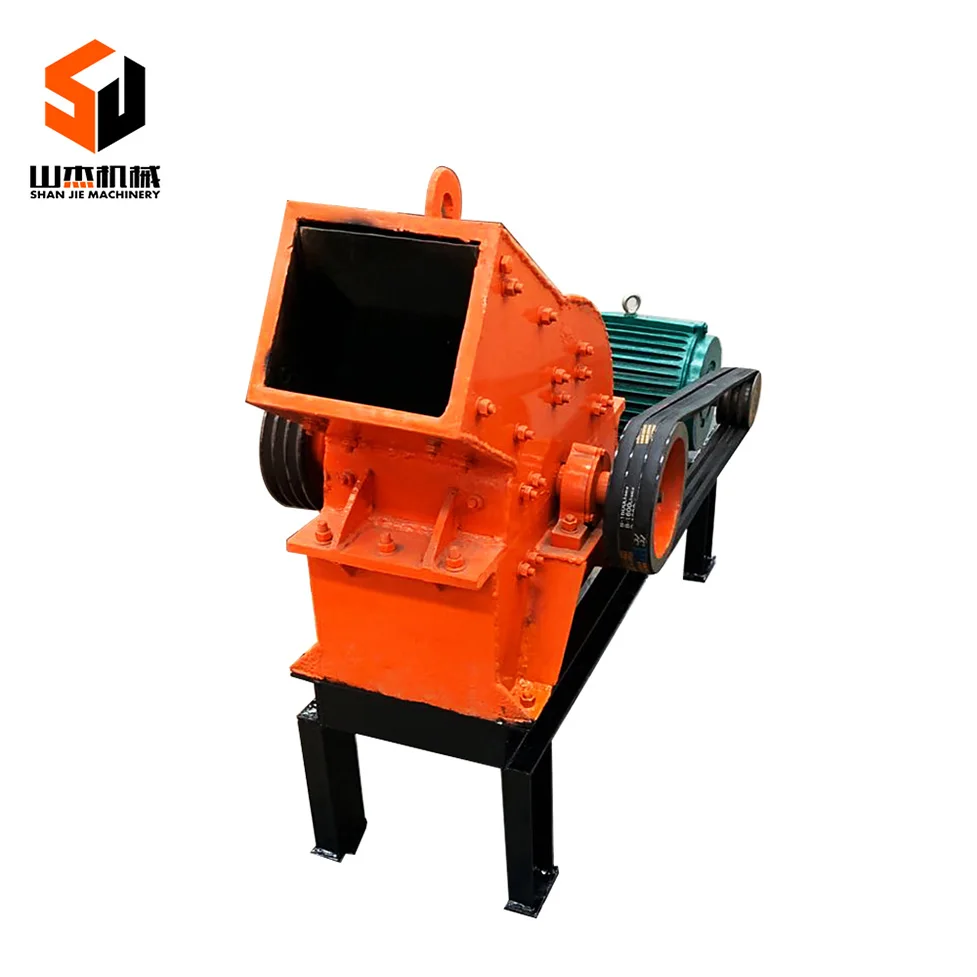

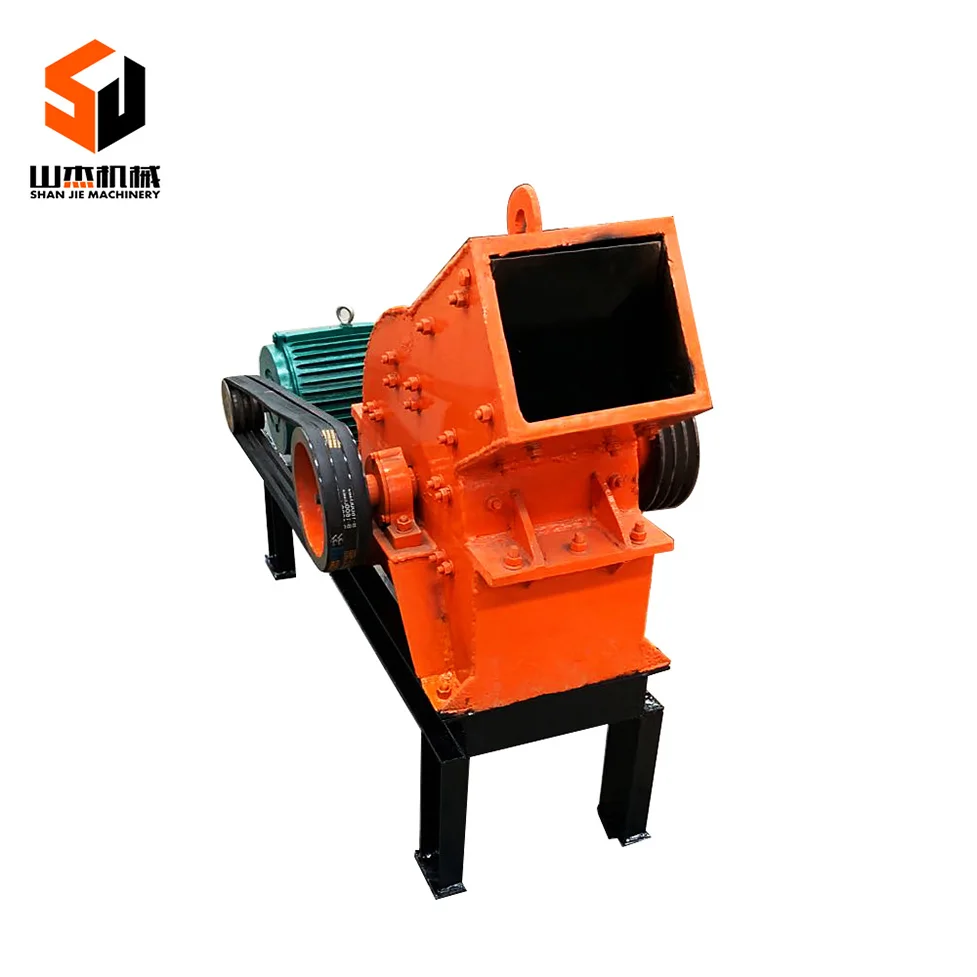

Gold rock mini hammer mill crusher small stone crusher for glass bottle
Hammer crusher is abbreviated as hammer crusher. This series of stone crushers is a small-scale sand and gravel production line with low investment and quick results. It can change the form of discharge grate to achieve selective discharge. It has the characteristics of small size, light weight, simple structure, easy operation and maintenance, large crushing ratio, small over crushing, uniform product size, and high production capacity. It is suitable for crushing various materials with brittle, medium-hardness and compressive strength less than 150MPa.
According to the size of the screen, the hammer crusher is divided into hammer fine crusher and hammer coarse crusher, which can be better for customers to choose. The characteristic of this machine is that the hammer head is cast with a new technology, which is wear-resistant and impact-resistant, and can be adjusted to the required particle size according to customer requirements. At the same time, the machine body is sealed, which solves the problem of dust pollution and ash leakage in the crushing workshop. And the overall design has the advantages of beautiful appearance, compact structure, few wearing parts, and convenient maintenance. It is an upgraded product.
Model | Feed size | Output size | Capacity | Motor power(kw) | Weight(t) | size |
PCΦ400×300 | ≤200 | ≤25 | 5-10 | 11 | 0.8 | 900×670×860 |
PCΦ600×400 | ≤250 | ≤30 | 10-22 | 22 | 2.26 | 1200×1050×1200 |
PCΦ800×600 | ≤250 | ≤35 | 18-40 | 55 | 4.8 | 1310×1180×1310 |
PCΦ1000×800 | ≤350 | ≤35 | 25-50 | 75 | 5.9 | 1600×1390×1575 |
PCΦ1000×1000 | ≤350 | ≤35 | 30-55 | 90 | 8 | 1800×1590×1775 |
PCΦ1200×1200 | ≤350 | ≤35 | 50-80 | 132-160 | 19.2 | 2060×1600×1890 |
PCΦ1400×1400 | ≤350 | ≤35 | 50-100 | 280 | 32 | 2365×1870×2220 |
PCΦ1600×1600 | ≤350 | ≤35 | 100-150 | 480 | 37.5 | 3050×2850×2800 |
