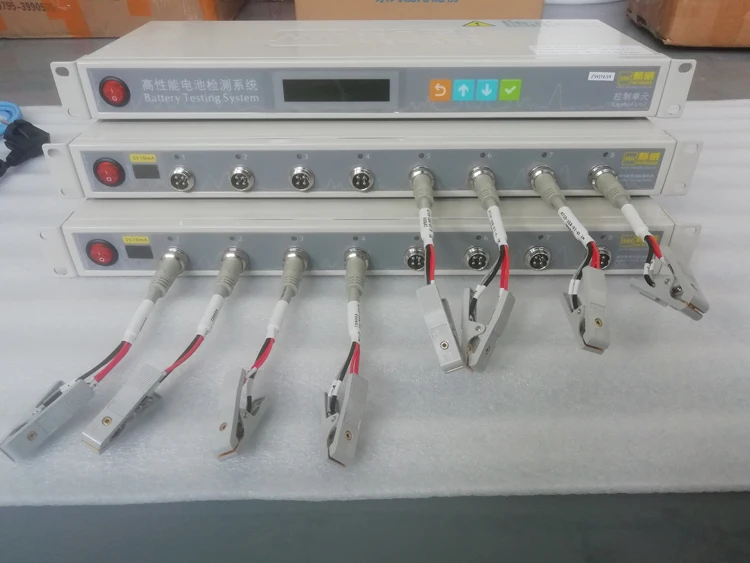

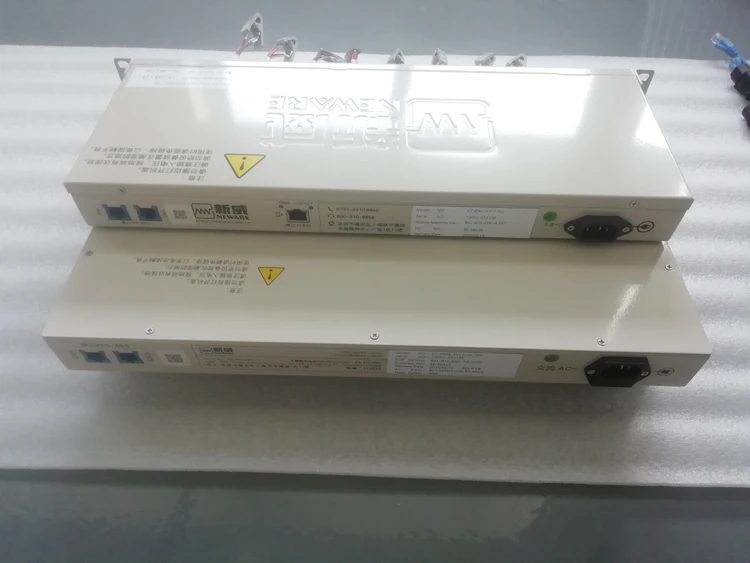

Factory supply attractive price battery testing system AOT BTS 5V10mA coin cell tester
- Category: >>>
- Supplier: Xiamen Aot Electrocnics Technology Co. ltd.
Share on (1600133289752):
Product Overview
Description
Description
It is an eight-channel battery analyzer to analyze small coin cells from 0.001 mA to 10 mA, up to 5V. Each channel of the analyzer
has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software. This
system provides most applications in battery testing fields such as electrode materials research, battery performance test,
small-scale battery formation, capability grading, battery pack testing and etc.
has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software. This
system provides most applications in battery testing fields such as electrode materials research, battery performance test,
small-scale battery formation, capability grading, battery pack testing and etc.
Specification
Model | AOT-BTS-5V10mA Coin cell tester |
Input Power | AC 220V ±10% 50Hz |
resolution | AD：16bit；DA：16bit |
Input Resistance | ≥10 GΩ |
Input Power | 25W |
Constant Voltage Range | 25mV~5V |
Discharge Min Voltage | 0V |
Per Channel Current Range | Range1: 5uA-1mA , Range2: 1mA-10mA |
Accuracy | ± 0.05% of FS |
Constant voltage cutoff current | Range1：2uA；Range2：0.02mA |
Stability | ± 0.05% of FS |
Per Channel Output Power | 0.05W |
Stability | ± 0.1% of FS |
Channel Control Mode | Independent Control |
DCIR testing | Support |
Voltage and Current Testing Sample | 4-wire connecting |
Noise | <85dB |
Database | MySQL Database |
A Means of Communication of Upper Machine | TCP/IP Protocol |
Data Output | EXCEL、TXT、Graph |
Communication Interface | Ethernet Port |
Per Unit Main Channels No. | 8 |
Dimensions | 250*200*60(mm) |
Product Description
Company Profile
About Us
Certifications

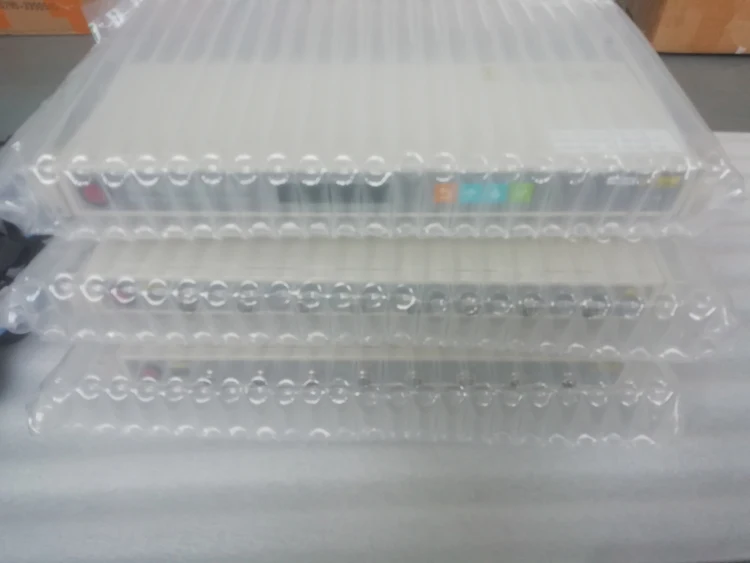

Packing & Delivery
