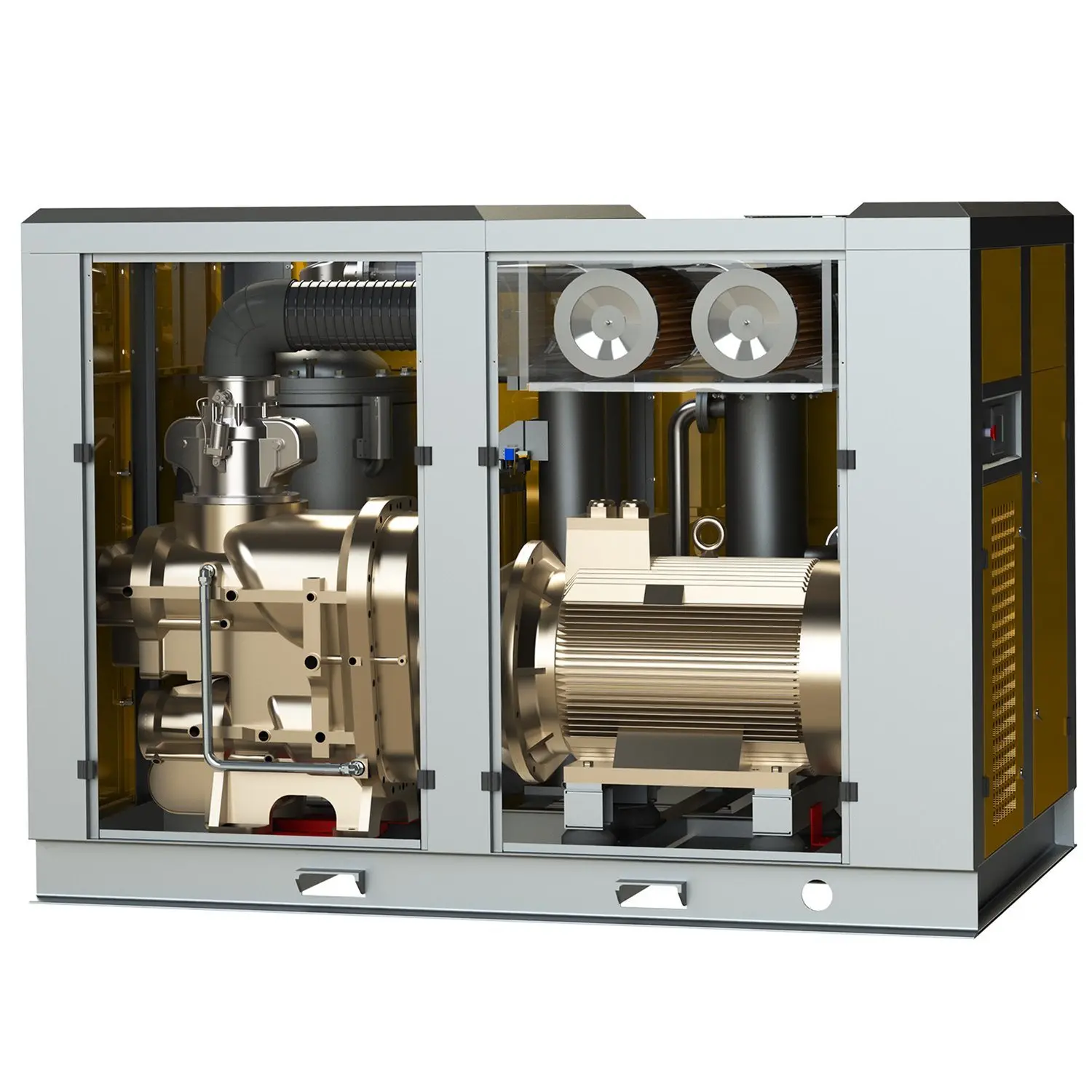

110kw 7bar Two Stage Compression Double Screw Air Compressor for Moulding Machines
- Category: Industrial Compressors >>>
- Supplier: Shanghai Success Engine Compressor Co. Ltd.
Share on (1600133454579):
Product Overview
Description
Company Profile
Shanghai Success Engine Compressor Co.,Ltd was established in 2004, it is a professional manufacture for screw air compressor,centrifugal air compressor, air blower, vacuum pump and the compressed air treatment equipment. With more than 15years experience;complete products line; high-efficiency and rigorous R&D team; mature and stable technology; ISO,CE,ASME and TUV certificate; and one hour to Shanghai Port,these are the reasons how we can provide superior quality and competitive products to global customers.
Product Advantages
* Isothermal compression will not produce a lot of heat waste, so it has high energy utilization efficiency.
* Two stage air compressor airend has higher volume ratio, so it’s compressed air production is higher.
* Save power consumption and operation cost.
* Two stage air compressor airend has higher volume ratio, so it’s compressed air production is higher.
* Save power consumption and operation cost.
PRODUCT SPECIFICATIONS
No | Item | Data | Note |
1 | Model | SE110AE-7 | |
2 | Compressed Stage | Two Stage | |
3 | Free air delivery (m3/min) | 24.5m3/min | |
4 | Working pressure (bar) | 7 | 0.7Mpa |
5 | Power (KW) | 110 | 150hp |
6 | Motor | 380V/3P/50Hz | can be customized |
7 | Protection degree | F | |
8 | Isolation class | IP55 | |
9 | Oil Content (ppm) | 1~3 | |
10 | Cooling method | Air cooling | |
11 | Drive method | Direct Driven | |
12 | Compressed air control method | Automatic (0-100%) | |
13 | Dimension (LxWxH mm) | 2500x1800x1800 | |
14 | Weight (KG) | 3300 |

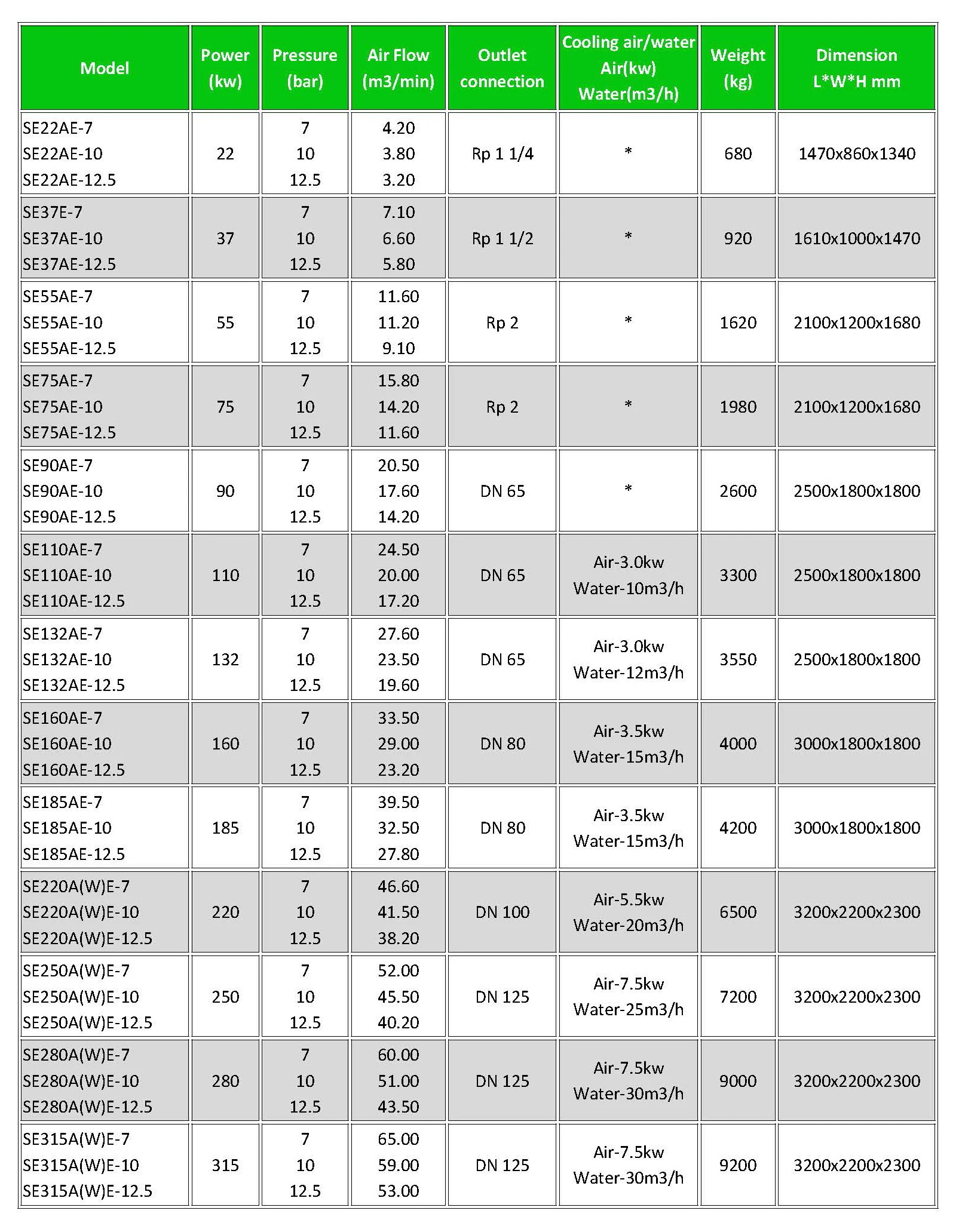

Technical Parameter
Application
1.Operating air tools on production lines
2.Sandblasting and finishing metal
3.Operating automated machinery
4.Blowing a molded gas tank or plastic bottle
5.Efficiently performing basic tasks such as driving screws and turning nuts
6.Increasing production efficiency with air cylinders that power positioners, clamps, air chucks, and air knives
7.Finishing and packaging with pneumatic devices used for liquid padding, carton stapling, appliance sanding, dry powder
transporting and fluidizing
8.Ejecting pieces from production molds
9.Monitoring production
2.Sandblasting and finishing metal
3.Operating automated machinery
4.Blowing a molded gas tank or plastic bottle
5.Efficiently performing basic tasks such as driving screws and turning nuts
6.Increasing production efficiency with air cylinders that power positioners, clamps, air chucks, and air knives
7.Finishing and packaging with pneumatic devices used for liquid padding, carton stapling, appliance sanding, dry powder
transporting and fluidizing
8.Ejecting pieces from production molds
9.Monitoring production
Successful Project
Uzbekistan "oil&gas exploration“
Sri Lanka “Rubber industry”
Russia “Electric Power Industry”
FAQ
1. Are you factory?
Yes,our factory is located in Shanghai China since year 2004.
Yes,our factory is located in Shanghai China since year 2004.
2. What's the delivery time?
Generally,15-30days.
Generally,15-30days.
3. What’s the average life of your air compressor?
12-15years
4. How long is your compressor warranty?
Usually,1 year /12 Months for whole compressor machine. It can be extended after negotiation.
5. Are you accept OEM/ODM,mark with client’s logo?
Yes, it’s available.
6. Whats your payment terms?
Usually,1 year /12 Months for whole compressor machine. It can be extended after negotiation.
5. Are you accept OEM/ODM,mark with client’s logo?
Yes, it’s available.
6. Whats your payment terms?
Usually, 1)30% TT in advance and balance before the shipment. 2)100% irrevocable L/C at sight. 3)Western Union. The other terms can be discussed.
