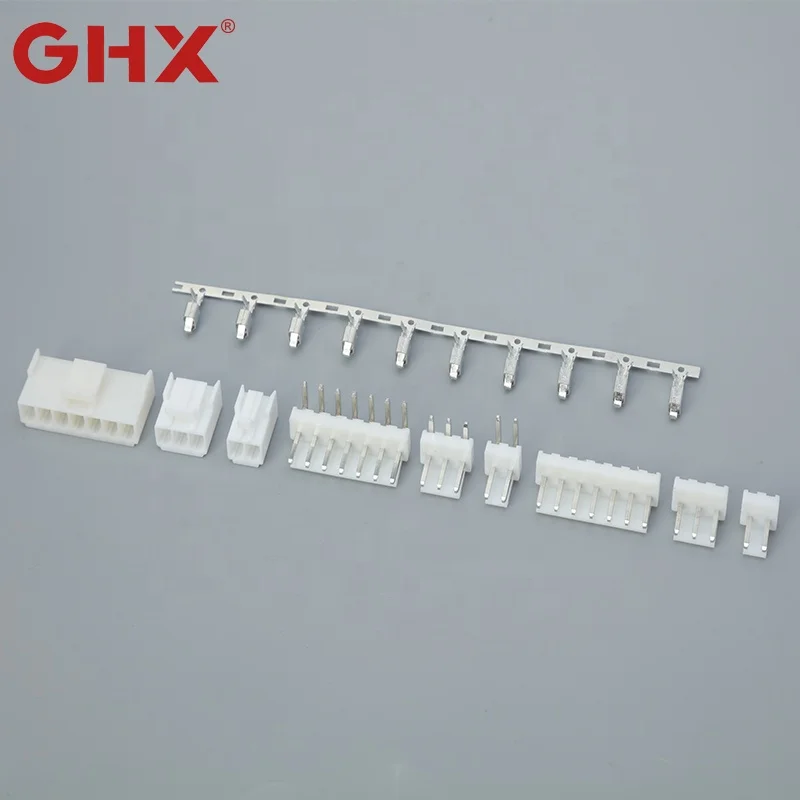

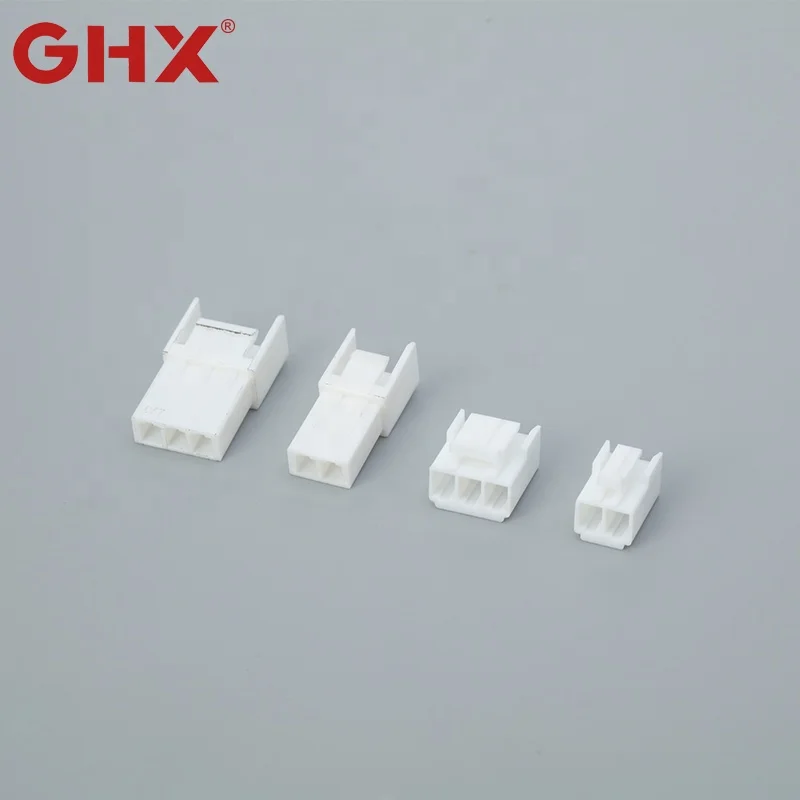

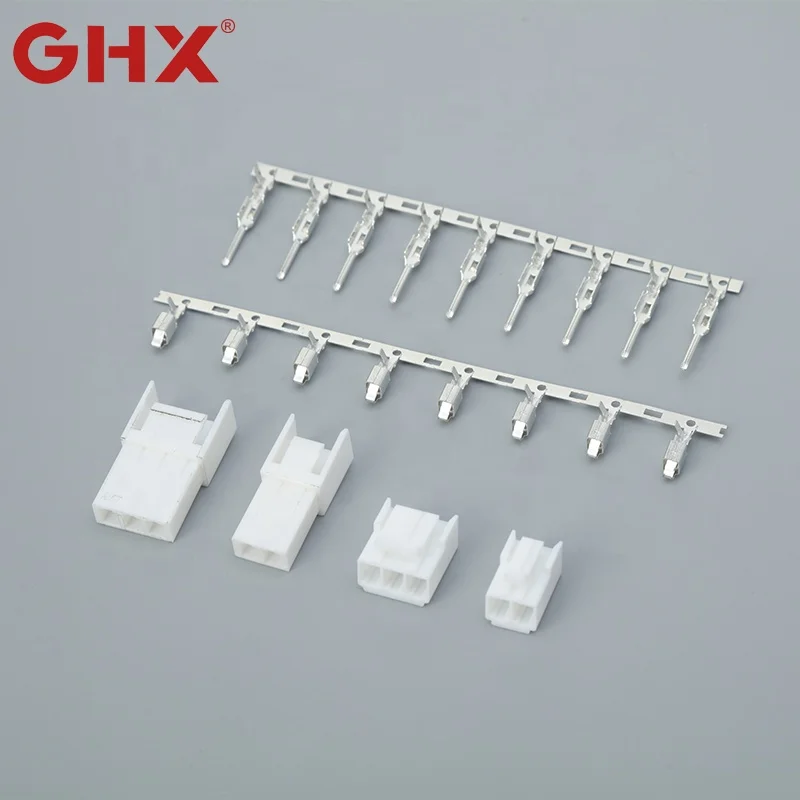

GHX VH 3.96mm pitch header bar wire to board connector
- Category: >>>
- Supplier: Zhejiang Yuelong Electric Co. Ltd. [Zhejiang China]Zhejiang
Share on (1600133602890):
Product Overview
Description
Product Detail
Specification-
| Poles: |
2-15 |
| Applicable wires: | AWG26#-18# |
| Applicable PC board thichness: | 1.6MM |
| Temperature range: | -25℃~85℃ |
| Voltage rating: | 250V.AC/DC |
| Current rating: | 7.5A |
| Cotact resistance: | ≤0.15Ω |
| Insulation resistance: | ≥1000MΩ |
| Withstand voltage: | 1500V.AC/1 min |
| Material: | Plug housing:PA66 UL94V-2(0)
Recetacle housing:PA66 UL94V-2(0) Retainer:PA66 UL94V-2(0) Terminal:Phos.bronze Tin plated Brass Tin/plated |
