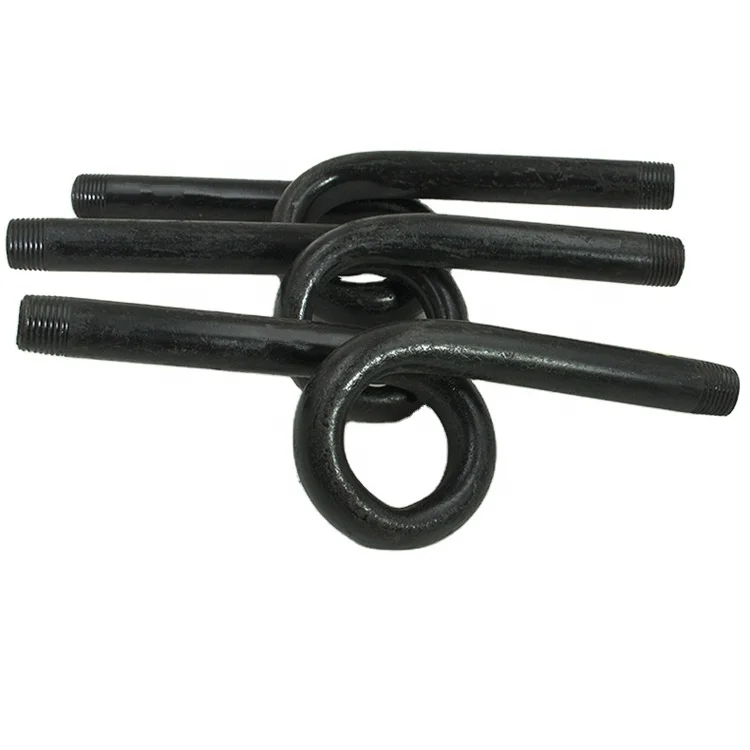

Sch 80 Carbon Steel Seamless 1/4 NPT Straight Pigtail syphon Q Type 180 degrees,Steam coil Scroll syphon
- Category: >>>
- Supplier: Hubei Hi-Tek Valve And Fitting Co. Ltd.
Share on (1600133801747):
Product Overview
Description
Various Products
Product Description
Material | Carbon steel |
Type | Straight pigtail syphon |
Size | 1/4"NPT male |
Pressure Class | 125# |
Pipe size | SCH40 |
Application | Pressure gauges |
Pigtail Siphons are typically used to act as a cooling or warming leg for applications where the process
temperature may be higher or lower than the “normal” working temperature range, as specified by NIST B40.1, in relation to the instrumentation. Temperature extremes can lead to measurement inaccuracy, or otherwise shorten the life span of instrumentation that is not specifically designed for severe duty applications.
temperature may be higher or lower than the “normal” working temperature range, as specified by NIST B40.1, in relation to the instrumentation. Temperature extremes can lead to measurement inaccuracy, or otherwise shorten the life span of instrumentation that is not specifically designed for severe duty applications.
Details Images
Application

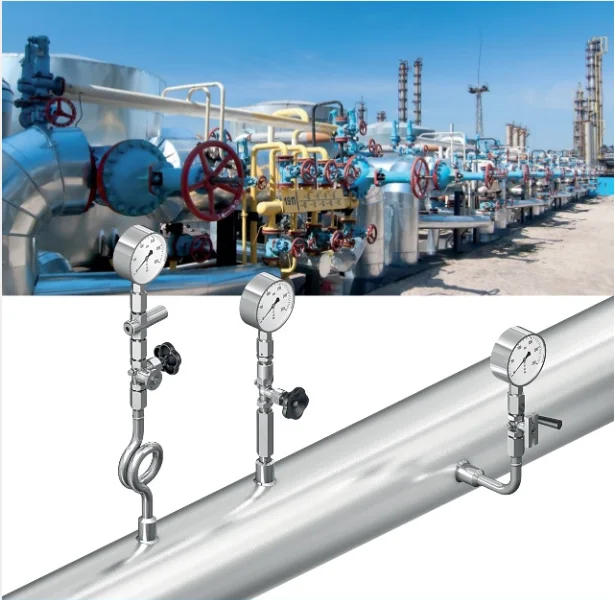

syphon is often used in conjunction with a gauge cock or isolation valve. This helps reduce the temperature of the medium.
Condensation forms and accumulates within the loop or bend, providing the gauge protection before it reaches the gauge head. It can also help the gauge with stand rapid pressure surges.
Condensation forms and accumulates within the loop or bend, providing the gauge protection before it reaches the gauge head. It can also help the gauge with stand rapid pressure surges.
Installation

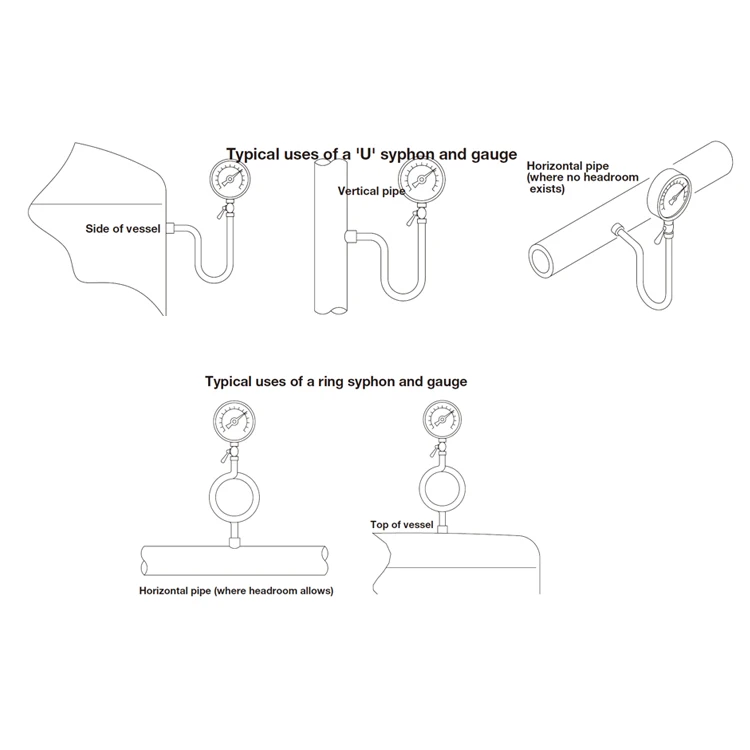

O Type Syphons:The Coil Syphon is normally used for vertical installations.
U Type Syphons:The U Type Syphon is normally used forhorizontal installations.
Why do we use Pressure Gauge Syphons?
Pressure gauge syphons are used to protect the pressure gauge from the effect of hot pressure media such as steam and also to reduce the effect of rapid pressure surges. The pressure medium forms a condensate and is collected inside the coil or pigtail portion of the siphon. The condensate prevents the hot media from coming in direct contact with the pressure instrument. When the siphon is first installed, it should be filled with water or any other suitable separating liquid.
It can also be used to reduce the potentially damaging effects of rapid pressure changes. These low-cost devices allow systems builders to use a pressure sensor with a much lower temperature range in high-temperature applications.
Pigtail for vertical installations
U for vertical installations
Coil for horizontal installations
It can also be used to reduce the potentially damaging effects of rapid pressure changes. These low-cost devices allow systems builders to use a pressure sensor with a much lower temperature range in high-temperature applications.
Pigtail for vertical installations
U for vertical installations
Coil for horizontal installations
that's why:

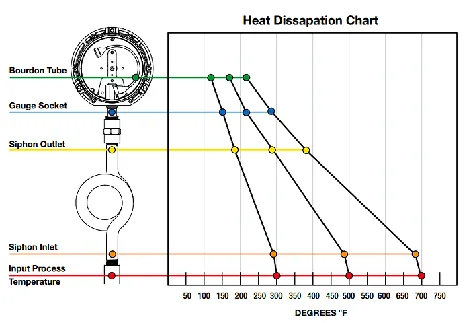

From the example chart, the pressure gauge siphon acts as a thermal barrier between the process media and pressure gauge.
Note: The chart specifications will change based on the type of pressure gauge siphon. The below chart displays the readings for 3 different siphons.
Note: The chart specifications will change based on the type of pressure gauge siphon. The below chart displays the readings for 3 different siphons.
HI-TEK GAUGE SYPHON SPECIFICATION TABLE

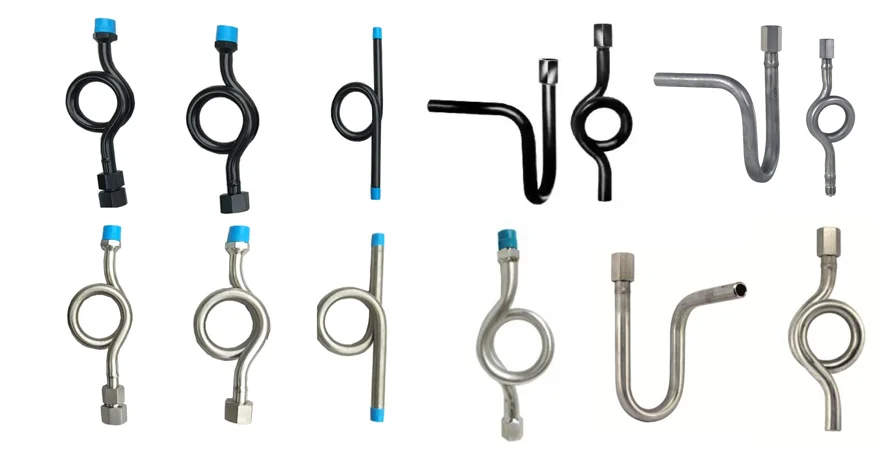

Part No. | material | type | Inlet | out let |
HK-CSOFM0104 | carbon steel | O type | 1/4 NPT Male | 1/4 NPT Female |
HK-SSOFM0104 | stainless steel | O type | 1/4 BSPT Male | 1/4 BSPT Female |
HK-CSOMM0104 | carbon steel | O type | 1/4 NPT Male | 1/4 NPT Male |
HK-SSOMM0102 | stainless steel | O type | 1/2 NPT Male | 1/2 NPT Male |
HK-CSUFM0102 | carbon steel | U type | G 1/2 | G 1/2 LH |
HK-SUFM0102 | steel | U type | G 1/2 | G 1/2 LH |
Note: Accept customization, BSP BSPT NPT and other threads (Male to Female Swivel) | ||||||||||
