electric lifter load 1000kg 2000kg 1500kg walkie full electric stacker pallet lift portable electric forklift

Product Overview

Description

electric lifter load 1000kg 2000kg 1500kg walkie full electric stacker pallet lift portable electric forklift







·The vehicle has a short length, high performance, and small ·channel requirements.

·Integrated module circuit control, easy to repair and replace parts

·Offset control to enhance the field of view and reduce safety accidents

·Lengthen the operating handle to reduce the power required for the entire vehicle operation, and operate lightly

·180 degree no dead angle steering, more flexible control





OEM&ODM

Customize: Color/ Size/  Wheel/ Packaging/ Function











Optional : H-beam,lithium battery and many more;

Customizable : Elevated,Door frame,Wide fork legs,Extended fork and many more.

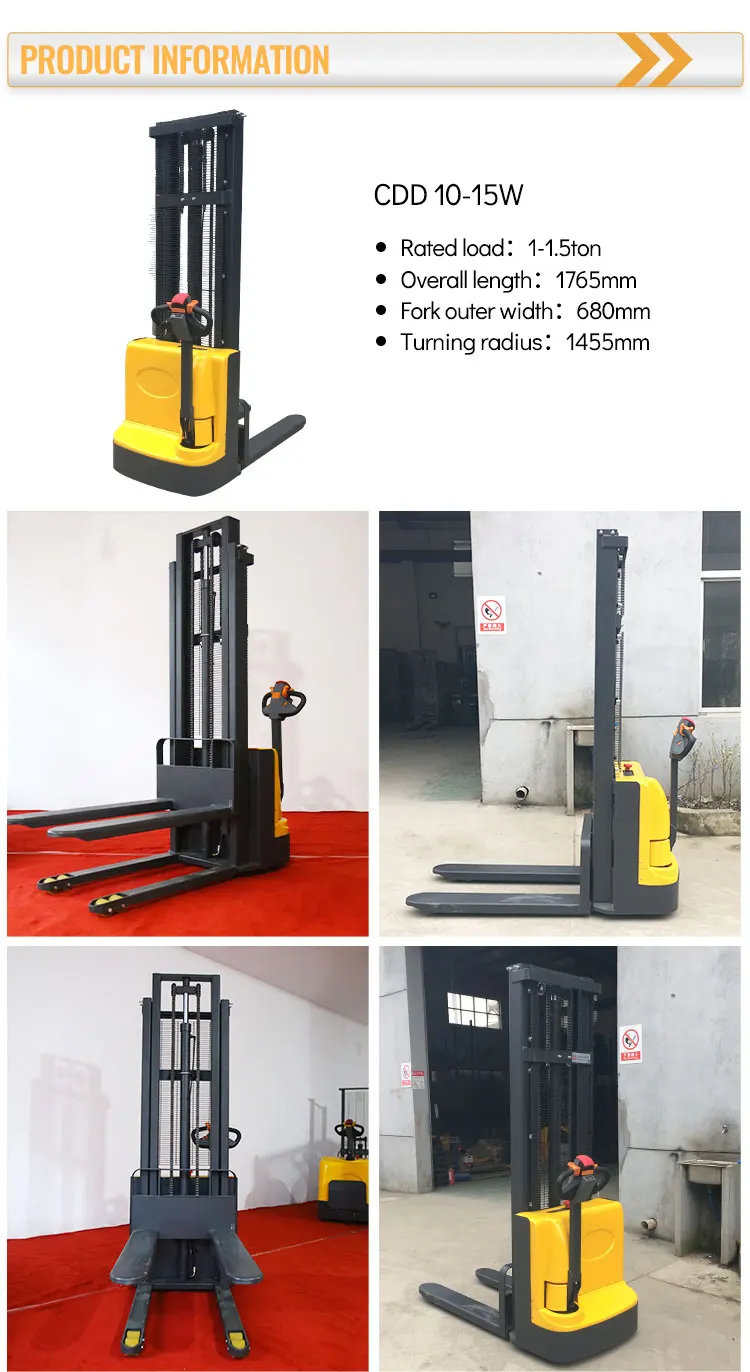

WALKIE ELECTRIC STACKER
MODEL		CDD10W	CDD15W
DRIVE MODEL		ELECTRIC	ELECTRIC
DRIVING STYLE		WALKIE	WALKIE
RATED LOAD	KG	1000	1500
LIFT HEIGHT	MM	1600/2000/2500/3000/3500	1600/2000/2500/3000/3500
MAX HEIGHT AFTER LIFTING	MM	2080/2480/2980/3480/3980	2080/2480/2980/3480/3980
HANDLE HEIGHT FORM THE GROUND	MM	1200	1200
SELF WEIGHT (WITH BATTERY)	KG	500/530/540/550/560	500/530/540/550/560
WHEEL		PU	PU
DRIVE WHEEL SIZE	MM	210×80	210×80
BALANCE WHEEL SIZE	MM	100×50	100×50
LOAD WHEEL SIZE	MM	80×68	80×68
WHEEL QUANTITY	FORNT/REAR+X(X=DRIVE WHEEL)	4/1+1X	4/1+1X
FORK DISTANCE(CAN CHOOSE TO MOVE  THE FORK)	MM	680	680
CHANNEL WIDTH(0.8*1.2M TRAY,1.2M PLACED ALONG THE FORK)	MM	1915	1915
CHANNEL WIDTH(1*1.2M TRAY,1.2M CROSS FORK)	MM	2065	2065
TURNING RADIUS	MM	1455	1455
LIFTING SPEED(NO LOAD/FULL LOAD)	M/S	0.08/0.1	0.08/0.1
FALLING SPEED(FULL LOAD)	M/S	0.15/0.12	0.15/0.12
DRIVE SPEED(FULL LOAD/NO LOAD)	Km/h	4.5/5	4.5/5
CLIMBING ABILITY(NO LOAD/FULL LOAD)	%	5/15	5/15
STERING MODE		MECHANICAL(CAN CHOOSE)	MECHANICAL(CAN CHOOSE)
BRAKING METHOD		ELECTRIC TAXIING	ELECTRIC TAXIING













1. How about the sample policy?

We can accept sample order for testing quality. But sample and express charge should be on customer’s account.

2. How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

3. How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

4. Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.

5. Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products.

Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
