Sand Screen Separator Sand Vibrating Screening Machine


Product Description

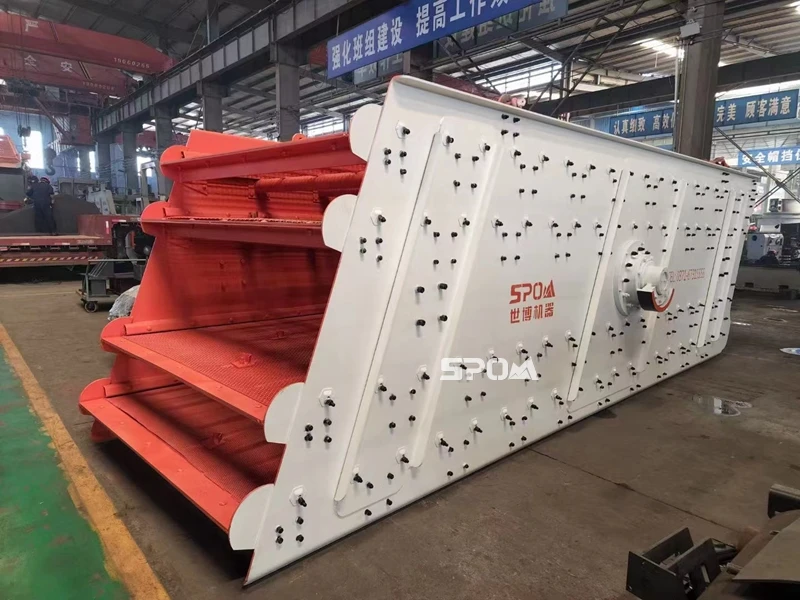

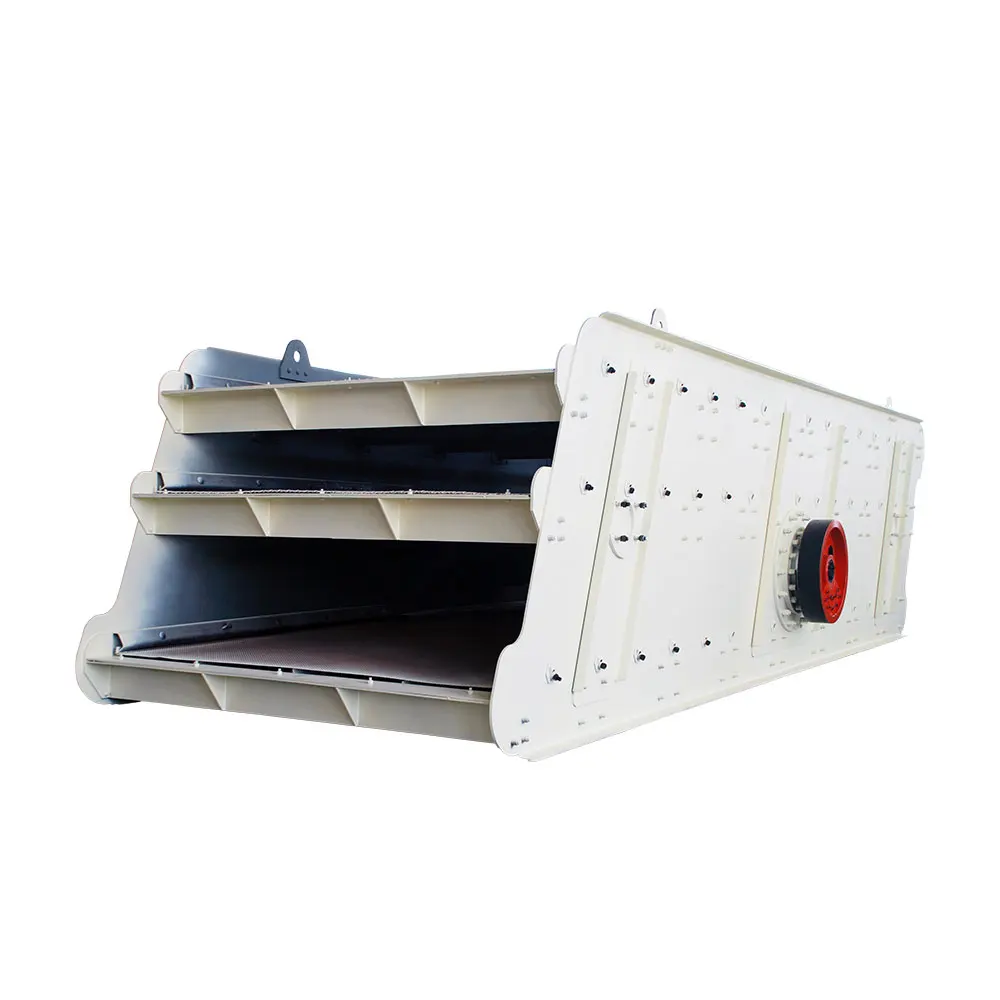

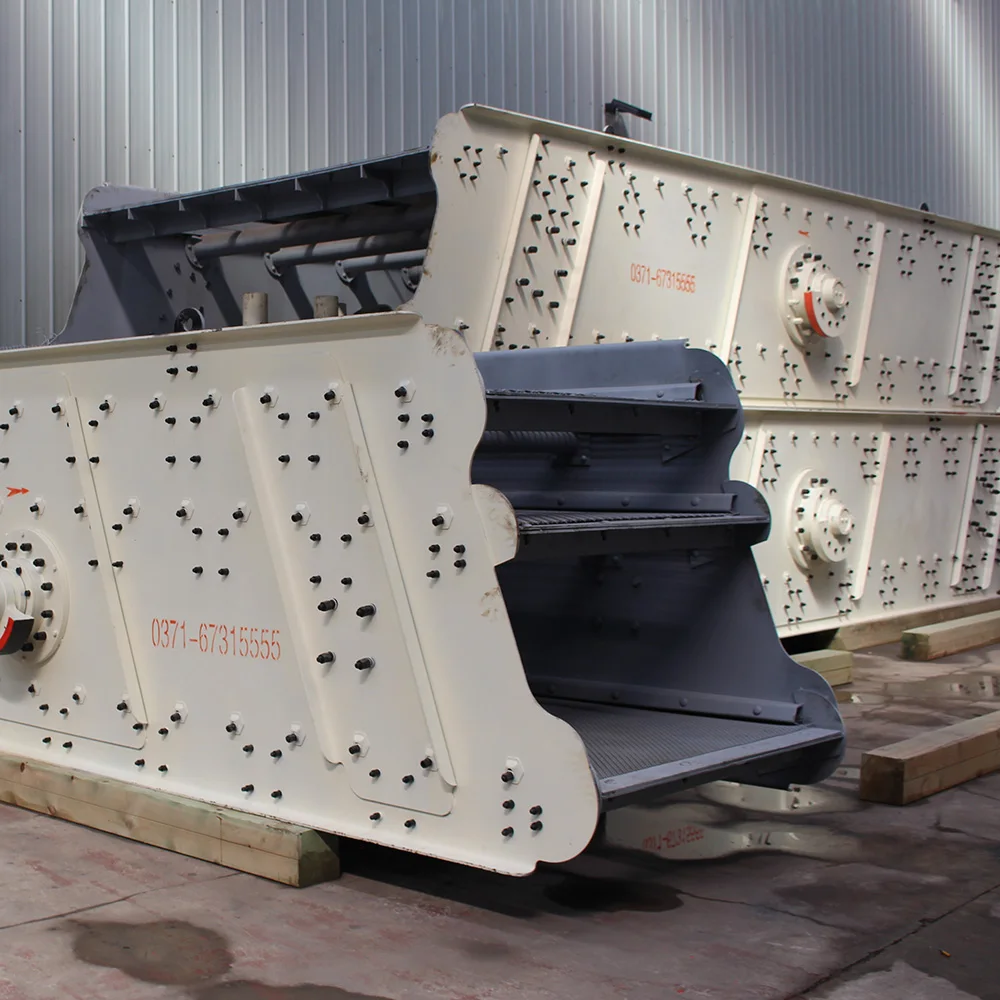

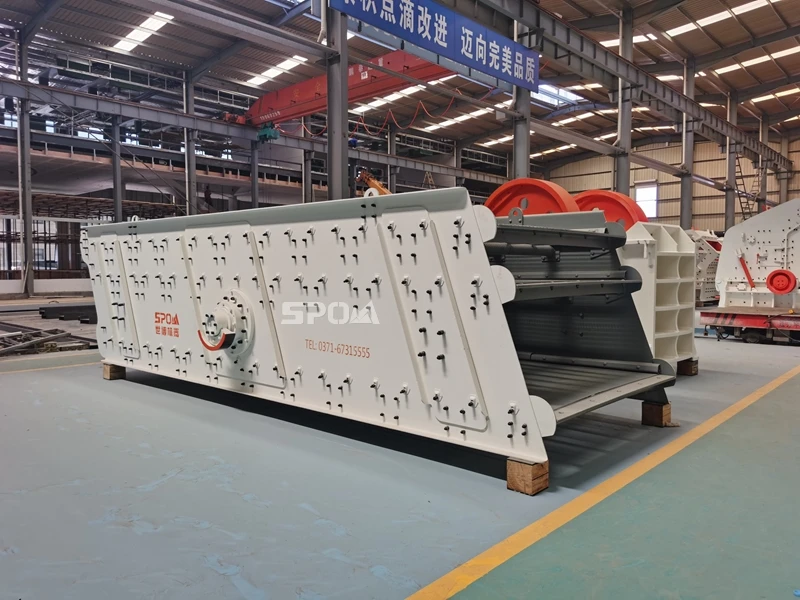

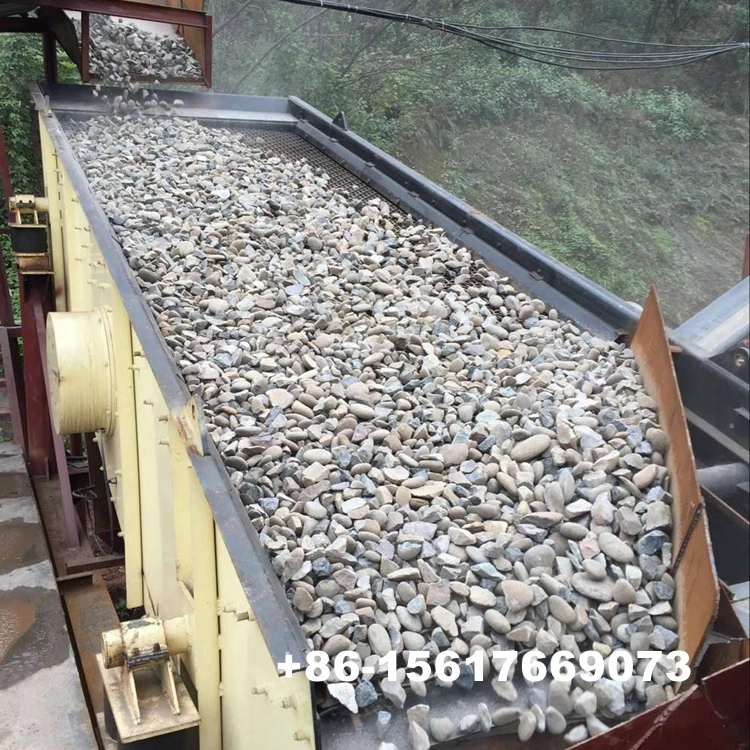

YZK series vibrating screen machine is widely used to classify the minerals such as stone, sand, ore and other kinds of minerals in mining, quarry, construction, building material industry. It can be featured with 2 layers, 3 layers, 4 layers. It is used to sort and classify the materials according to the particle size by its circular vibration.




Features of Shibo Machinery Vibrating screen
1. Using eccentric block as excitation force, the excitation force is stronger
2. The screen beam and screen box adopt high-strength bolts, with simple structure and convenient maintenance
3. Using tire coupling, smooth operation
4. Use small amplitude, high frequency, large inclination structure, high screening efficiency, large processing capacity, long service life, low power consumption and low noise






Model
Screen Surface Specification(mm)
Layers
Feeding Size(mm)
Sieve Pore Size(mm)
Capacity(t/h)
Power(kw)

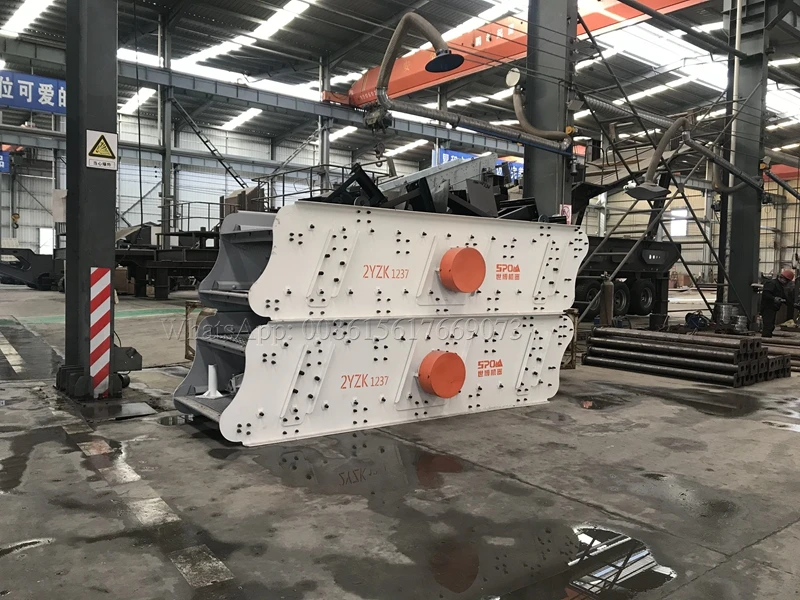

2YZK1237
3700×1200
2
≤400
3-50
30-100
5.5
3YZK1237
3700×1200
3
≤400
3-50
30-100
7.5
2YZK1548
4800×1500
2
≤400
3-100
30-275
15
3YZK1548
4800×1500
3
≤400
3-100
30-275
15
2YZK1848
4800×1800
2
≤400
3-100
56-330
18.5
3YZK1848
4800×1800
3
≤400
3-100
56-330
18.5
4YZK1848
4800×1800
4
≤400
3-80
56-330
22
2YZK1860
6000×1800
2
≤400
3-100
65-586
18.5
3YZK1860
6000×1800
3
≤400
3-100
65-586
22
4YZK1860
6000×1800
4
≤400
3-100
65-586
30
2YZK2160
6000×2100
2
≤400
3-100
81-720
22
3YZK2160
6000×2100
3
≤400
3-100
81-720
30
4YZK2160
6000×2100
4
≤400
3-100
81-720
30
2YZK2460
6000×2400
2
≤400
3-150
100-810
22
3YZK2460
6000×2400
3
≤400
3-150
100-810
30
4YZK2460
6000×2400
4
≤400
3-150
150-850
37
2YZK2870
7000X2800
2
≤400
5-100
120-680
22x2
3YZK2870
7000X2800
3
≤400
5-100
180-720
22x2
2YZK3070
7000X3000
2
≤400
5-100
200-700
37
3YZK3070
7000X3000
3
≤400
5-100
230-800
45

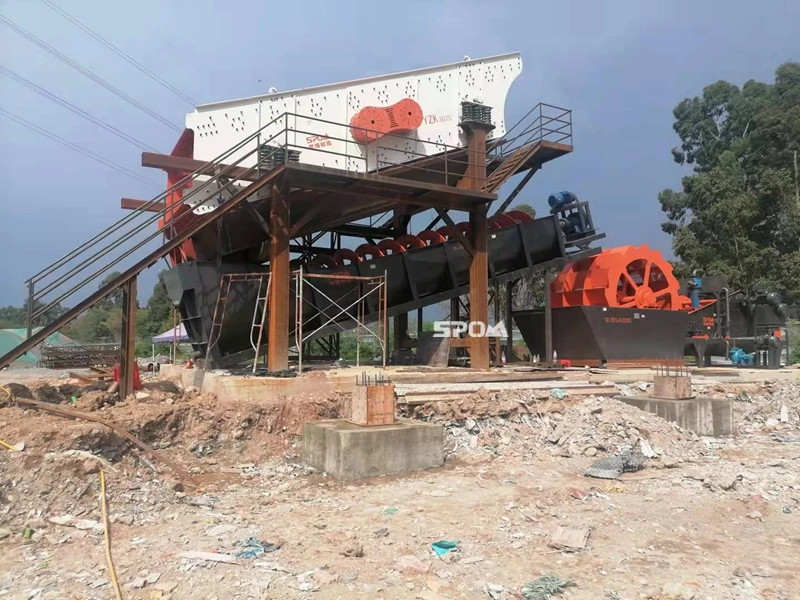

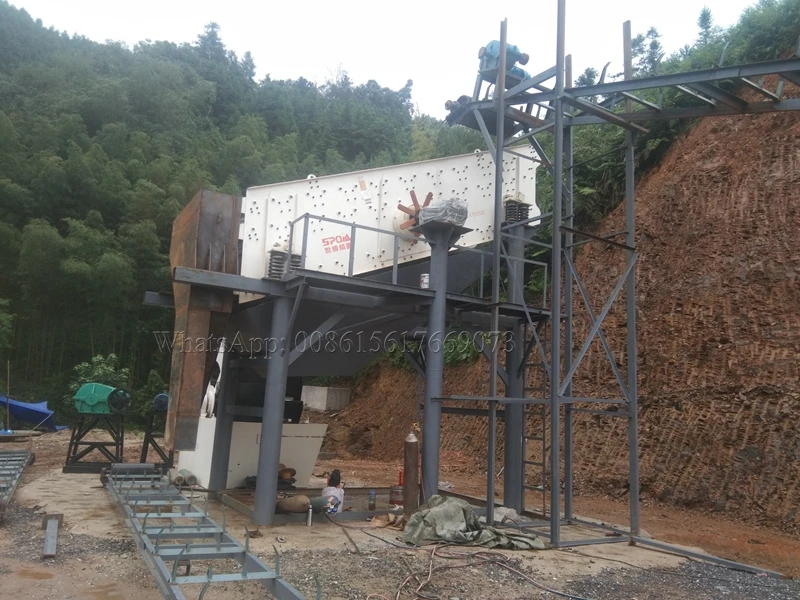

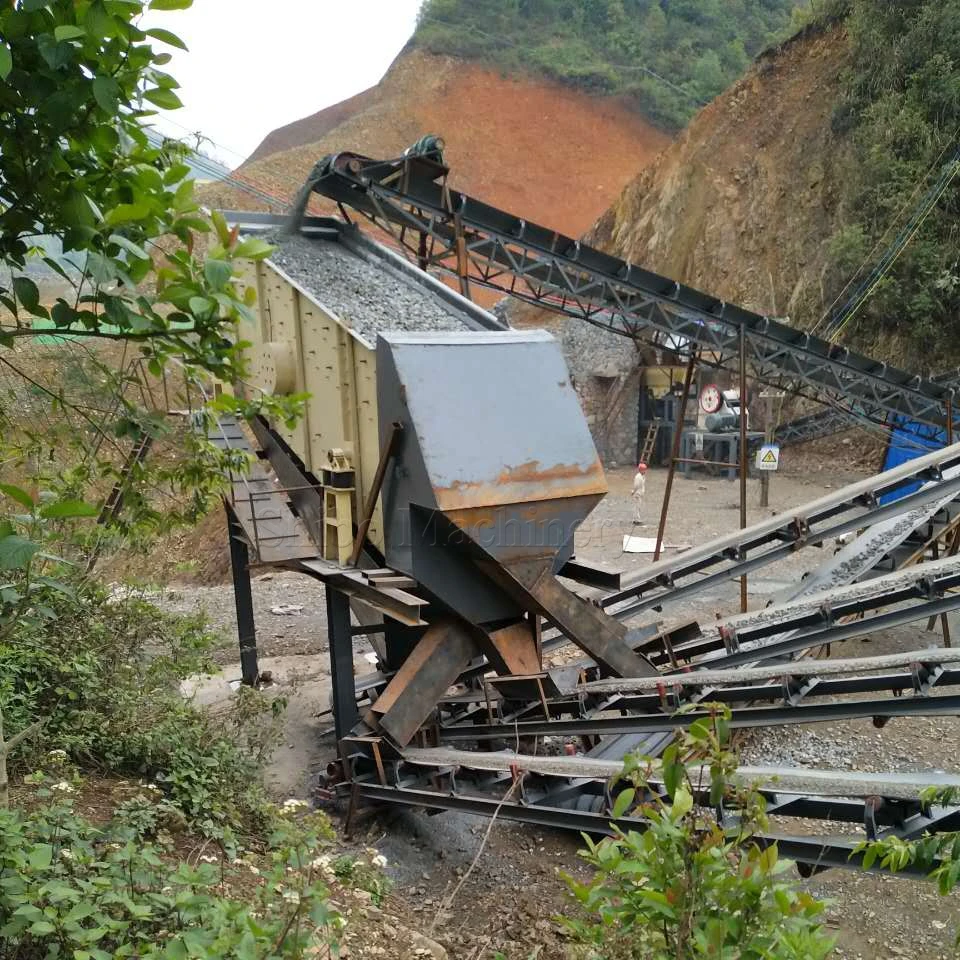

Customer Photos






Contact us

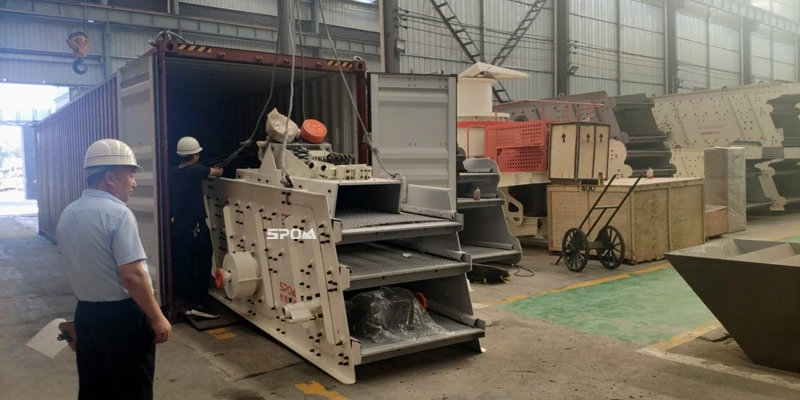

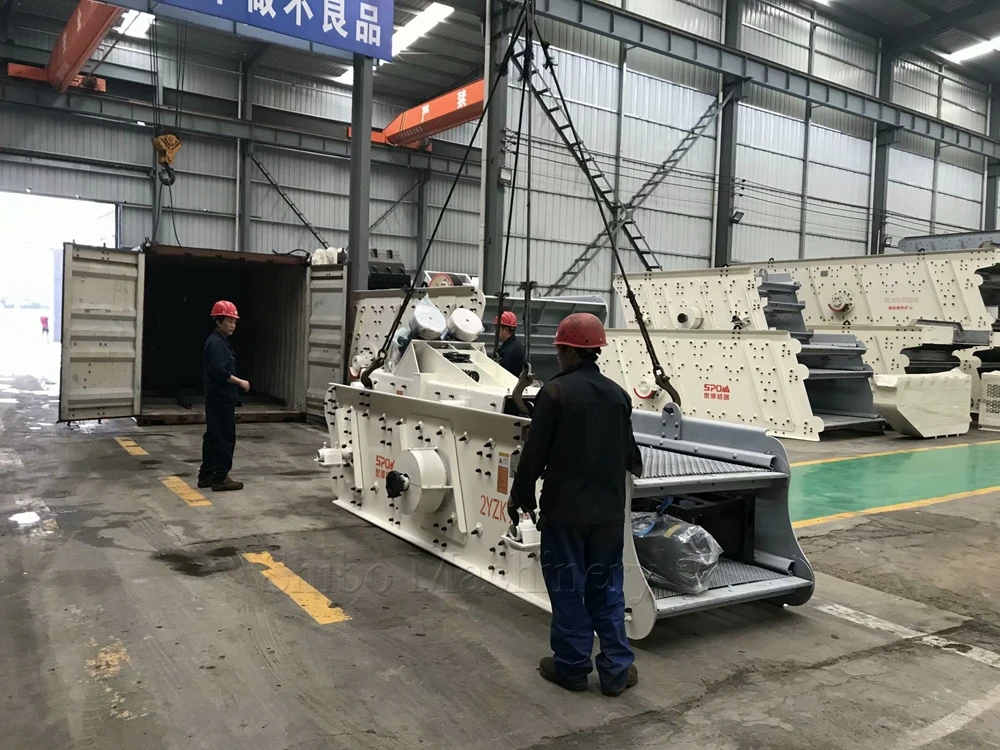

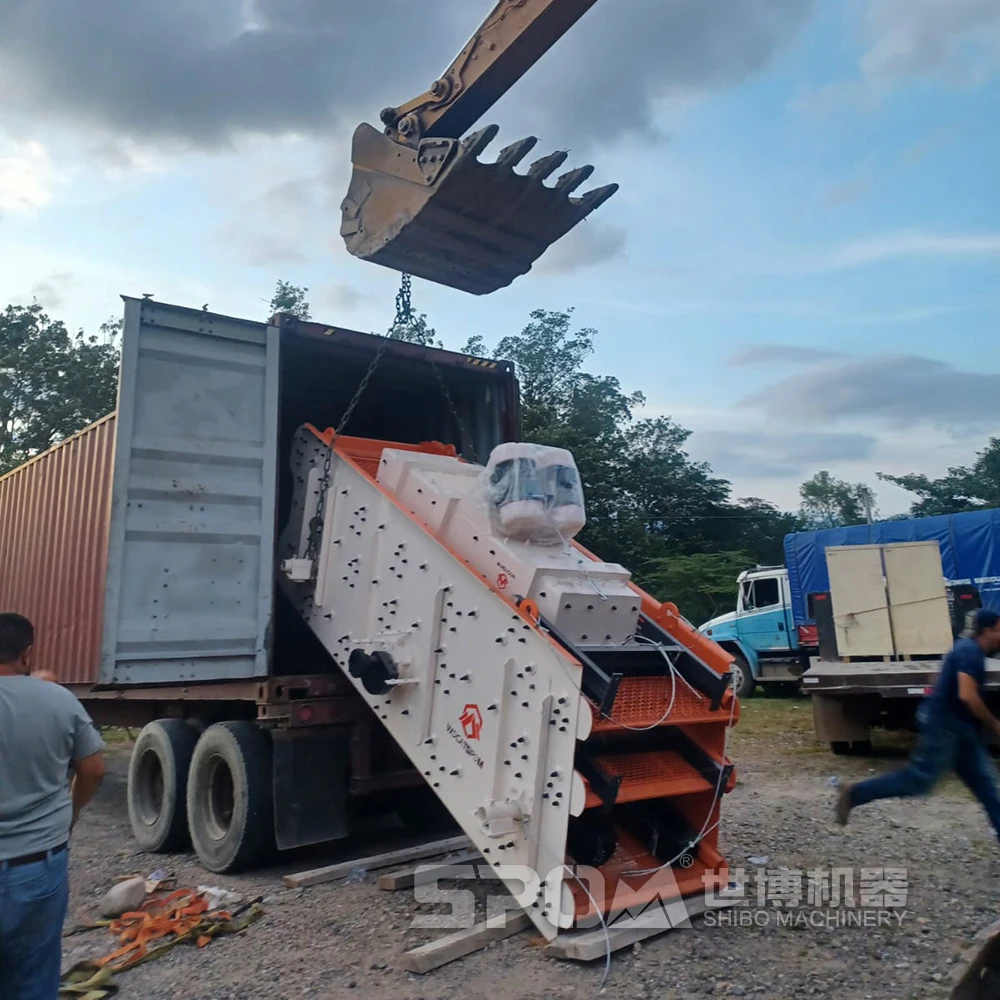

Packing&Shipping

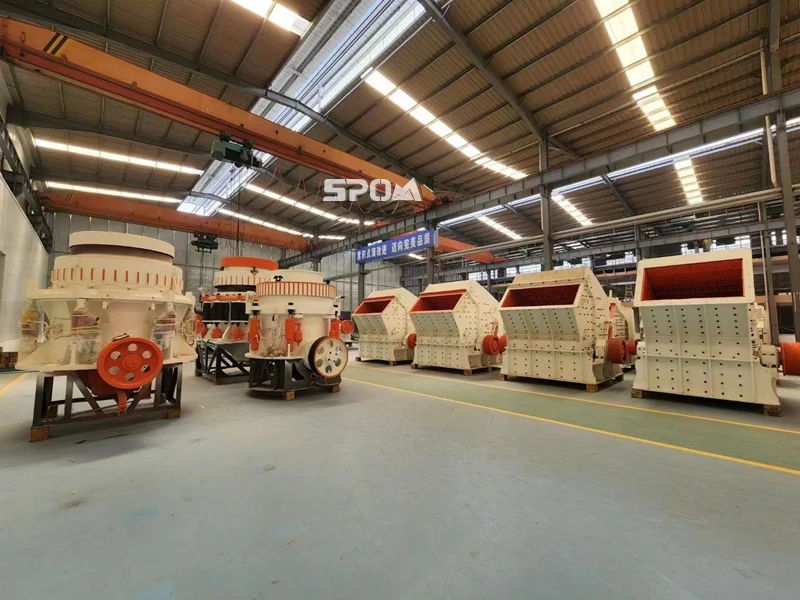

Company Introduction


Zhengzhou Shibo Machinery Manufacturing Co., Ltd (SPOM). is committed to the research, development, production and sales of technical equipment in the mining industry. It mainly produces large-scale crushing, grinding and sand production lines.




Our company has 11 service outlets in China, and also exported products to Europe, America, Asia, Africa etc. more than 30 Country and region. Our company owns an experienced and skilled sales and service team which compose a perfect service network. We will professional engineers to the installation sites and provide guidance for the installation, commissioning and initial run as well as planning administration of the equipment after purchase. And welcome all our client to visit our factory in Zhengzhou.






Recommend Products

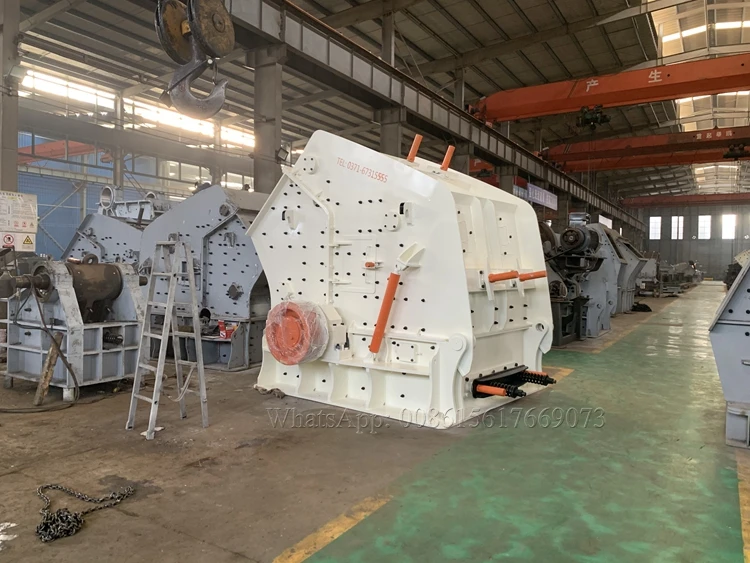

Impact crusher

Deeding size: 250-700 mm
Capacity: 15-500 tons per hour
Generally as secondary crushing, discharge is smaller

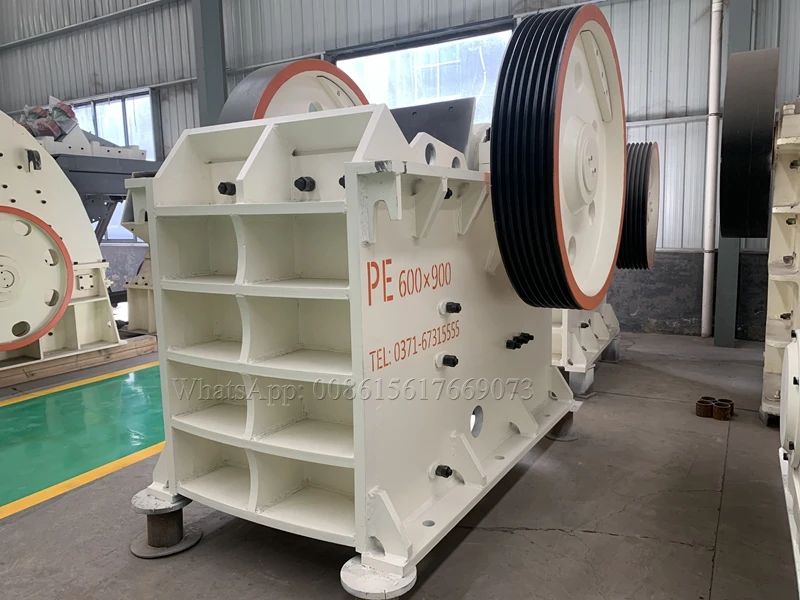

Jaw crusher
Feeding size: 130-900 mm
Discharge size: 15-180 mm
Capacity: 1-500 tons per hour

We have small jaw crusher and big jaw crusher. Big jaw crusher usually as first crushing machine, small jaw crusher could be used as first and second crushing machine.


Vibrating feeder
Vibrating screen



Mobile jaw crusher
Wheel mobile jaw crusher with vibrating feeder.
Capacity:50-300 tons per hour
Feeding size: 300-750 mm
Discharge size: 60-250 mm

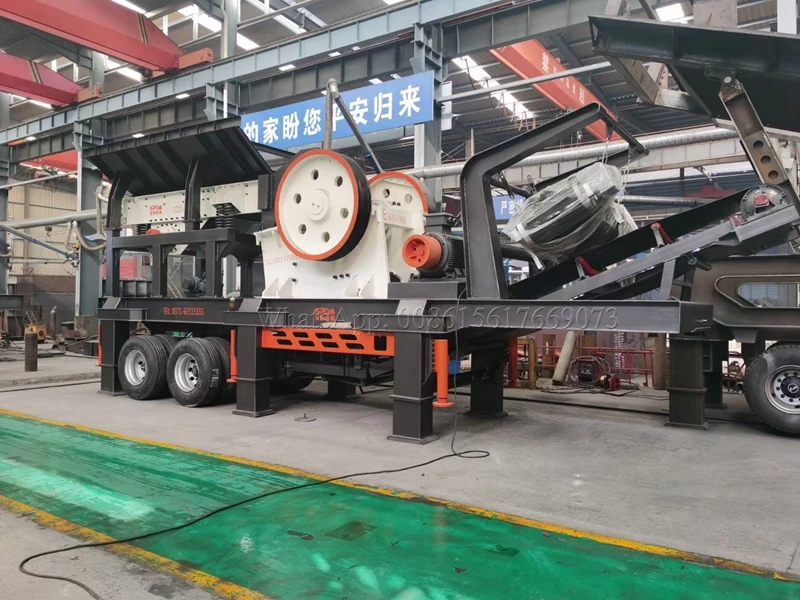

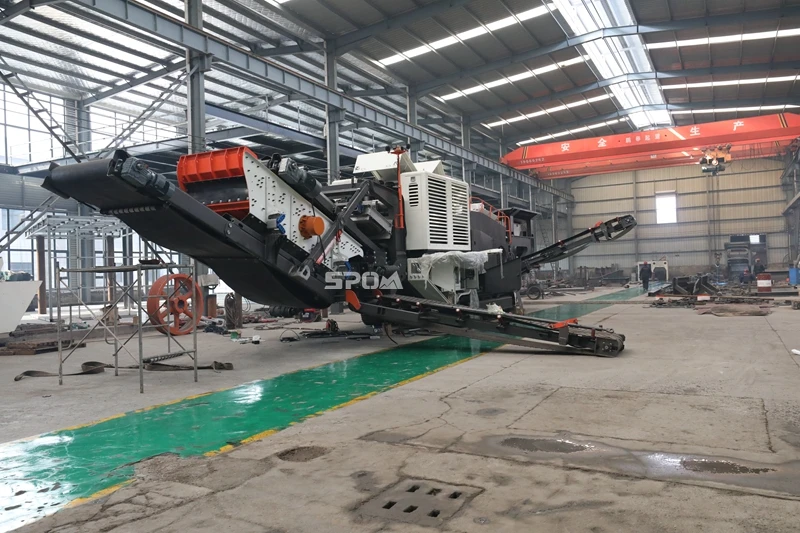

Mobile impact crusher with vibrating screen
Tractor mobile cone crusher with vibrating screen
