|Name||Inkjet Printer machine|
L805 (Modified Machine by R330)
Original 90% new with Second hand print head + power cable+CISS
|Delivery Date||Within 3~5 working days once order confirmed|
|Payment||T/T, Union Western, Paypal, Alibaba trade assurance, Cash...|
⇒ Detail Image

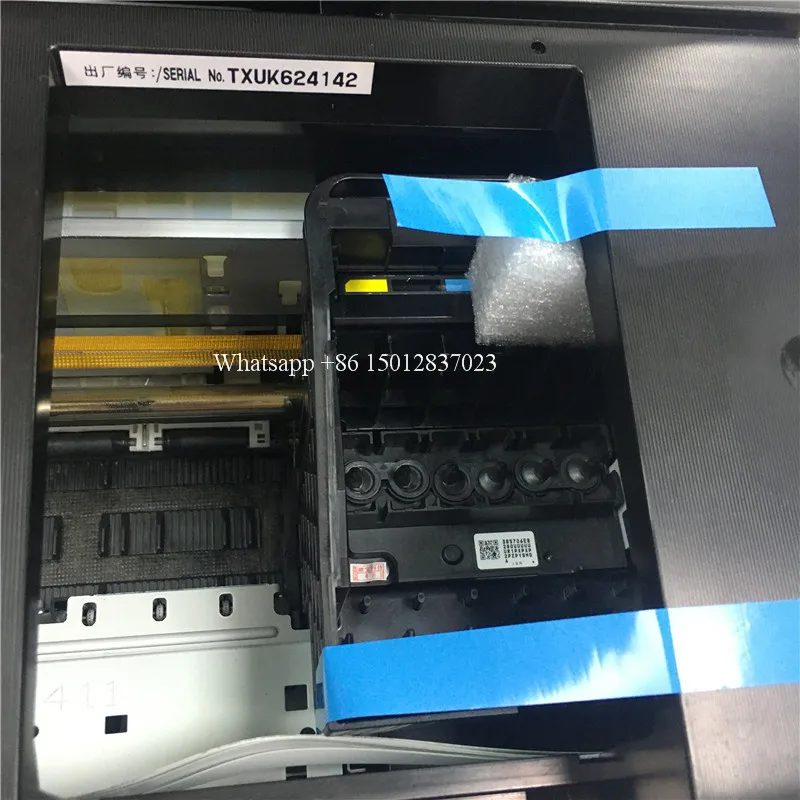

Printer Head Installation:
1. The nozzle of the head is very fragile and must not be bumped. It must be protected. Its surface is a piece of aluminum, and the inner layer is coated with a crystal oscillator and a very fine ink tube. When it touches, it will be concave, deformed, or even broken, so the nozzle will be scrapped;
2. Be careful when installing the nozzle. Always power off and put it in place. After loading, gently push the car to move left and right, check whether it is smooth, do not install it and power it on, because if the head is not in place, the car will easily break the head when it moves, and the hand feels freely. , strong controllability;
3. When connecting the plug cable, do not bring the ink, and make sure that it is in good contact with the socket and does not touch the foot. Otherwise, the nozzle will be short-circuited and burnt;
4. The steel shaft should also be clean and smooth. It can be wiped with a paper towel and glued. Do not directly add oil to the shaft. Excess oil will flow to the nozzle and cause damage.
5. After the machinery and circuit are correct, it is necessary to check the waterway. First, look at the insufficient amount of water in the ink cartridge. Secondly, check whether the small cleaning blade and the ink suction pump are dirty.
6. There will be air inside the nozzle that has just been installed, so it will not print normally immediately. Only when the air in the head is completely discharged can the line be normal;
First of all, intermittent cleaning (only 2 times at a time, then 30 minutes after stopping for 2 minutes) will be over-washed many times, which will cause the cleaning pump to accumulate ink, which will not only make the printer mix colors, leak ink, but also waste ink;
Secondly, you can print more pictures to let the nozzle discharge air during work;
Again, if the machine has led to the waste ink tube, you can first power off, and then use a syringe to cover the rubber tube to pump the ink tube until 3-5ml of ink is drawn.
Then turn it on again, use the machine to clean it once, which is equivalent to artificially pumping out the air in the head. The side effect is easy to cause the cleaning pump to pile up.
Printhead Should Only be Replaced by Trained Service Personnel. Change the printhead is a technical job, if you don’t understand technology, there is a big risk to change it by yourself, will be easily burn the printhead and the main board. We suggest you to find the trained service personnel to help you change the printhead.
Warranty : If TESTING on your machine is good, then will be surely no quality problem. We can accept return it from the date of receipt goods within 3 months if Installation with problem (non-human damage). In addition, our engineers will also provide you with professional technical guidance.
14 Years Gold Supplier on Alibaba
Shenzhen Shenxiangyu Technology Co., Ltd has registered in 2000. It’s an integrated enterprise of manufacture and sales in the line of printer consumable and parts. Our factory located in Shenzhen China. With over 18 years' experience in this industry. professional technique and sales department make our products quality and price be in the lead position.
One-Stop-Shop for Printer & Copier parts and consumable
|Laser printer||fuser film, heating elements, upper & pressure roller, transfer roller, separation pad, pick up roller, formatter board, power board, scanner, fuser unit etc|
|Copier parts||Exp lamp, Exp lamp assy, Heater lamp, Paper Pickup Roller, ARM, Fuser Fixing film, Manual feed roller, Drum drive gear, motor gear, cable, transport belt, thermoswitch, transfer housing, Processing gear etc|
|Inkjet printer||Main part, powder board, pump, cartridge contact board, head cable, CISS etc|
|Dot matrix printer parts||printer head, pin, head cable, guide, main board, power board, carriage, RDA, ribbon mask, tractor, gears, platen knob, control panel, cutter etc|
|Plotter parts||Belt, Lever, Nozzle, Motor, Encode Trip, Trailing Cable, Formatter Board, Power Supply, Carriage Assembly, Ink Tube System, Ink Supply Station, Service Station etc|
⇒ Order Process > One-stop Service
Step1. After making every details clear with our sale, please confirm orders to us.
We will send you a Proforma Invoice (PI). Need your information, such as full name,
country, city, detail address, post code, tax number ...
Step2. Send payment T/T or West union. On the basis of the PI & send back us
the proof, we will delivery by FeDex or DHL within 2 working days after payment confirmed.
Setp3. Confirm us receipt of products
♥ Professional sales team are available to help you find the right item for you.
♥ Professional technical support will tell you how to install and daily maintenance.
