industrial cloth washing machine
- Category: >>>
- Supplier: Zhejiang Gamesail Machinery Co. Ltd.
Share on (1600135386830):
Product Overview
Description
Product Description
Description: industrial cloth washing machine
Our Advantage
Our commercial washers are engineered with the finest components to ensure a longer lasting machine. Our inverter driven single motor design offers flexible operation, precise speed control and verified motor protection. Every component that comes into contact with the wash solution is Stainless Steel. The entire Gamesail line features our proven frame design, the strongest in the industry. The backbone of any machine is the frame and ours is designed and tested to stand the true rigorous demands of continuous operation in your laundry.
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
2. It is with a drum without compartment and single door structure convenivent to loading or unloading, and reduces the labor intensity and improves the clean level.
3. The drum and case are both made of high quality stainless steel with the advantages of stain resistance and durability.Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.

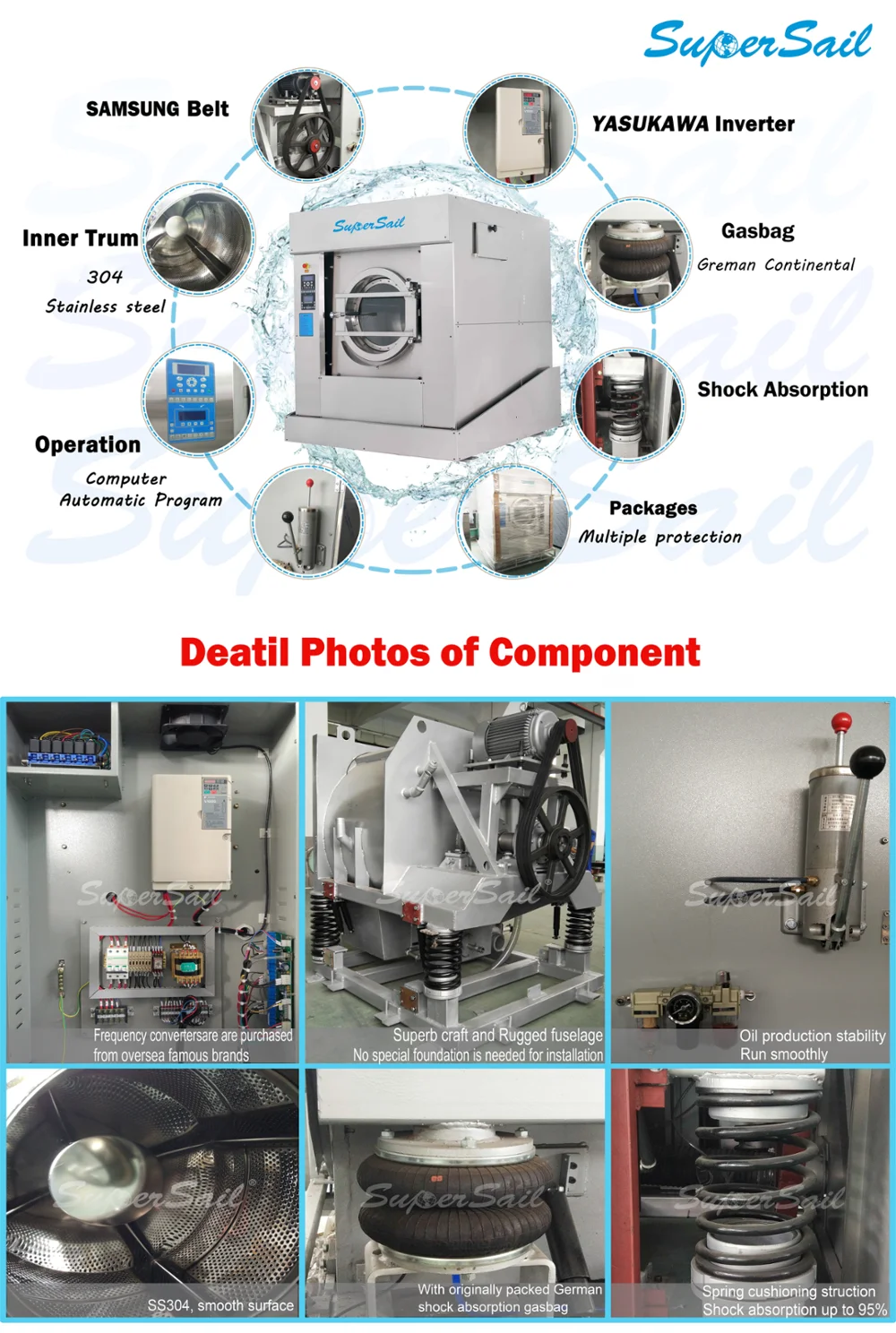

4. We adopt world famous qualified parts suppliers.like Japan Yaskawa inverter,MIT V-belts,American TWB bearings,French Schneider electric parts,Imported Viton seal makes no leakage,and so on to ensure the high quality.
5. Frequency controlled motor.the washing and extractor speed is adjustable.removable compartments Soap hoppers(above 30kg)
6. USB port microprocessor enables to reprogram freely&easily by PC.
7. We provide good pre-sales and after-sales service.We can make the laundry layout drawing for the clients. and lifelong technology conulting service.Easy access to all parts for maintenance.
Techinal Parameter for Big capacity 130kg Industrial washing machine with front tilting loading design
| Type/Parameter | Unit | SXT-300FZQ /SXT-300FDQ | SXT-500FZQ /SXT-500FDQ | SXT-700FZQ /SXT-700FDQ | SXT-1000FZQ | SXT-1300FZQ | SXT-1500FZQ |
| Washing Capacity | kg | 30 | 50 | 70 | 100 | 130 | 150 |
| Drum Size(diameter*depth) | mm | 900*500 | 1065*610 | 1090*760 | 1210*880 | 1320*950 | 1460*920 |
| Drum Volume | L | 315 | 540 | 708 | 1010 | 1300 | 1520 |
| Washing Speed | rpm | 37 | 36 | 35 | 34 | 32 | 32 |
| High Extractor Speed | rpm | 750 | 720 | 700 | 680 | 635 | 630 |
| Extractor G Value | 285 | 300 | 300 | 300 | 300 | 300 | |
| Motor Power | kW | 4 | 5.5 | 7.5 | 7.5 | 11 | 22 |
| Inverter Power | kW | 5.5 | 7.5 | 11 | 11 | 15 | 22 |
| Electric Heating Power | kW | 21 | 42 | 46 | —— | —— | —— |
| Steam Consumption Ratio | kg/kg | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Water Inlet Pipe Diam | Inch | ZG1.5″ | ZG1.5″ | ZG1.5″ | ZG1.5″ | ZG2.0″ | ZG2.0″ |
| Steam Pipe Diam | Inch | ZG1.0″ | ZG1.0″ | ZG1.0″ | ZG1.0″ | ZG1.5″ | ZG2.0″ |
| Boundary Dimension | |||||||
| Width | mm | 1460 | 1610 | 1650 | 1760 | 1950 | 1980 |
| Depth | mm | 1440 | 1680 | 1960 | 2090 | 2220 | 2500 |
| Height | mm | 1840 | 2040 | 2160 | 1970 | 2175 | 2190 |
Our service
Our Market
Our Team
SuperSail has a researching and developing team with professional technology and over 20 years experience. We have got more than 80 patents for our design.
Certification
Our Service for industrial cloth washing machine
1.One year Warranty. Buy with confidence!
2.High energy saving:We have certified energy-saving products and patent.
3.Very competitive price:We purchased much raw material in one time, the material cost is the very big advantage.
4. Very professional team:Most of our engineers have 20 years experience,And at the same time to solve the previous program design, installation, commissioning, after-sales service.
5. One-stop service:We can provide one-stop service from industrial washing machines, dryers, ironing machines and folding machines.
company information
Zhejiang GAMESAIL is the industry leader in industrial and commercial laundry equipment with a full line of industrial washers, dryers, ironers, feeders, and folders. Backed by the most trusted names in the industry SuperSail offers a complete line of industrial laundry equipment to fit any laundry demands. From our reliable line of industrial washing machines to our durable line of dryers and finishing equipment we have everything you need.
The most comprehensive line available from one single source
1.Highest quality components lead to less equipment downtime and repair
2.All lines are made for long life
3.Easy to use controls
4.Reduces energy and labor costs
5.Dedicated to customer service
| 1.Washer Exteactor | 2.Barrier Washing Machine | 3.Dryer Machine | 4.Dry-cleaning Machine |
| 5.Ironong Machine | 6.Folding Machine | 7.Press Machine | 8.Dummy Machine |
| 9.Stain Remove Table | 10.Ironing Board | 11.Steam Geneator | 12.Air Compressor |
FAQ
1. Are you a factory?
We are a real factory,and we have got a more than 20000 square meters plant.Welcome to our factory.we will show you our professional plant.
2. How about the delivery time?
Our delivery time is 5-15 days.For regular types, such as 50kg, 100kg washer and dryer,flatwork ironer and folder. We norally have machines in stock.
3. How about the machine warranty?
It's within 1 year after goods is discharged in the destination.
