Horizontal Wood Cutting CNC Beam Panel Saw Machine Price
- Category: >>>
- Supplier: Qingdao High-Class Service Import & Export Co. Ltd.
Share on (1600135643173):
Product Overview
Description
Product Description
Model | HC330G |
Max.Cutting Length | 3280mm |
max.cutting width | 3280mm |
Max.height of blade | 100/120mm(intelligent control) |
Main saw blade | 400*4.4*75*72T*140 |
Scoring saw blade | 160*4.4/5.4*45*24T |
Forward speed of saw carriage | 5-100m/min |
Backward speed of saw carriage | 0-100m/min |
Forward speed of PRF program fence | 0-100m/min |
Backward speed of PRF program fence | 0-100m/min |
Side pressure device | Pneumatic double side pressing wheels |
Motor Power Of Main Saw Shaft | 18.5kw |
Motor Power Of scoring Saw Shaft | 2.2kw |
Voltage | 380V/50HZ |
Working table height | 920mm |
No. of PRF program fence | 8pcs |
Air floating table | 3pcs |
High pressure blower of air floating table | 2.2kw |
Air Compression | 6bar |
Air Capacity | 150L/min |
Min. Speed Of Dust Collection | 26m/second |
Negative Pressure(At Least) | 1200Pa |
Input Air Capacity For Dust Collection | 4400m³/h |
Diameter Of Dust Collecting Holes | 200*2pcs/100*2pcs |
Packing Size | 5400x1350x2170mm 4600*920*1000mm |
Floor Area | 7100*5400*1890mm |
Weight | 5500kg |

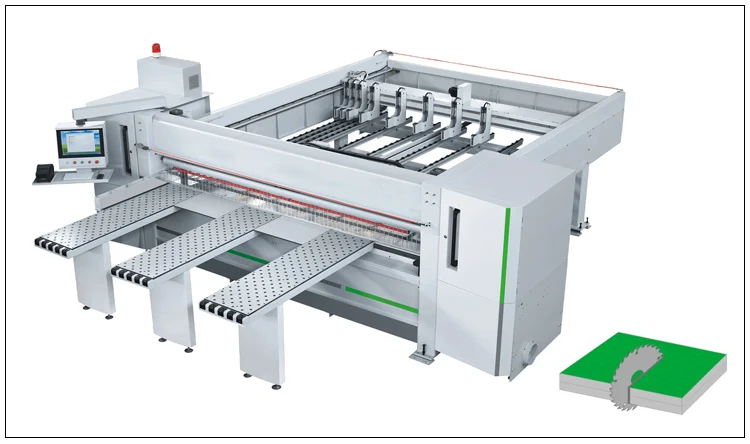

HC330G Automatic CNC Panel Saw Machine
1,Heavy duty beam saw
2,Maximum cutting thickness up to 120 mm
3,Pneumatic rapidly changing of main saw blade
4,Control of elevation by saw blade according to thickness of saw cutting plate
5,Control of lifting height according to the thickness of saw cutting board
6,Imported high strength aluminium alloy sawing machine
7,Chainsaw servo motor drive
1,Heavy duty beam saw
2,Maximum cutting thickness up to 120 mm
3,Pneumatic rapidly changing of main saw blade
4,Control of elevation by saw blade according to thickness of saw cutting plate
5,Control of lifting height according to the thickness of saw cutting board
6,Imported high strength aluminium alloy sawing machine
7,Chainsaw servo motor drive
Detailed Images

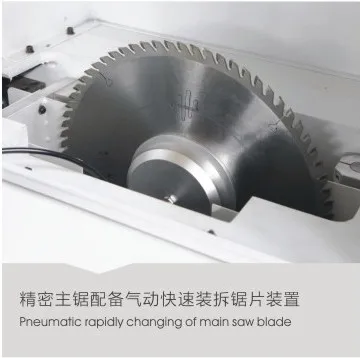

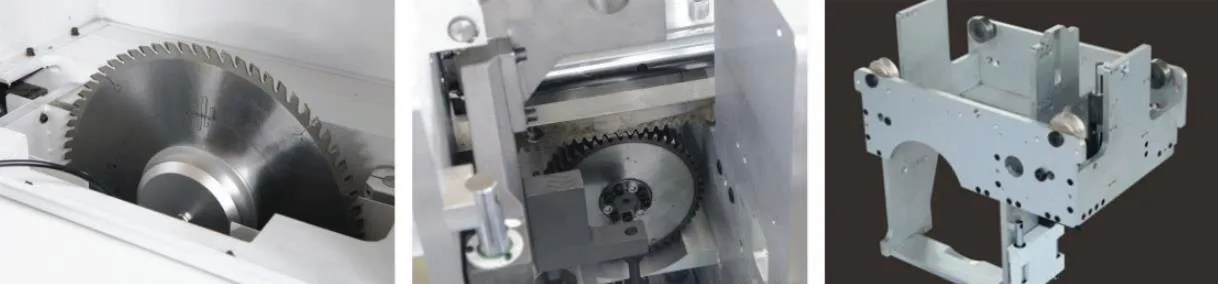

Pneumatic rapidly changeing of main saw blade
Saw vehicle precision rack transmission

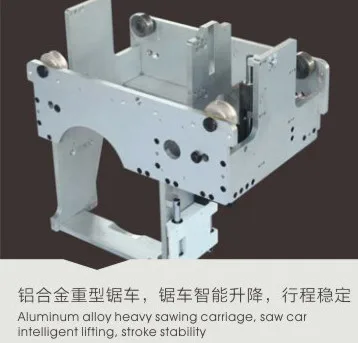

Aluminum alloy heavy sawing carriage,saw car intelligent lifting,stroke stability

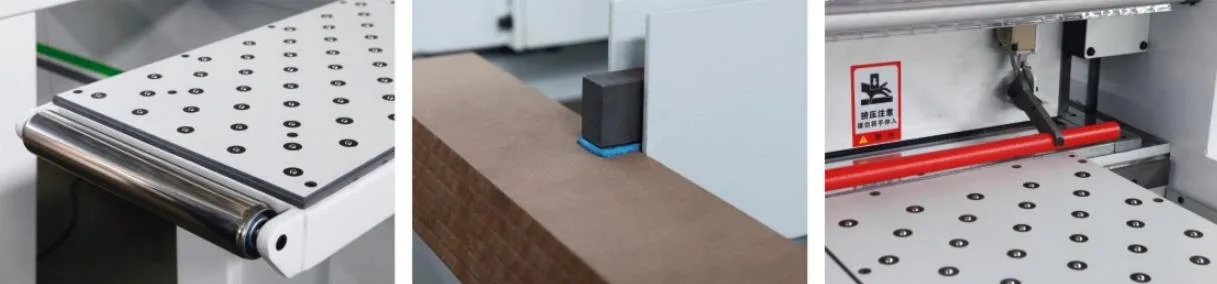

Easy feeding steel ball taype gas float workbench

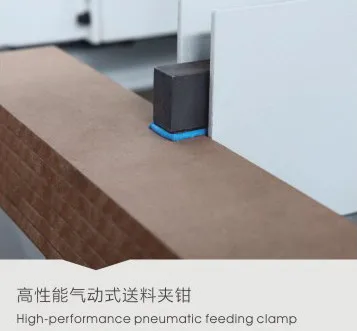

High-performance pneumatic feeding clamp
Security bar
Roller alignment sheet is durable

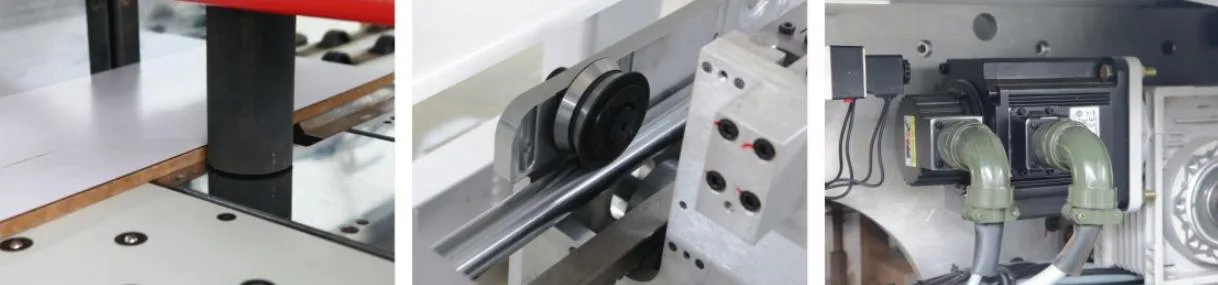

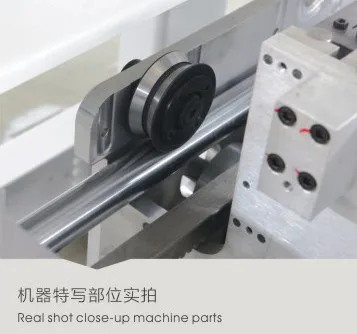

Real shot close-up machine parts

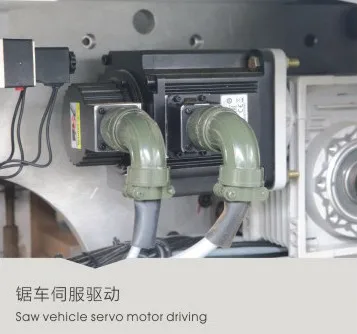

Saw vehicle servo motor driving
