360WH pole mounting solar power system with 60W solar panel 30ah lithium battery for 12V DC IoT sensor and cctv system
- Category: Solar Light >>>
- Supplier: Zibo Zunzhi Trading Co. Ltd.
Share on (1600135850005):
Product Overview
Description
Product Description
* Standby 2 rainy days for 1pcs 12V bullet camera
* Suitable for environment without electricity and network
* Low power consumption and long endurance
* Peak power tracking technology
* High conversion rate of solar controller
* Suitable for environment without electricity and network
* Low power consumption and long endurance
* Peak power tracking technology
* High conversion rate of solar controller
Specification | ||
solar panel | 60w 18v monocrystalline silicon solar panel*1 | |
Model | WQ-18V 60W | |
Max Power at STC（Pmax） | 60W | |
Max Power Voltage(Vmp) | 18V | |
Max Power Current (Imp) | 3.33A | |
Open circuit voltage (Voc) | 21.6V | |
Short circuit current (Isc) | 3.76A | |
Dimension | 670*630*25MM | |
Battery | 30ah Ternary polymer lithium battery*1 | |
Rated Voltage | 12.6V | |
Nominal Capacity | 12A | |
short-circuit protection | Yes | |
Continuous Current | 12A | |
Max pulse current | 40A | |
Discharge Cut-off Voltage | 7.8V | |
Controller | 10A pwm solar controller*1 | |
System Voltage | 12V | |
Rated charge current | 10A | |
Rated discharge current | 10A | |
Maximum panel voltage | ＜50V | |
Floating current | 12.6V | |
Overcharge voltage | 9.3V | |
Over-discharge recovery voltage | 11.1V | |
Accessories | ||
Consumption Cable | 5ADC male cable（1M） | |
Screw | M8 screw（4） | |
U-type hoop | 8-14U-type hoop（2） | |
control switch | Yes | |
Details Images
Wall Mounting

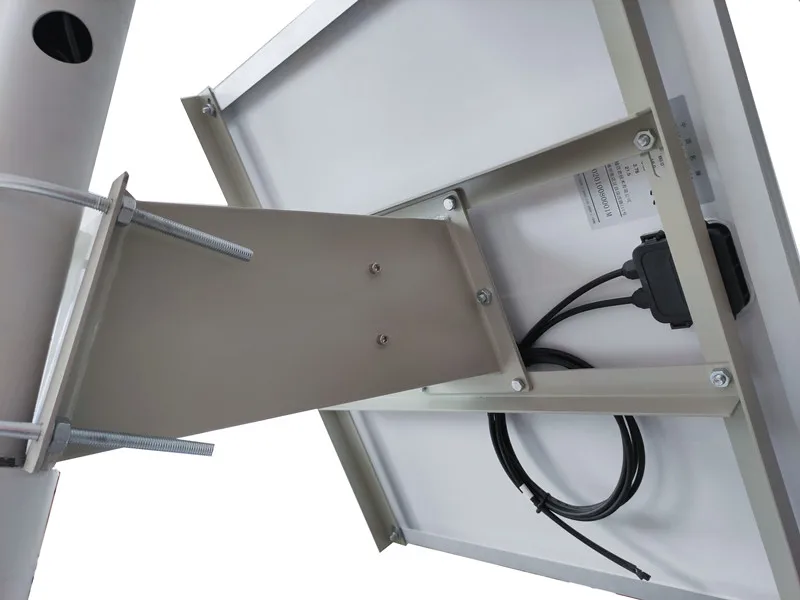

Pole Mounting
Why Choose Us
60W 18V solar panel.
MONO and POLY optional

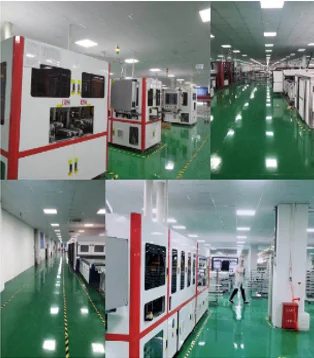

Own PV solar panel printing line, good quality with competitive prices
Own PV solar panel printing line, good quality with competitive prices

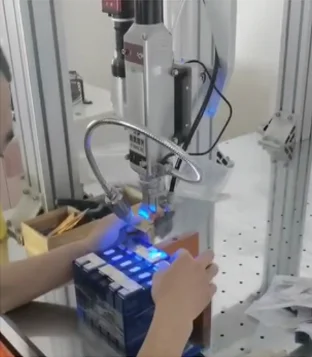

To control good quality, we do lithium cells assembly by ourselves. Make each unit battery with new & famouse brand cells, which we sell is full power as what we marked it. We mark it 30AH, so its min 30AH.
The stander with battery on/off control
MC4 photovoltaic connector
Built-in 10A PWM solar controller

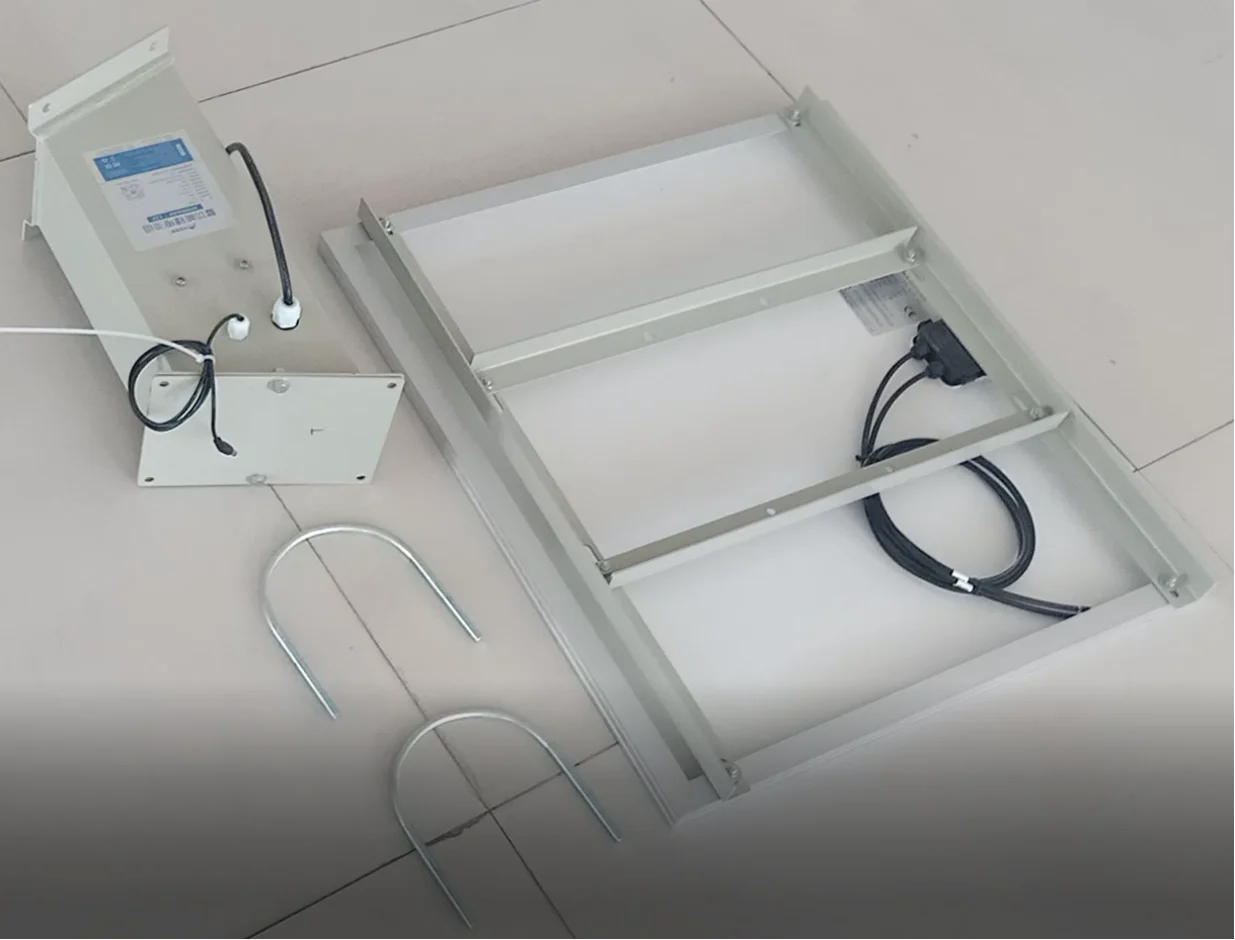

VERY EASY TO INSTALL
Only 8pcs screw should install

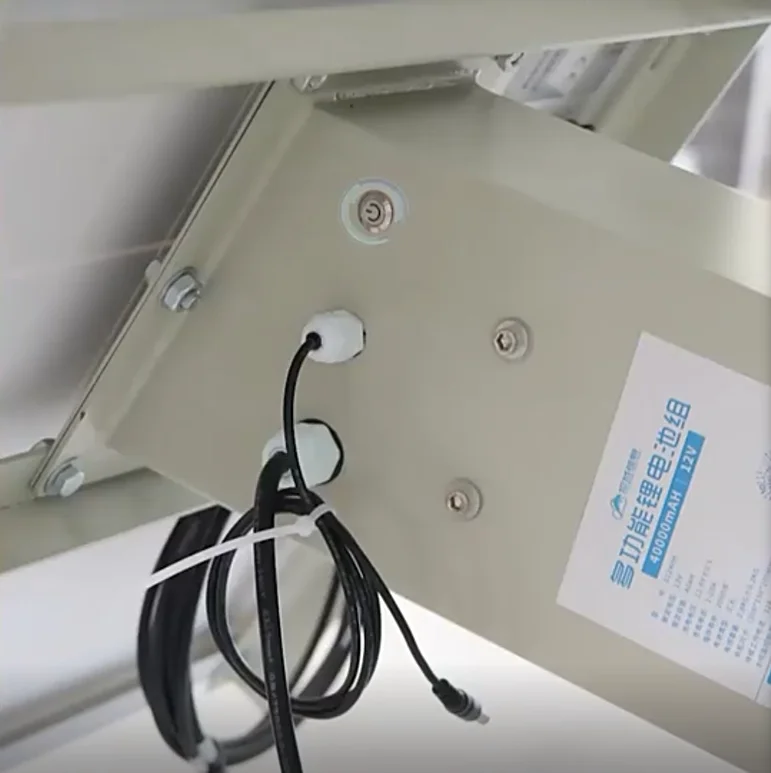

Battery on/off control
Output 12V DC
Plug and Play with MC4 PV connector

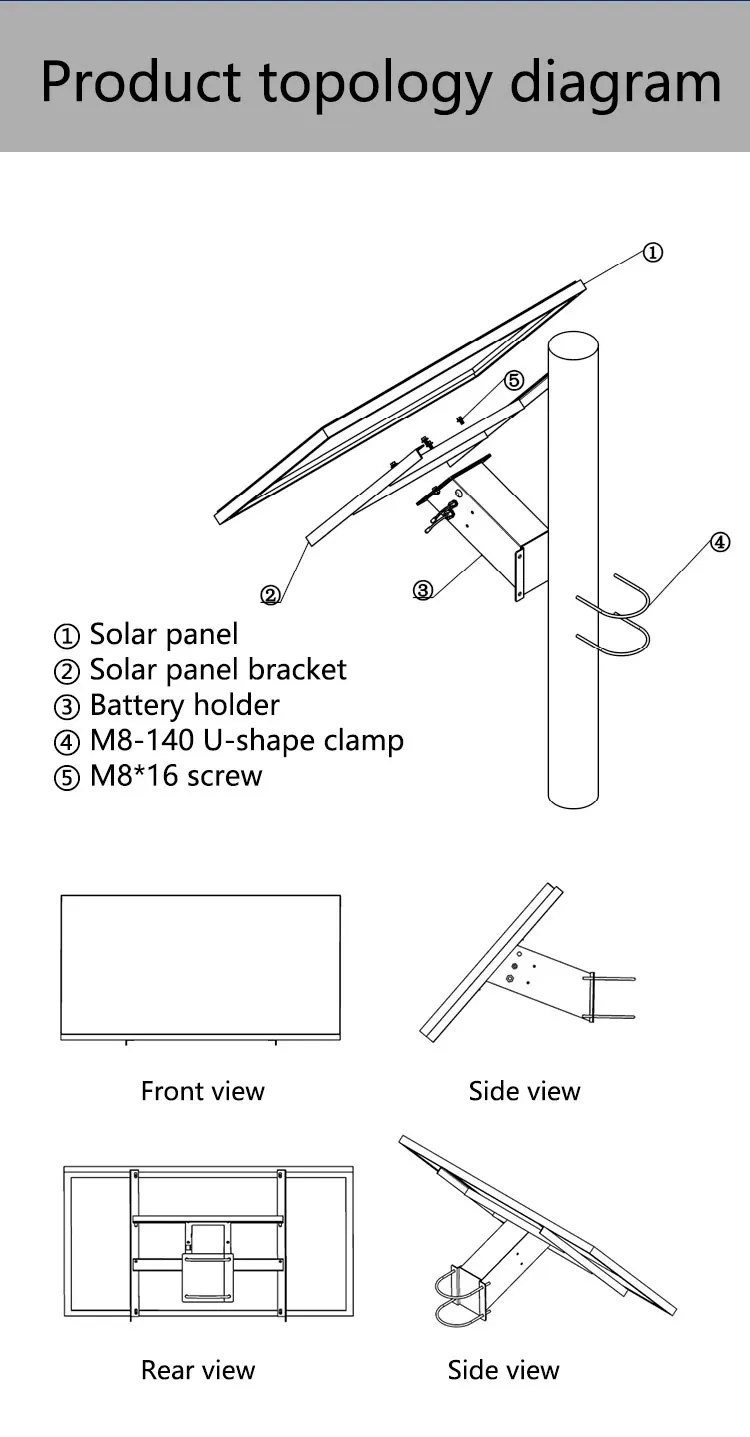

The triangular connection structure is adopted. Simple installation and the performance is excellent.

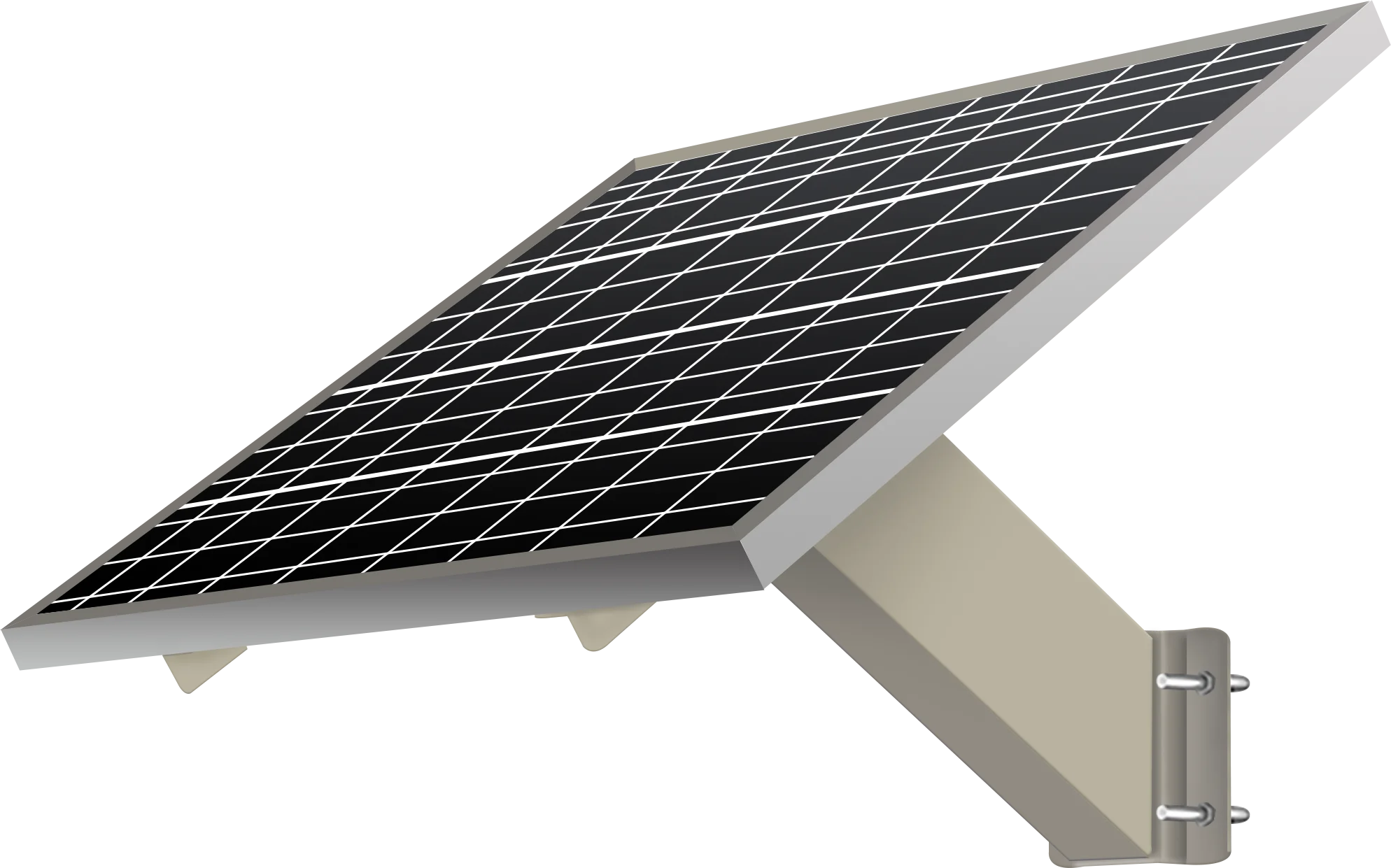

With the 45 degrees Angle, the lighting performance is good for dust rain and snow washing.
It widely used in the field, streets monitoring, breeding detection, intelligent Internet of things sensor power supply and other industries using.
With 30*30*2mm galvanized Angle iron, and 2pcs M16 140U hoop, the well-set stander make installation more easier and flexible. And using 8mm screw to fix, it can realize no welding on site. It is a relatively high cost performance solar panel holder.
Related Products

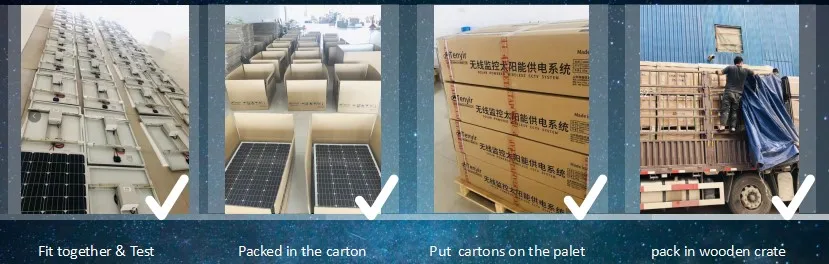

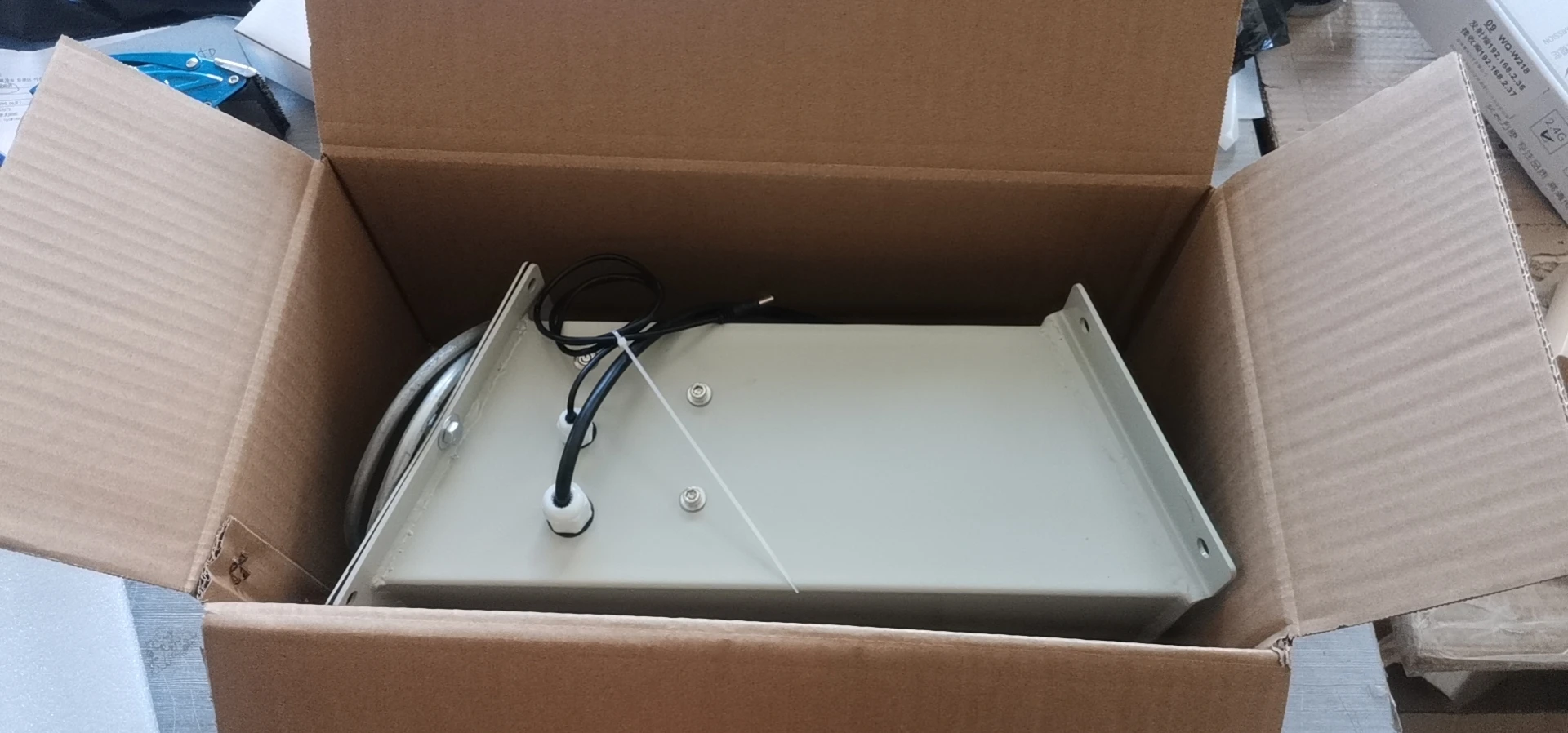

Packing&Shipping
This system is very heavy. Please contact with me, if you are interested in it. I will tell you the best cost-effiective method to get it.
ATTN: Julie
WhatsApp/WeChat/Mobile: +8613053343538
Email: zunzhi01@wqcpe.com

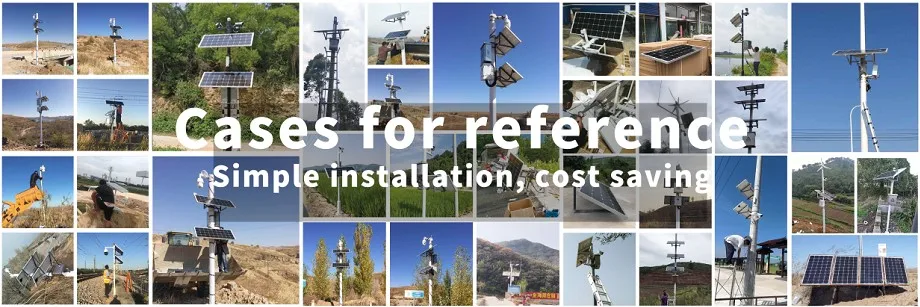

Customer Photos
