Pressure Switch PS1 NC Type Controller Switch

Product Overview

Description

We will give you a reply within 24 hours after receiving your inquiry.

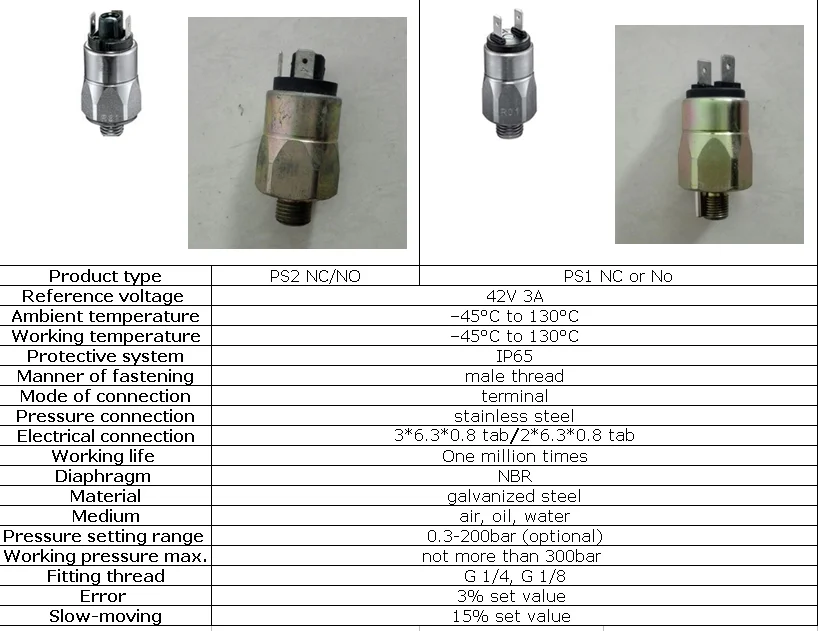

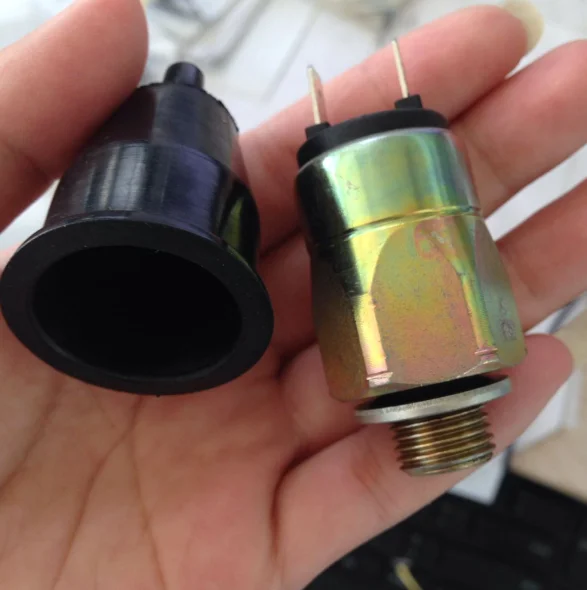

Pressure switch PS1

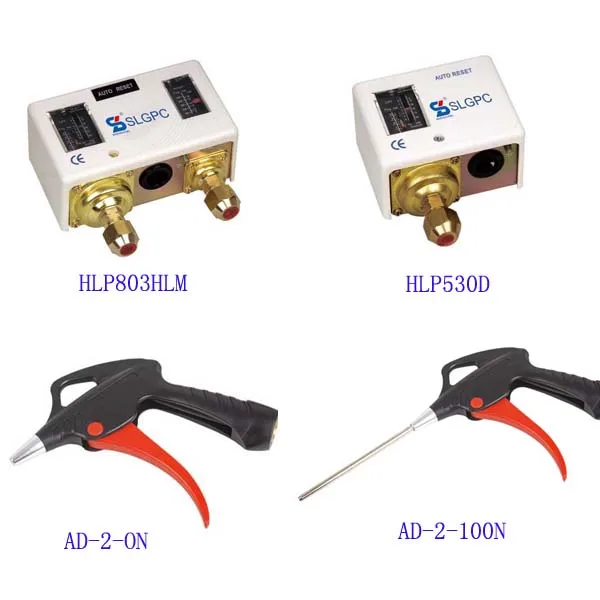

We have other type pressure switch.









HLPseries

Descriptions:

1. For use with fluorinaied refrigerants as well as with a air and water.(Allowable Fluid Temp.:-10°C~+110°C)

2. Various contact functions available.

3. Novel slight moving switch ensures reliable switching.

4. Flexible mounting bracket to support different installations .

5.Manual Control, do not need the tools to test.



Our products can substitute for congeneric import products, such as JOHNSON,DANFOSS,SAGINOMIYA,3S,RANCO and so on .





Switch data
Specified current	Spce fied voltage	AC 125	AC125
Disguide load		48	12
Max.load		48	12
Twinking current		228	72











Specification
Model		Regular range		Switch voltage disparity		Factory settings
		Min	Max	Min	Max	(cut-off)Link-up	(cut-off)Link-up
HLP110		0.1	1	0.1	0.3	0.6	0.5
HLP506		-0.07	0.6	0.06	0.4	0.3	0.2
HLP506M		-0.07	0.6	Duplicate voltage disparity ≤ 0.4		0.3	Manual restoration
HLP530		0.5	3	0.3 to 0.5(Fixed)		2	1.5
HLP530D		0.5	3	0.5	1	2	1.5
HLP530M		0.5	3	Duplicate voltage disparity ≤ 0.4		2	Manual restoration
HLP830	Low voltage end	-0.07	0.6	0.06	0.4	0.3	0.2
	High voltage end	0.5	3	0.3 to 0.5(Fixed)		2	1.5
HLP830HLM	Low voltage end	-0.07	0.6	Duplicate voltage disparity ≤ 0.4		0.3	Manual restoration
	High voltage end	0.5	3	Duplicate voltage disparity ≤ 0.4		2	Manual restoration
HLP830HM	Low voltage end	-0.07	0.6	0.06	0.4	0.3	0.2
	High voltage end	0.5	3	Duplicate voltage disparity ≤ 0.4		2	Manual restoration

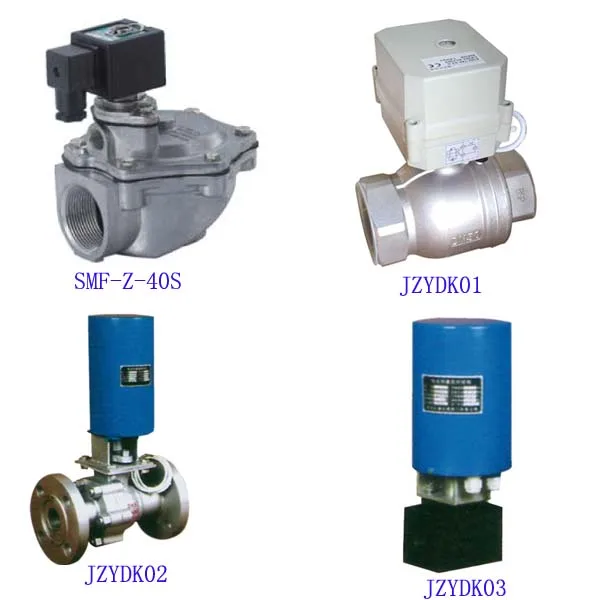

 We also have many other types for your selection:







Stock, Quality Testing & Packing:
(1)We have stock for the order of small quantity(less than 50 pcs)
(2)Quality test: 100% test before packing.
(3)Packaging Detail: Standard export packing with SLGPC brand or according to customer's special requirement.

Delivery details:
Within 5 working days after confirmation, shipping ways can be by sea, by air or courier, furthermore, we can ship the goods according to customer's special request.



















This is Betty , assistant manager of foreign trade department is at your service, if you need any further information, please feel free to contact me. My contact information is as follows:
TEL:0086-574-88816815
FAX:0086-574-88847138
Cell:0086-15669012130

Skype:rxb992
WeChat:461486689



PS: It is ok to arrange samples for your quality testing.
