SHINVA High Temperature Large Capacity Horizontal Pressure Steam Autoclave Sterilizer MAST V 280L 450L 610L 800L 910L
- Category: >>>
- Supplier: Shinva Medical Instrument Co. Ltd.
Share on (1600136106248):
Product Overview
Description
Product Description
Product Introduction

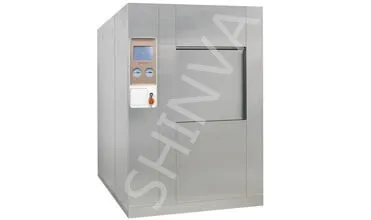

MAST-V is a fast, compact and versatile sterilizer which is researched and developed according to the latest requirements of medical institution and CSSD. It is designed and manufactured combines high capacity with cost-efficiency, while offering high operating reliability and easy maintenance.
The design of chamber accords with state GB1502011, GB8599-2008, CE and European EN285 standard, ASME and PED.
Detailed Images
Product features

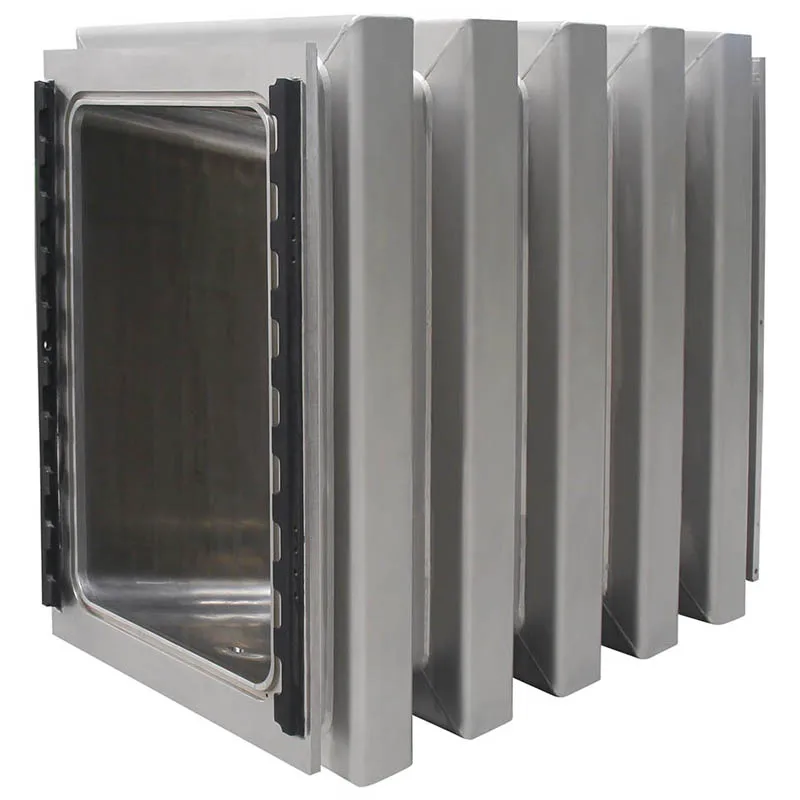

o Superb chamber machining and welding process
The acid-proof stainless steel chamber and jacket are automatically robot-welded to guarantee long time and trouble-free
operation.
o Nice chamber surface
Surface Smoothness, Ra<0.5; No welding part or bolt in the chamber which effectively protects the items to be sterilized. Steam baffle plates are surrounded by silicon rubber protecting the chamber surface.
o Reliable and durable chamber
Chamber is designed according to professional analytical method. High-emulation software ANSYS is used for chamber simulation.
Design service life: 10 years (or 20000 times sterilization)
o Reasonable sealing structure
Compact designed sealing groove, durable circular hollow silicon gasket, sealed by compressed air.
o Vertical sliding door
The door is up and down vertical sliding by air cylinder. It is faster and saves space, while offering proven, handles-free convenience.
o Precise pressure detecting and control
Intelligent pressure transmitters, Wika (Germany), ensure steam pressure detecting and control both in Chamber and jacket.
o Unique vacuum noise-reduction system
LNS low-noise and water-saving vacuum system, effective reduced the noise during running.
o Humanized operation system

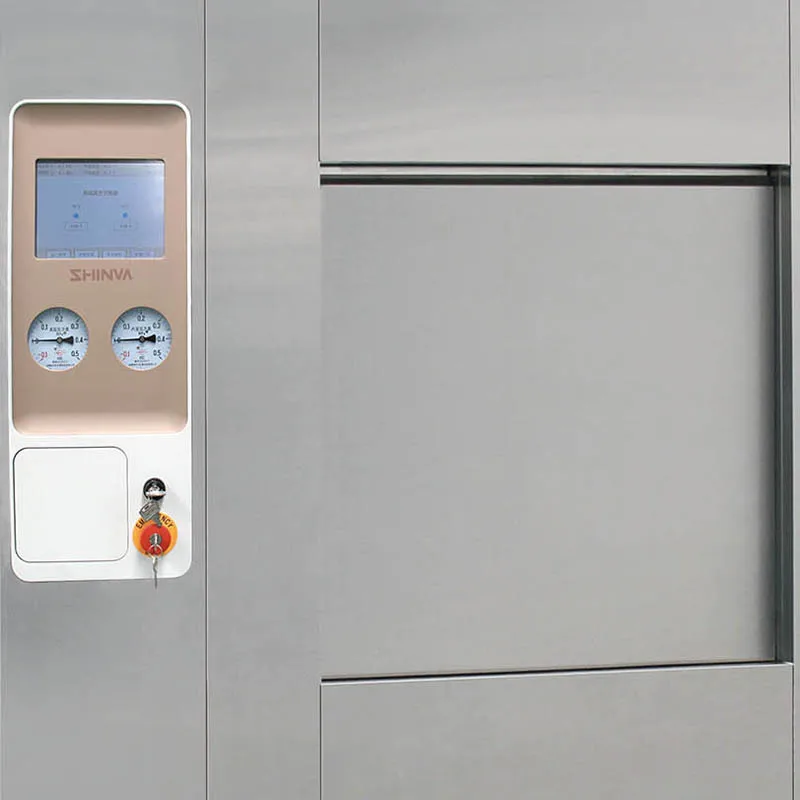

Colorful touch screen on loading-side, 6 indicating lamps on unloading sides, which are concise, vivid and exactly showing sterilization running status and alarming information.
o Reasonable pipeline layout
All the pipes, valves and components are designed and installed in single side, which is more convenience for repair and maintenance. The sterilizers can be installed against the wall and also, two sterilizers can use the same maintenance space to save installation space.
Configuration Selection Table
MAST-V Basic Configuration
No. | Volume (L) | Chamber Size W*H*D (mm) | Overall Size W*H*D (mm） | NW (KG) | Input Power (kVA) |
1 | 280 | 535x535x1000 | 1200x1800x1340 | 800 | 2.5/34 |
2 | 450 | 675x675x1000 | 1307x1900x1340 | 1000 | 4/46 |
3 | 610 | 675x675x1350 | 1307x1900x1690 | 1200 | 4/46 |
4 | 800 | 675x675x1750 | 1310x2070x1420 | 1300 | 4/68 |
5 | 910 | 675x675x2005 | 1307x1900x2345 | 1450 | 4/68 |
Number of Door(s):
□ Single door(D)
□ Double door(S)
Side Cover
□ With side cover ☆
□ Without side cover
□ Without side cover
Material of Chamber + Jacket
□ SUS316L+SUS316L (M1) ☆
□ SUS316Ti+SUS316L (M2)
□ SUS316Ti+SUS316Ti (M3)
□ SUS316Ti+SUS316L (M2)
□ SUS316Ti+SUS316Ti (M3)
Steam Source
□ External steam supply
□ Built-in steam generator(D) ☆
□ SUS304☆
□ Built-in steam generator(D) ☆
□ SUS304☆
□SUS316L
□ Built-in steam generator + External steam supply(S)
□ Built-in steam generator + External steam supply(S)
Loading Mode
□ Shelf loading (A-Customize)
□ Loading cart and transfer trolley (B)
□ Floor trolley loading (C)
□ Floor trolley loading (C)
Note:
Standard loading mode of machine less than 240L is shelf loading. Shelf for more than 240L need to be customize.
Floor trolley loading only available for machine more than 1200L.
Voltage
□ 380V, 3-Phases ☆
□ 220V, 3-Phases
□ 240V, 3-Phases
□ 400V, 3-Phases
□ 415V, 3-Phases
□ 220V, 3-Phases
□ 240V, 3-Phases
□ 400V, 3-Phases
□ 415V, 3-Phases
Frequency
□ 50Hz☆
□ 60Hz
Optional Configuration
□ Remote monitoring system
□ Air differential seal (Double door only)
□ Bio-seal (Double door only)
□ Pressure gauges for built-in steam generator
□ Safety valve for built-in steam generator
□ Auto flush for steam generator
□ Compressed air pressure detection
□ Vacuum pump water pressure detection
□ Air differential seal (Double door only)
□ Bio-seal (Double door only)
□ Pressure gauges for built-in steam generator
□ Safety valve for built-in steam generator
□ Auto flush for steam generator
□ Compressed air pressure detection
□ Vacuum pump water pressure detection
Standard Accessories
□ Loading cart x 1
□ Transfer trolley x 1 (For single door model)
□ Transfer trolley x 2(For double door model)
□ Transfer trolley x 1 (For single door model)
□ Transfer trolley x 2(For double door model)
Note: ☆ means standard configuration.
Extra Optional Accessories
□ Loading cartx □
□ Transfer trolleyx □
□ Loading basket
□ SHINVA Standard (535Lx380Wx195Hmm)x□
□ SHINVA Standard (535Lx380Wx100Hmm)x □
□ ISO Standard(585Lx395Wx200Hmm)x □
□ Loading rack for paper-plastic pouch ( 465L x 330Wx90Hmm)x□
□ Installation kits
□ Steam inlet kits (For machine with external steam supply)xQ
□ Compressed air inlet kits
□ Water inlet kits
□ Vacuum pump and cooling water inlet kitsx □
□ Built-in steam generator water inlet kitsx □
□ Water drainage kits^n
□ External air compressor
□ BZ-60L,60L/minx 口
□ WY-120L,120L/minxC
□ External water softener
□ Water-S-100,100L/hourx □
□ Water-S-500,500L/hourx □
□ Loading basket
□ SHINVA Standard (535Lx380Wx195Hmm)x□
□ SHINVA Standard (535Lx380Wx100Hmm)x □
□ ISO Standard(585Lx395Wx200Hmm)x □
□ Loading rack for paper-plastic pouch ( 465L x 330Wx90Hmm)x□
□ Installation kits
□ Steam inlet kits (For machine with external steam supply)xQ
□ Compressed air inlet kits
□ Water inlet kits
□ Vacuum pump and cooling water inlet kitsx □
□ Built-in steam generator water inlet kitsx □
□ Water drainage kits^n
□ External air compressor
□ BZ-60L,60L/minx 口
□ WY-120L,120L/minxC
□ External water softener
□ Water-S-100,100L/hourx □
□ Water-S-500,500L/hourx □
