2021 New Design China pipe jacking machine/tunnel boring machine
US $580000-$585000

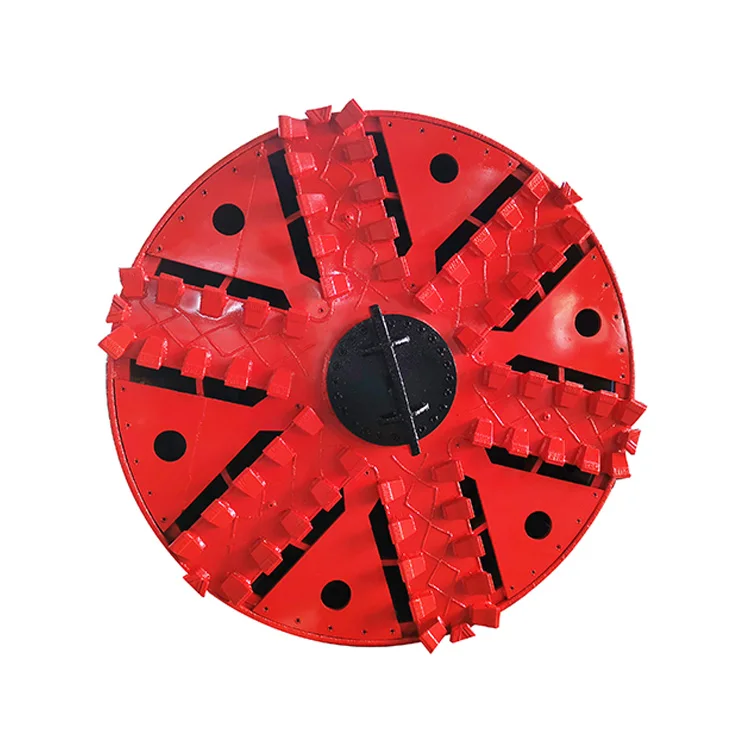

2000mm EPB Coalmine Rock Tunnel Boring Machine
- Category: Pipe Jacking Machines >>>
- Supplier: Xuzhou Pluto Construction Machinery Co. Ltd.
Share on (1600136190815):
Product Overview
Description

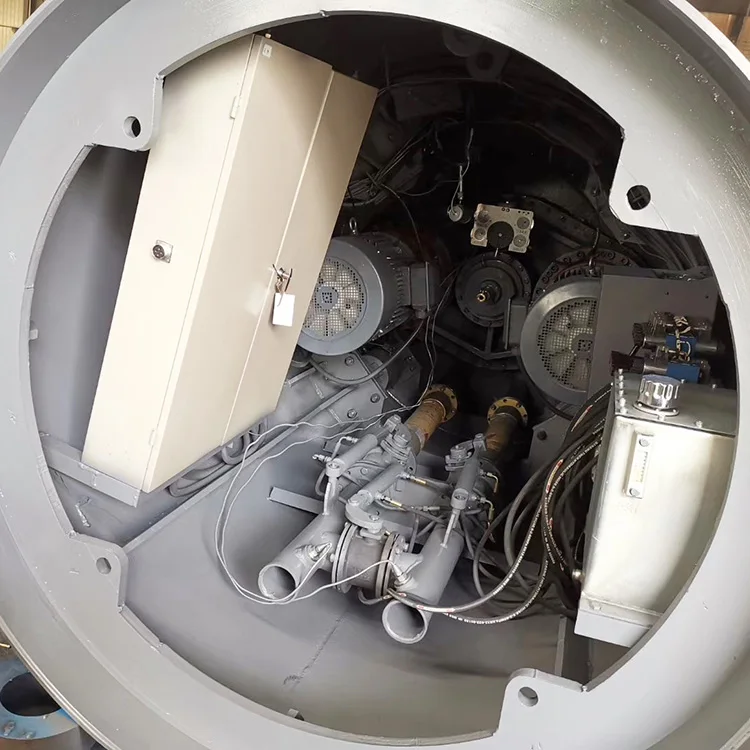

The soil quality changes in a larger range of conditions, the general diameter of 800mm-4000mm between is a kind of cut with the whole section of soil, mud water pressure to balance the earth pressure and groundwater pressure, and mud water as the transport of abandoned soil medium mechanical automatic pipe jacking construction equipment.The mud water balance pipe jacking system is mainly composed of pipe jacking machine head, ground operation platform and other auxiliary equipment. There is a PLC control box inside the machine head, and the ground operation platform gives the movement signal to control the movement of the machine head.The mud discharge system will remove the abandoned soil, crane down the pipe, the hydraulic system will be the main jacking pipe into sections.
Technical characteristics
1. Applicable to a wide range of soil, soft soil, clay, sand, gravel soil, hard soil, backfill soil can be applied.
2. Strong crushing capacity, large particle size and large number of crushing particles.
3. Independent water injection and grouting system.
4, the jacking speed is fast, the fastest jacking speed is 200mm per minute.
5, high construction accuracy, upper, lower, left and right deviation correction, maximum deviation correction Angle up to 2.5°.
6. Centralized ground control system, safe, intuitive and convenient.
2. Strong crushing capacity, large particle size and large number of crushing particles.
3. Independent water injection and grouting system.
4, the jacking speed is fast, the fastest jacking speed is 200mm per minute.
5, high construction accuracy, upper, lower, left and right deviation correction, maximum deviation correction Angle up to 2.5°.
6. Centralized ground control system, safe, intuitive and convenient.
Product Paramenters
Machine Type | YD800 | YD1000 | YD1200 | YD1350 | YD1500 | ||
Machine OD*L (mm) | Φ980*4400 | Φ1220*4400 | Φ1460*3800 | Φ1640*4500 | Φ1820*4800 | ||
Cutter | Motor Power*QTY. | 30KW*1 | 15KW*3 | 18.5kW*3 | 22KW*3 | 30KW*3 | |
Rated Torque (kn.m) | 57 | 110 | 123 | 158 | 215 | ||
Revolution (rpm) | 5 | 3.9 | 4 | 4 | 4 | ||
Steering System | Thrust(T)*QTY. | 38*4 | 50*4 | 63*4 | 63*4 | 80*4 | |
Max.Angle (°) | 3 | 3 | 3 | 3 | 3 | ||
Motor Power (kw) | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | ||
Jacking Cylinder | Thrust(T)*QTY. | 200*2 | 200*2 | 200*2 | 200*2 | 200*4 | |
Stroke (mm) | 2500 | 3300 | 3300 | 3300 | 3300 | ||
Pressure（Mpa） | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | ||
Slurry Pipe | Diameter (Inch) | 4 | 4 | 4 | 4 | 4 | |
Machine Total Power（kw） | 33 | 48 | 60 | 70 | 95 | ||
Machine Type | YD1650 | YD1800 | YD2000 | YD2200 | YD2400 | ||
Machine OD*L (mm) | Φ2000*5000 | Φ2180*5250 | Φ2420*5150 | Φ2660*5200 | Φ2920*5600 | ||
Cutter | Motor Power*QTY. | 37KW*2 | 30KW*4 | 30KW*4 | 37KW*4 | 30KW*6 | |
Rated Torque (kn.m) | 190 | 239 | 239 | 404 | 477 | ||
Revolution (rpm) | 3.7 | 4.8 | 4.8 | 3.5 | 3.6 | ||
Steering System | Thrust(T)*QTY. | 80*4 | 80*8 | 80*8 | 80*8 | 120*8 | |
Max.Angle (°) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ||
Motor Power (kw) | 2.2 | 4 | 4 | 4 | 4 | ||
Jacking Cylinder | Thrust(T)*QTY. | 200*4 | 200*4 | 200*6 | 200*6 | 200*6 | |
Stroke (mm) | 3300 | 3300 | 3300 | 3300 | 3300 | ||
Pressure（Mpa） | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | ||
Slurry Pipe | Diameter (Inch) | 4 | 4 | 6 | 6 | 6 | |
Machine Total Power（kw） | 78 | 130 | 130 | 155 | 190 | ||
Machine Type | YD2600 | YD2800 | YD3000 | ||
Machine OD*L (mm) | Φ3160*5850 | Φ3400*5850 | Φ3380*5000 | ||
Cutter | Motor Power*QTY. | 37KW*6 | 37KW*6 | 37KW*8 | |
Rated Torque (kn.m) | 589 | 589 | 839 | ||
Revolution (rpm) | 3.6 | 3.6 | 3.4 | ||
Steering System | Thrust(T)*QTY. | 120*8 | 155*8 | 155*8 | |
Max.Angle (°) | 2.5 | 2.5 | 2.5 | ||
Motor Power (kw) | 4 | 5.5 | 5.5 | ||
Jacking Cylinder | Thrust(T)*QTY. | 200*8 | 200*8 | 200*8 | |
Stroke (mm) | 3300 | 3300 | 3300 | ||
Pressure（Mpa） | 31.5 | 31.5 | 31.5 | ||
Slurry Pipe | Diameter (Inch) | 6 | 6 | 8 | |
Machine Total Power（kw） | 230 | 230 | 310 | ||
Related Products
Company Introduction
Since its establishment in 2017, Xuzhou Pluto Construction Machinery Co., Ltd. has been adhering to the corporate philosophy of "Quality First, Service First", gathering the resources of Xuzhou's industrial clusters, the construction machinery base, and committed to creating world-class construction machinery sales and services The team provides customers with a one-stop service of construction machinery sales, parts supply, technical consultation, after-sales maintenance and on-site construction guidance.
The company's main non-excavation engineering machinery and equipment, including three series of pipe jacking machine, horizontal directional drilling and rotary drilling rig and related accessories, products are widely used in highways, subways, oil and gas pipelines, cable laying, bridges, construction, Infrastructure construction such as municipal engineering.
In 2018, a branch was established in Bangkok, Thailand. Products are sold to Thailand, Indonesia, Singapore, India, Cambodia, Vietnam, Malaysia and other countries to provide value-added services to the local market and customers. In the future, the company aims to become the leader of the global non-excavation construction machinery supplier under the excellent trade environment created by the "Belt and Road" initiative!
Construction site
Service
Pre-sales service:
1. Recommend the most suitable equipment for different buyers.
2. personalized machinery available according to special construction demands.
3. Training your technicians to operate our equipment,
4. Providing instructions to ensure equipment running well in various construction. environments,
Sales service:
1. Any kinds of transportation as per buyers choice.
2. All products will be debugged well before shipment.
3. Introduce our service system to customers.
After-sales service:
1. Making the first construction scheme,
2. Installing and debugging your equipment,
3. Troubleshooting on site, prompt and initiative,
4. Engineers overseas service provided.
Packing&Delivery
FAQ
Good preparation saves work time.
1.Project total length, the longest jacking distance, how many sections will be built?
2.Pipe type: concrete or steel etc, single length of the pipe? Outer and inner diameter?
3.The soil strata condition or project site.
4.The underground water level.
5.The length of single segment project, and the total length of project.
6.Soil type? Soil report is needed.
1. What about the warranty time?
A:12 months after shipment or 500m working distance, whichever occurs first.
2. What about the delivery time?
A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
A: On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or against the copy of original BL for old client.On L/C term, 100% irrevocable L/C without "soft clause" can be accepted.
4.What logistics ways we can work for shipment?
A: We can ship machine by sea and road.
5. What about the after-sales service?
A: We have office and professional after-sales service team in many countries. After you receive the new machine, we will provide you one engineering training installation and debugging service for 3-5days. If there are some problems, our after-sales service personnels will arrive the project site in shortest time.
A:12 months after shipment or 500m working distance, whichever occurs first.
2. What about the delivery time?
A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
A: On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or against the copy of original BL for old client.On L/C term, 100% irrevocable L/C without "soft clause" can be accepted.
4.What logistics ways we can work for shipment?
A: We can ship machine by sea and road.
5. What about the after-sales service?
A: We have office and professional after-sales service team in many countries. After you receive the new machine, we will provide you one engineering training installation and debugging service for 3-5days. If there are some problems, our after-sales service personnels will arrive the project site in shortest time.
