8 input 8 output network audio connectivity machine solutions Dante interface
Product Description
【Introduction】

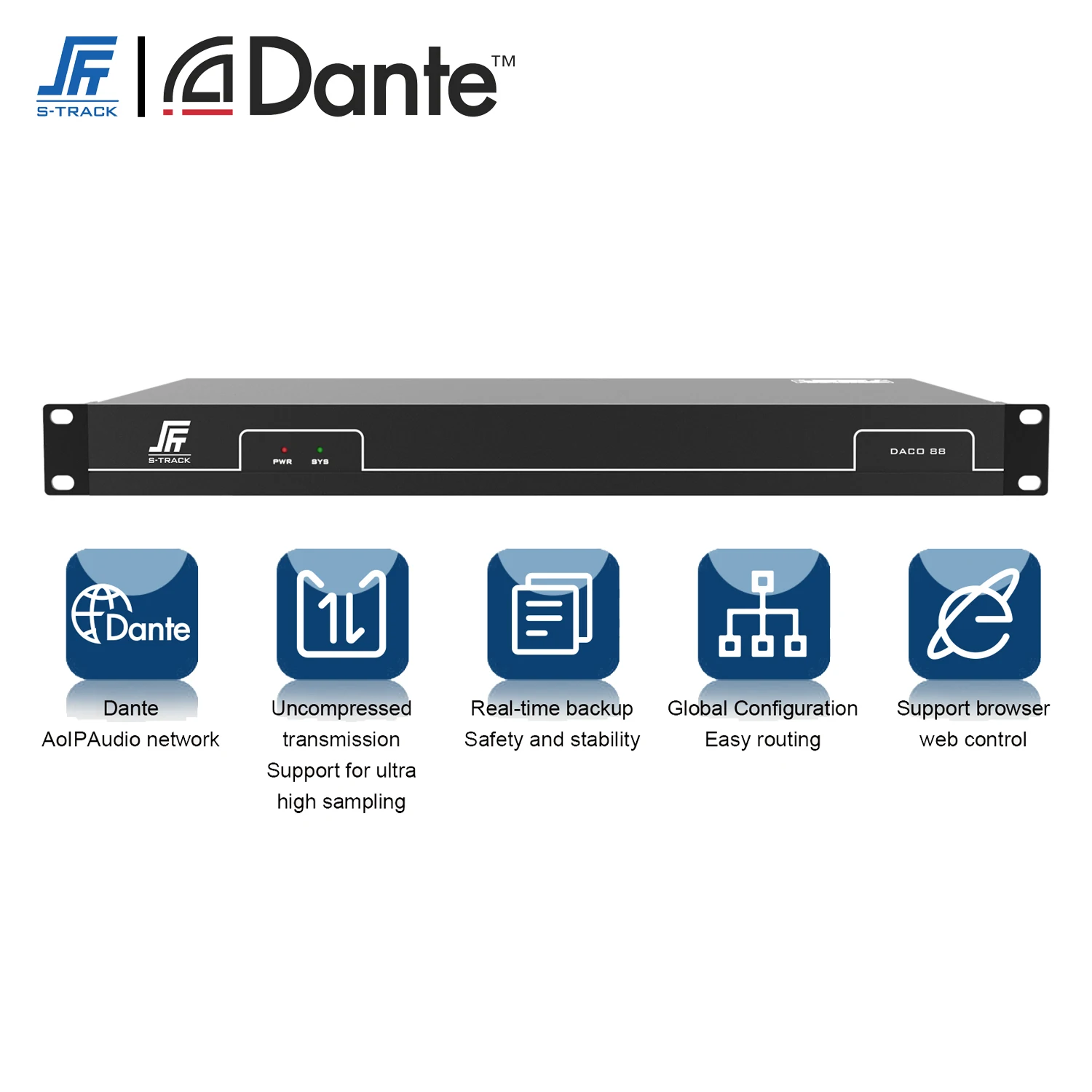

DACO 88 network audio interface machine is a product developed for network audio transmission and routing.
The built-in Dante module can realize the high quality and low delay requirements of network audio transmission, supports the maximum 8-way input and 8-way output analog channel, and provides a simple web version control and configuration interface to facilitate the transfer and adjustment of analog signal to Dante digital signal, which is an excellent choice for upgrading and optimization of multimedia system.
The built-in Dante module can realize the high quality and low delay requirements of network audio transmission, supports the maximum 8-way input and 8-way output analog channel, and provides a simple web version control and configuration interface to facilitate the transfer and adjustment of analog signal to Dante digital signal, which is an excellent choice for upgrading and optimization of multimedia system.
【Main Features】
• Maximum support 8 - way input and 8- way output analog channel
• Support web page control
• Built-in Dante module
• Built in RS232 transceiver module, can receive response to third-party control command
• Analog input channel supports 48v phantom power supply
• 1U aluminum chassis
• Support web page control
• Built-in Dante module
• Built in RS232 transceiver module, can receive response to third-party control command
• Analog input channel supports 48v phantom power supply
• 1U aluminum chassis
Specification
Model No. | Daco 88 |
Number of analog channels | 8 Input +8 Output |
Number of Dante channels | 8 Input +8 Output |
RS232/RS485 | 1 |
RJ45 control interface | 1 |
DANTE network interface | 2 |
Simulated maximum gain | Total 51dB，17 gain step,each 3db one step |
Frequency response | 20Hz ～ 20K Hz，±0.5dB |
EIN（A Weighted） | ≤-125 dBu |
Digitalizing bit | 24bit |
Sampling Rate | 48k |
Frequency Response（20~20KHz） | ±0.2dB |
Analog-to-digital dynamic range (A-weighted) | 114dB |
Digital-to-analog dynamic range (A-weighted) | 120dB |
Input to output dynamic range | 108dB |
Total harmonic distortion + noise | ＜0.004% @1KHz ,4dBu |
Noise floor (A- weighted) | -90dBu |
Delay storage | 2s |
Analog input to output system delay | 3ms |
Input impedance (balance -type) | 20KΩ |
Output impedance (balance -type) | 100Ω |
Maximum Input Level | +18dBu |
Maximum Output Level | +18dBu |
Equivalent input noise EIN（20-20kHz，A-weighted） | ≤-125dBU |
Phantom power (per input) | 48V |
Input common mode rejection，60Hz | 70dB |
Channel Isolation，1kHz | 107dB |

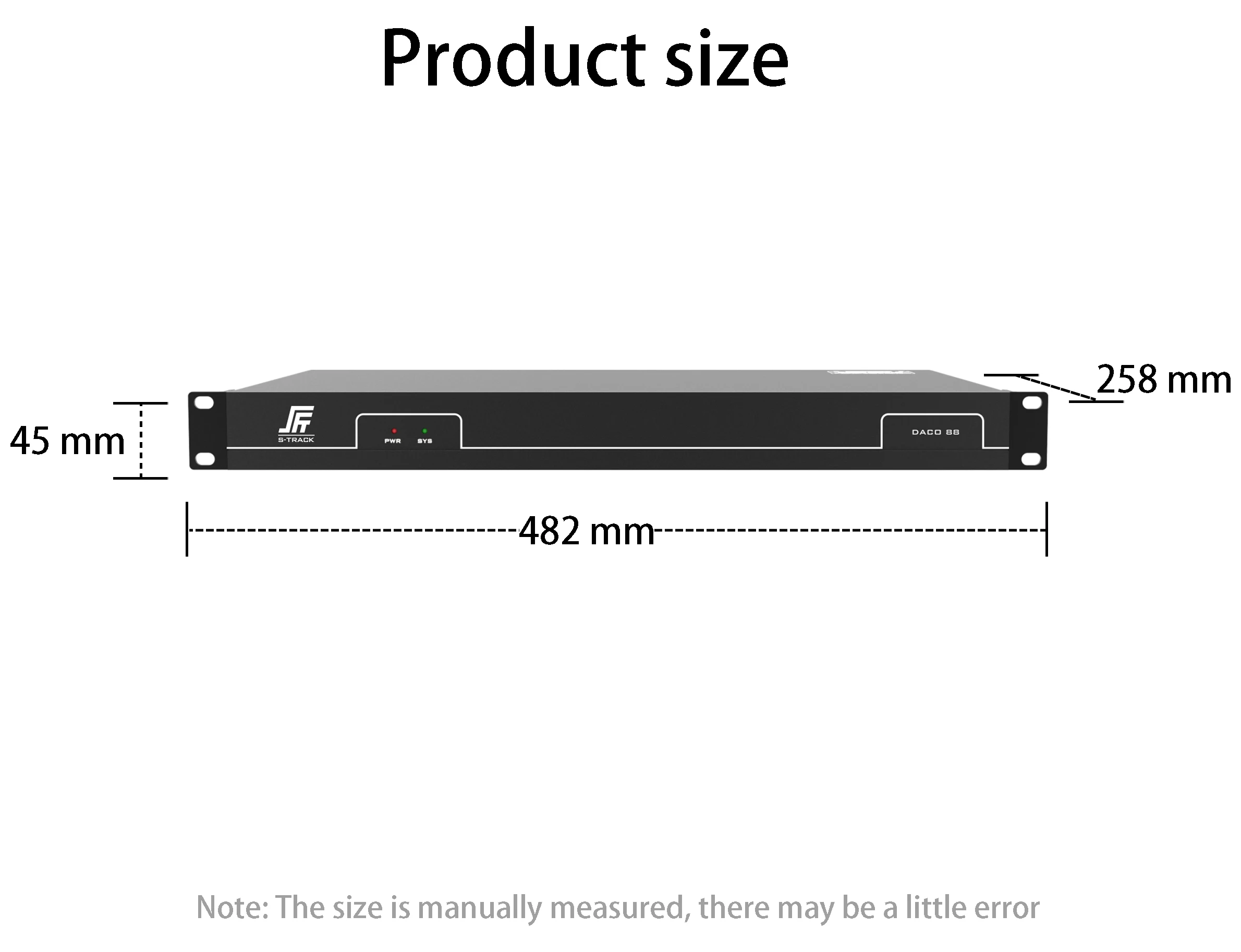

Dimensions (W*D*H) | 482*258*45(mm) |
Weight | 3Kg |
Power Consumption | <40W |
Operating Temperature | -10-50℃ |
Working Power Supply | AC110V-220V,50Hz/60Hz |

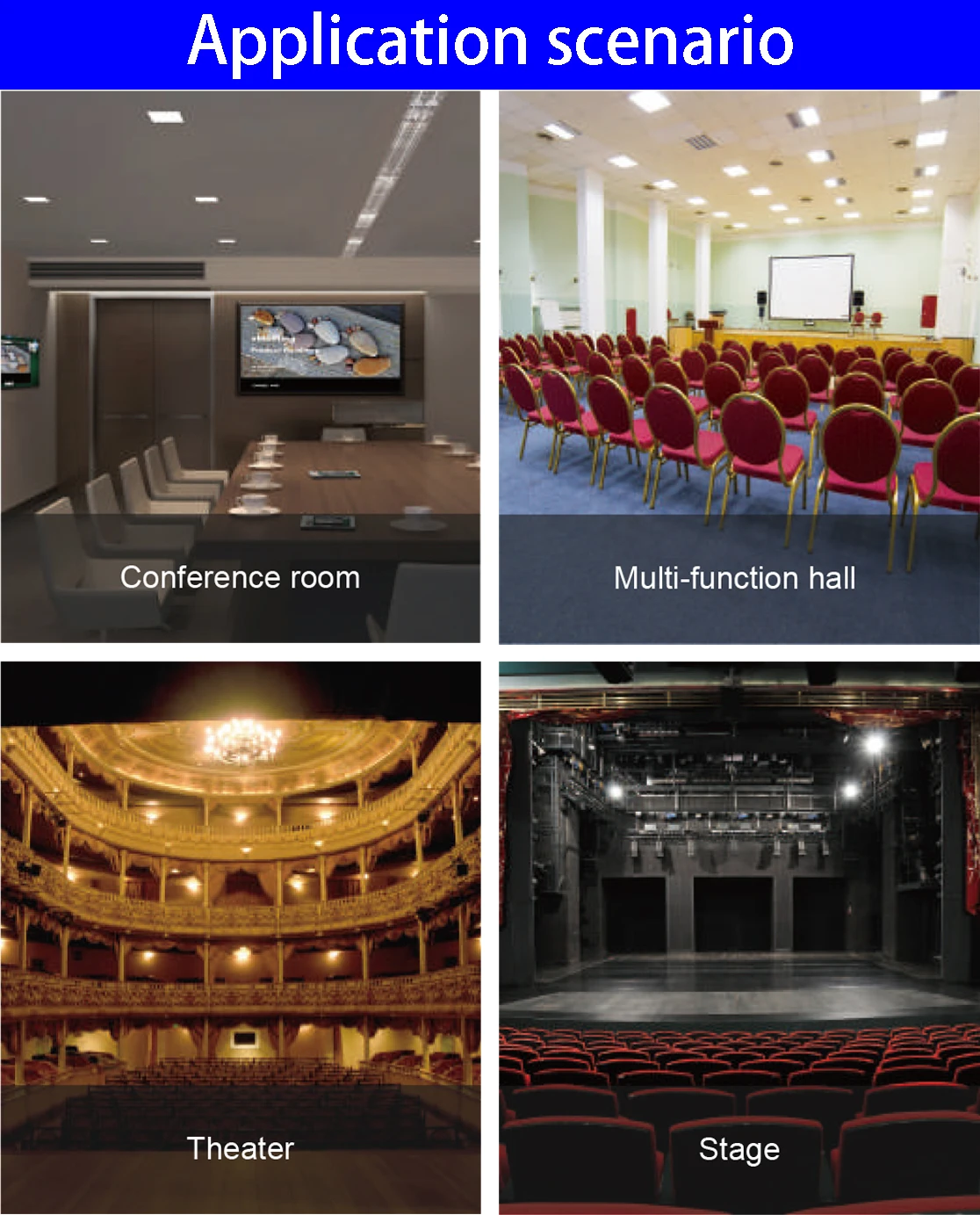

Application scenario
Conference room
Multi-function hall
Theater
Stage
