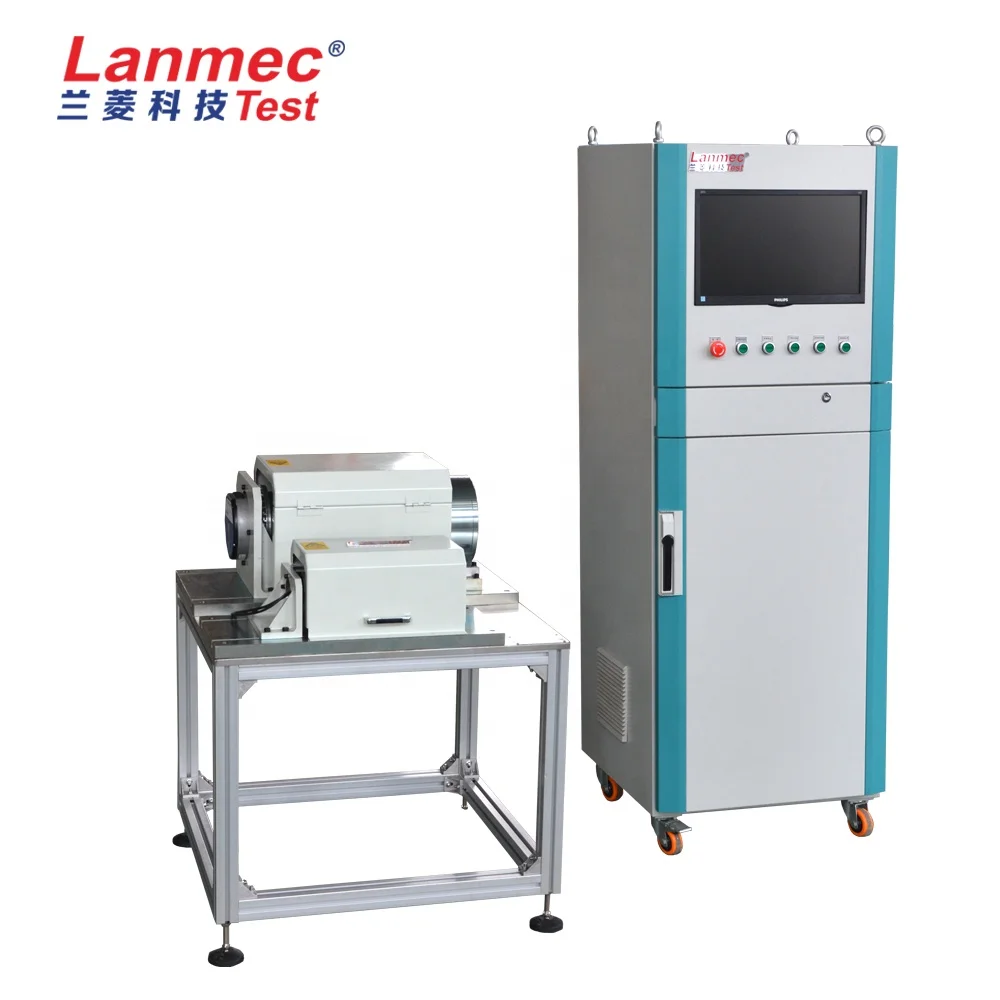

Hysteresis loading and hysteresis dynamometer for motor test bench with CE certification tester
- Category: >>>
- Supplier: Jiangsu Lanmec Electromechanical Technology Co. Ltd.
Share on (1600136221102):
Product Overview
Description
Product Categories
Product Description
Quality Assurance dwz cw series dynamometer eddy current brake with ce certified
Can measure the dynamic mechanical properties,especially in dynamic loading test whose power value is small or tiny.
Main features
it has the advantages of simple structure, stable operation, low price, convenient use and maintainance.
water cooling, low noise, small vibration.
input speed wide range (200-3600r/min)
excitation control power is small, adopt single-phase DC power supply.
supporting with dynamometer system, can realize automation control.
used as a brake, has advantages of large braking force and stable performance etc..

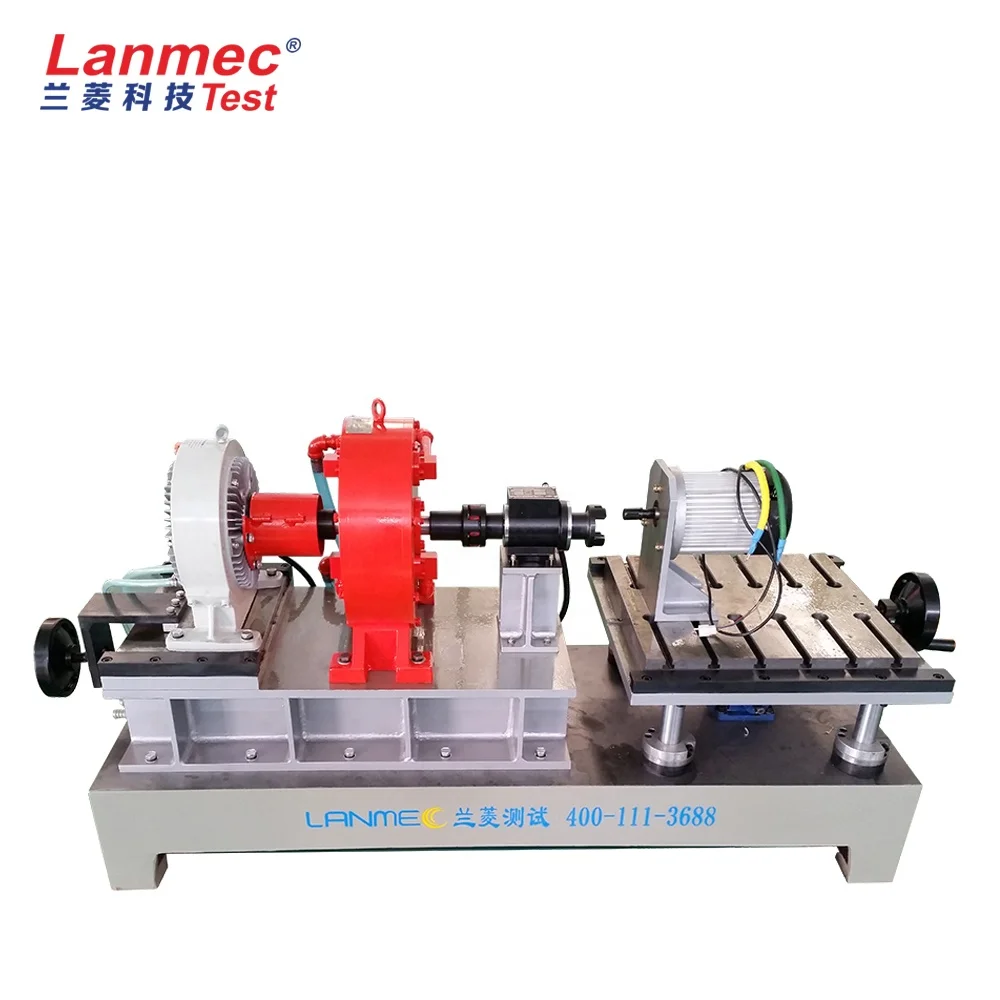

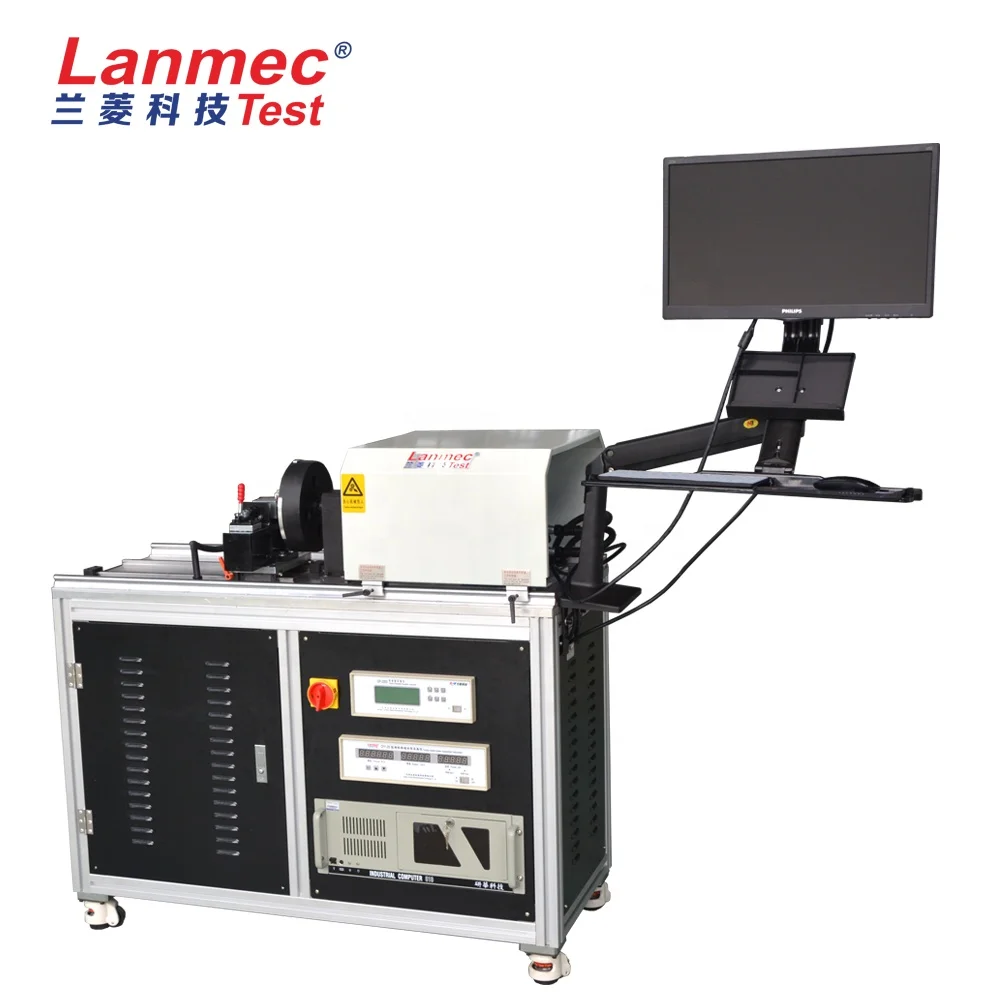

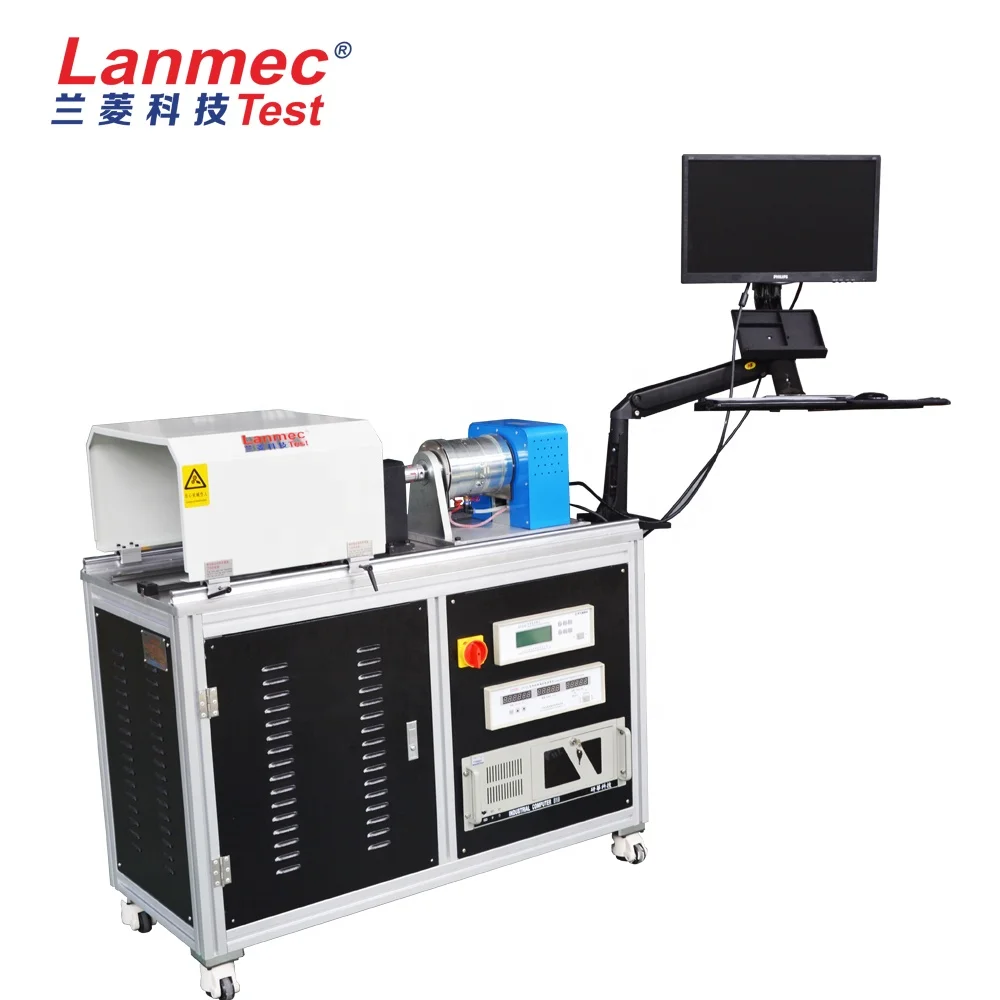

The motor comprehensive performance test bench is mainly used to test the input voltage, input current (AC / DC), input electric power, power factor (AC) of the motor; output torque (rated torque, locked-rotor torque, starting torque, maximum rotation) Moment, etc.), output speed, output mechanical power; efficiency; temperature rise, vibration, noise, etc. Type test and factory test can be carried out to evaluate the comprehensive performance of the motor, and provide accurate parameter basis for the research and development, production, maintenance and field application of the motor. The comprehensive motor performance test bench can test all types of asynchronous motors, synchronous motors, permanent magnet motors, AC motors, DC motors, new energy motors, etc.

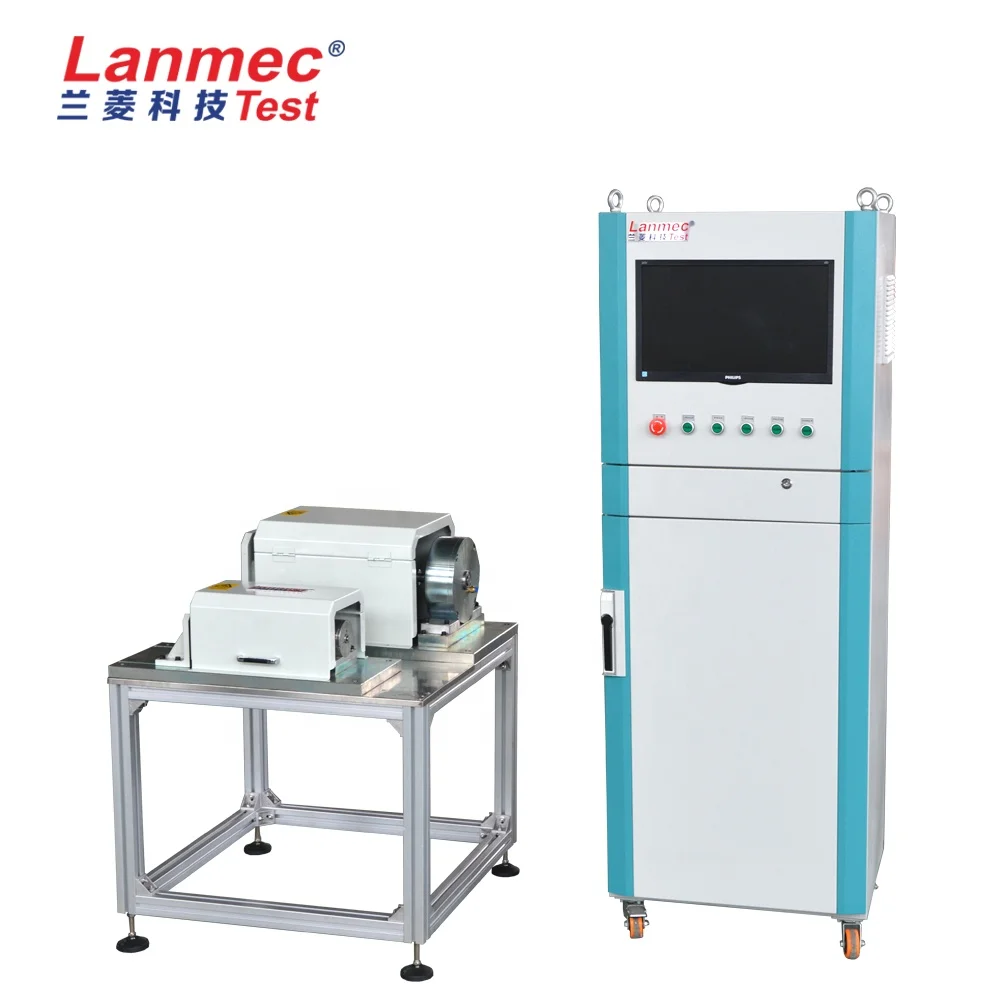

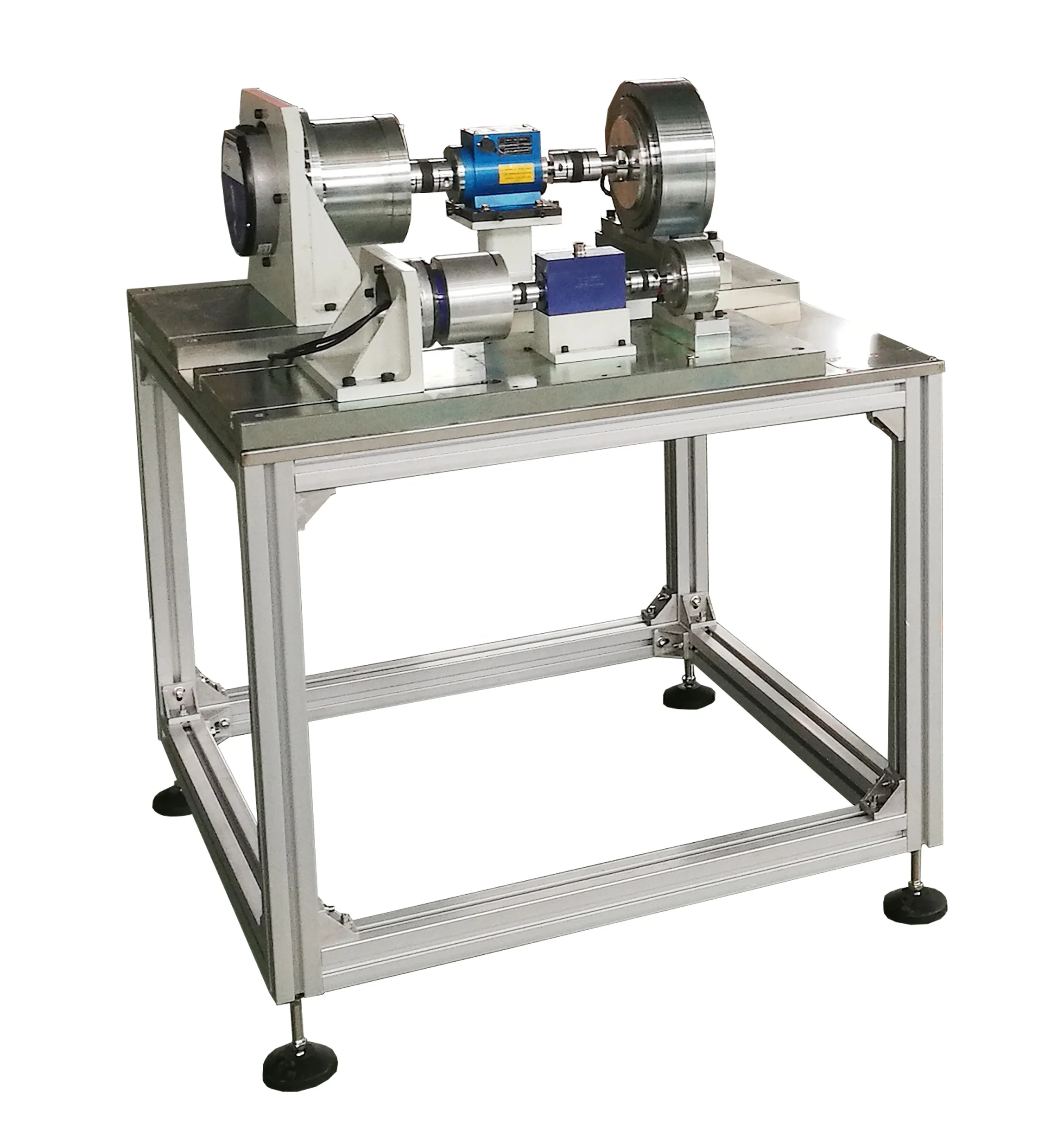

This type of motor test bench is mainly composed of the motor under test, torque speed sensor, simulated load (magnetic powder brake, eddy current brake, hysteresis brake, motor, etc.), installation platform, connecting fixture, measurement and control system (instrument, software, etc.), electrical Control system and other components.
The test process can be loaded manually or automatically, the test results can generate customized test reports, curve charts, etc., the process data can be generated in Word, Excel, or PDF format files, and the data can be saved, edited, and printed. The test system interface is simple, easy to upgrade and maintain. The company trains the operating personnel free of charge to provide guidance for use and maintenance.
Users can choose test items according to specific requirements:
Efficiency test
Load test
Locked rotor test
No-load test (calculation of three-phase current unbalance)
Temperature rise test (vibration, noise, etc.)
DC resistance measurement (calculation of three-phase resistance unbalance)
Insulation resistance measurement
Power frequency withstand voltage test
Turn-to-turn voltage test
Groove torque test
Specific test items can be communicated or customized by both parties, technical support phone 400-111-3688.
On behalf of customers: ABB, Siemens, Tamagawa, Aerospace Science and Industry, Jiamusi Motor Factory, etc.
Lanmec Technology's various test benches, dynamometers and other customers are located in aerospace, aviation, ship parking, weapons, petroleum, scientific research units, colleges and universities, testing institutions, etc., and are exported to the United States, Germany, Italy, Turkey, Chile and India Country, welcome to call us!
Related Products
Application
Main application
DWZ disc eddy current brake is mainly used as load in loading dynamometer equipment. it is experimental apparatus which can measure the dynamic mechanical properties, especially in dynamic loading test whose power value is small or tiny, also can be treated as suction power devices of other dynamic devices.

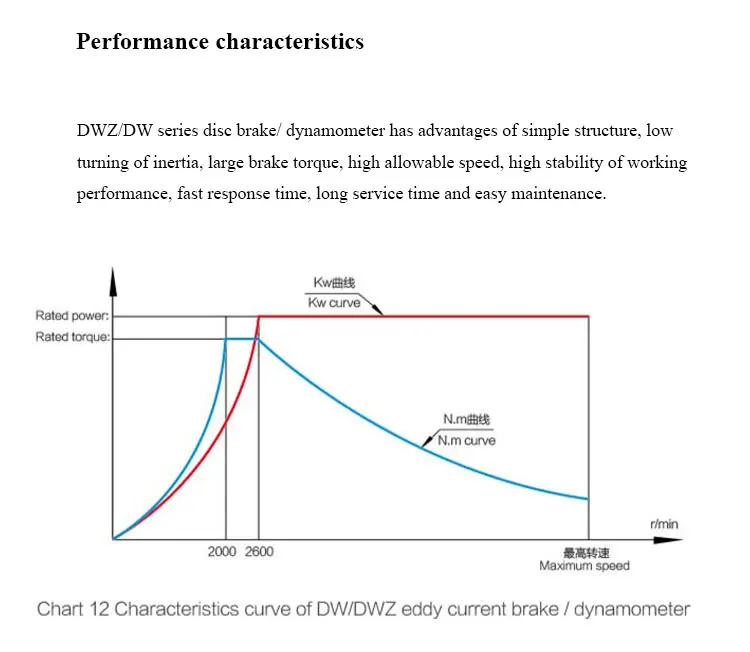

DW series disc eddy current dynamometer is, is that add device for measuring torque and rotational speed on DWZ series disc eddy current brake, it is experimental apparatus which can measure the dynamic mechnical properties, especial in dynamic loading test whose power value is small or tiny.
CW eddy current brake as a load is mainly used to measure the mechanical characteristics of inspection equipment, it and other control instrument (including loading apparatus, torque speed sensor and torque power acquisition instrument etc.) can be composed of eddy current dynamometer can be used for performance testing of the internal combustion engine, motor, gas turbine, automobile and its dynamic mechanical components, compared with other power measuring device, the CW series power measuring device has the advantages of reliability, high stability and practicability.
