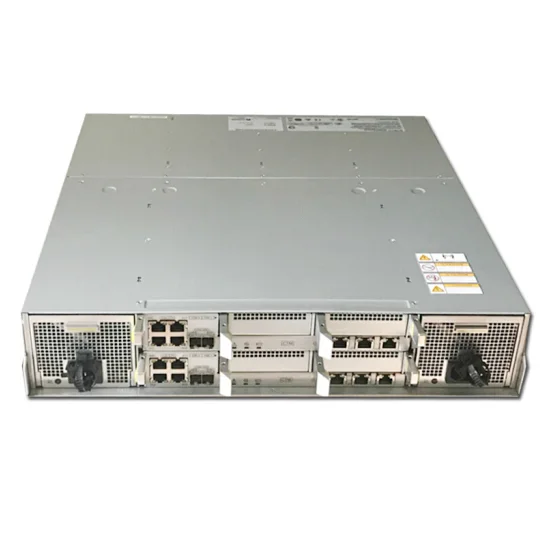

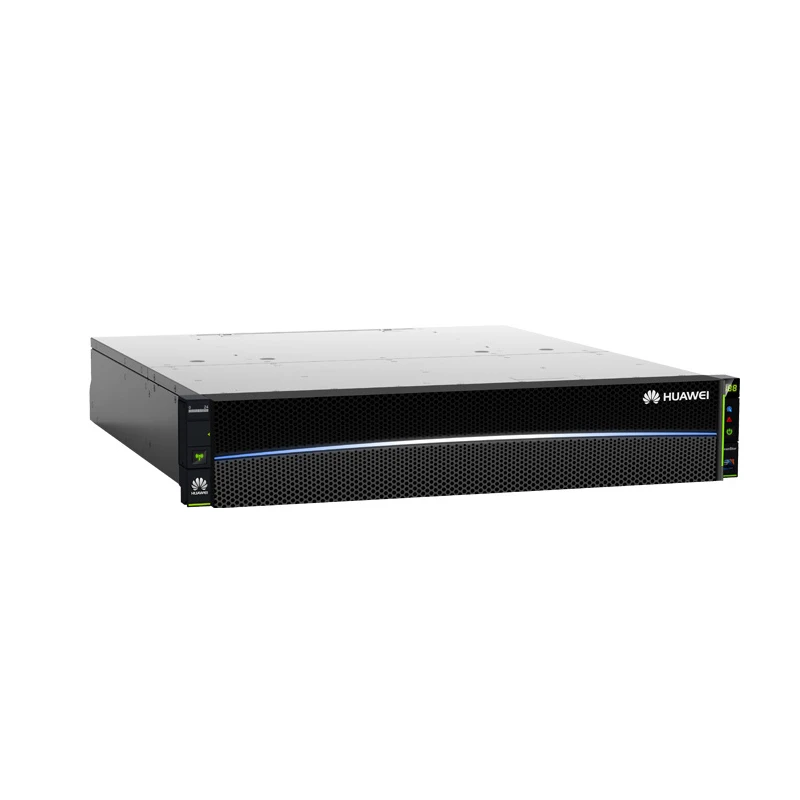

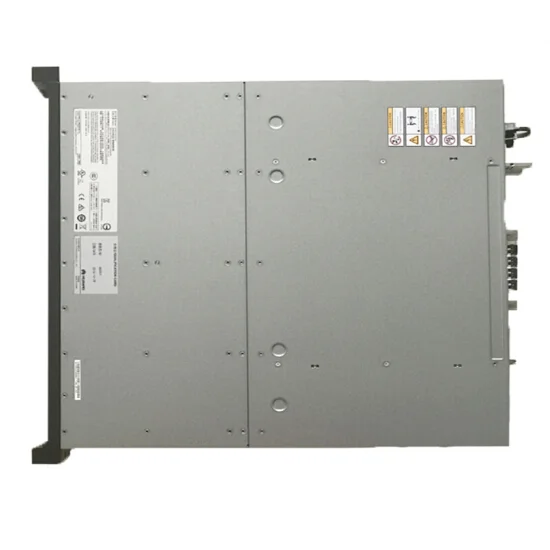

Huawei OceanStor 5300 V5 with 64 GB to 512 GB System Cache
Huawei’s OceanStor 5300/5500/5600/5800 V5 mid-range hybrid flash storage systems are dedicated to providing reliable and efficient data services for enterprises.
A cloud-ready operating system, flash-enabled performance, and intelligent management software deliver top-of-the-line functionality, performance, efficiency, reliability, and ease of use.
The OceanStor 5300/5500/5600/5800 satisfy the data storage requirements of large-database OLTP/OLAP and cloud computing, making it a perfect choice for the government, finance, telecommunications, healthcare and manufacturing sectors.
Item
5300 V5
Processors per controller
1 x 16-core processor
Cache size per controller
32 GB
64 GB
Maximum number of controllers per enclosure
2
Maximum number of IP scale-out controllers
8
Maximum number of disks
500

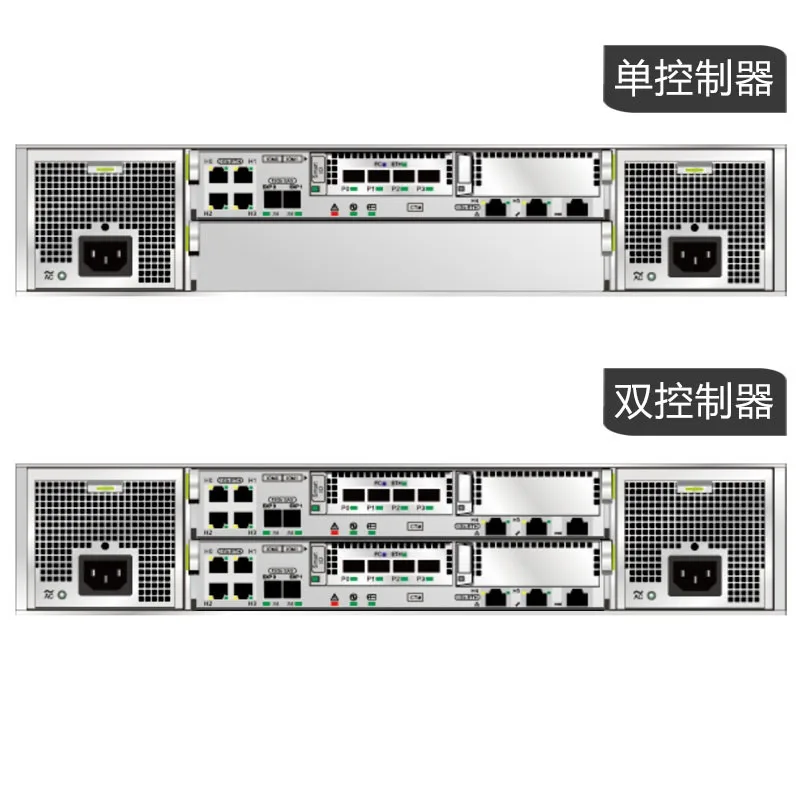

Controller enclosure configuration

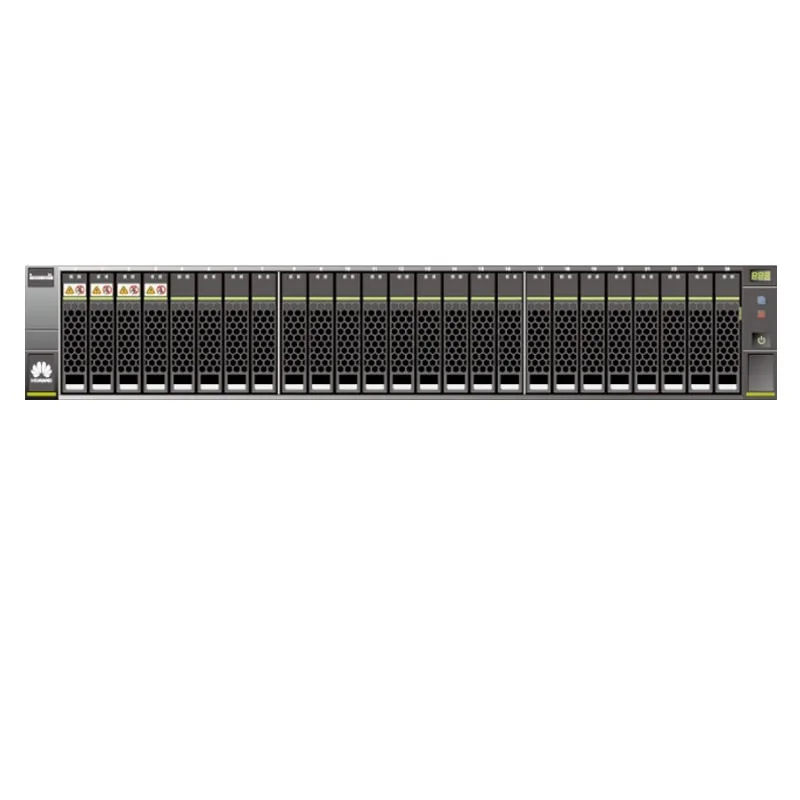

2 U controller enclosure with twenty-five 2.5-inch disks
2 U controller enclosure with twelve 3.5-inch disks
Supported disk enclosure types
2 U SAS disk enclosure with twenty-five 2.5-inch disks
4 U SAS disk enclosure with twenty-four 3.5-inch disks
4 U SAS high-density disk enclosure with seventy-five 75 x 3.5-inch disks
Maximum number of disk enclosures
2 U SAS disk enclosure: 21
4 U SAS disk enclosure: 21
4 U SAS high-density disk enclosure: 7
Maximum number of disk enclosures connected to back-end channels (ports)
A maximum of eight SAS disk enclosures can be connected to a pair of SAS ports. Two is recommended.
A maximum of seven high-density disk enclosures can be connected to every two pairs of SAS ports (a pair consists of two adjacent ports on the same card). Two is recommended.
Common disk enclosures and high-density disk enclosures cannot be connected in a mixed manner in the same back-end loop of a SAS interface module.
Supported disk types
SSD, SAS, and NL-SAS
Supported hot-swappable interface module types
8 Gbit/s Fibre Channel
16 Git/s Fibre Channel
GE
10GE (electrical)
SmartIOa
Supported hot-swappable expansion module type
12 Gbit/s SAS
Maximum number of hot-swappable I/O interface modules per controller
2
Length of expansion SAS cables
Controller enclosure
Electrical cables: 1 m and 3 m
Common disk enclosure
Electrical cables: 1 m, 3 m, and 5 m
Optical cables: 15 m
High-density disk enclosure
Electrical cables: 5 m
Controller enclosures interconnected with high-density disk enclosures support only 3 m electrical cables.
Redundancy of main components
BBU: 1+1
Power modules: 1+1
Fans: 3+1
