Powered by Cummins 6LTAA8.9 G2 engine super silent prime power 275KVA diesel generator 220KW genset
- Category: >>>
- Supplier: Jiangsu Wellpower Generator Co. Ltd.
Share on (1600136332750):
Product Overview
Description

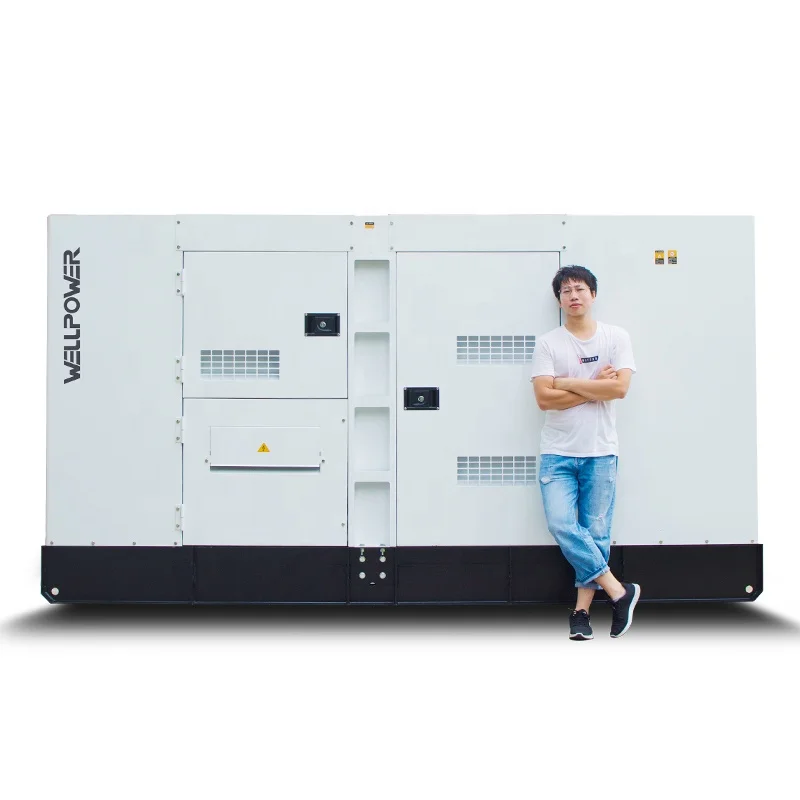

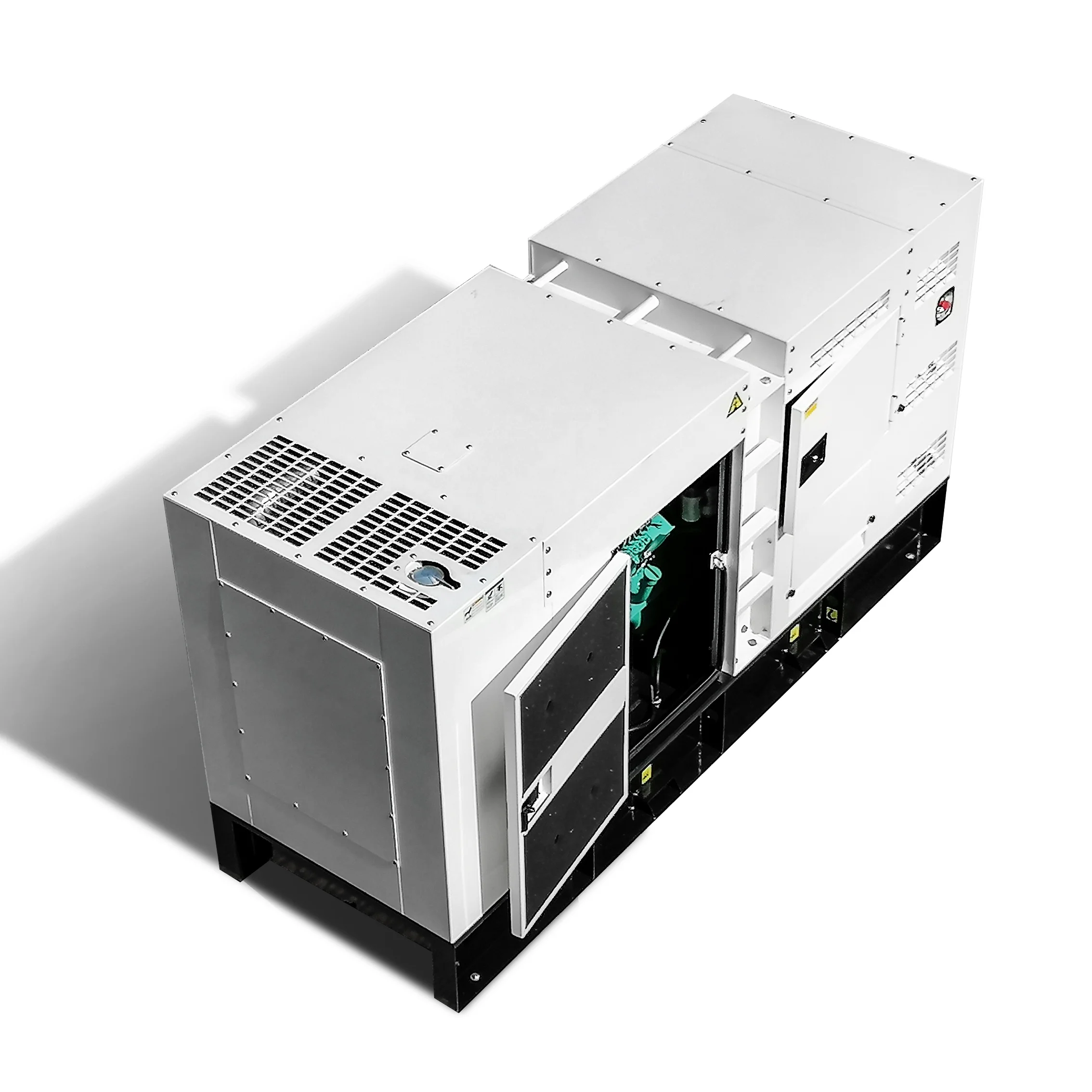

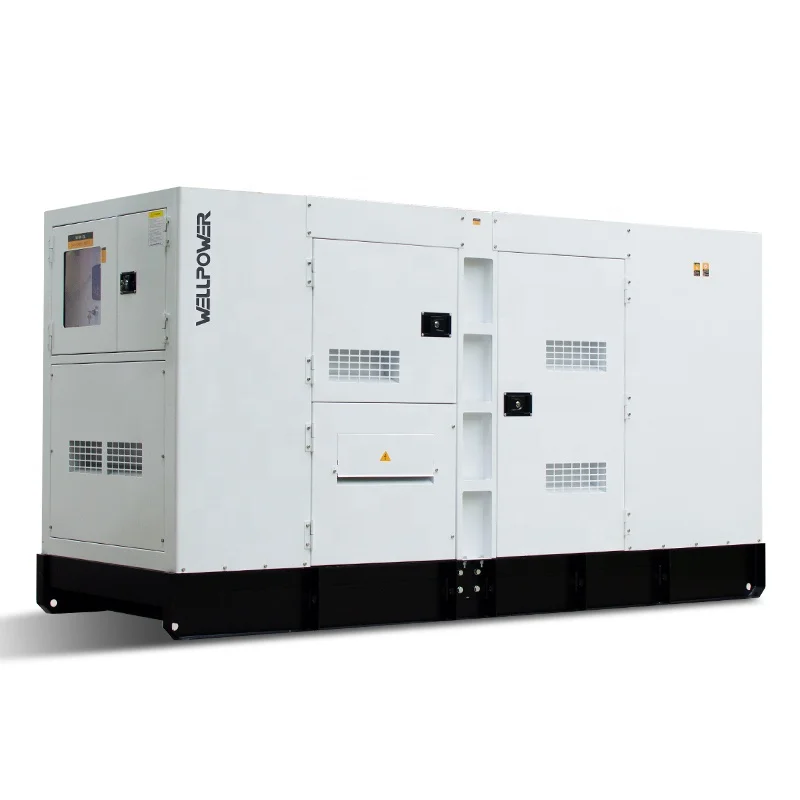

Powered by Cummins 6LTAA8.9-G2 engine super silent prime power 275KVA 220KW diesel generator
| MODEL | VOLTAGE | HZ | PRIME POWER | STANDBY POWER | TYPE |
WP-C275GF | 415/440/480 | 60 | 275KVA | 303KVA | OPEN/SILENT/TRAILER |
Super silent type with standard base fuel tank
Engine spec
Engine Model | 6LTAA8.9-G2 |
Engine Manufacturer | Cummins |
Number of Cylinders | 6 cylinders in line |
Cycle | 4 stroke |
Air Intake system | Turbocharged and Charge air cooled |
Bore × Stroke | 114mm x145mm |
Displacement | 8.9L |
Compression ratio | 16.6:1 |
Prime Power/Speed | 220kw / 1800rpm |
Standby Power/Speed | 242kw / 1800rpm |
Speed Governor | Electrical |
Cooling System | Forced water cooling cycle |
Steady speed droop | ≤1% |
Total lubrication system capacity | 27.6L |
Coolant capacity (engine only) | 11.1L |
Fuel Consumption at 100% Load | 208g/kwh |
Starter Motor | DC24V |
Alternator | DC24V |
Alternator spec
Alternator Model | UCDI274K |
Prime power | 275KVA |
Frequency/speed | 60HZ/1800RPM |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
Phase | Three phases |
Control panel spec

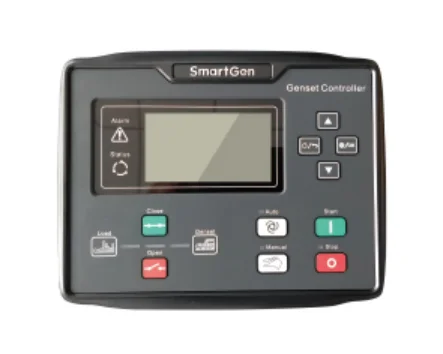

Model | DeepSea/SmartGen/ComAp |
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. | DeepSea DSE6120, DSE7320, DSE8610, DSE8810 SmartGen HGM6110N, HGM6120N, HGM9510 ComAp MRS10, MRS16, IC-NT
|
Company Information
WELLPOWER GENERATORS, PROFESSIONAL POWER SOLUTION.
Jiangsu WellPower Generator Co., Ltd which is one of the largest diesel generator set manufacturers in China mainland.Until now,Wellpower has been exported to more than 80 countries and regions and have got a lot of praise from our customers.
Our production capacity amounts to 9000 sets per year. We are specialized in making 10kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA...Our generator mainly use DEEPSEA and SMARTGEN control panel.
According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
Certifications
FAQ
1.Q: What is your MOQ of this item?
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
