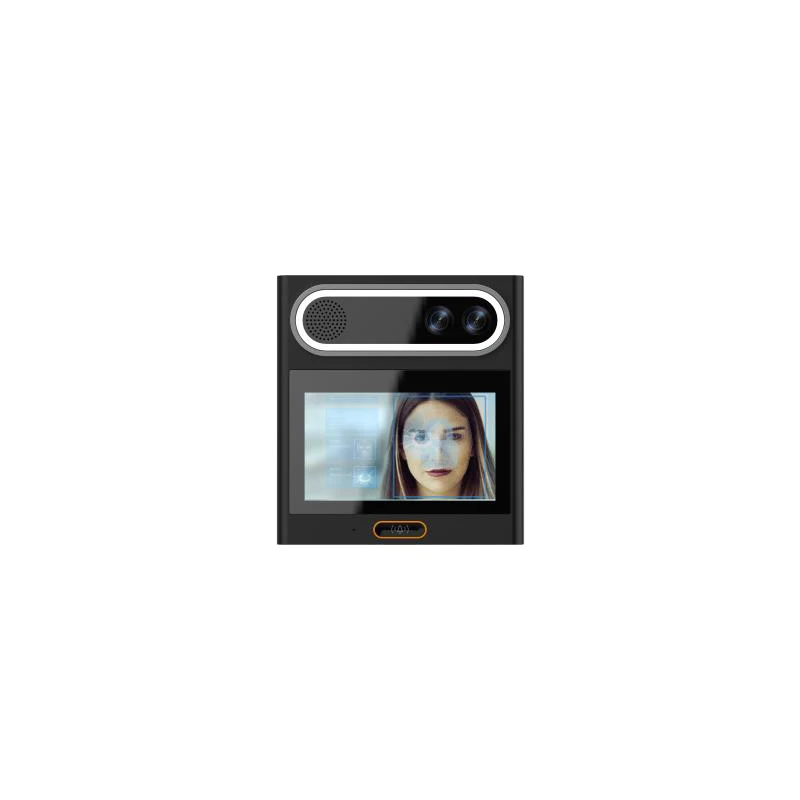

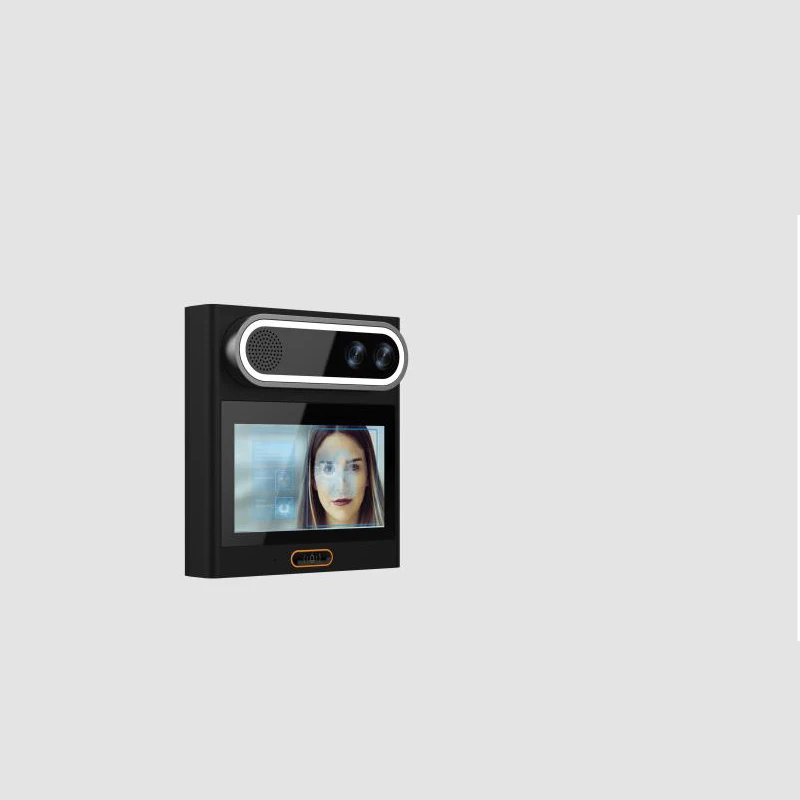

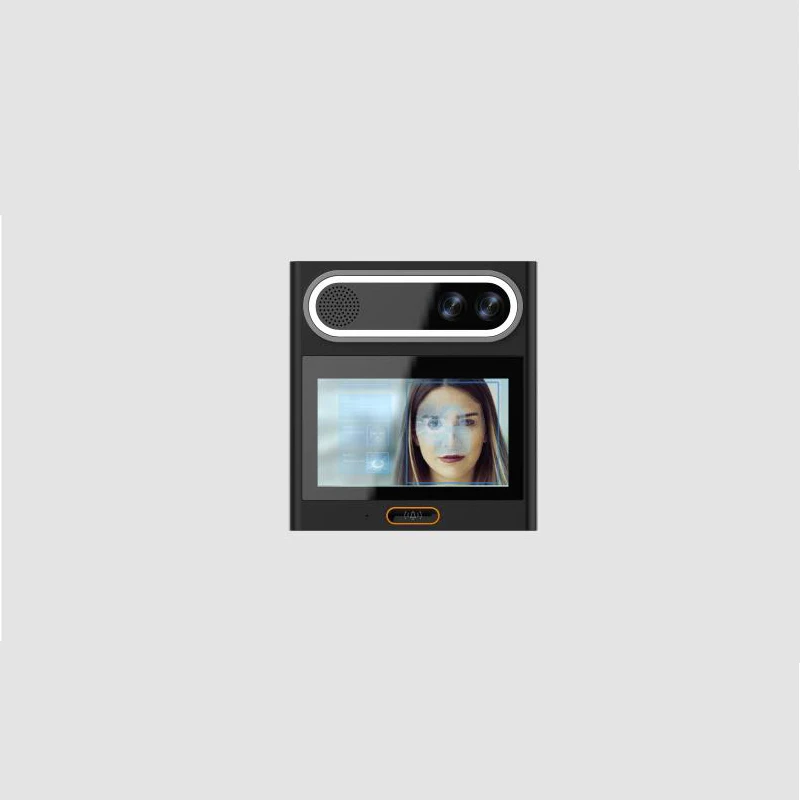

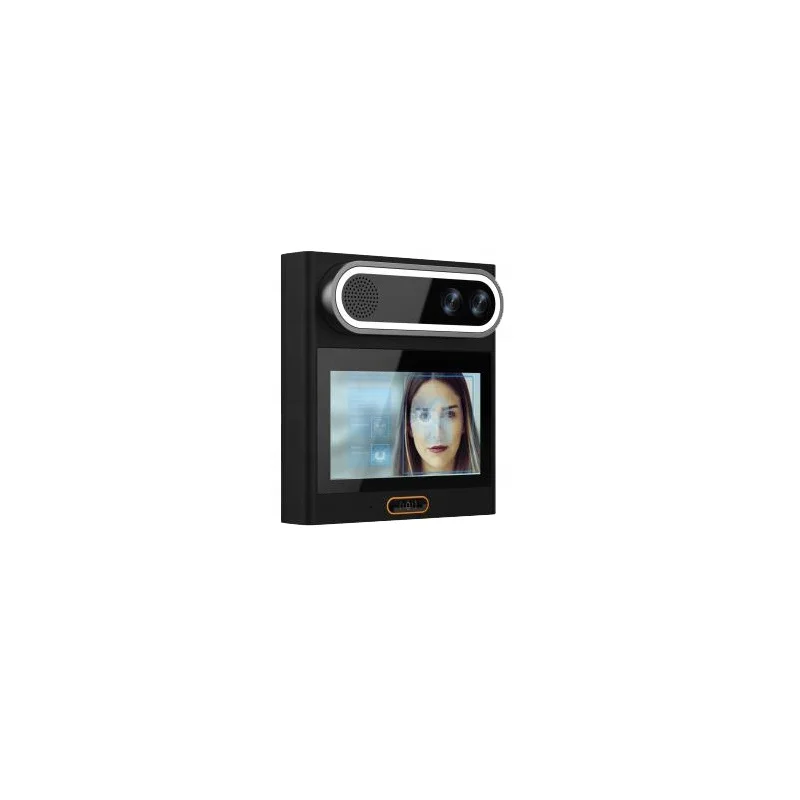

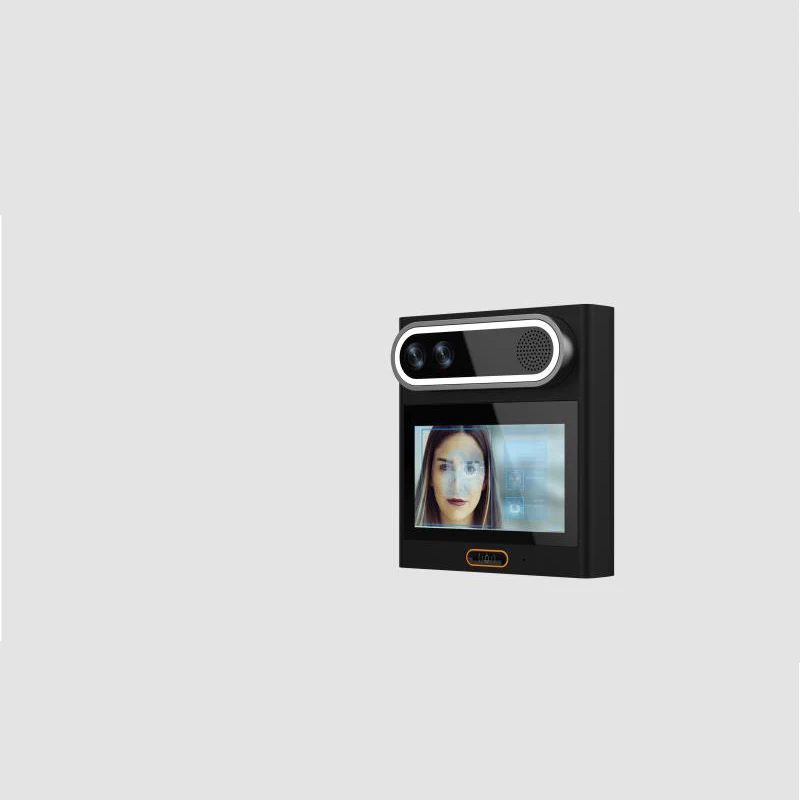

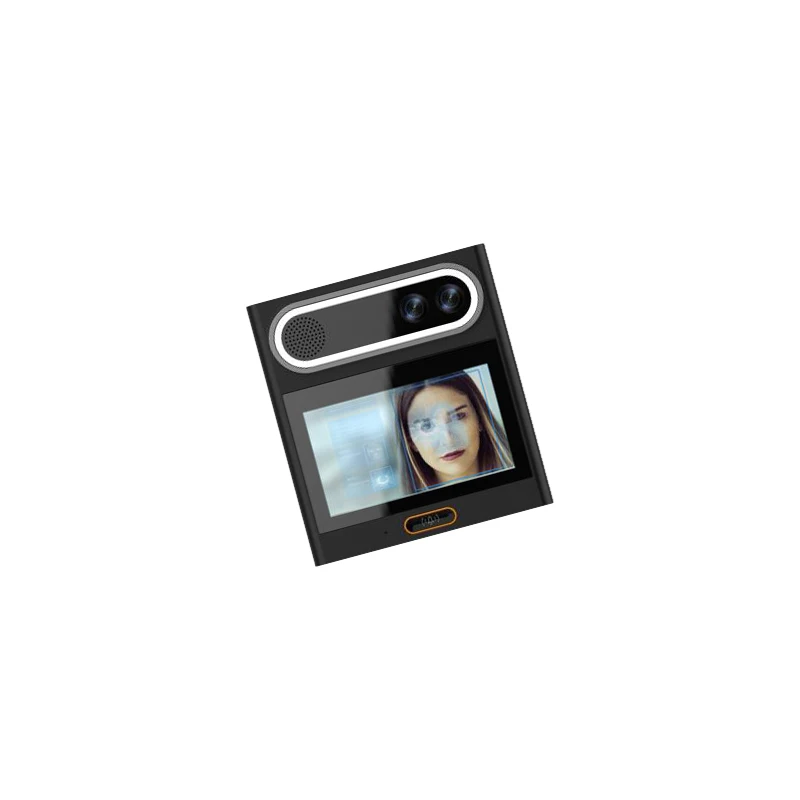

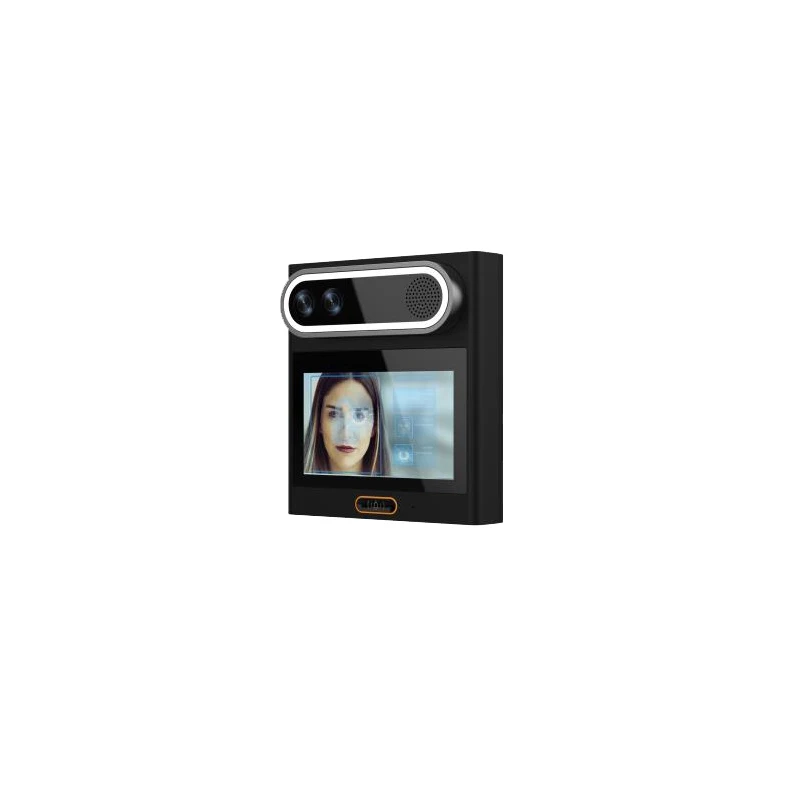

Wholesales 1080p Ai Thermal Imaging Binocular Camera For Fever Detection With Alarm Function Thermal Camera Face Recognition
- Category: >>>
- Supplier: Shenzhen Megcam Electronic Co. Ltd.
Share on (1600136368439):
Product Overview
Description
Product Description
Note!
Our MD100 body temperature camera scanning device support ODM OEM development!
Only our company has this product, we are the source manufacturer and factory!
Hardware | |
CPU HI3516CV500 | HI3516CV500 |
OS Linux | Linux |
Storage 8G EMMC | 8G EMMC |
Sensor 1/2.8" CMOS | 1/2.8" CMOS |
Lens 4mm | 4mm |
Performance | |
Recognition height 1.2-2.2 meters, adjustable angle | 1.2-2.2 meters, adjustable angle |
Recognition distance 0.5-2 meters (0.5-0.7 meters in tempe measurement mode) | 0.5-2 meters (0.5-0.7 meters in temp measurement mode) |
Face angle Up and down 30 degrees | Up and down 30 degrees |
Recognition time ＜300ms | ＜300ms |
Face capacity | Support 20,000 face comparison library & 100,000 face recognition records |
Thermal imaging tempe measurement Support 20,000 face comparison library & 100,000 face recognition records | 0.5-0.7 meters，accuracy 0.3-0.5℃ |
RFID | Support 13.56MHz IC card |
Camera | |
Camera SONY wide dynamic camera, support live detection | SONY wide dynamic camera, support live detection |
Pixels 1920*1080 | 1920*1080 |
Minimum illumination Color 0.01Lux @F1.2(ICR); Black and white 0.001Lux @F1.2 | Color 0.01Lux @F1.2(ICR); Black and white 0.001Lux @F1.2 |
Signal to noise ratio ≥50db(AGC OFF) | ≥50db(AGC OFF) |
Wide dynamic range ≥80db | ≥80db |
Interfaces | |
Network interface: RJ45 10M/100M adaptive Ethernet port | RJ45 10M/100M adaptive Ethernet port |
Wiegand interface Support Wiegand input or Wiegand output（26 or 34） | Support Wiegand input or Wiegand output（26 or 34） |
Alert output 1 switch output | 1 switch output |
USB 1 USB interface (support external ID card reader) | 1 USB interface (support external ID card reader) |
Protocol HTTP/SDK/ WebSocket/ONVIF/GB28181 | HTTP/SDK/ WebSocket/ONVIF/GB28181 |
General | |
Power supply DC 12V/2A | DC 12V/2A |
power 10W(MAX) | 10W(MAX) |
Working temperature -20℃ - +60℃（15-30℃ in temp measurement mode） | 0 |
Working humidity 5～90% relative humidity, non-condensing | 5～90% relative humidity, non-condensing |
Dimension 120mm* 33.5mm *366.7mm | 120mm* 33.5mm *366.7mm |
Column aperture 33mm | 33mm |
Feature:
Quick facial recognition measurement, show' on screen
Fever alert＞37.3°C
Easy to install, supports multiple installation methods
support relay port，work with access control.
Plug and play
Two way audio
Specification
Screen specifications: 4.3 inch LCD screen |
Temperature proofing: support |
Temperature measurement distance: ≤0.7 meters |
Detection number: 1 |
Installation method: vertical, desktop, wall-mounted |
Working temperature: 16~35°C |
Product specifications: 13.5*12.3*3.7CM Packing specification: 20.7*17*9.2CM Model：MD100 Function：AI face recognition Feature: Two Way audio Motion Detection |
Company introduction
About us:
Shenzhen Meiminggao Electronic Co., Ltd., founded in 2008, is a high-tech company specializing in the research and development of intelligent video image processing and application technology and product manufacturing. The main products include AI intelligent monitoring system, face recognition camera series, wireless mobile camera series and smart home camera series. It has 16 patents in China, 1 in the United States and 1 in Europe and the United States. At present, the company has 120 employees, including1 doctor and 3 master. The production capacity of the company is 100000 cameras per month. To this day, millions of MEGCAM products are providing vital safety protection for many families, public facilities, transportation, government departments, educational institutions, as well as commercial and industrial facilities around the world.
Shenzhen Meiminggao Electronic Co., Ltd. is a company with a strong sense of responsibility, responsible for users, customers and society. The company has a dedicated person to provide customers with complete technical support and after-sales service. All products have passed FCC, CE, UL and other certification. We sincerely welcome friends from all over the world to cooperate with us for common development.
Company Honor
Certificate:
Our factory:
Product line:
Delivery&Payment：
Our advantage:
1. Experienced
10 years of security quality production experience
2. Customized available
Sample customization, function customization, OEM customization
3. Fast production speed
Mature production technology and advanced production equipment to ensure the efficiency of product production
4. Delivery on time
We will deliver the product to you on time
5. After sales
Quality is guaranteed, we do not make false low price sales.
10 years of security quality production experience
2. Customized available
Sample customization, function customization, OEM customization
3. Fast production speed
Mature production technology and advanced production equipment to ensure the efficiency of product production
4. Delivery on time
We will deliver the product to you on time
5. After sales
Quality is guaranteed, we do not make false low price sales.
FAQ:
Q1: Are you a factory?
A: Yes, we are a manufacturer of surveillance intelligent camera, shaking head machine,HD network digital hard disk recorder etc.
Q2: Do you accept OEM or ODM orders?
A: Yes, we welcome OEM and ODM orders.
Q3: Could you offer wholesale price?
A: Yes, of course. If you order large QTY, we can give you the bulk price.
Q4: I'm shopping at your company at the first time, how can I trust you?
A: If you have any questions, you are welcome to visit our company or our factory at any time.
Q5: Can we print our logo on the product?
A:Sure,you can provide us with your brand authorization and we will print your brand or logo.
A: Yes, we are a manufacturer of surveillance intelligent camera, shaking head machine,HD network digital hard disk recorder etc.
Q2: Do you accept OEM or ODM orders?
A: Yes, we welcome OEM and ODM orders.
Q3: Could you offer wholesale price?
A: Yes, of course. If you order large QTY, we can give you the bulk price.
Q4: I'm shopping at your company at the first time, how can I trust you?
A: If you have any questions, you are welcome to visit our company or our factory at any time.
Q5: Can we print our logo on the product?
A:Sure,you can provide us with your brand authorization and we will print your brand or logo.
Q6: What's your trade terms?
A: EXW shenzhen.
Q7: Can I become your agent?
A: Of course, we are eager to become a long-term partnership with you.
Q8: What is your MOQ?
A:No MOQ, we also welcome the small order.
