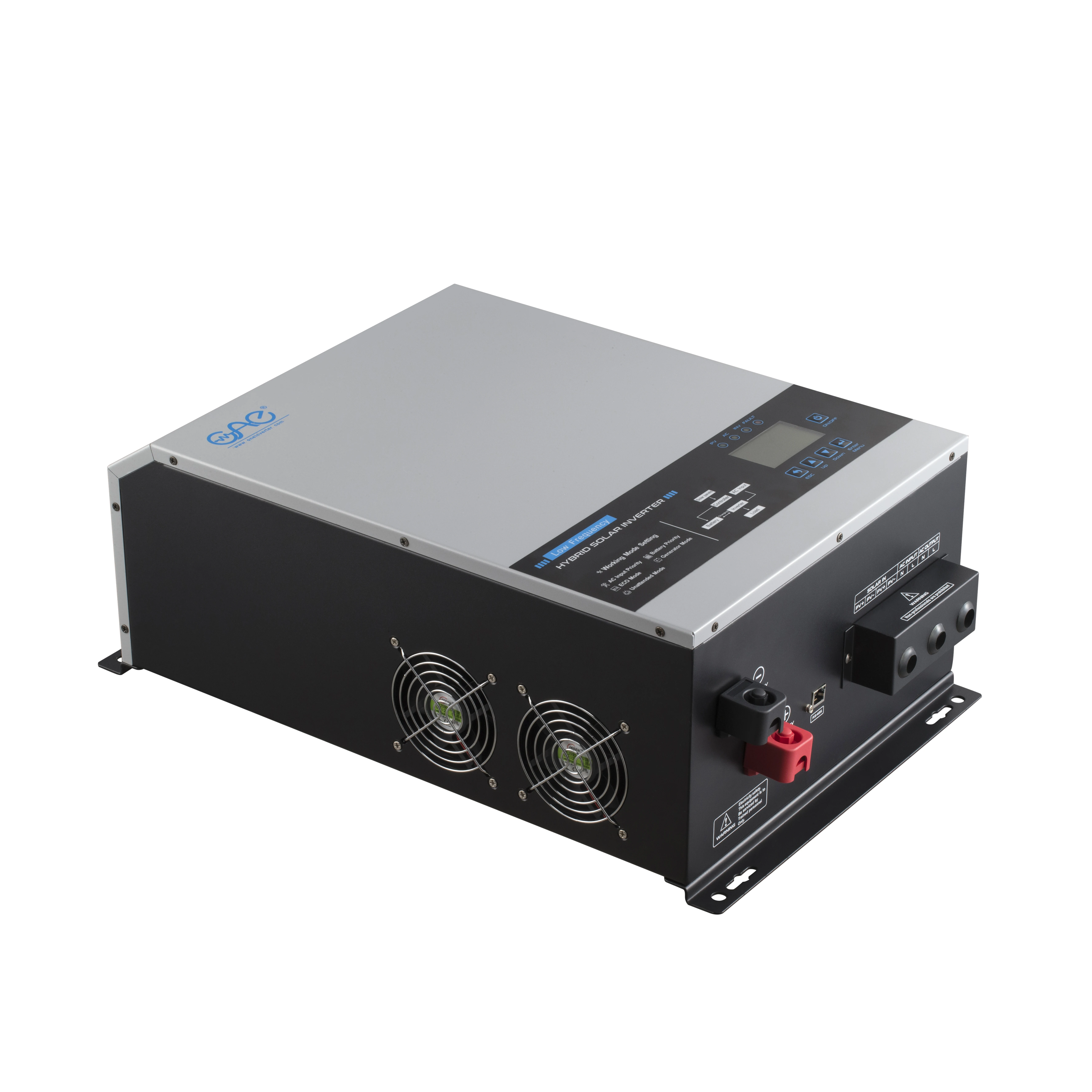

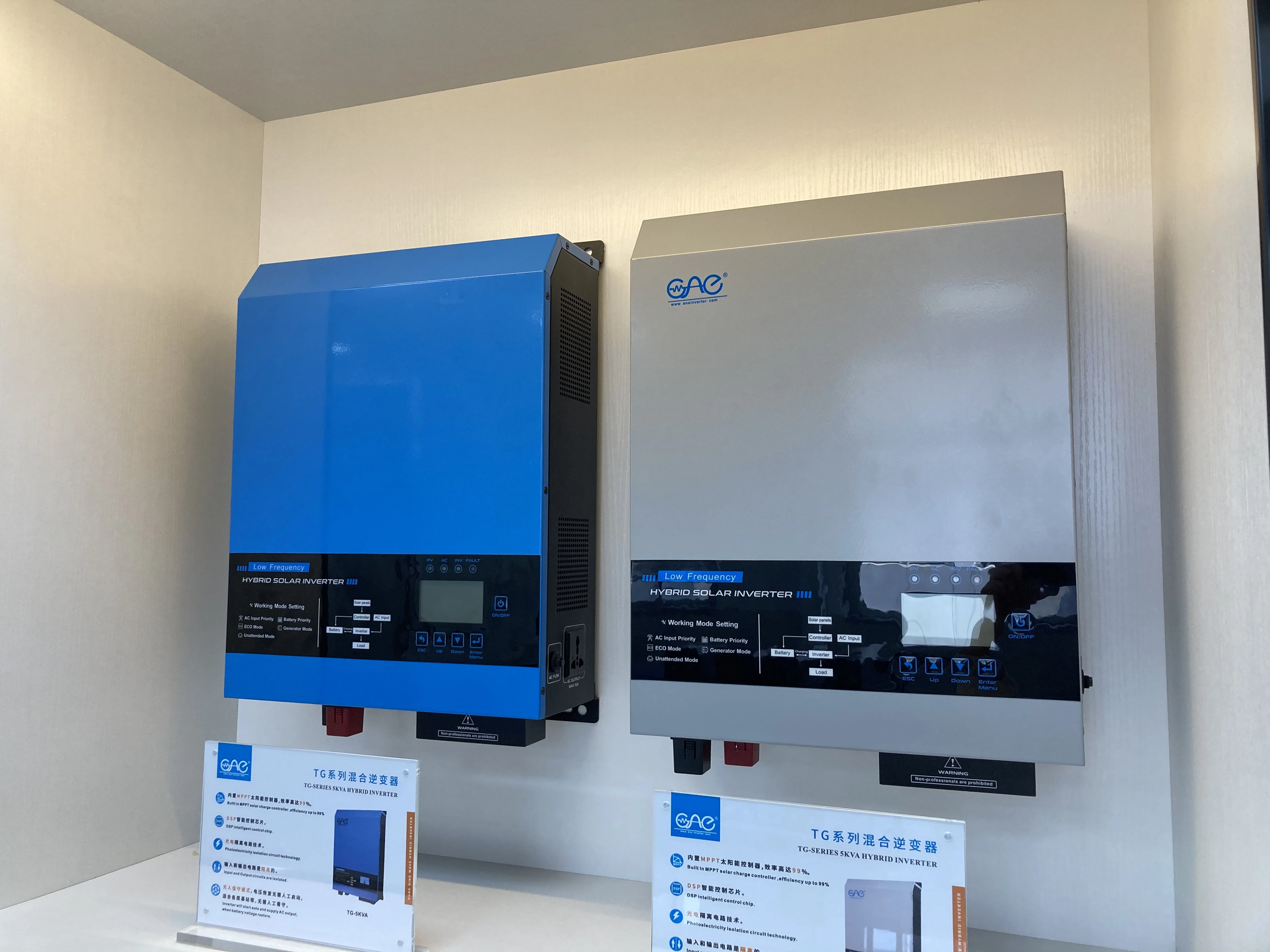

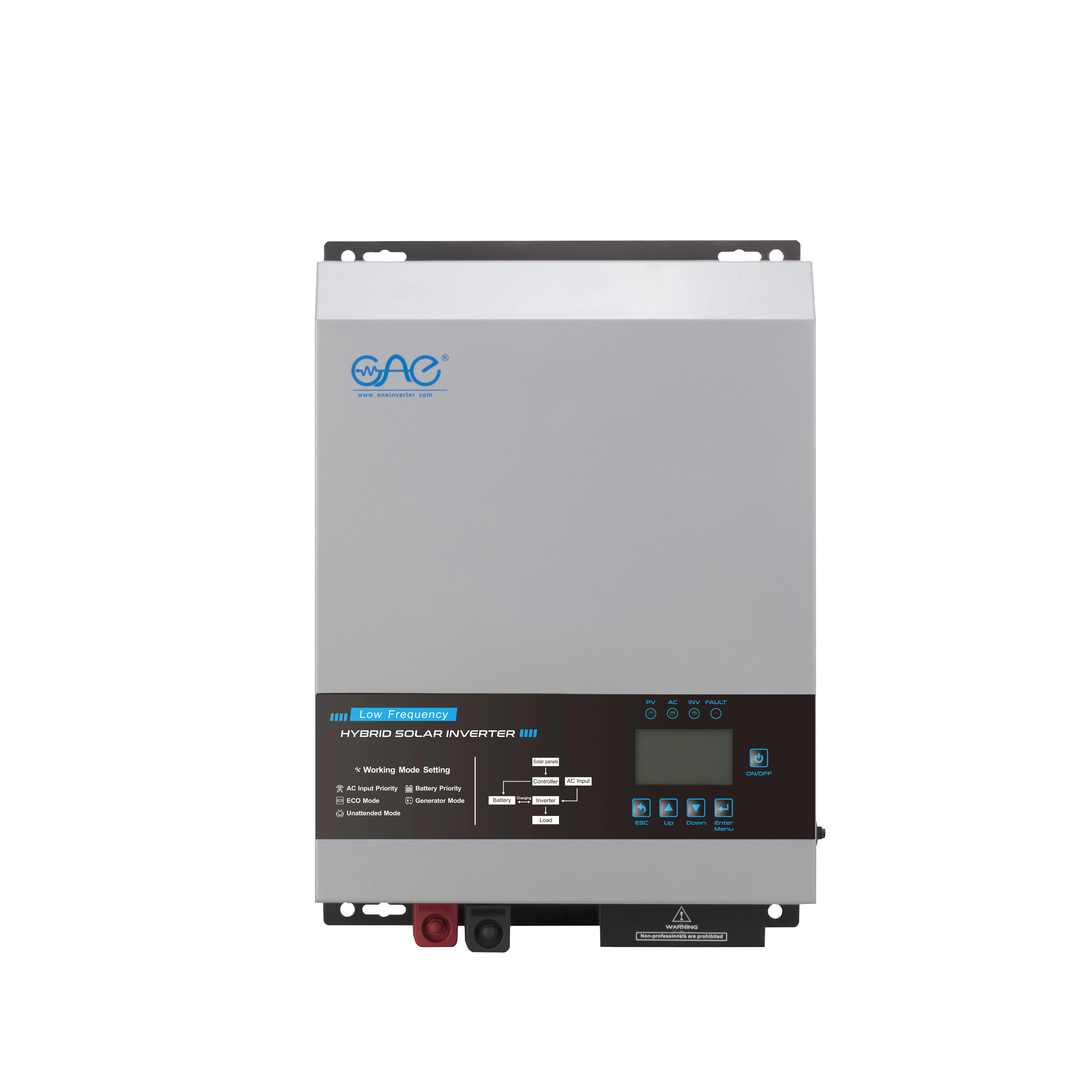

Cheap price solar inverter 4kw 6kva inverter single phase off grid solar inverter for south east asia countries
- Category: >>>
- Supplier: Foshan Top One Power Technology Co. Ltd.
Share on (1600136394589):
Product Overview
Description
Product Description

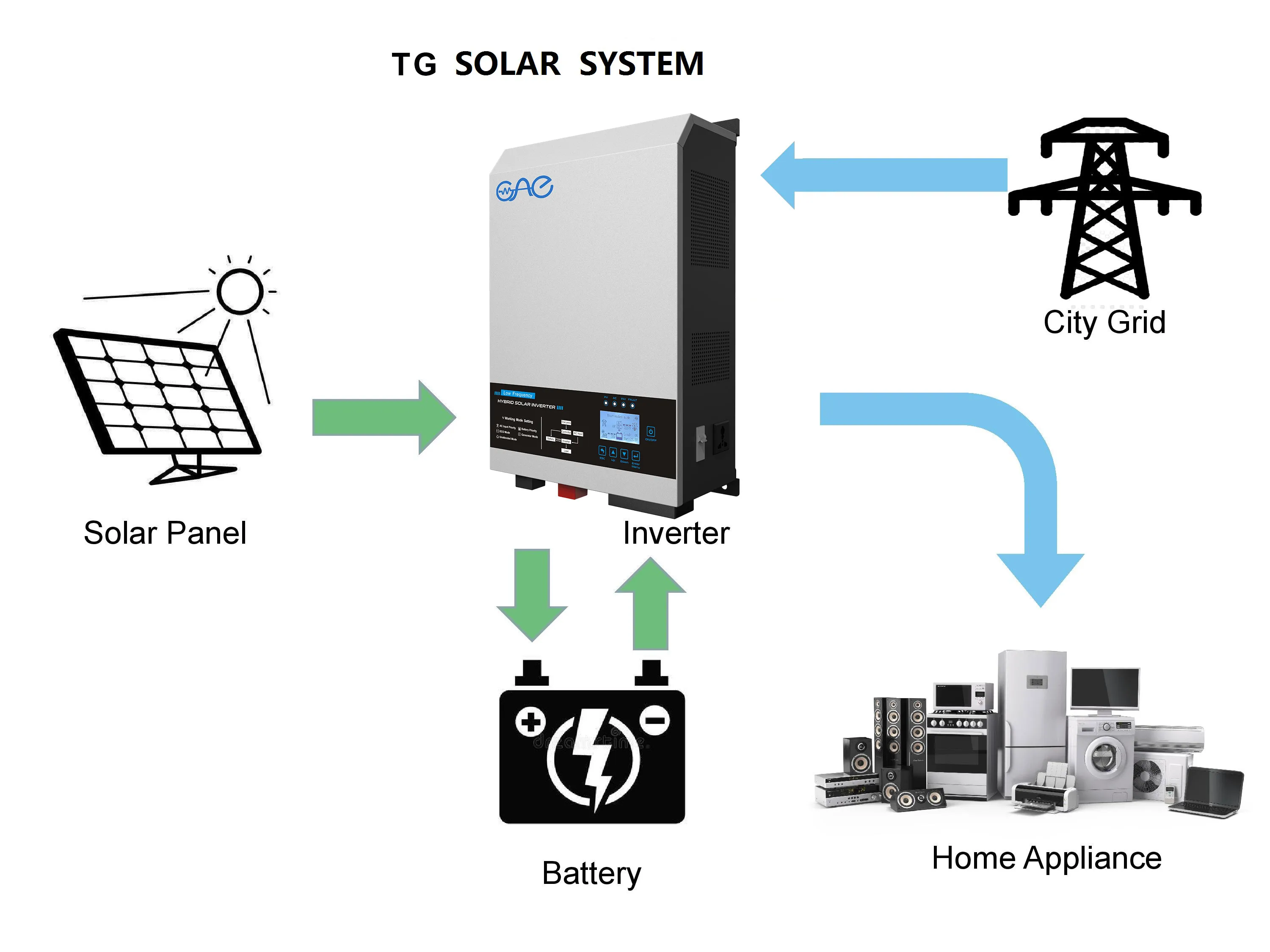

Low Frequency/UPS function/3 intelligent mode/ Hybrid Inverter/high efficiency
The advantage of Solar Inverter:
1.Built-in MPPT soalr controller for maximum power point tracking,the efficiency is up to 99%
2.64-bits DSP Intelligent controll chip.
2.Result fetched from effective value,not average value.
3.Photoelectricity isolation circuitry technology.
4.Switching Power is supplied by the independent system.
5.True over temperature protection.
6.The full bridge rectifier and manboard structure are highly optimized.Input and output circuits are isolated.
7.Strong loading capacity with a true onetime soft start.
8.New and original electronic components.
9.Intelnal circuit linesand signal lines are based on plug-pull blocks,not welding.
2.64-bits DSP Intelligent controll chip.
2.Result fetched from effective value,not average value.
3.Photoelectricity isolation circuitry technology.
4.Switching Power is supplied by the independent system.
5.True over temperature protection.
6.The full bridge rectifier and manboard structure are highly optimized.Input and output circuits are isolated.
7.Strong loading capacity with a true onetime soft start.
8.New and original electronic components.
9.Intelnal circuit linesand signal lines are based on plug-pull blocks,not welding.
Specification
MODEL | TG-152 | TG-202 | TG-302 | TG-402 | TG-502 | TG-602 | ||||||
RATED POWER | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | ||||||
SURGE POWER | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | ||||||
INPUT | Guangdong | |||||||||||
VOLTAGE | 220VAC | ONE INVERTER | ||||||||||
SELECTABLE VOLTAGE RANGE | 145-265VAC | 170-265VAC | TG-1.6KW | |||||||||
FREQUENCY RANGE | 50HZ/60HZ±5HZ | 12V/24V/48VDC | ||||||||||
OUTPUT | 110/120/220/240V | |||||||||||
AC VOLTAGE REGULATION(BATT. MODE) | (DC BATT.MODE)220VAC±3% | 4-64A | ||||||||||
TANSFER TIME | ≤5ms | 50/60Hz | ||||||||||
WAVE FORM | PURE SINE WAVE | Single | ||||||||||
BATTERY | 350*501*142mm | |||||||||||
BATTERY VOLTAGE | 12V/24V | 24V/48V | DC/AC Inverters | |||||||||
FLOATING CHARGE VOLTAGE | 13.8V(12V)/27.6V(24V)/55.2V(48V) | 85% | ||||||||||
OVERCHARGE PROTECTION | 17V(12V)/34V(24V)/68V(48V) | CE , FCC | ||||||||||
SOLAR CHARGE & AC CHARGER | 1 year | |||||||||||
MAXIMUM PV ARRAY OPEN CIRCUIT VOLTAGE | 150VDC | 15kg | ||||||||||
MAXIMUM PV ARRAY POWER | 420W(12V)/840W(24V) | 1400W(12V)/2800W(48V) | Sliver | |||||||||
STANDBY POWER COMSUMPTION | 15W | LCD | ||||||||||
MAXIMUM AC CHARGE CURRENT | 35A | Solar Power System Home | ||||||||||
MAXIMUM SOLAR CHARGE CURRENT | 30/50A(OPTIONAL) | 30-60A(OPTIONAL) | ||||||||||
MAXIMUM CHARGING CURRENT | 85A | 95A | ||||||||||
ENVIRONMENT | ||||||||||||
HUMIDITY | 0~95%（NO CONDESNSATION) | |||||||||||
OPERATING TEMPERATURE | 0~60℃ | |||||||||||
STORAGE TEMPERATURE | 0~60℃ | |||||||||||

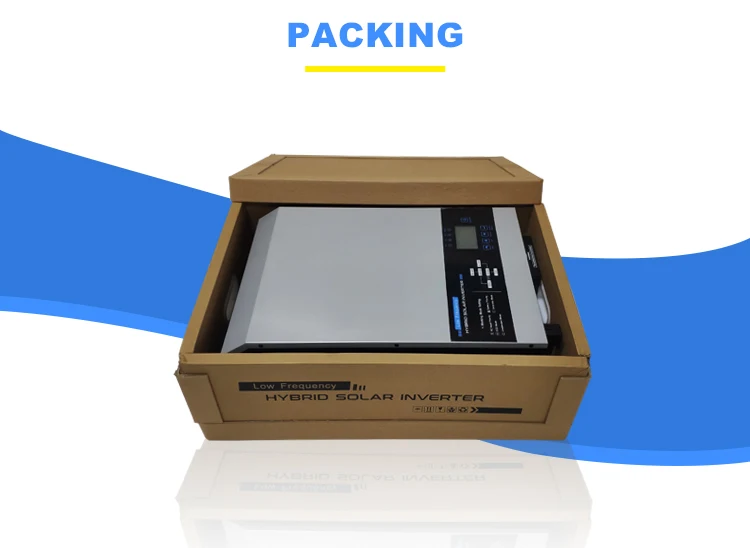

Packing & Delivery
Company Profile
FAQ
A.Yes,we also produce other solar products,such as MPPT Solar Charge Controller,Solar Pump Inverter,Lithium Battery ect.and supply Solar Panels,Solar Panels racks,Gel Battery,Battery Bank Case,PV Combined Box,Battery and PV cables,Battery and MC4 Connector,which are using in The Solar System.
Q. How to choose a right inverter?
A. Tell us your demand,then our sales will recommend a suitable inverter to you.
Q.How about the delivery time?
A.5 days for sample;7-15 days for bulk order.
Q. What is the warranty of inverter?
A.1 year warranty.
Q. How to solve the technical problem?
A.24 hours after-service consultancy just for you and to make your problem to solve seasily.
