5 Years warranty and CE,TUV,SAA certificates ST15E PIR infrared motion sensor IP65 Waterproof Wall mount outdoor

Product Overview

Description

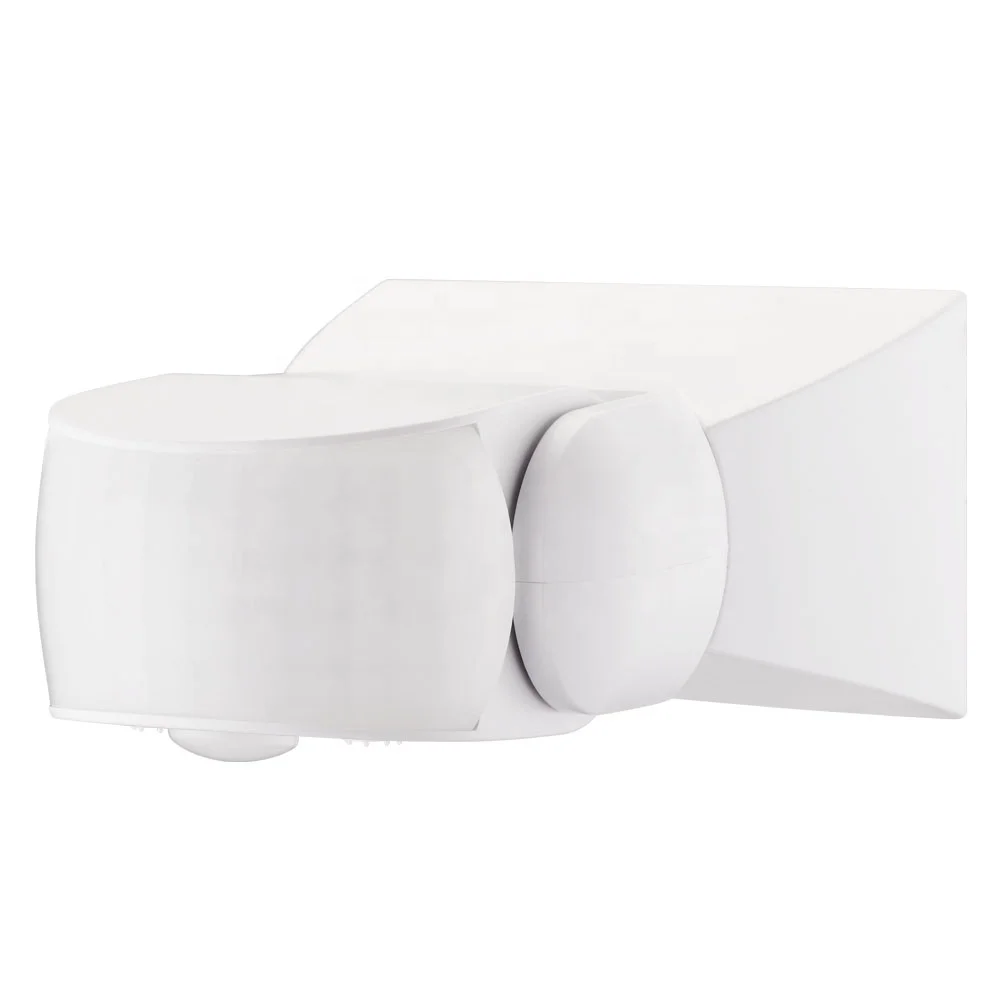

5 Years warranty and CE,TUV,SAA certificates ST15 PIR infrared motion sensor IP65 Waterproof Wall mount outdoor

The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.

Electronical characteristics:

Power Source: 110 -130V/AC   220 -240V/AC      Detection Range:180°/360°

Power Frequency: 50/60Hz                                   Detection Distance: 12m max(<24℃)

Ambient Light: <3-2000LUX (adjustable)               Working Temperature: -20~+40℃

Time Delay: Min.10sec±3sec                                 Working Humidity: <93%RH

                   Max.15min±2min                                 Power Consumption: approx 0.5W

Installation Height: 1.8-2.5m                                  Detection Moving Speed: 0.6-1.5m/s

 Rated Load:  110 -130V/AC :                        220 -240V/AC :

                    800W(incandescent lamp)         1200W(incandescent lamp)

                    200W(energy-saving lamp)        300W(energy-saving lamp)

Lifetime and Warranty:

FUNCTION:

Ø  Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the adjustment pattern, please refer to the testing pattern.

Ø  Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.

CONNECTION:

Ø  Loosen the screw on the bottom and unload the bottom (refer to the figure1).

Ø  Pass the power wire through the hole with gasket in the bottom. Connect the power wire into connection-wire column according to the connection-wire diagram.

Ø  Fix the bottom with inflated screw on the selected position (refer to the figure2).

Ø  Install back the sensor on the bottom, tighten the screw and then test it.

CONNECT-WIRE FIGURE:(See the below figure)

Our company adopts automatic machines, such as: SMD, auto component inserter, wave solder, autoinjection machines,the daily output is up to 20000-30000 pcs.

The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification.
