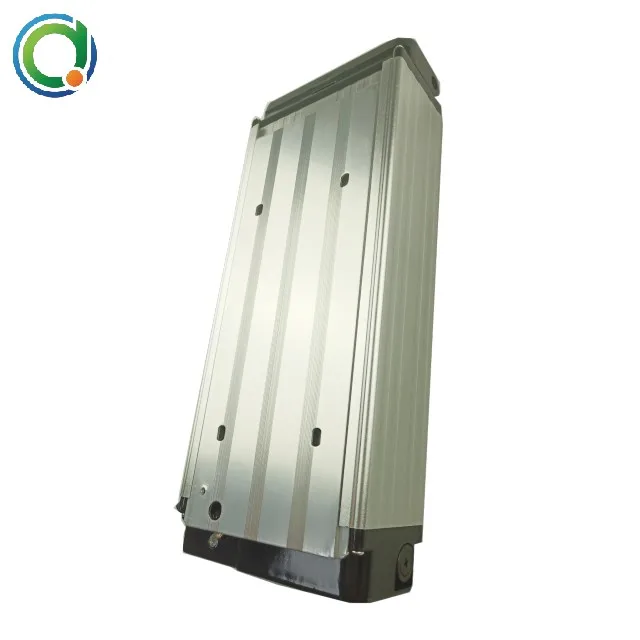

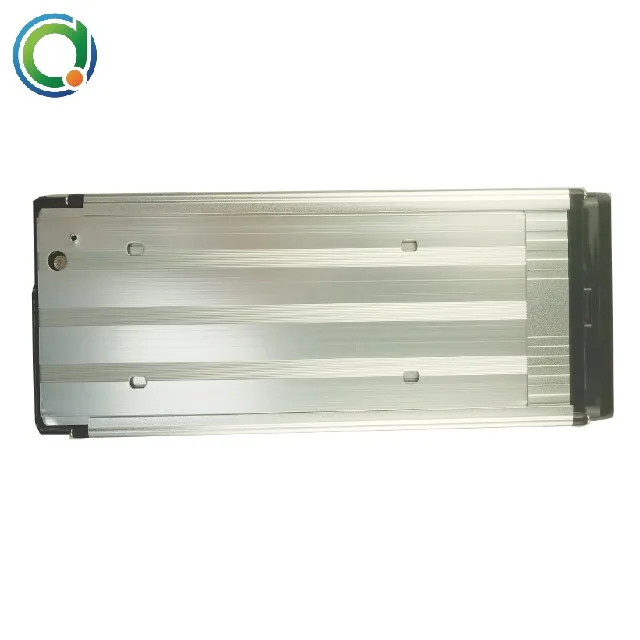

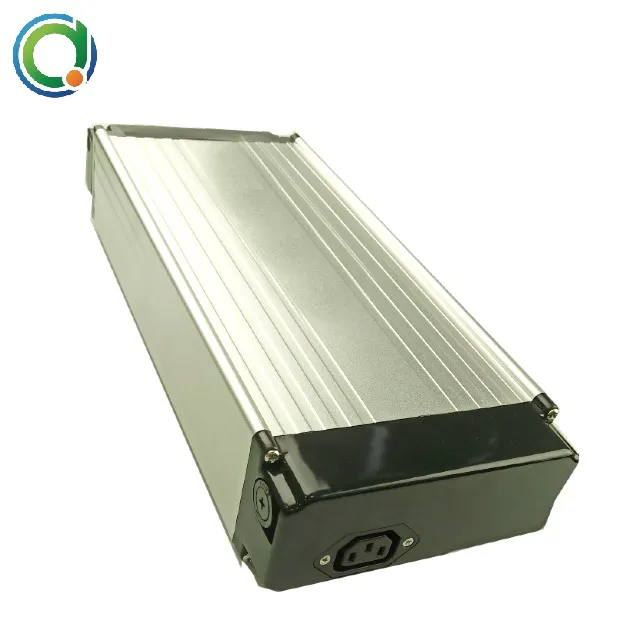

Rear Rack Ebike battery CE passed 48v25Ah/48v 30Ah/48v 32AH lithium battery for electric scooters
- Category: Electric Bicycle Battery >>>
- Supplier: Shenzhen Quan Chuang Da Energy Co. Ltd.
Share on (1600136408705):
Product Overview
Description
Product Description
Features:
1.Built-in automatic protection for over-charge,over-discharge and over-temperature conditions
2.Maintenance free
3.Internal cell balancing
4.Communication of monitored data via Battery Management System (BMS)
5.Thousands of cycles,100% DOD,under normal conditions
6.Can be charged using most standard lead-acid chargers (set for AGM/GEL cells)
7.Flame retardant plastics
Application :
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment
1.Built-in automatic protection for over-charge,over-discharge and over-temperature conditions
2.Maintenance free
3.Internal cell balancing
4.Communication of monitored data via Battery Management System (BMS)
5.Thousands of cycles,100% DOD,under normal conditions
6.Can be charged using most standard lead-acid chargers (set for AGM/GEL cells)
7.Flame retardant plastics
Application :
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment
Application
Specification
Model | QCD1152 |
Nominal Capacity | 15AH |
Nominal Voltage | 36V |
Nominal Power | 540W |
Built-in BMS | 15A |
Fit Motor Power | 36V/150-250W |
Charge Cut-off Voltage | 42V |
Discharge Cut-off Voltage | 30V |
Battery Charger | 2A |
Dimensions | 357*147*66mm |
Charge Temperature | 0-45°C |
Discharge Temperature | -20-65°C |
Cycle Life | 300 Cycles |
Charge cut-off current | 300mA |
Discharge over-current protection | 45-65A |
Storage temperature | 5-30°C |
Cell Combination | 10S5P |
Cell Quantity | 50PCS |
Battery Cell | 3000mah |
Rated Discharge Current | 10A |
Instantaneous Maximum Discharge Current | 15A |
Maximum Continuous Discharge Current | 15A |
Maximum Continuous Charge Current | 5A |
CC Standard Charge Current | 2A |
CC Fast Charge Current | 5A |
CV Standard Charge Voltage | 42V |
CV Fast Charge Voltage | 42V |
Charge Time under Standard Charge Current | 6H |
Charge Time under Fast Charge Current | 4H |
Recommend Products

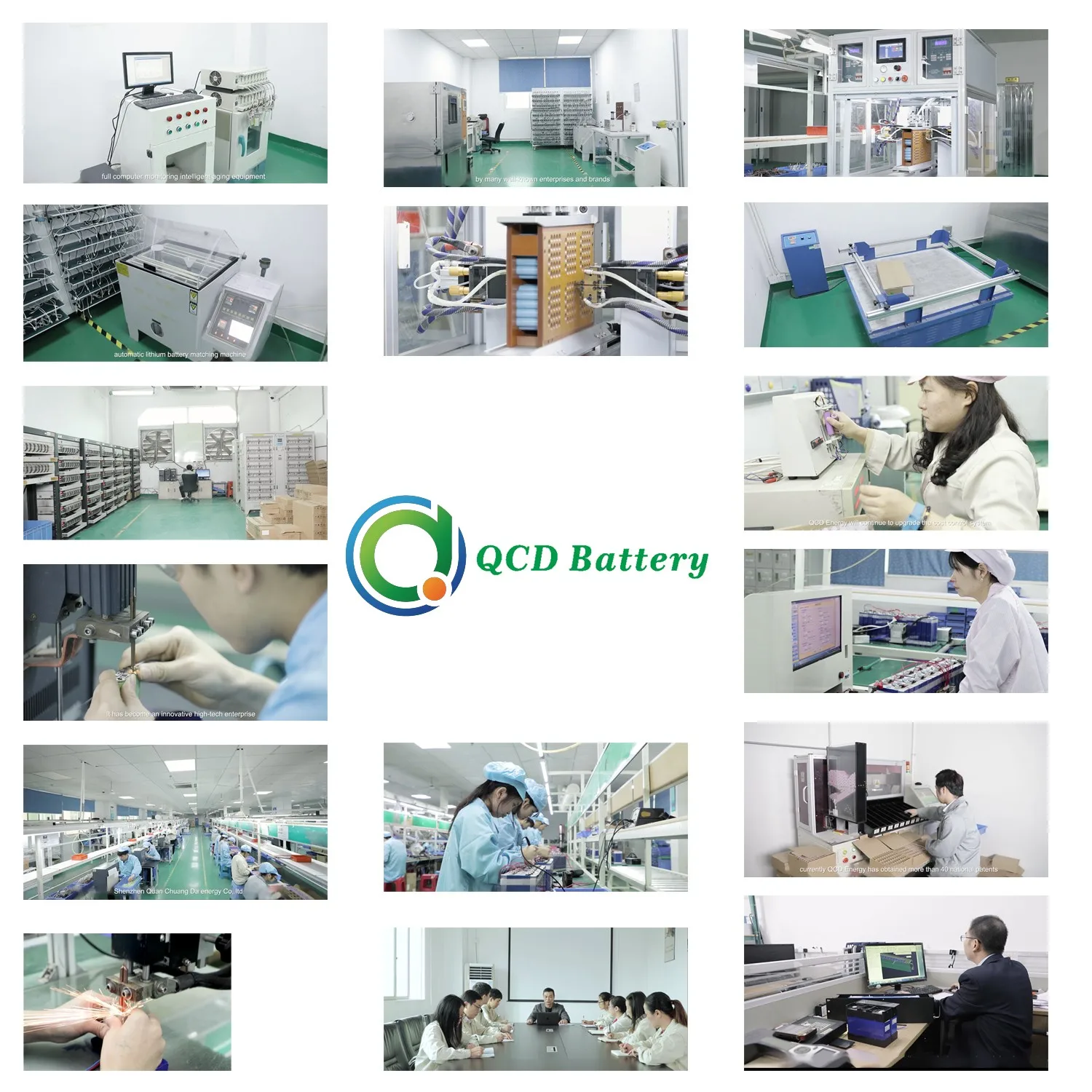

Manufacturing Technique
Packing & Delivery
FAQ
Q: Areyou manufacturer?
A: Yes, we are. You are warmly welcome to visit our factory if you have interest!
Q: Could you provide a solution for our grid battery storge developments in our country?
A: Yes, we can. What's more, our R&D team aims to provide full solution of battery system for ups power supply, solar storage,grid developments, medical equipments, LED lighting, e-bikes, consumer electronics, portable power banks, hand-held Terminaldevices, etc.
Q: Is OEM/ODM available?
A: Yes, it is. Please feel free to tell us your application and your basic battery requirements.
Our R&D team will provide a full solution to your with these factors taken into consideration: working temperature, dimension,compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.
Q: Can you provide samples for testing use?
A: Yes, we can. After discousion and designing with our sales and engineer, we encourage client to order samples first to test ourbattery quality and stability first.
Q: What’s the differences between li-ion cylindrical battery and Lithium polymer pouch cell? Which one is better?
A: Li-ion cylindrical battery18650 battery cells can be easily assemblied to large capacity batttery pack or individually used forconsumer electronics etc.Lithium polymer pouch cell Lithium polymer battery has higher safety factor. It can be designed into ultra thin battery(paperbattery) or anti-low/high-temperature battery. Each type has different merits.
Q: What safety protection function does the PCM have?
A: Short circuit protection, over-current protection,over-load protection, over-discharge protection, inversely-connection
protection, temperature control, balance, fuse, thermistor, etc. Our engineer will choose particular function to use for your
battery pack in accordance with your specific situation.
Q: Are there related certificates about battery?
A: If required, we could apply CE, ROHS, CB(IEC62133), UL, KC, PSE, BIS, UN38.3 etc.
Q: How long for the warranty?
A: Usually 1 - 3 year.
Q: Which payment methods do you accept?
A: Usually, we will do Western Union, TT, LC .etc.
A: Yes, we are. You are warmly welcome to visit our factory if you have interest!
Q: Could you provide a solution for our grid battery storge developments in our country?
A: Yes, we can. What's more, our R&D team aims to provide full solution of battery system for ups power supply, solar storage,grid developments, medical equipments, LED lighting, e-bikes, consumer electronics, portable power banks, hand-held Terminaldevices, etc.
Q: Is OEM/ODM available?
A: Yes, it is. Please feel free to tell us your application and your basic battery requirements.
Our R&D team will provide a full solution to your with these factors taken into consideration: working temperature, dimension,compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.
Q: Can you provide samples for testing use?
A: Yes, we can. After discousion and designing with our sales and engineer, we encourage client to order samples first to test ourbattery quality and stability first.
Q: What’s the differences between li-ion cylindrical battery and Lithium polymer pouch cell? Which one is better?
A: Li-ion cylindrical battery18650 battery cells can be easily assemblied to large capacity batttery pack or individually used forconsumer electronics etc.Lithium polymer pouch cell Lithium polymer battery has higher safety factor. It can be designed into ultra thin battery(paperbattery) or anti-low/high-temperature battery. Each type has different merits.
Q: What safety protection function does the PCM have?
A: Short circuit protection, over-current protection,over-load protection, over-discharge protection, inversely-connection
protection, temperature control, balance, fuse, thermistor, etc. Our engineer will choose particular function to use for your
battery pack in accordance with your specific situation.
Q: Are there related certificates about battery?
A: If required, we could apply CE, ROHS, CB(IEC62133), UL, KC, PSE, BIS, UN38.3 etc.
Q: How long for the warranty?
A: Usually 1 - 3 year.
Q: Which payment methods do you accept?
A: Usually, we will do Western Union, TT, LC .etc.
