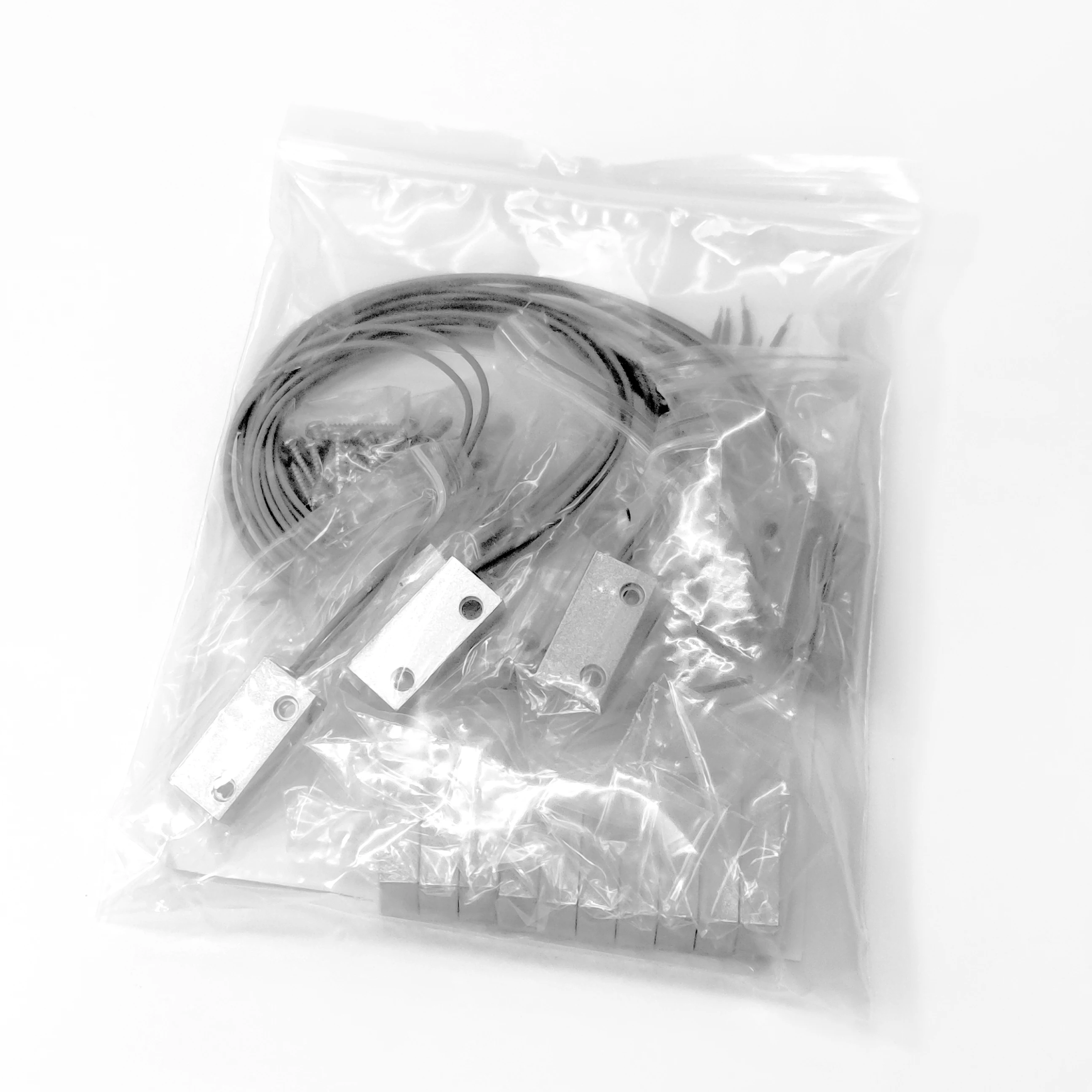

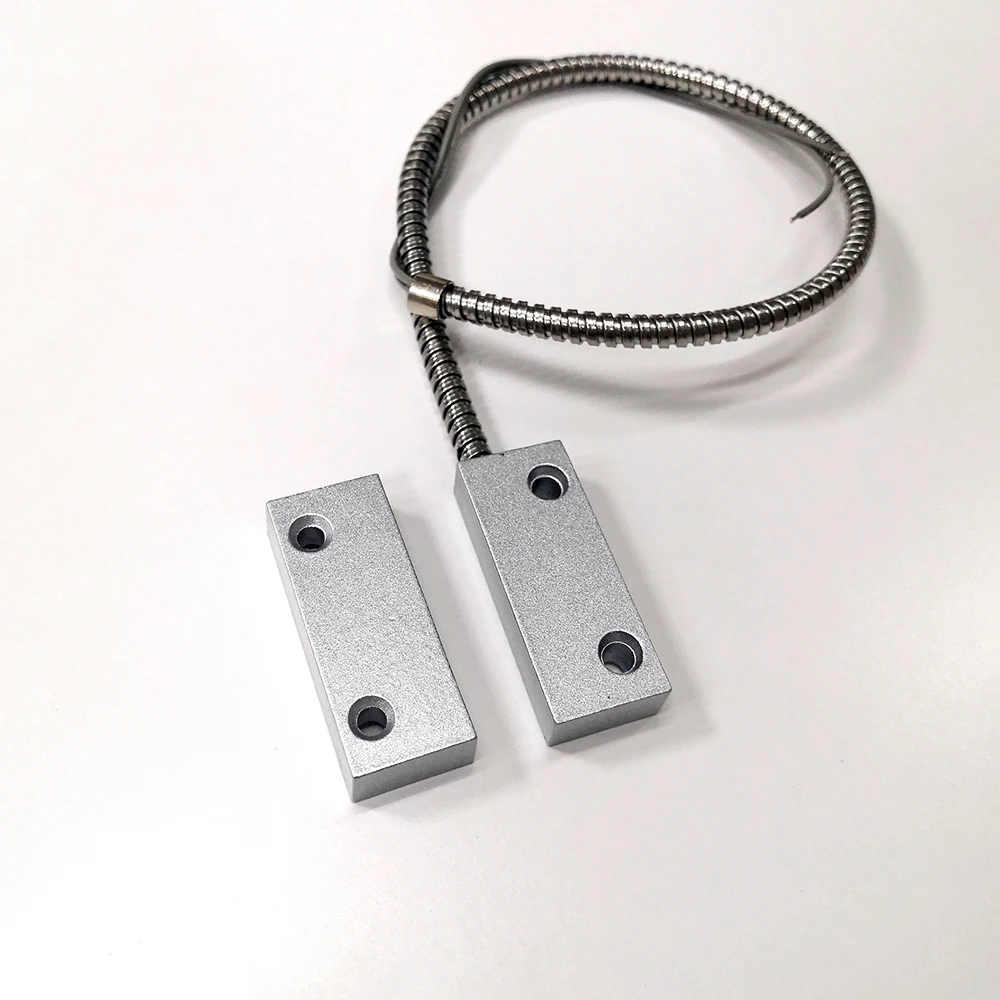

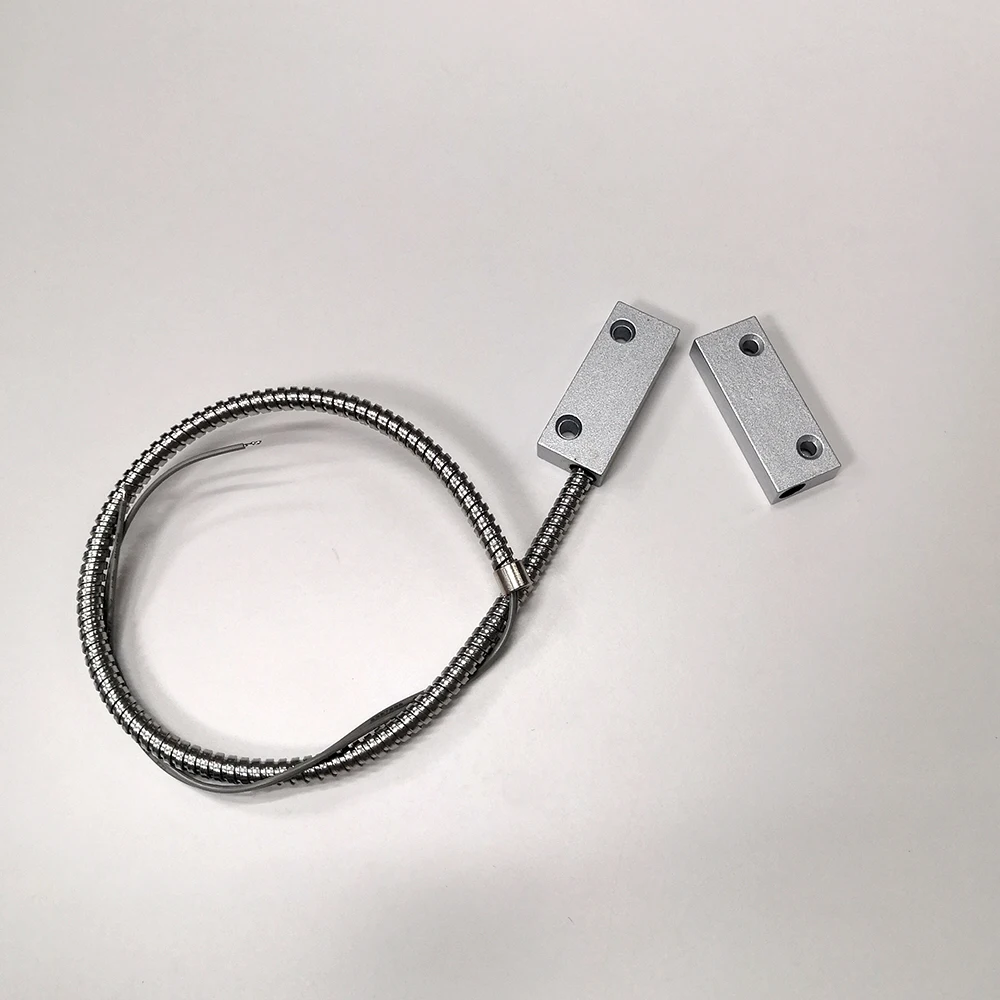

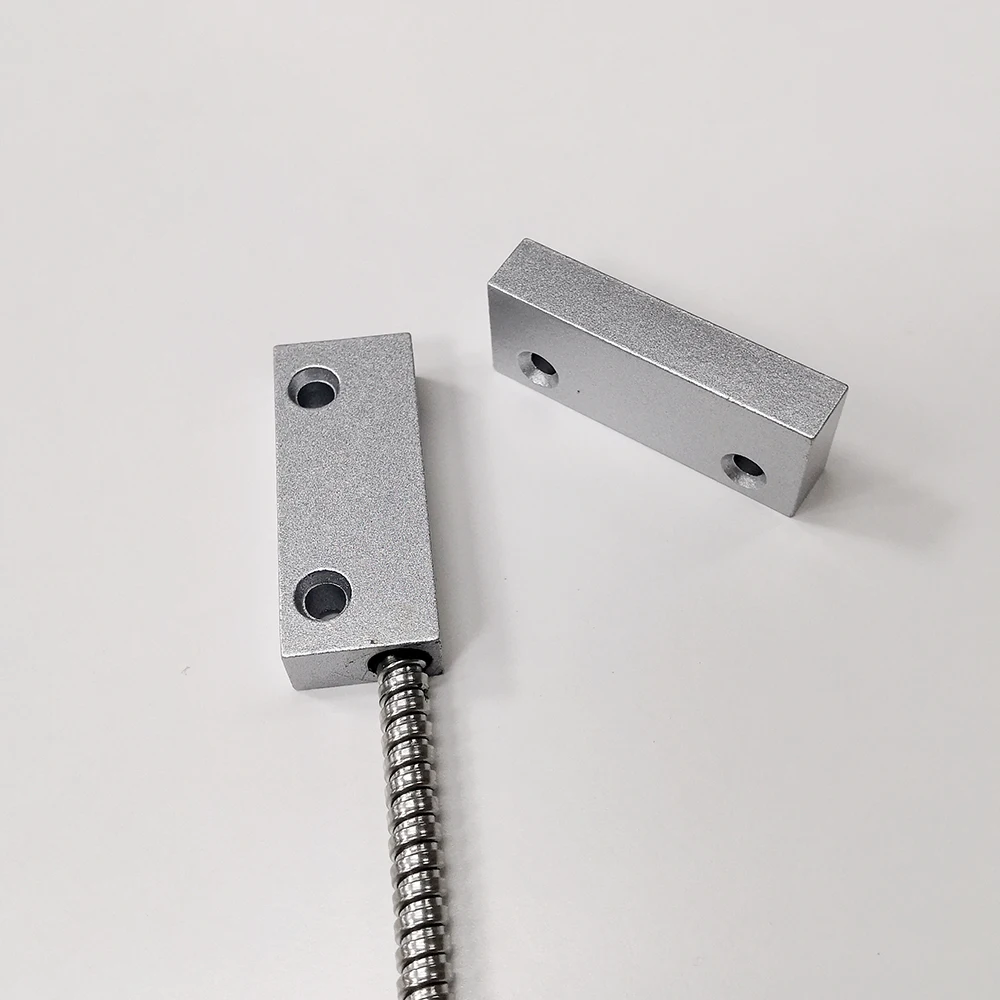

metal door magnetic contact with armored cable used for alarm system MCS 52A
metal door magnetic contact with armored cable used for alarm system MCS-52A
metal door magnetic contact with armored cable used for alarm system MCS-52A
metal door magnetic contact with armored cable used for alarm system MCS-52A
metal door magnetic contact with armored cable used for alarm system MCS-52A
metal door magnetic contact with armored cable used for alarm system MCS-52A

metal door magnetic contact with armored cable used for alarm system MCS 52A

Share on (1600136757265):


Price:$3.00 - $5.00

Quantity:


Product Overview

Description



Recommend Products


Window contacts
Flush mounted door contacts
Surface mounted door contacts


NO&NC magnetic switch
Metal door contacts
Roller shutter door contacts


Products Description


Surface mounted metal door magnetic contacts reed switch sensor MCS-52A


Magnetic contact is widely used for alarm system(panel) to detect state of door or window. It consist of reed switch part and
magnet part . When door is closed,reed switch is effected by magnet and switch ON; when door is open, reed switch is effected by
magnet and switch OFF, then output signal to panel or trigger alarm.




Model NO.
MCS-52A
Switching Voltage
100 VDC Max.
Operating gap
30mm
Switching Current
0.5A Max.
Switching Type
NC (normally open)
NO&COM are optional
Contact Rating
10W Max.
Material
ZINC ALLOY
Working life
≥100000 times
Connection
350mm UL1007 22AWG
Working temperature
-20~80℃
Color
grey
Installation
Surface mounted
Wires length
can be customized


Installation drawing
