  • Threading machine Metal spinning machine for metallic yarn adopts the rayon polyester filament as the core thread
Threading machine Metal spinning machine for metallic yarn adopts the rayon polyester filament as the core thread
Threading machine Metal spinning machine for metallic yarn adopts the rayon polyester filament as the core thread
Threading machine Metal spinning machine for metallic yarn adopts the rayon polyester filament as the core thread
Threading machine Metal spinning machine for metallic yarn adopts the rayon polyester filament as the core thread
Threading machine Metal spinning machine for metallic yarn adopts the rayon polyester filament as the core thread
Threading machine Metal spinning machine for metallic yarn adopts the rayon polyester filament as the core thread
Threading machine Metal spinning machine for metallic yarn adopts the rayon polyester filament as the core thread

Threading machine Metal spinning machine for metallic yarn adopts the rayon polyester filament as the core thread

Share on (1600136941532):


Price:

Quantity:


Product Overview

Description





Type:
Double sides and single layer

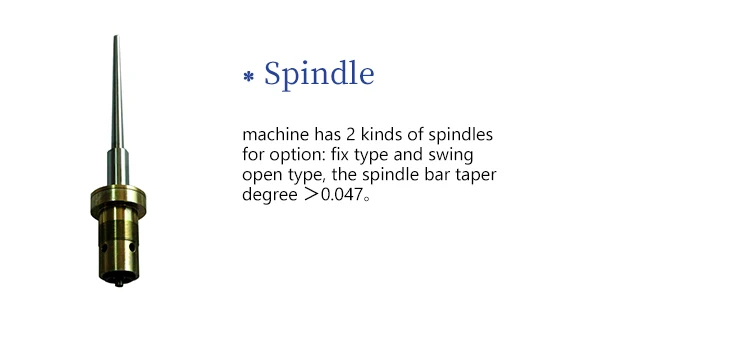

Spindle Number
 160 spindles               200 spindles              120 spindles               128spindles
Section Number
     8 sections                 10 sections                 6 sections                  8 sections
Dimension(L×W×H)
mm
14800 ×1000×1710 / 18060 ×1000 ×1710 /11540×1000×1710 / 14800×1000×1710
Spindle Distance
        150                             150                                150                              190
spindle number for each section
          20                               20                                  20                                16
Machine Power(KW)
7.5
twisting degree range(T/M)
200~3000
spindle speed with empty loading(r/min)
700~12000

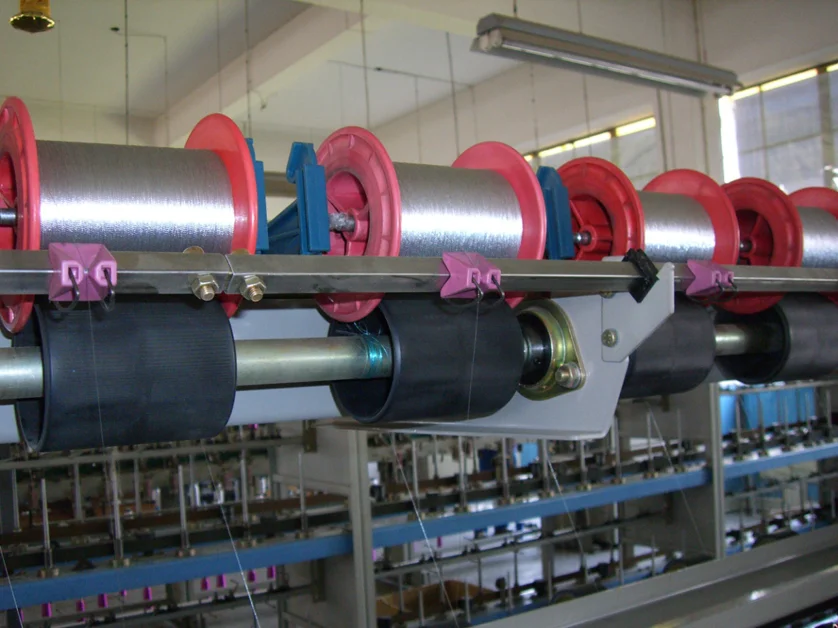

Take-up Bobbin size(mm)
                                          100×ф120×ф80                                     100×φ120×φ80
                                                                                                             110×φ125×φ80
Bobbin size(mm)
Taper type 57 × ф79 ×ф41.5  Taper degree47:1000
Take-up bobbincapacity(g)
≤500

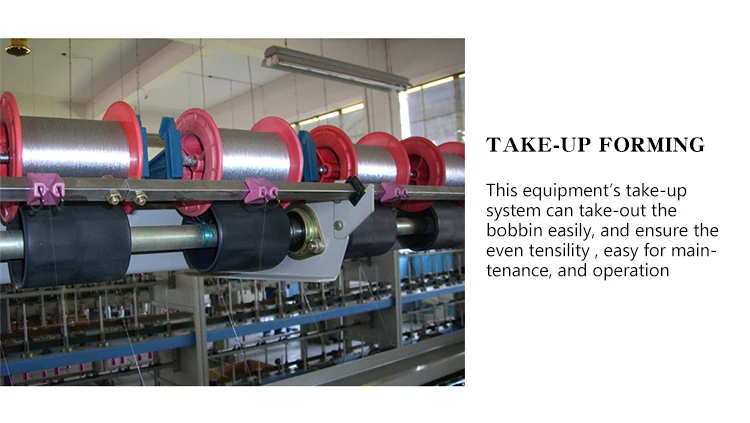

Take-up speed(m/min)
Max＜40
guide yarn forming type
Mechanical forming
twisting degree
S、Z
covering finished yarn size(Denier)
20~450D


















Title goes here.
All drafting assembile are of same standard. A wide variety of effect yarns (roving) can be fit .The core roller provides good stability to frm twisting yarn.The ring and loop from with the hollow spindles accommodating binding cops.All drafting assembiles composed by frequency control ,which is not only convenient for the machine adjustment ,but also to enable the roller change speeds the variety of the fancy yarns and meanwhile is good in stablility and high production capacity.
Main Features
1. Special designed reversing device which fits for twisting both yarns and spandex fibers
2. The stable qualit of spindle run long-time even under high-speed operation
3. Double-geared drive device, reasonable force load transmitting, winder twist range
4. Adjustment system through belt tension, easy operation
5. Pedal brake systme, operation easy, extend the life of belt and spindle
6. Winding completed or yarn broken, spindle support lift automatic to avoid yarn grind
7. Oil-bath gearbox and special yarn guide, made excellent winding form

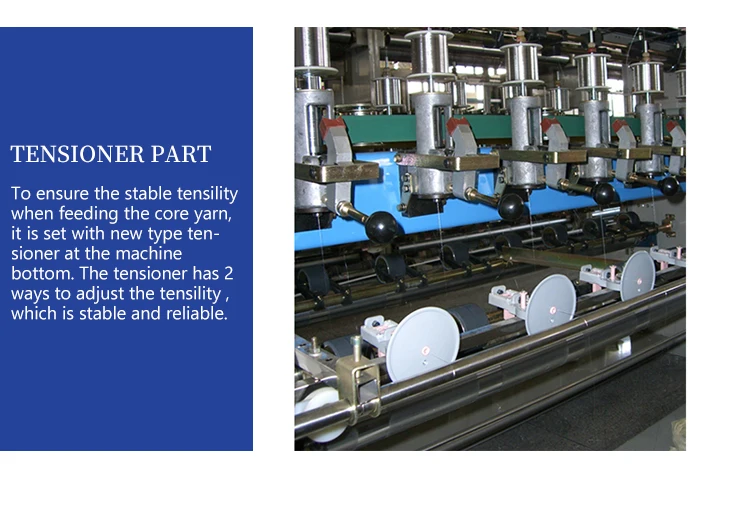

8. The take-up tension on the roller can adjust at ease. It is alos suit for winding loose packages for dyeing.
