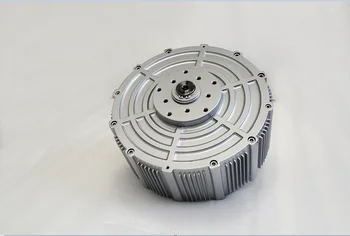

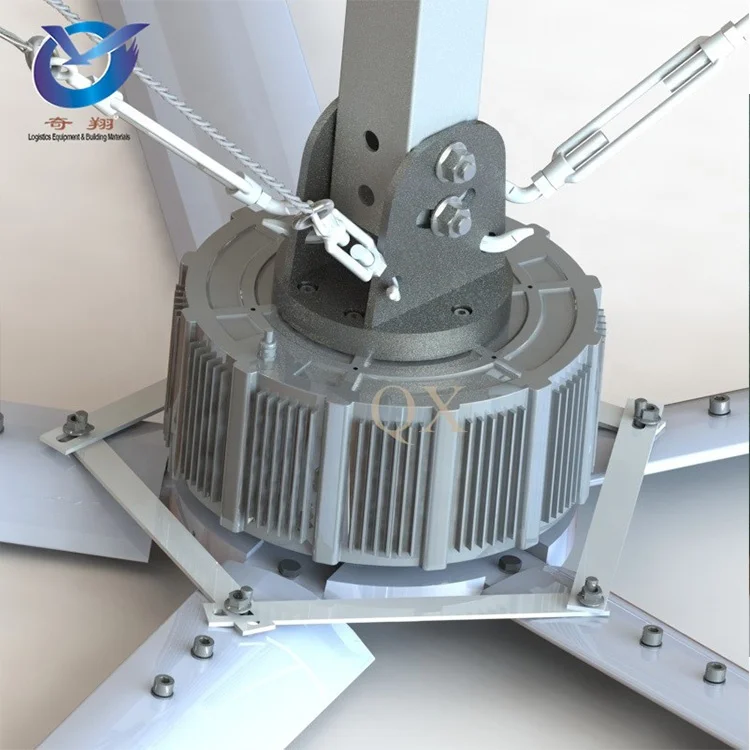

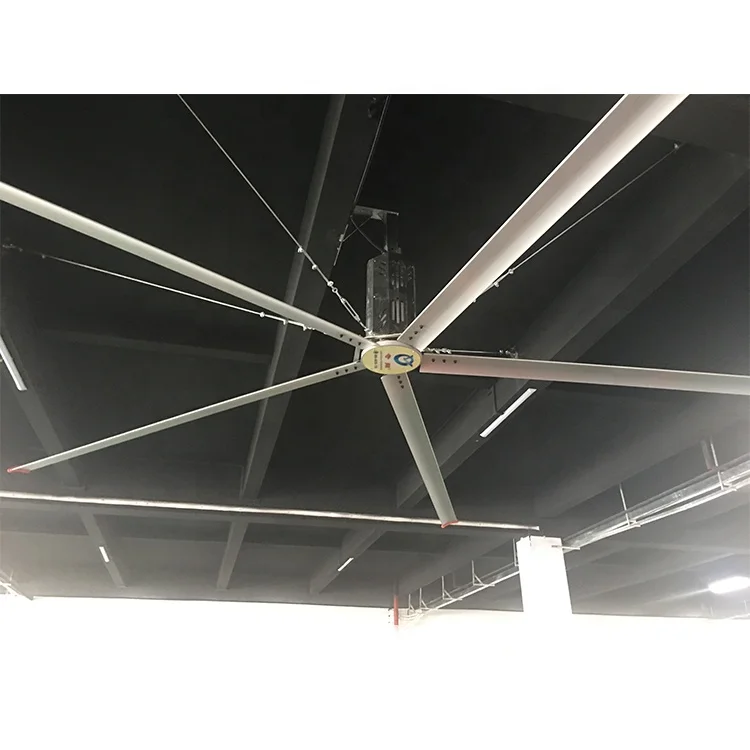

QX 24FT/20FT Gearless PMSM HVLS CEILING FAN

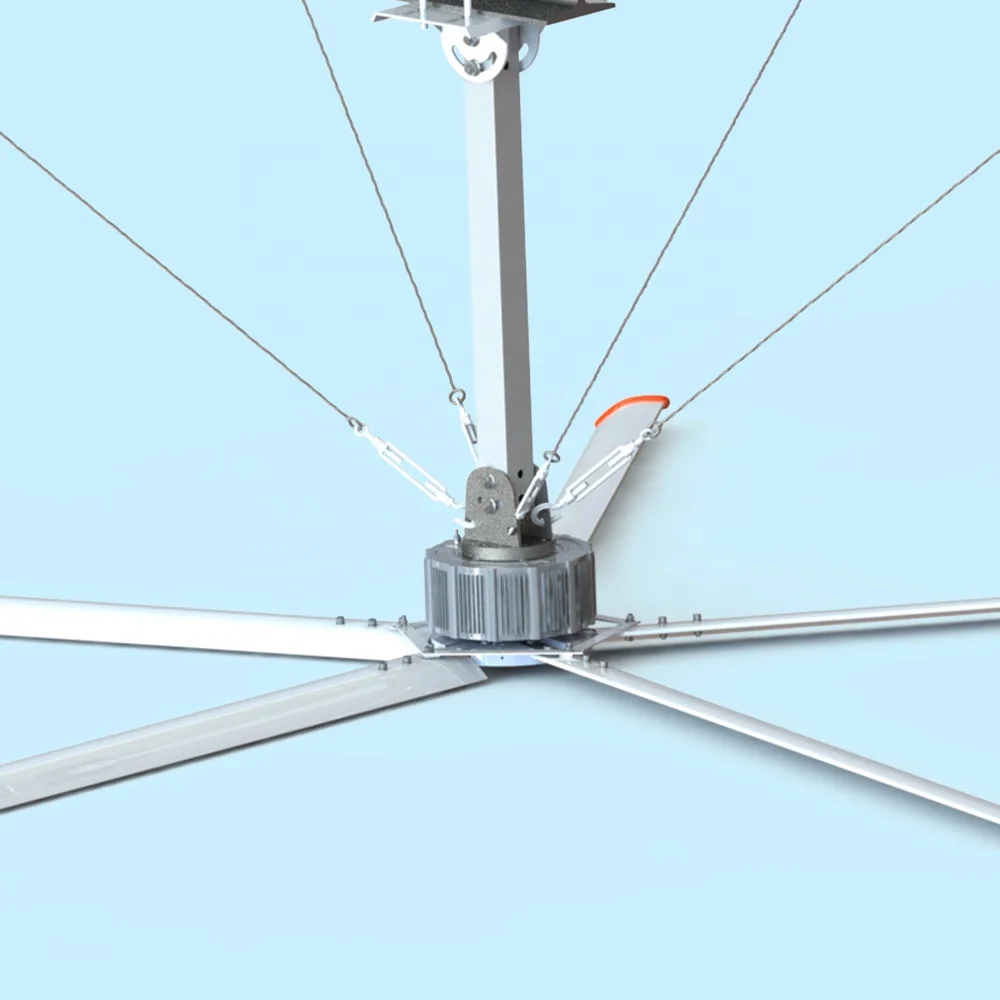

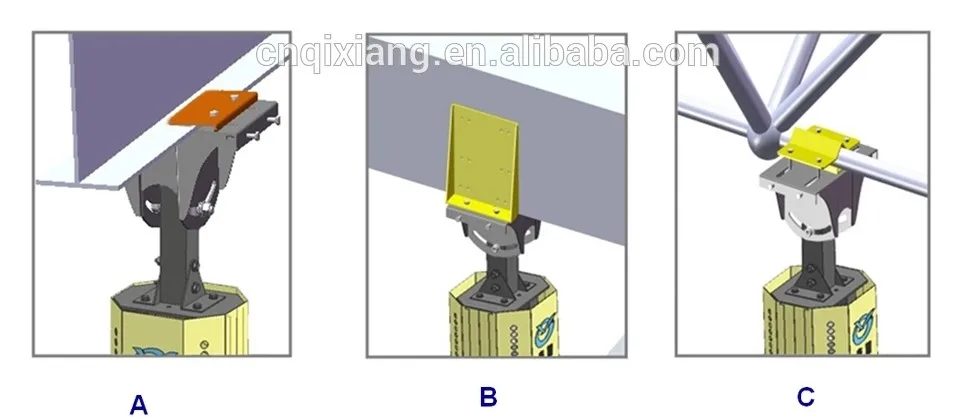

A : The H-Shape steel structure

Fixed with the 8mm thick pressing plates and fixed on both the right and the left sides steadily

B : The steel concrete beam

Fixed with the 8mm thick 90 degree plates , through screws or expansion screws to be used , fixed on both the right and the left sides steadily

C : The net ball structure

Fixed with V-type or semi-cirular hoops , fastened with up and down bolts

 A . Suitable for any building with a ceiling height of 4 meters or more . The spacing of the structural load-bearing columns should be greater than 20% of the fan diameter to be installed .

B . The load bearing capacity of the roof structure should be more than 150KG . The total weight of the fan equipment is about 125KG ( including installation accessories and dynamic load ) . Torque 300N/m , noise level <39 db .

C.  The effective coverage area of a single fan is about 30-40 meters , recommend spacing between center points of the two fans: 30~40 meters .

D.  The distance recommanded from airfoil to the floor is 6~8m , minimum should not be less than 4 meters .

E.   Make sure that the fan is installed without chandeliers or other obstructions .

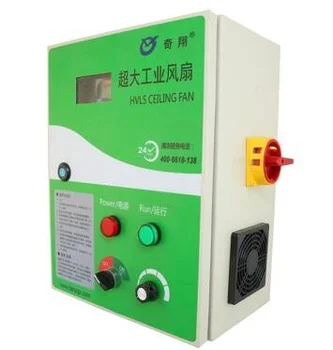

F.   The recommended distance between the electric control box and the fan ( motor ) is within 30m .

G.  It is not recommend for installation at the site with heat sources or soot .

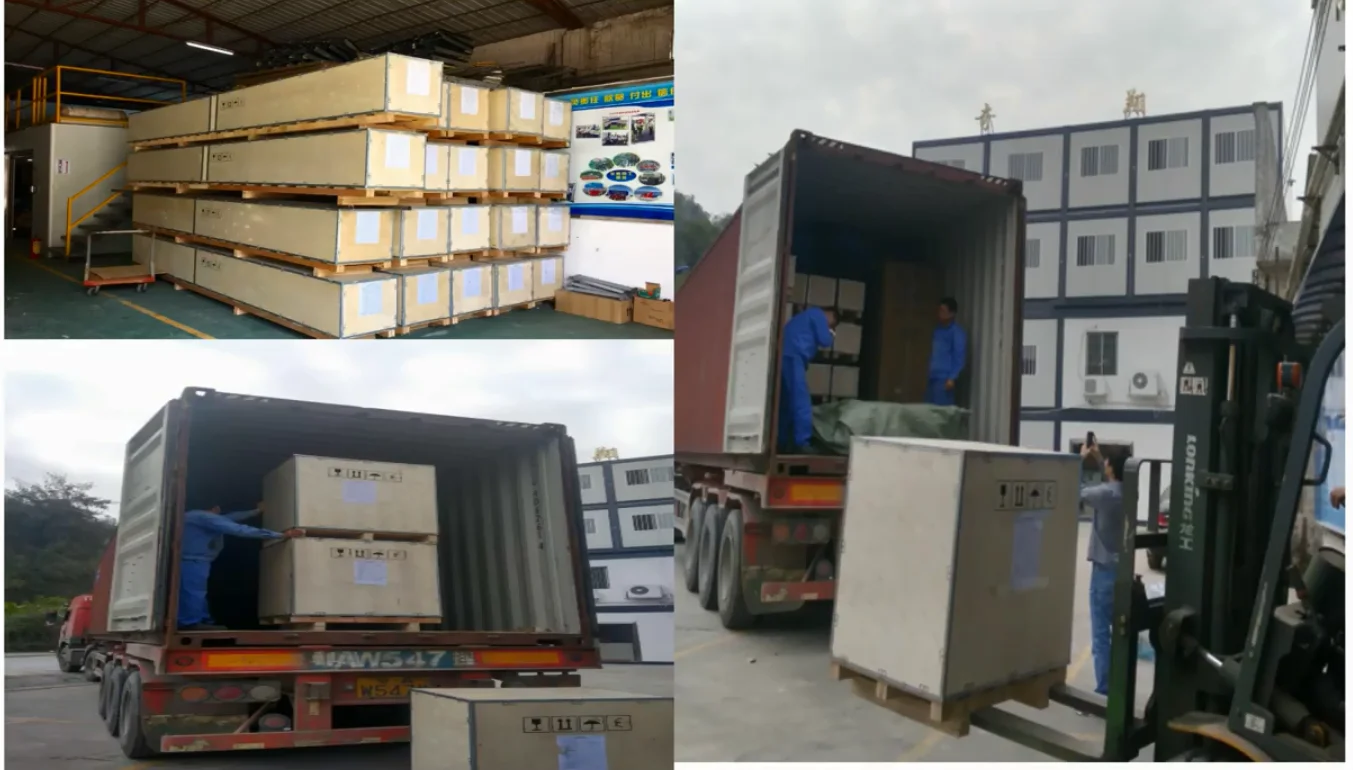

The HVLS large industrial ceiling fan is packed by wooden case ,  one case for blade and other spare parts , the other case for moter and control box .

Commercial Public accasions : large-scale shopping malls , supermarkets , professional markets and wholesale markets , convention centers, exhibition halls , automotive 4S service station .

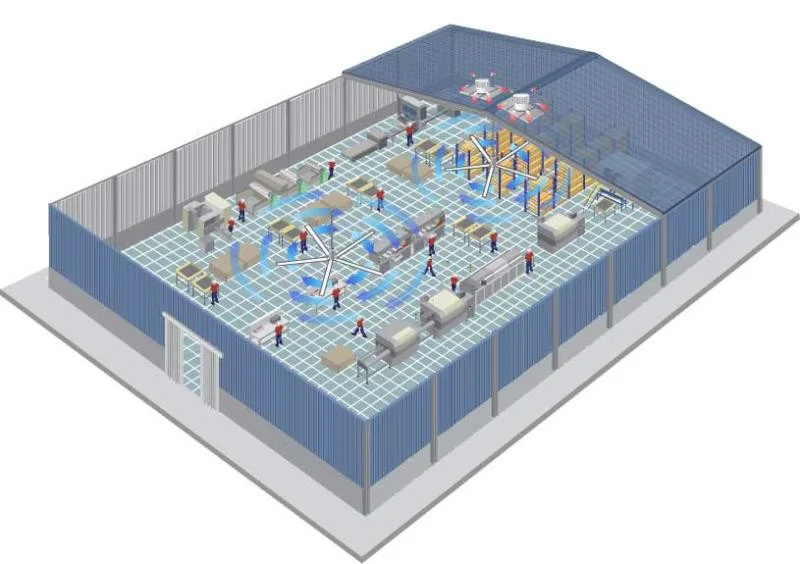

Manufacturing Industry : industrial workshop , production workshop .

Logistic warehouse :  E-commerce operation center , express sorting and delivery area .

Leisure & Toursm : large-scale playground , parks , tourist attractions , special town , catering , entertainment .

Sports : cultural center , gym , fitness room ,  indooring training

Others : agricultural greenhouse , wine-marking , church , large canteen , classroom , auditorium .

Founded in 2006, the company is a body manufacturer integrating R&D, production and sales of various industrial doors, logistics handling equipment, green ventilation equipment, industrial fan and other energy-saving equipment. The company has registered "Qixiang Brand Trademark" and passed the ISO 9001 quality management system certification. The product has passed CE, RoHS and other certifications, and has a number of national practical patents, and has been certified by the national high-tech enterprises. After years of efforts, there are offices and after-sales service centers in all provinces of the country, covering the whole country and overseas markets, with more than 100 well-known enterprise customers.

Q1: What is the MOQ?

No any requirements, 1 pcs can be accepted.

Q2: Compare with the pictures,I prefer to see the real products,Can you promise your products are the same with the pictures?

All the pictures were taken from real products,so the quality can be guaranteed,You can place sample order first .

Q3: Some of my orders are urgent, I don’t want to wait long time, can you guarantee mass production period .

We suggest you contact our sales for urgent orders ,usually 3-5days for stock items,20-30day for mass production period .

Q4: Can all products be customized?

Yes,all of products can be customized according to customers' requirements.

Q5: What kind of motor do you used?

Bauer , Bonfiglili ,Nord.

Q6: How about the motor power?

380v/50 Hz, three phase ,1.5kw power , 2.0Hp ,it depends on specification.

Q7: Are the fans safe,how do you make the fans safer than others?

Yes,We have 8 methods to guarantee safety and stability.
