Product Overview
Description
Gearbox HVLS Ceiling FAN with DOUBLE-BEARING pantented
| Parts | Feature | Brand |
| Motor | Introducing Imported Germany Bauer motor integrated with decelerator With fluoriine rubber oil seal to ensure the reliability of the rotary drive member Voltage: 220/380v,50Hz/60Hz, three phase | Bauner |
| Control Box |
* reduce gently and intellently, to protect motor reducer and transsion system * frequency converter with over current and overvoltage/under votage/open phase/over load/overheat protection,make it antomatic power-off when have an accident | Danvers |
| Blade | Aluminum Alloy 5 blades.The use of advanced fluid dynamics simulation software CFD modeling and wind tunnel testing ,aerodynamic shape with a unique anti-fatigue lined design. | |
| Chassis | Aluminum Alloy. Using integrated aluminum magnesium alloy and made by precise cutting technology to ensure the consistency of the chassis as well as seurity stability | |
| External load-bearing | Oriented distanec extended Qixiang industral fan is different from other manufacturers for that double external load bearing designed by Qixiang alone, and extend oriented distance of fan ,aviod reducer from axial force, prevent oil spiling,to extend the service life | |
Model | HV-7200 | HV-6200 | HV-5200 | HV-4200 |
Fan Diameter(mm) | 7200 | 6200 | 5200 | 4200 |
Blade Numbers | 5 | |||
Motor Power(kw) | 1.5Kw/1.1Kw | |||
Rated Voltage(V) | AC 380V | |||
Rated Frequency(Hz) | 50Hz/60Hz | |||
The Maximum Air Speed(m/s) | 4.5 | 4 | 3.5 | 3 |
The Maximun Totate Speed(RPM) | 55 | 58 | 62 | 65 |
Total Weight(Kg) | 115 | 110 | 105 | 100 |
Area Coverd(sq.m) | 1450 | 1300 | 1100 | 900 |
Material Of Chassis And Fan Blade | Aluminum Magnesium Alloy | |||
Effective coverage area where the air speed can reach 0.5m/s,where depend on mounting height and the barrier below,we can design a scheme according to the scene. | ||||
Double Outer Bearing --Our self-patent design
The traditional bearing structure :
Our patent design -- Double Outer Bearing can absolutely solve all these problems by Extend Oriented Distance
1. Prevent oil spilling
2. Reducer without bearing load
3. Prevent shaking
4. Protect wheel gear
5. Extend the service life
Also ,Double Outer Bearing can avoid the big knockout press and extend the the lifespan.
A. We use the Germany Brand FAG bearing 6014-2Z model deep groove ball bearings ,Special lithium grease,15 years warranty .
B .Solve the knockout press: without double outer bearing ,When the power failure happened , the fan will stop suddenly .it will generate big knockout press ,which can lead to blade fracture.
Like the following pictures .
While if we use the double outer bearing device ,it will avoid the big knockout .so this can protect the blade and extend the lifespan.
C . Extend the lifespan .This is similar with the lever principle ,when the distance is longer ,than the bear load will be lighter .Thus can extend the lifespan of bearing .

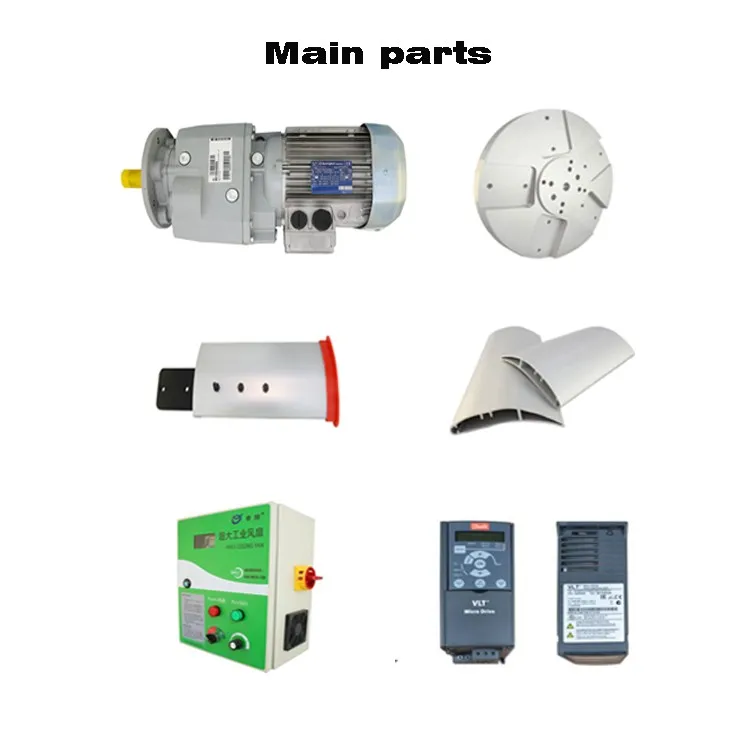

Fan details page
Motor

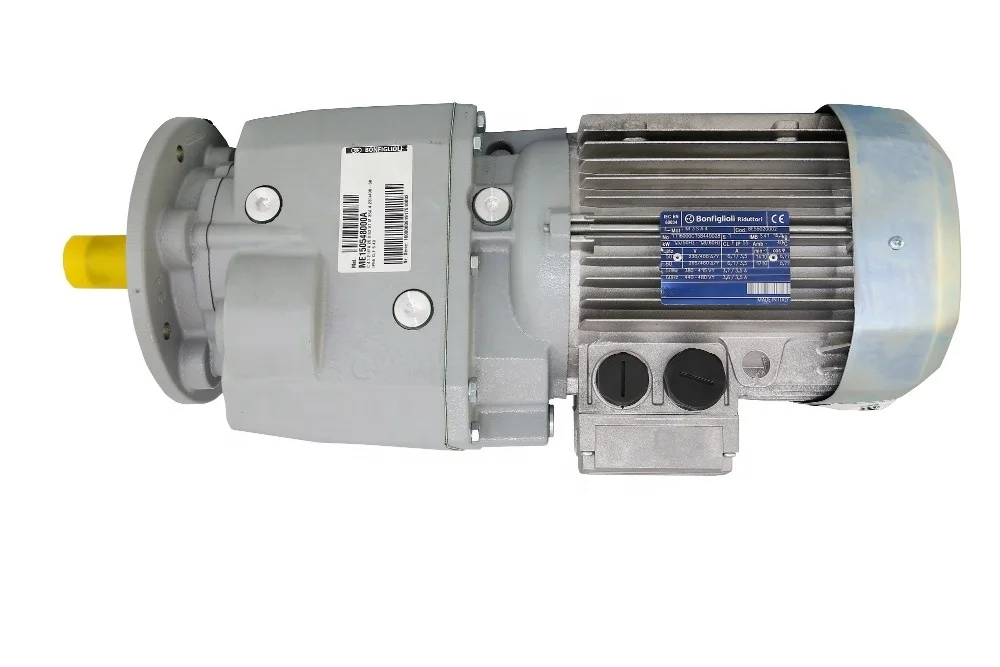

The motor-reducer is imported from Germany. The brand is Bauer.Other type is BONFIGLIOL.
The motor with fluoriine rubber oil seal to ensure the reliability of the rotary drive member.
Converter
Using Danfoss Brand bearing high carrier frequency to reduce motor zing,improve the control pulse signal quality.
Control Box
Introducing importde high quality electric cabinet, energy efficientcy integated with security potection. Using Fluorocarbon Iacquer box configuration Schneider load switch,ventilating port. with over current and overvoltage/under votage/open phase/over load/overheat protection,make it antomatic power-off when have an accident.
Chassis
Using integrated aluminum magnesium alloy and made by precise cutting technology to ensure the consistency of the chassis as well as seurity. 380mm diameter the chassis,33mm thickness.
Blade
Using high quality aluminum magnesium alloy ,more than 20 years with corrosion resistance,high strength,high toughness ,fattgue resistance,bright surface oxidation treatment,easy to clean. The use of advanced fluid dynamics simulation software CFD modeling and wind tunnel testing ,aerodynamic shape with a unique anti-fatigue lined design.
Safety
8 ways to protected the fan more safety
1.transmissions system an-ti drop ring
2.bracket system an-ti drop ring
3. chassis system an-ti drop ring
4. double Outer Bearing
5.fan Chain
6.infrared micro-distance monitoring device
7. the main beam of the roof rack fan surrounded by a rope
8.4pcs 8MM wire rope
Related products
The same series of industrial fans
Company Information
Guangzhou Qixiang Industry Co., Ltd.
Founded in 2006, the company is a body manufacturer integrating R&D, production and sales of various industrial doors, logistics handling equipment, green ventilation equipment, industrial fan and other energy-saving equipment. The company has registered "Qixiang Brand Trademark" and passed the ISO 9001 quality management system certification. The product has passed CE, RoHS and other certifications, and has a number of national practical patents, and has been certified by the national high-tech enterprises. After years of efforts, there are offices and after-sales service centers in all provinces of the country, covering the whole country and overseas markets, with more than 100 well-known enterprise customers.
Packaging & Shipping
1. Standard/Standard Packaging Form
2. Transport Support Air, Sea and Land Transport
FAQ
Q1: What is the MOQ?
No any requirements, 1 pcs can be accepted.
Q2: Compare with the pictures,I prefer to see the real products,Can you promise your products are the same with the pictures?
All the pictures were taken from real products,so the quality can be guaranteed,You can place sample order first .
Q3: Some of my orders are urgent, I don’t want to wait long time, can you guarantee mass production period .
We suggest you contact our sales for urgent orders ,usually 3-5days for stock items,20-30day for mass production period .
Q4: Can all products be customized?
Yes,all of products can be customized according to customers' requirements.
Q5: What kind of motor do you used?
Bauer , Bonfiglili ,Nord.
Q6: How about the motor power?
380v/50 Hz, three phase ,1.5kw power , 2.0Hp ,it depends on specification.
Q7: Are the fans safe,how do you make the fans safer than others?
Yes,We have 8 methods to guarantee safety and stability.
