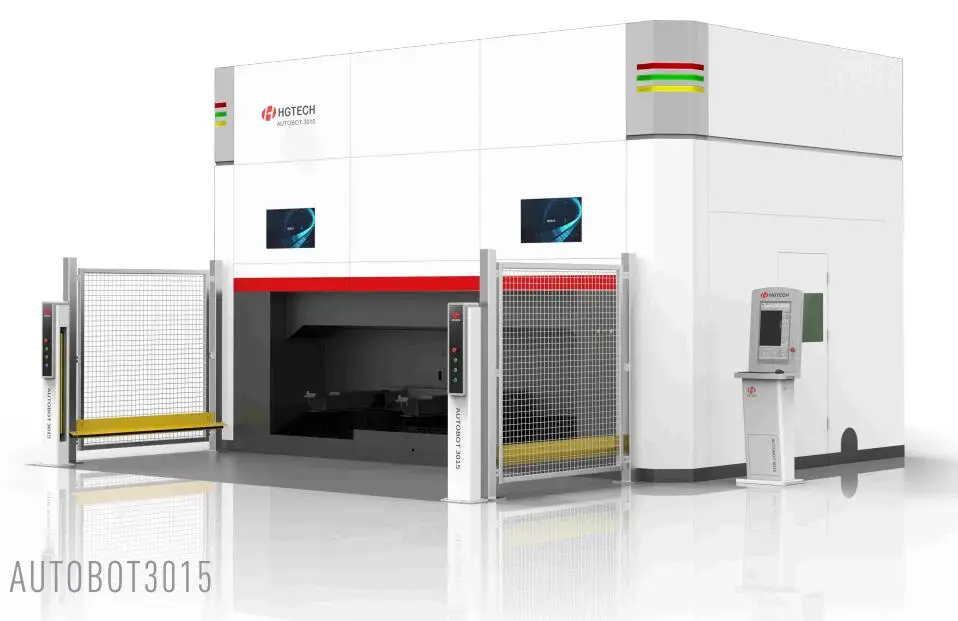

HGTECH Laser Cutting Application and Farms Applicable Industries Sheet Metal 3D 3 Axis 5 Axis Fiber Laser Cutting Machine

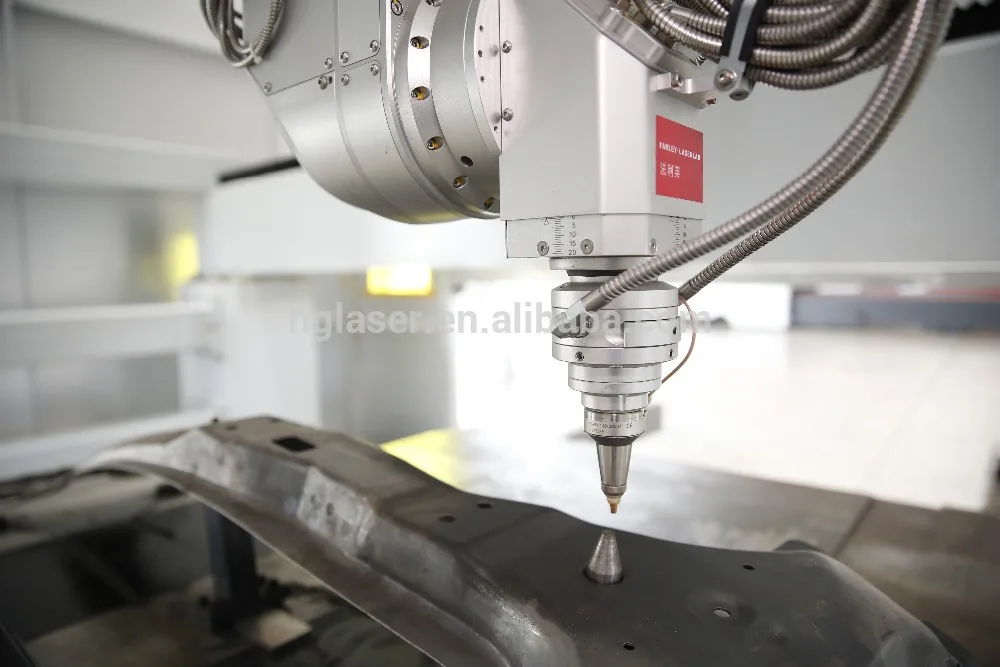

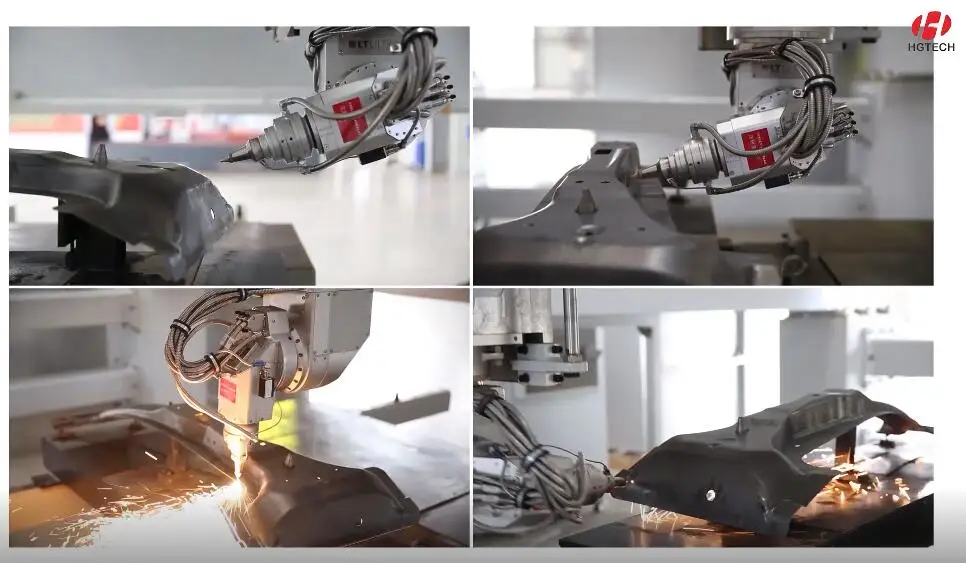

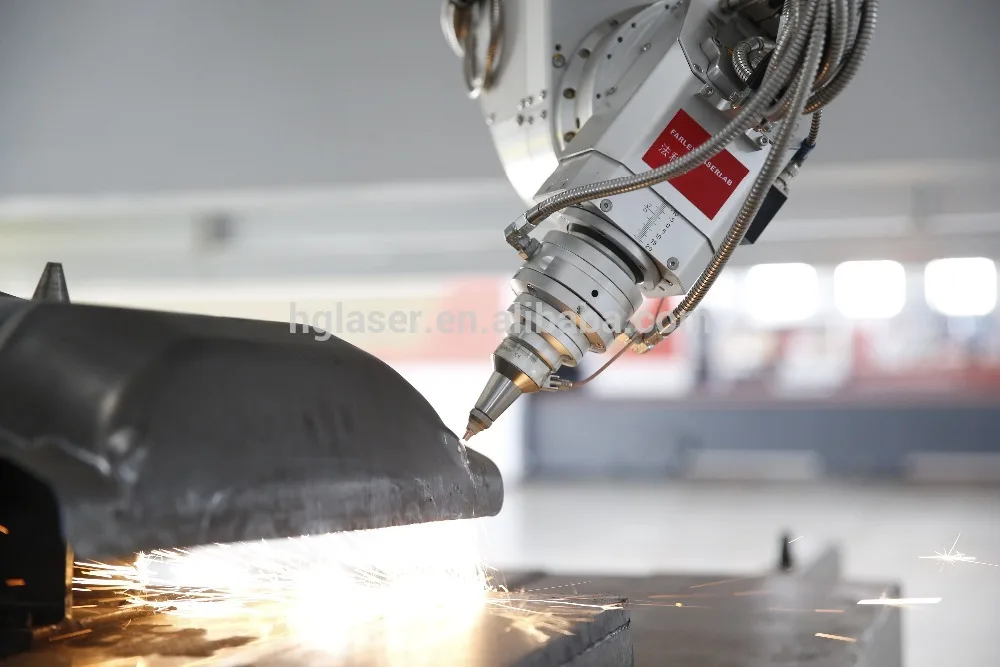

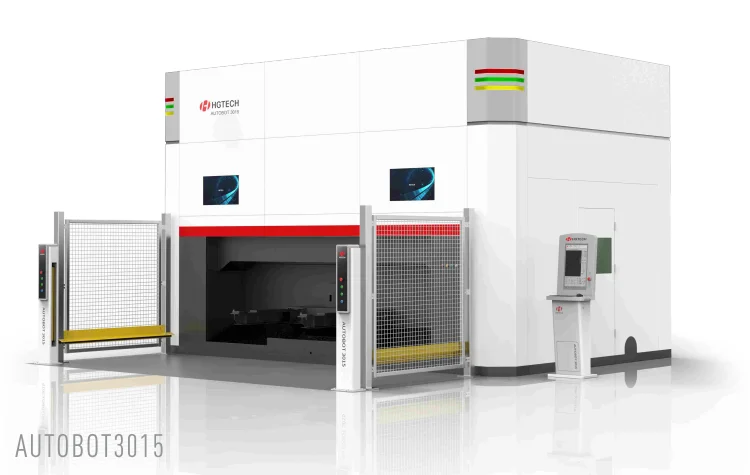

AUTOBOT3015 3D Five-axis Laser Cutting Machine

It is a kind of laser processing equipment specially developed for automobile hot forming parts. It mainly solves the

problem of cutting holes and trimming of hot forming parts. It is characterized by high precision, fast speed and good

dynamic performance.

-1.Stability adopts gantry dual drive structure, good stability, can ensure long-term high speed, high precision and stable

cutting

-2.High effificiency, maximum synthesis positioning speed 170m/min, maximum synthesis acceleration 1.7g, rotation table

2.5s can complete a single displacement

-3.Safety Machine tool safety protection meets CE international safety standards

-4.Cost performance is not inferior to imported equipment, shorter delivery time, less cost input, lower maintenance cost



AUTOBOT series 3d laser cutting machine
stroke	X axis stroke	3000mm
	Y axis stroke	1500mm
	Z axis stroke	680mm
	A axis stroke	±135°
	C axis stroke	±n×360°
precision	X/Y/Z axis positioning accuracy	±0.03mm
	X/Y/Z axis repeated positioning accuracy	±0.02mm
	A/C axis positioning accuracy	0.015°
	A/C axis repeated positioning accuracy	0.005°
speed	X,Y , Z axis maximum positioning speed	100m/min
	X,Y , Z axis maximum compound speed	170m/min
	A/C axis maximum positioning speed	540°/s
	X,Y,Z axis maximum accelerated speed	1.0G
	X,Y,Z axis maximum compoundaccelerated speed	1.7G
	A/C axis maximum accelerated speed	3600°/s²
	Floating axis induction range	±17.5mm
·         Table parameters	rotary table	Rotation diameter 4000mm Maximum load on one side. 400kg  Single shift  3s
·         Power supply	phase	3
	rated supply voltage	380V
	rated supply voltage	50Hz
	rated supply voltage	IP54
	working table	fixed table
·         Weight and measures	weight	About 16000Kg
	dimensions(length x width x height)	8500×7600×4200mm

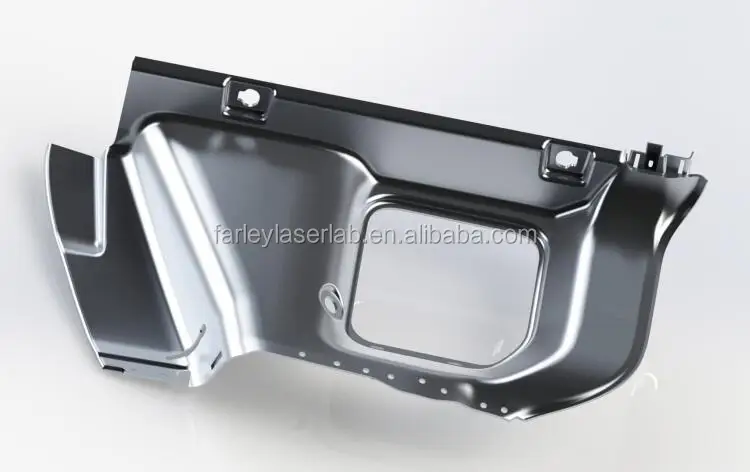

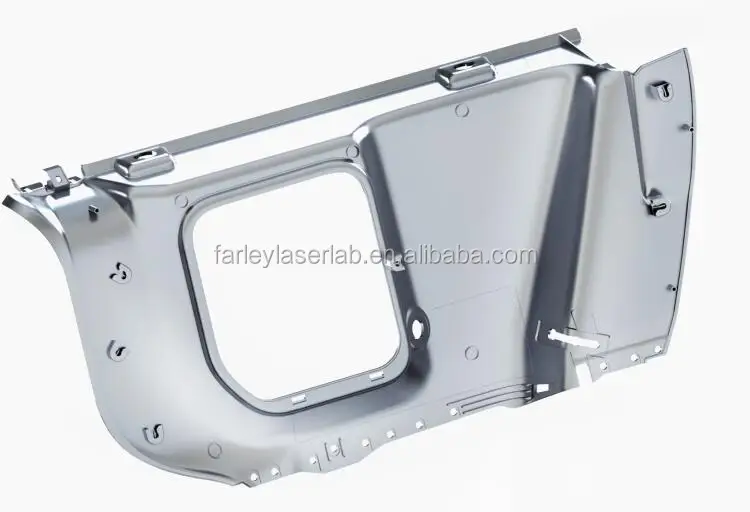

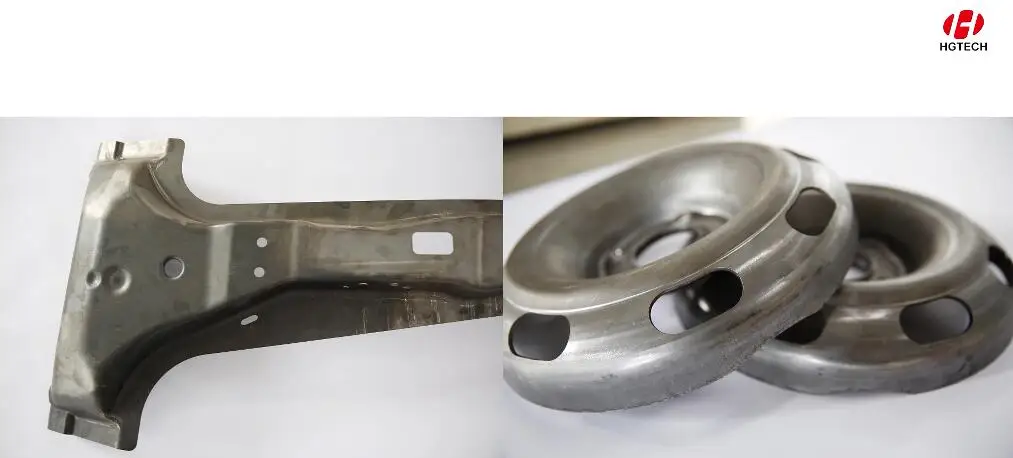

Samples:



1.Wuhan Huagong Laser Engineering Co.,Ltd is one of the largest laser equipment manufacturers in China. (Stock code: 000988)

2.HGLASER is Chinese national key high-tech enterprise, possessing technology centers and provincial key laboratories. Relying on the National Engineering Research Center for Laser Processing, National Key Laboratory for Laser Technology and Exhibition Center for Laser Technology Processing.

3.Wuhan Huagong Laser Engineering Co.,Ltd possesses HGLASER and FARLEY?LASERLAB two famous brands. HGLASER has always been committed to providing broad and comprehensive laser manufacturing solutions in industrial manufacturing field, researching, manufacturing and selling various laser processing and plasma machining equipments, providing tube laser cutting processing and oil pipeline trade services. The main products of HGLASER cover the full power series of laser cutting systems, laser welding systems, laser marking series, laser texturing equipments, laser heat treatment systems, laser drilling machines, laser devices, all kinds of support devices, laser processing and plasma machining equipments, which are used widely in metallurgy, non-ferrous metals, automobiles, parts, aviation, military, precision instruments, machine manufacturing, hardware, integrated circuits, semiconductor manufacturing, solar, education, communication and measurement, packaging, leathers, plastics, rubbers, jewelries, crafts, medical equipments, etc.

Our service

---Pre-Sales Service

Free Pre-Sales Consulting / Free Sample Marking

Speedy Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.

---After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.

Q1: I know nothing about this machine, what kind of machine should I choose?
Very easy to choose. Just tell us what you want to do by using laser machine, then let us give you professional solutions and suggestions.

Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
