Easy to install greenhouse structure large single span green houses for sale greenhouse cooling system
- Category: >>>
- Supplier: Hangzhou China Agrotime Agri-Tech Co. Ltd.
Share on (1600137100716):
Product Overview
Description
Our Advantages

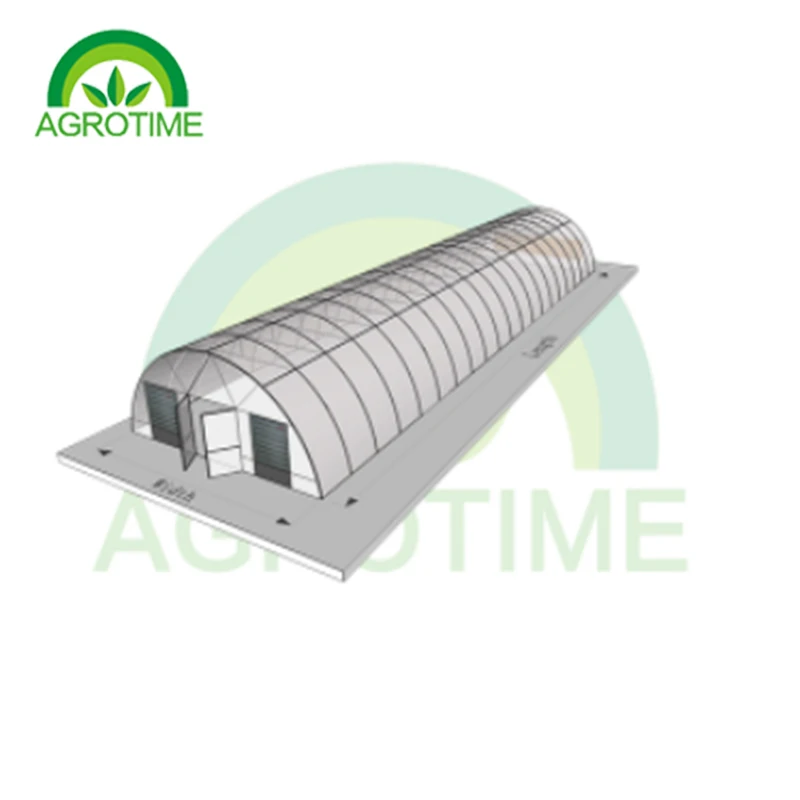

Product Name | Agricultural Single-Span Greenhouse | |
Model NO. | CMR3810 | |
Column | Hot Galvanized Steel- Round Pipe | |
Covering Matrial | Poly film/ Inset net/ Shade net | |
Ventilation system | Top Ventilation and Side Ventilation System | |
Shading System | Outside shading or Inside shading | |
Length | 20m-100m | |
Span Width | 6m-10m | |
Apex Height | 3m-5m | |
Bow Spacing | 1.5m | |
Column Diameter | 32mm×1.5mm, 48mm×1.5mm | |
we offer customized service, click here to contact me ! | ||
Products Description

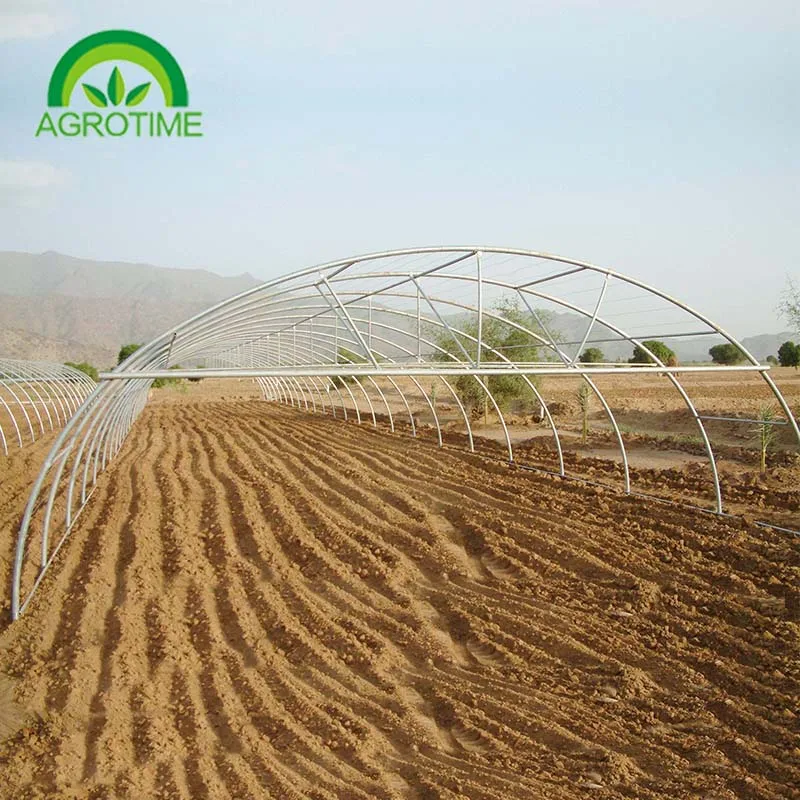

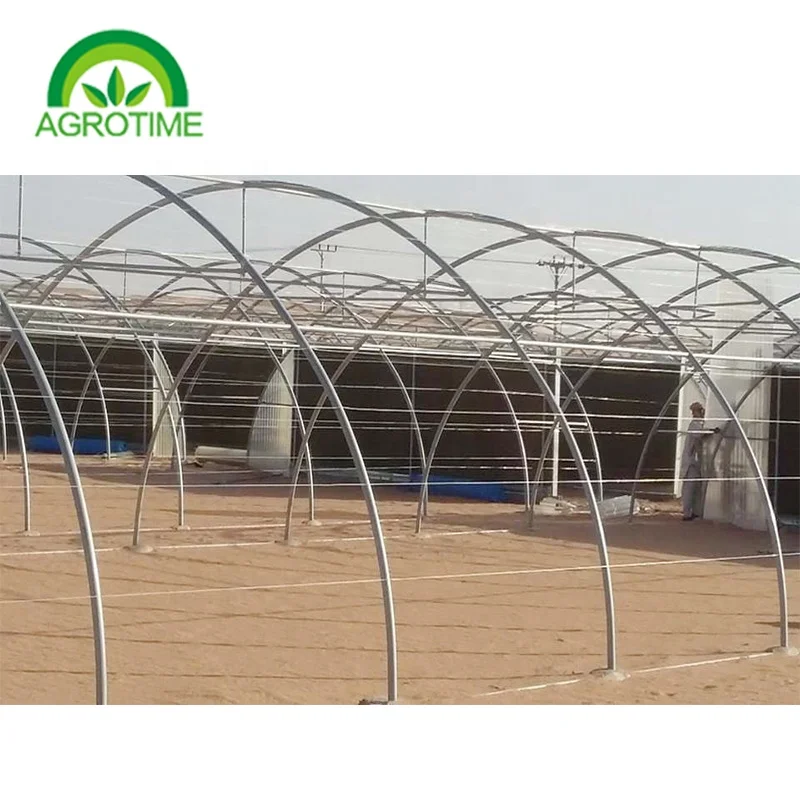

Greenhouse Frame
Material: Hot Galvanized Steel Pipe.
Shape: Round Pipe/ Rectangle pipe optional.
Diameter(mm):
50×30, 50×50, 60×60, 80×60 for rectangle. pipe.
30, 40, 48, 60 for round pipe.
Thickness(mm): 1.2, 1.5, 2.0, 2.5 optional.
Warranty: 8-10 Years.

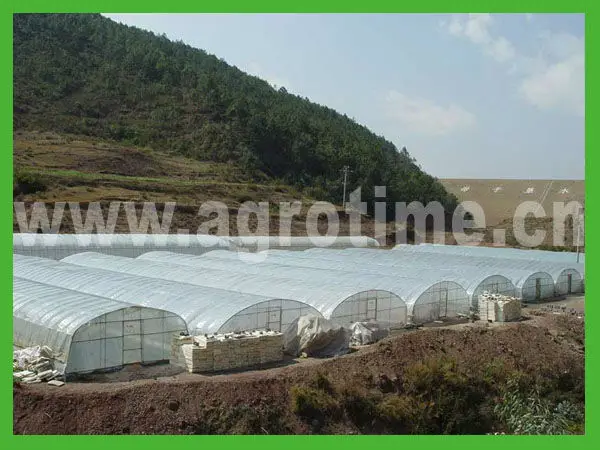

Covering for greenhouse
Thickness: 150/ 200 micrometer.
Global light transmission ≥90%.
Diffusion ≤20%.
UV transmission 300%-390%
Warranty: 3-5 Years.
Insect for greenhouse
Material: HDPE
Mesh: 32/ 40/ 50 meshes optional.
Fixed under the ventilation area to prevent insects flying into your greenhouse.
Side ventilation for greenhouse
This is a manual greenhouse vent included in our quote. We also have electric vent control system for you to choose.
Natural way to make air circulate in your greenhouse.
This is the side ventilation for your greenhouse.
Locking system for greenhouse
Locking profile.
thickness: 0.7mm.
length: 4m/pc.
Wire of locking profile.
thickness:2m/pc
diameter:2mm.
Shading System
*The Shading system can keep out redundant sunshine, preventing the plants from being burned in the greenhouse. And it can regulate the heat or reduce the cost for the operations.
*Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams. Outside shading net is made by black and round-wire materials and fastened by black polyester strings.
*Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams. Outside shading net is made by black and round-wire materials and fastened by black polyester strings.
Outside Shading
Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams. Outside shading net is made by black and round-wire materials and fastened by black polyester strings.
Inside Shading System
Inside Shading System is installed in the greenhouse, fixed on the truss and with the frame of greenhouse. Inside shading net is
made by white aluminum-alloy materials, fastened by white polyester strings.
made by white aluminum-alloy materials, fastened by white polyester strings.

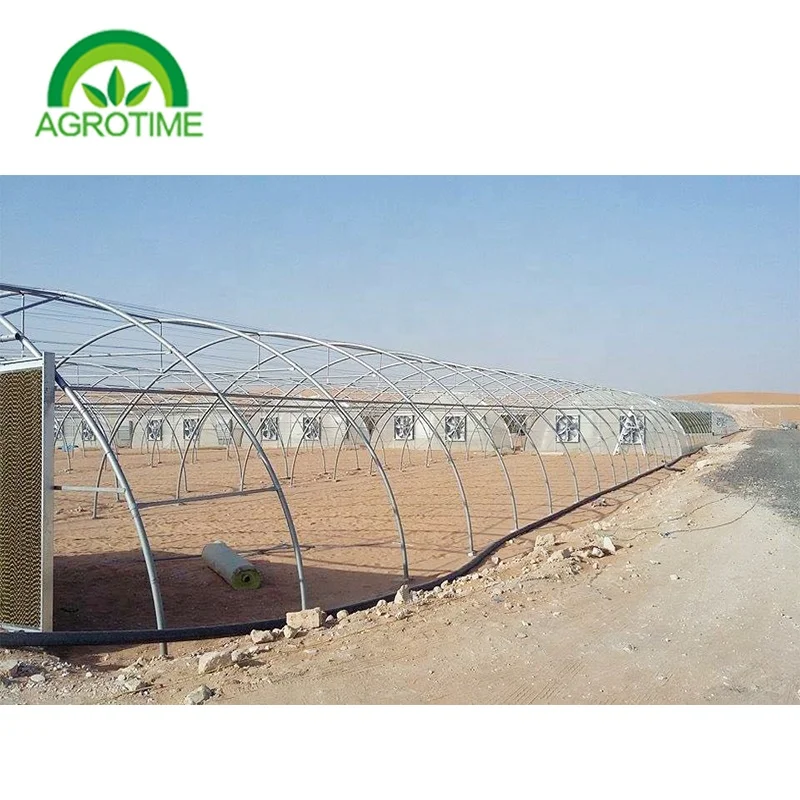

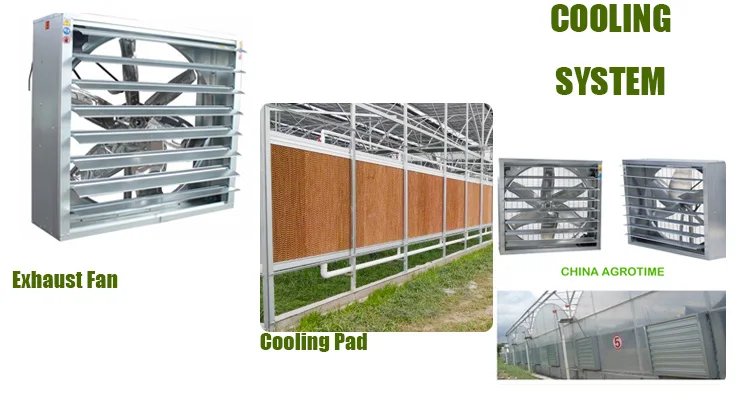

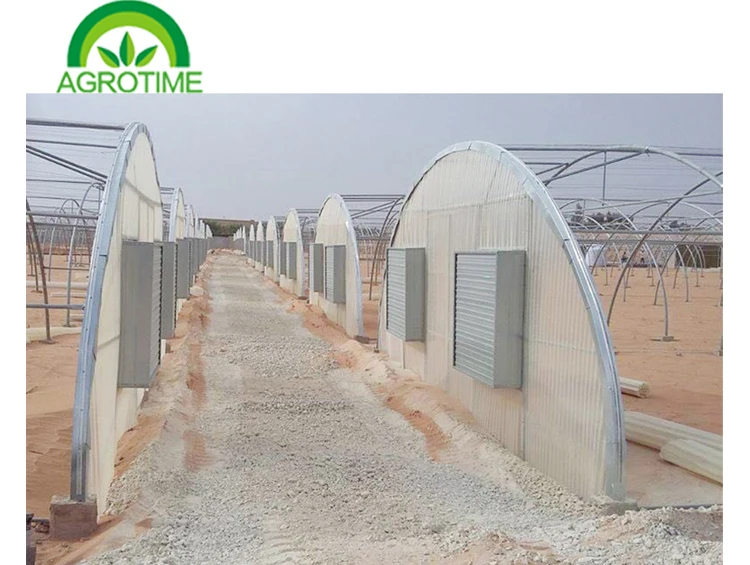

Cooling System
*Our company is specialized at the products of cooling pads and fans, usually used cooperatively. The cooling pads are installed on one side of the greenhouse, the exhaust fans, the other. (The air-circulating fans are installed in the greenhouse.)
*The exhaust fans eject the air from the greenhouse (The air-circulating fans promote the circulation of the air in the greenhouse), negative pressure formed in the greenhouse. The air enters the greenhouse through the cooling pads, resulting in the effects of cooling, moistening and air-dedusting.
Hydroponics System
Hydroponic System of greenhouse applies the hydroponics, which refers to the means of cultivation that is equipped with the base materials, not natural soil, when plants are in seed-breeding period and that is fixed with nutrient solutions for irrigation after they are settled, preventing the diseases due to the soil frequently used and the physiological barriers because of the salt accumulation of it and meeting the needs of plants with minerals, water, air and other conditions. The base materials can be recycled, and the hydroponics is characterized with water-saving, fertilizer-saving, labor-saving as well as great harvest and superior quality, etc.
More Products
Company Overview
FAQ
1. Are you factory or trading company?
We are factory, we located in Hangzhou City. With professional engineer team for suitable greenhouse design, complete after-sale service and factory direct sale for you.
2. Is there any instruction or manual guide installation?
Yes, English manual with drawing shipped together with goods for guiding your installation easily. Engineer overseas guiding installation is available.
Your workers or engineers are welcomed to our factory for learning your greenhouse installation.
Yes, English manual with drawing shipped together with goods for guiding your installation easily. Engineer overseas guiding installation is available.
Your workers or engineers are welcomed to our factory for learning your greenhouse installation.
3. How about packing？
The goods is marked according to your requirements, pipes by bundle, all goods load into the container directly.
4. Do you supply sample?
Yes. Sample will be sent within 2-3 working days after you paid.
Yes. Sample will be sent within 2-3 working days after you paid.
5. Do you have warranty of your products?
Yes, warranty for greenhouse structure is 8-10 years, 3-5 years for covering material.
