Alloy Application X Ray Fluorescence Spectrometer With Si pin Detector

Share on (1600137200697):


Price:$12,500.00 - $13,420.00

Quantity:


Product Overview

Description



Product Description


Alloy Application X Ray Fluorescence Spectrometer With Si-pin Detector


Warranty For 2 Years

Original Manufacturer

Simplicity of operator

One-to-one Remote Operation Guidance






The Principle of Energy Dispersive X Fluorescence Spectrometer


The atomic electron layer is excited by high-energy X-rays, causing the transition of electrons outside the nucleus, resulting inthe release of secondary X-ray energy.

Because the energy released by different elements has different characteristics, the detection system measures these energies andquantities to calculate element content.






The Main Components
High VoltageX-Ray Tube-Detector
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc




Specification parameters

X Ray Gold Testing Analyzer , X-Ray Gold Tester , XRF Metal Elements Spectrometer
Specification parameters of four models


Brand
MAYZUM
Model
X-MAY05
X-MAY16
X-MAY72
X-MAY72-Pro
Price
$5480
10500
$13420
$19190
Detector Type
Proportional Counter tube
Si-pin (USA)
SSD(USA)
Multichannel Analyzer
Multi channel simulation
Operating system
Windows 7 system
Sample Chamber Size
310 *280 * 60 (mm)
290 * 290 * 95 (mm)
380 *380 * 60 (mm)
Test Time
10sec ~ 50sec
Measuring Element
Au,Ag,Pt,Pd,Cu
(Display elements: Ni,Zn,Cd,Ir,In )

Au, Ag, Pt, Pd, Cu, Ni,Zn,Rh,Cd,Ru,Fe,Co,Ir,W,Os,Pb (content ≥5%)
72 elements from sodium (Na) touranium (U) between all the elements
Analysis Range
1ppm to 99.99%
Accuracy (content ≥96%)
0.1%
0.05%-0.1%
0.03%
0.01%

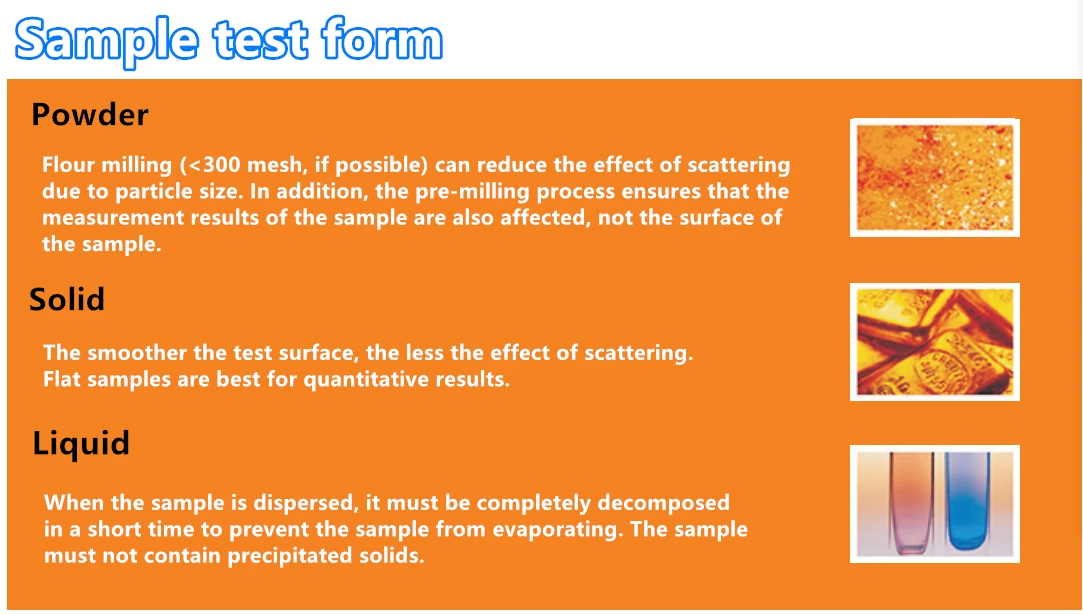

Sample Form
Solid, powder, liquid
Measuring Mode
Automatic measurement with one click
Tube Voltage
5KV ~ 50KV
High Voltage Power Supply
0 ~ 50KV
Camera
HD camera
Filters
Selectable customized switches
Analysis Software
Qualitative and quantitative analysis software
External Dimensions (mm)
400 * 430 * 350
410 *300*280
480 * 480 * 390
Net Weight
33 Kg
30 Kg
38 kg
Gross Weight
37 kg
34 Kg
42 kg
Instruments Environmental Requirements
Ambient Temperature
-5 ° C ~ 40 ° C (Suggested that in air conditioning room)
Relative Humidity
15% ~ 90%
Power Requirements
AC 220V ± 5V, 50/ 60 Hz
No high power electromagnetic and vibration interference sources nearby




Advantages & Characteristics




Detailed Images

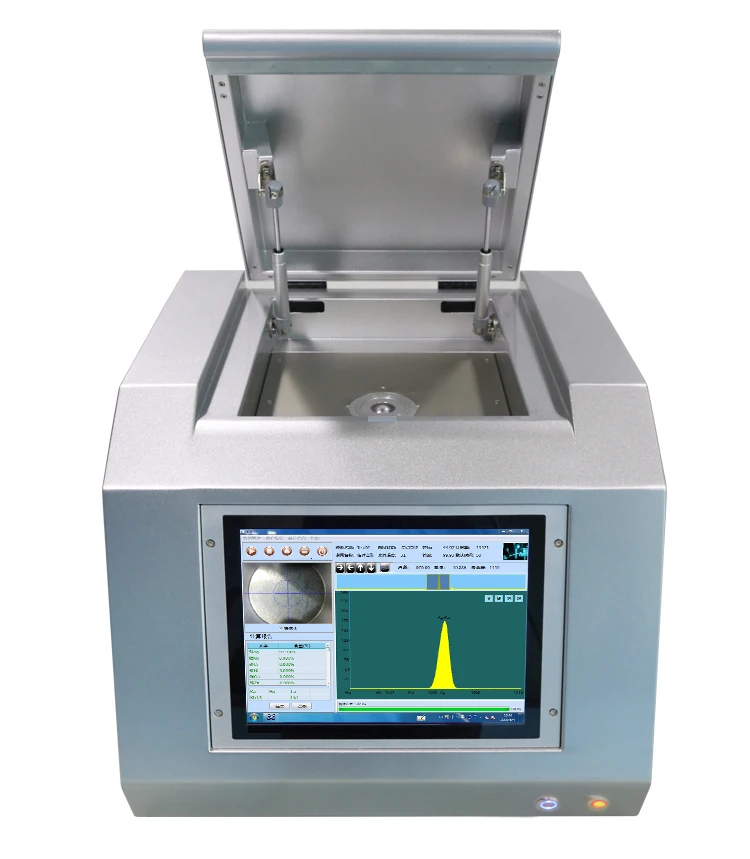

Alloy Application X Ray Fluorescence Spectrometer With Si-pin Detector










Applications&Certifications


Applications
Banks; Jewelry industry: Jewelry retailers, jewelry manufacturers;
Precious metal refineries;
Pawn shops ;
Gold and precious metals research lab;
Government quality inspection departments;
Laboratories and tertiary institutions;






Certification




Packaging & Shipping & Payment

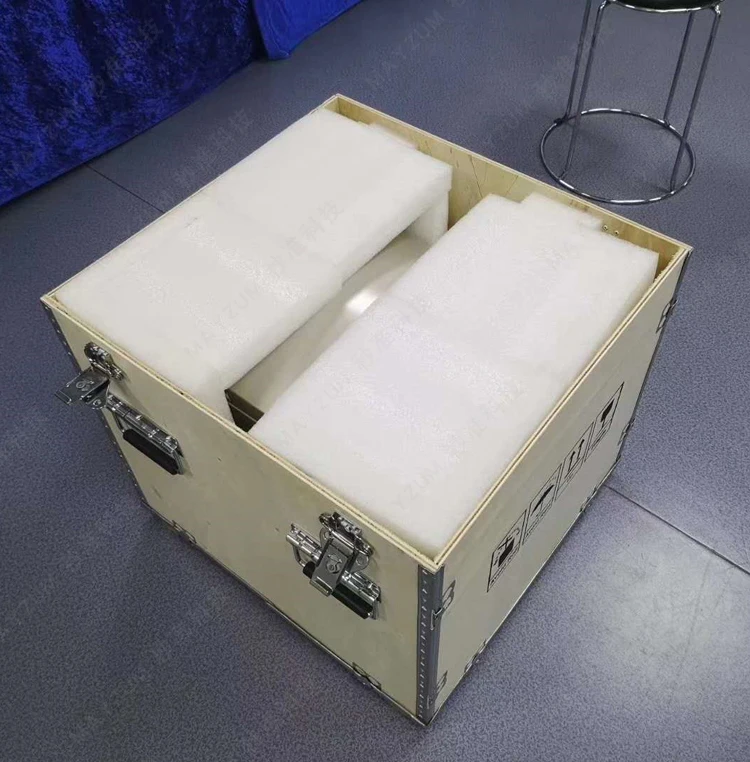

Packaging
Packing size: 400 * 430 * 350(mm)
Packaging Details: Standard Export Crate Packing, Filling with soft foam




Our Company


Mayzum (Our brand) specialized in producing and selling professional densitometer for 11 years and we can provide professional density test instrument solution for you

1. Different program functions can be customized according to customer requirements;

2. We can provide OEM service.

3. Looking for brand agent wholesales all over the world.







FAQ


1.How about quality and warranty of our products?

When you receive a product from Qun Long, it must be11 years experience. We can guarantee the warranty for three years from the date of receipt. If our machine fails to perform properly because of defects in materials or workmanship during three years warranty, We will be responsible for fixing or replacing new machine .

2.How about after-sales service

(1)If errors occur, please refer to the troubleshooting tips of the instruction manual

(2)Please contact with our after-sales service department or distribution in time if can't clear fault

(3)When you contact us with a service problem, we will act within 12 hours and provide solution within 24 hours.

(4)After-sales line : 0755-82596242

(5)If the product have some big troubles and it must be sent back to our factory to repair during its warranty period, you just need to shipping the product to us and we will sent you a new one.The service is excluding if the machine is breakdown caused by following reasons:

a:Wrong operation

b:Fixed or refitted personally

c:The machine itself is not the reason caused breakdown

d:Applying the machine under the serious condition. Such as high temperature, moist, corrosive gas, or vibration.

e:Move or transportation as soon as installed

f:Consumables and easy-loss components

g:Natural disaster


3.How many days can you receive the products?

Product in stock will be sent within 48 hours. Delivery time is about 5-7 days.



4.How to shipping the product?

Product will be sent by International Express by air. Such as DHL, UPS, FEDEX, TNT, SF.


5.What is our return policy?

You are allowed to return goods within 7 days from the date of receipt. To return products,please contact our customer service with your invoice number, the item to be returned and the reason for the return. Goods must be returned freight prepaid. Returns will be subject to a restocking charge. Products can not be returned back when the products have been used or modified.


6.Are we manufacturer made copy product or original product?

We are the original manufacturer for densimerter, Mayzun is our own brand. The model starts with MZ and MAY are belong to us generally.


7.Why choose us?

Qun Long have been specialized in density field since 2009. Qun Long as a professional density meter supplier , has maintained a constant belief:First - class quality , professional technology team and services team,ample supply and prompt delivery.
