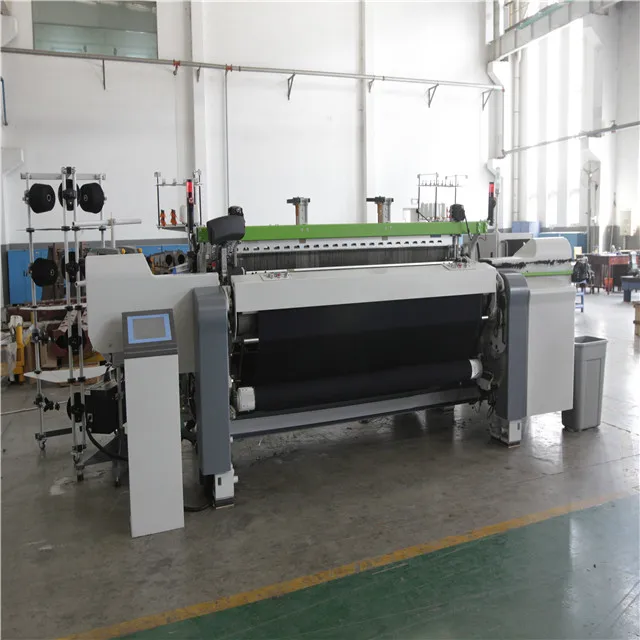

High speed G1736C Rapier loom with high quality
- Category: >>>
- Supplier: Hi-Tech Heavy Industry Co. Ltd.
Share on (1600137906366):
Product Overview
Description
Product Description
Application:
Type G1736 rapier loom,as a leading weaving machine, following market demands and development, is designed to weave high quality, high value-added fabric,with the features of advanced technology, reliable structure, easy maintenance, high-speed and high-grade.
This machine is adopted with modular design, high degree of mechanical and electrical integration.And it is equipped with advanced rotary electronic dobby and electronic color selection device.And it can achieve to weave all types of fabrics such as plain weave, twill, satin, jacquard etc by changing the program.of electronic control box.
Main Technical parameter:
Nominal Width(mm) | 1900/2100/2300/2800 | ||
Machine Speed (RPM) | 400-650 | ||
Dia.of weaving beam(mm) | 800 or 1000 | ||
Independence motor driven, 4-6 colors, up to 8 colors | Color selection time and pattern edit set in the electric cabinet | ||
Staubli 2658 electronic dobby,up to 20 pages of heald frame | Electronic heald leveling time setting | Dobby pattern edited by the electric cabinet | |
Directed by variable speed motor (patent) | |||
About 7 kw | |||
Advantages:
1.Applied to broad areas
2.its excellent performance and leading weaving efficiency sets new height for weaving level of rapier looms, providing high efficient weaving solutions for users.
3.Saving energy
4.More optimized Wefting Insertion and Beating –up Mechanism
5.Advanced Electrical control system
Packaging & Shipping

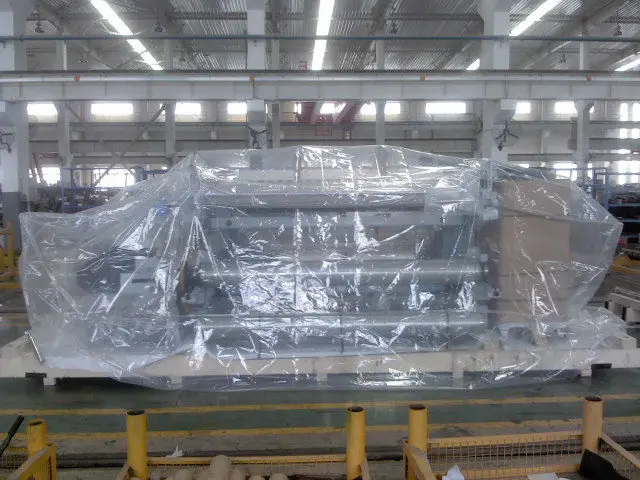

We often use wooden pallet or wooden box, we can also packing up to customers' requirement.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
