Product Description


General
TOWCT series household AC Modular contactor is suitable for using in the circuits up to the rated vltage 400V AC 50/60Hz rated current up to 63A,for making ,frequently starting and machine interlocking device,it becomes the delay the contactor,mechanical interlocking contactor star-delta starter,with the thermal relay , it is combined into the eletromagnetic starter.the contactor is roduced according to IEC61095, EN61095, GB17885.

Feature
TOWCT Modular Contactor can be used to remote control applications in alternative networks:
○ lighting, heating, ventilation,roller blinds, sanitary hot water
○ mechanical ventilation systems, etc
○ load-shedding of non-priority circuits


Technical Data


Power circuit
Voltage rating(Ue)                               1P, 2P
250V AC
                                                             3P, 4P
400V AC
Frequence
50/60 Hz
Endurance(O-C)
Electrical
50,000 cycles
Maximum number of switching operation a day
100
Additional characteristics
Insulation vwltage(Ui)
500V AC
Pollution degree
2
Rate impulse withstand voltage(Uimp)
2.5KV(4kV for 12/24/48V AC)
                                                       Device only
Degree of protection
                                                       Device in modular                                                             enclosure
IP20
IP40
Operating temperature
-5℃ to + 60℃
Storafe temperature
-40℃ to +70℃
Tropicallization(IEC 60068-1)
Treatment 2(relative humidity 95% at 55℃
ELSV compliance(Extra Low Safety Voltage) for 12/24/48vac  versions
The product control conforms to the SELV(safety extra low voltage)requirements


(1)In the case of contactor mounting in a enclosure for which the interior temperature is in range detween
50℃ and 60℃, it is necessary to use a space, between each contactor.

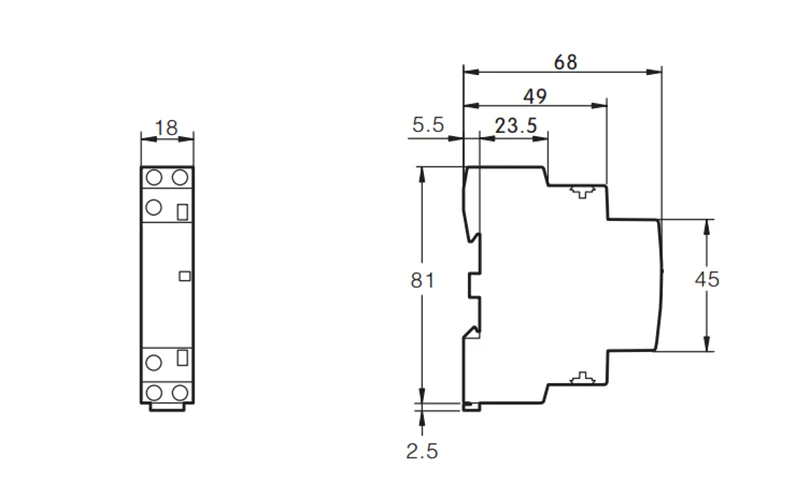

Dimensions(mm)
