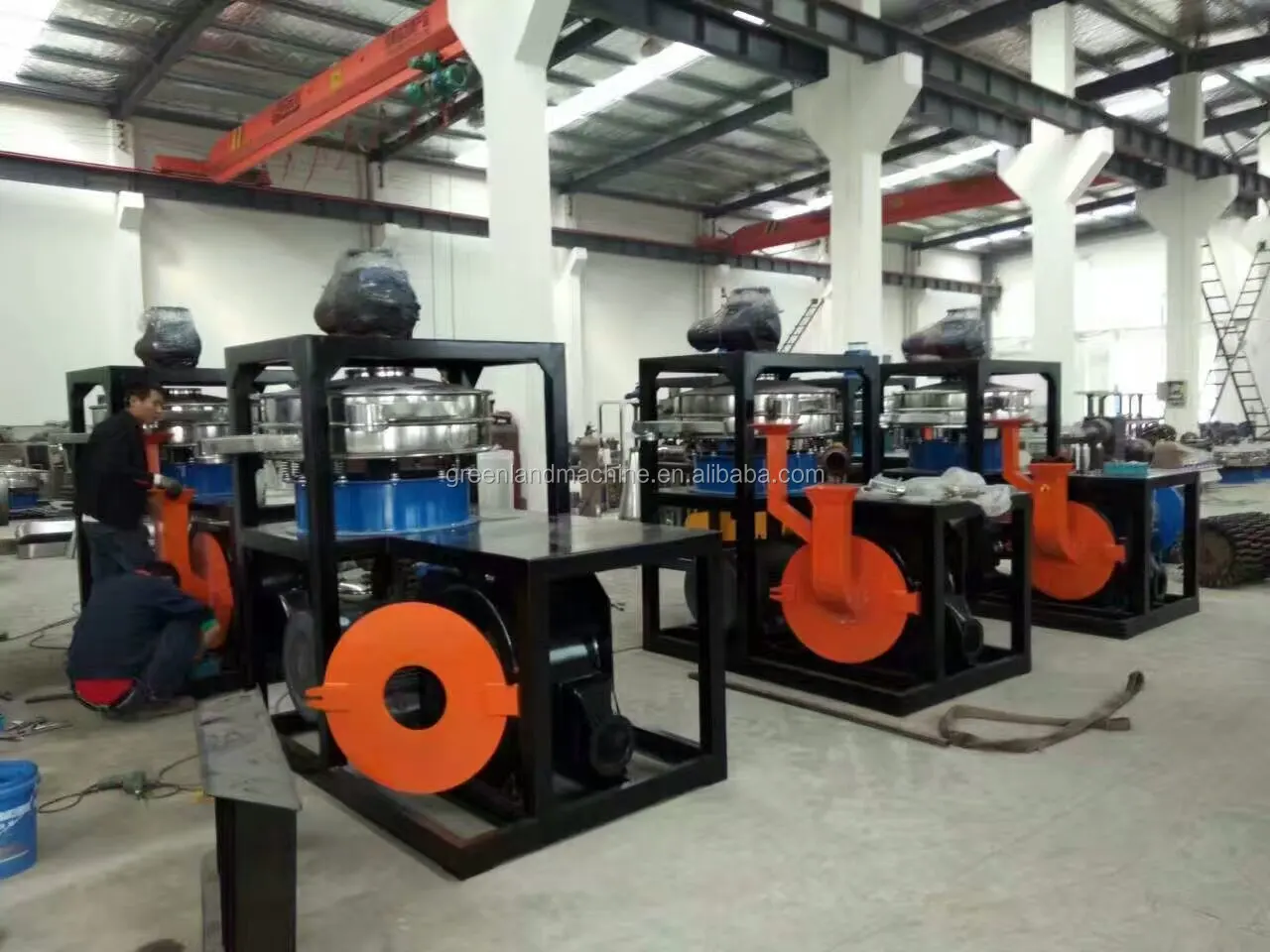

Greenland crushed PVC scraps pulverizer machine
The crushed PVC scraps pulverizer machine is a rotor-type plastic mill. It is mainly used for processing and grinding heat-sensitive materials. It can process and grind polyethylene PE, polyvinyl chloride PVC, polystyrene PS, polycarbonate PC, foamed PE, The powder processing of PVC, ABS, EVA, soft PVC, rubber, and other materials has the characteristics of high output, fine grinding, high efficiency, energy saving, and environmental protection.
2. Features
1. This machine uses water circulation and air cooling, which is suitable for processing heat-sensitive materials.
2. The machine uses the high-speed rotation of the spindle cutter head and the fixed cutter head to make the incoming materials
The high-speed movement collides strongly with the grinding disc and is cut into powder.
3. Both movable and fixed knives are made of wear-resistant steel at one time. After heat treatment, it has high hardness and excellent wear resistance.
4. The machine is compact in structure and small in size. It can be maintained as long as the door cover is opened. It is fully sealed and has no dust leakage.
5. The thickness of the grinding powder can be adjusted by adjusting the washer through the spindle nut.
6. The machine is equipped with an air feeding and discharging device to ensure uniform cooling of materials and fast cooling speed.
7. Equipped with related fans and dust removal devices, no dust leakage
The crushed PVC scraps pulverizer machine is a rotor-type plastic mill. It is mainly used for processing and grinding heat-sensitive materials. It can process and grind polyethylene PE, polyvinyl chloride PVC, polystyrene PS, polycarbonate PC, foamed PE, The powder processing of PVC, ABS, EVA, soft PVC, rubber, and other materials has the characteristics of high output, fine grinding, high efficiency, energy saving, and environmental protection.
2. Features
1. This machine uses water circulation and air cooling, which is suitable for processing heat-sensitive materials.
2. The machine uses the high-speed rotation of the spindle cutter head and the fixed cutter head to make the incoming materials
The high-speed movement collides strongly with the grinding disc and is cut into powder.
3. Both movable and fixed knives are made of wear-resistant steel at one time. After heat treatment, it has high hardness and excellent wear resistance.
4. The machine is compact in structure and small in size. It can be maintained as long as the door cover is opened. It is fully sealed and has no dust leakage.
5. The thickness of the grinding powder can be adjusted by adjusting the washer through the spindle nut.
6. The machine is equipped with an air feeding and discharging device to ensure uniform cooling of materials and fast cooling speed.
7. Equipped with related fans and dust removal devices, no dust leakage
Detailed Images

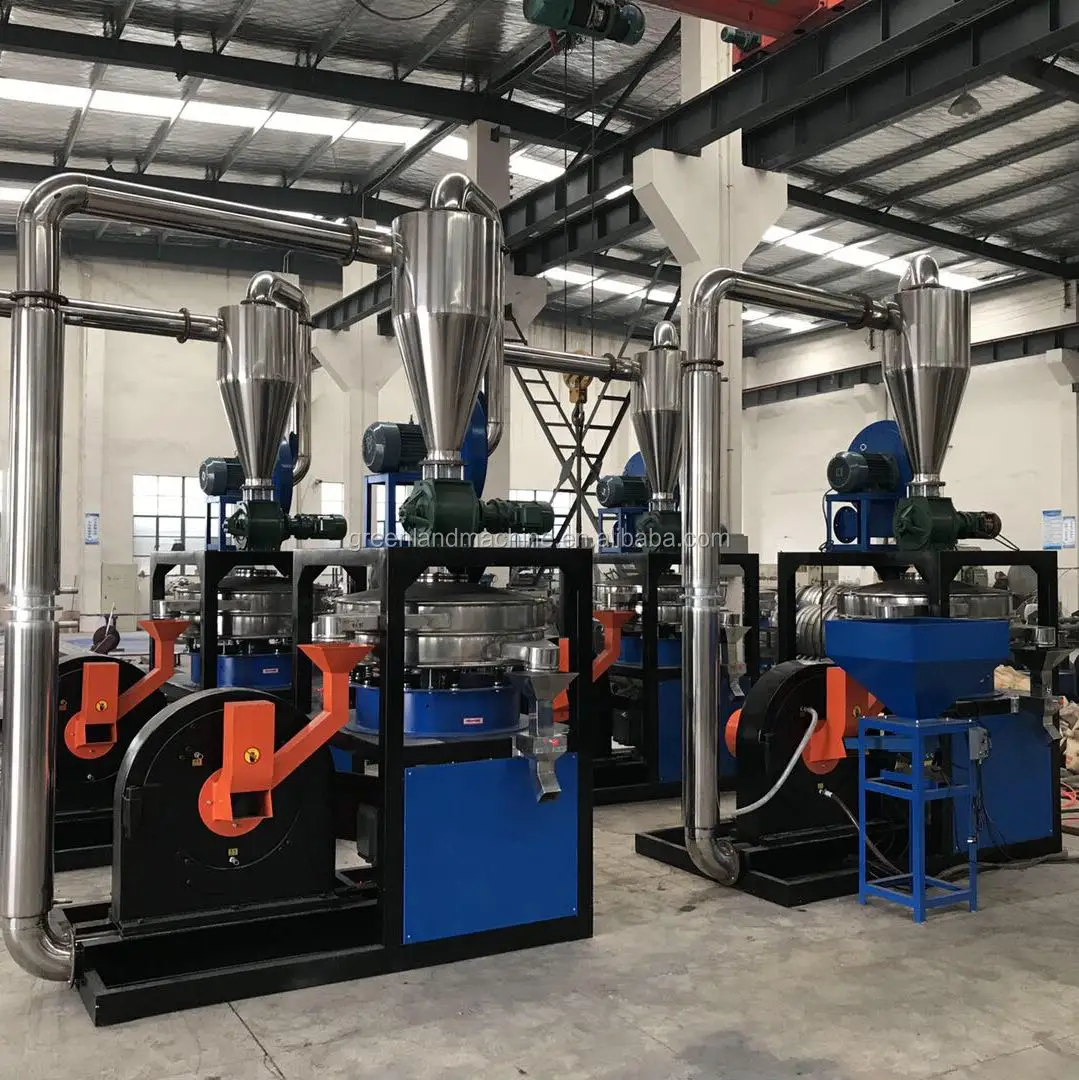

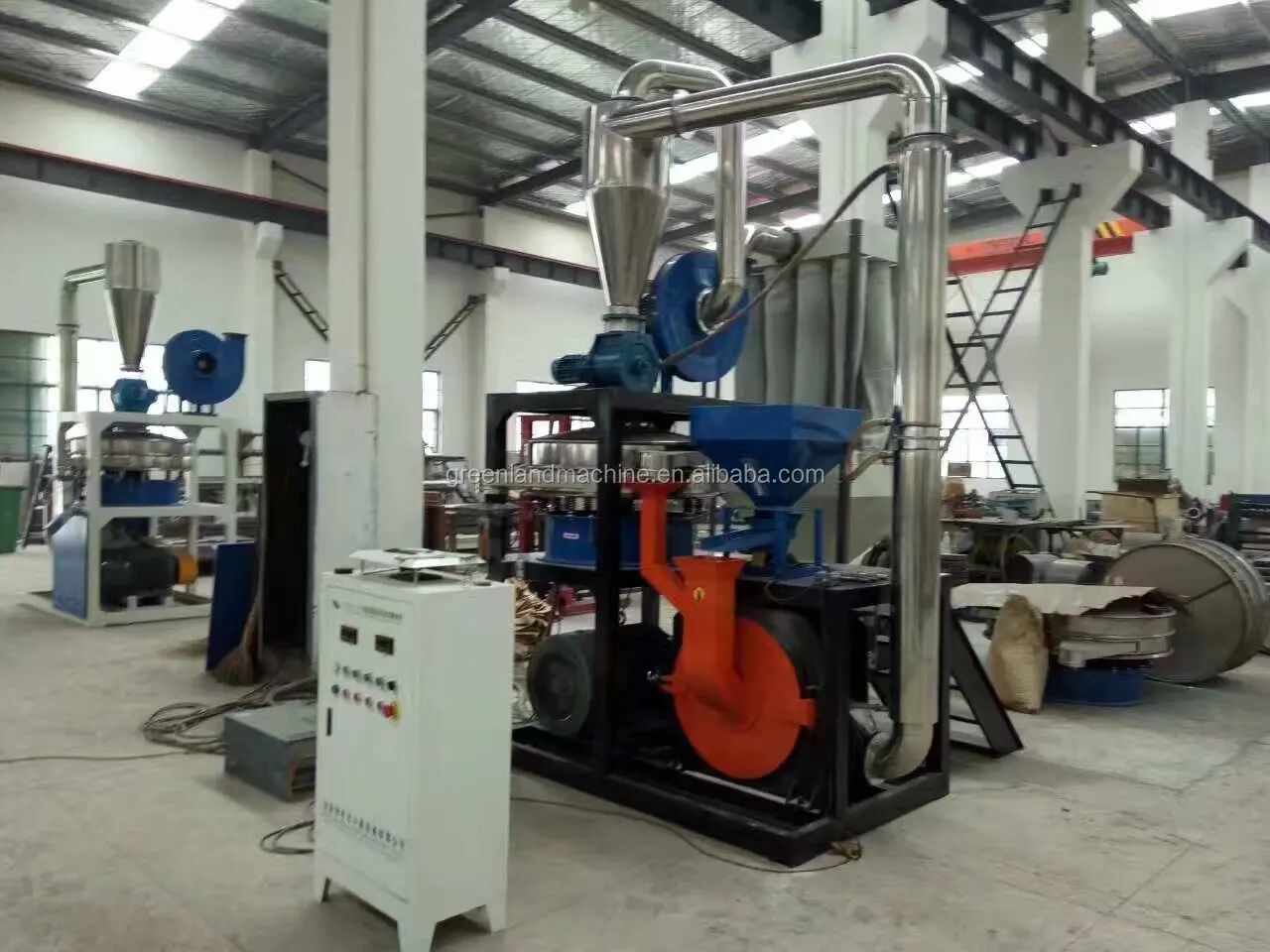

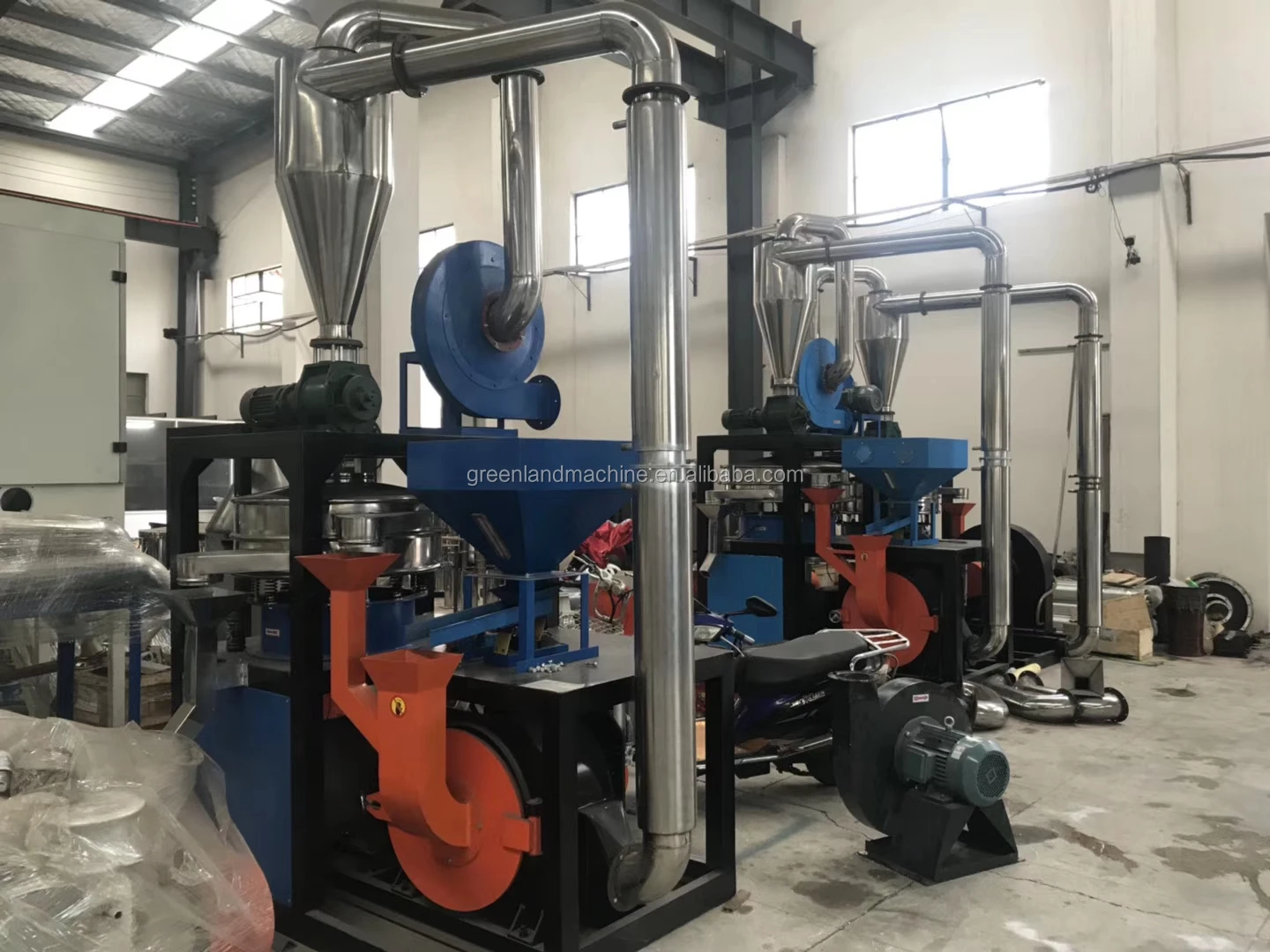

Deail photos of Greenland crushed PVC scraps pulverizer machine

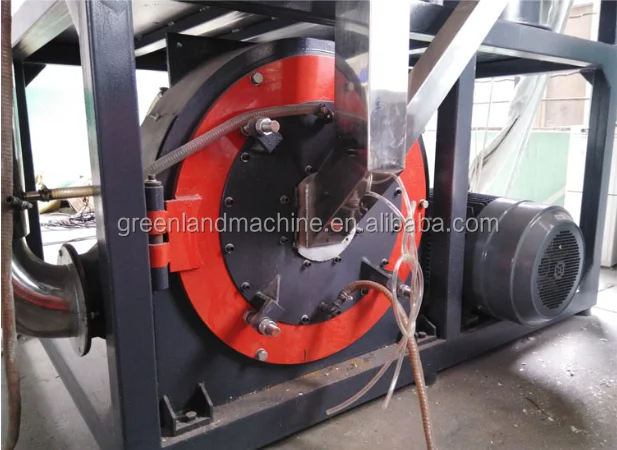

Pulverizer chamber
segment blade type pulverizer chamber

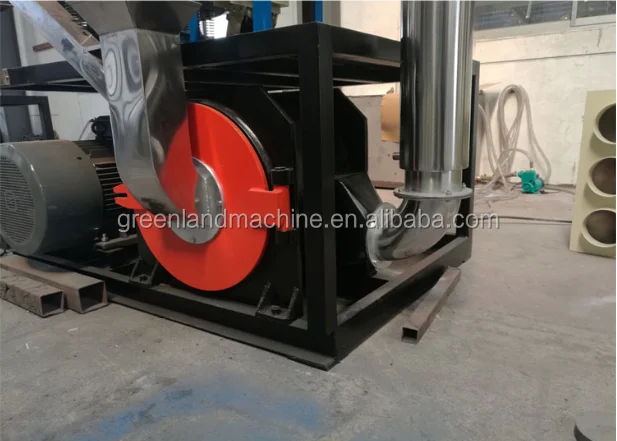

Pulverizer chamber
flywheel type pulverizer chamber
Size Information
Size Chart of crushed PVC scraps pulverizer machine
Model | SMW-500 | SMW-600 | SMW-800 | SMF-500 | SMF-600 | SMF-800 |
Motor power(kw) | 37 | 55 | 75 | 30 | 45 | 55 |
Blower power(kw) | 3 | 5.5 | 7.5 | 3 | 5.5 | 7.5 |
Rotation diameter (mm) | 500 | 600 | 800 | 500 | 600 | 800 |
Cooling mode | water &air cooling | water &air cooling | water &air cooling | water &air cooling | water &air cooling | water &air cooling |
Flow valve | 0.75kw | 0.75kw | 1.1kw | 0.75kw | 0.75kw | 1.1kw |
Capacity(kgh) | 150-300 | 300-500 | 500-800 | 250-350 | 300-600 | 550-950 |
Diemension(L*w*H)mm | 2500*2000*3000 | 3200*2600*3200 | 3500*2400*4000 | 1900*2100*3800 | 2000*1700*3800 | 2300*1900*4200 |
Weight(kg) | 1200 | 1650 | 2800 | 1600 | 2200 | 3500 |
Related Products
Packing&Shipping
Container loading
After Sales Service
Commissioning
we make commissioning for every machine before delivery ,and offer full set of spare parts for regular maintenance
Company Introduction
ZHANGJIAGANG GREENLAND MACHINERY CO, LTD is a professional plastic recycling machine and extrusion machine manufacturer. We are dedicated to designing and developing the high technology plastic machinery. We have more than 10 years experiences in the plastic machinery manufacturing. We have full processing equipment,skillful and experienced production process . We are always keeping improve our products by the feedbacks and communication from our customers which makes our products better and better. Our products mainly include PET bottle washing recycling line, PE/PP film bags washing recycling line, PP/PE bottle,drum washing recycling line, HDPE/ABS/ PVC recycling line, PE/PP recycling pelletizing line, PET ,ABS and etc material pelletizing line!
Plastic shredder series include single shaft shredder ,double shaft shredder ,plastic crusher/granulator.
At the same time, our company is also the leading EPS foam recycling machine manufacturer in China, manufacturing high quality EPS foam cold compression machine, hot melt machine, and EPS foam granulation equipment, fill the gap of domestic EPS foam high-end recycling equipment!
Plastic shredder series include single shaft shredder ,double shaft shredder ,plastic crusher/granulator.
At the same time, our company is also the leading EPS foam recycling machine manufacturer in China, manufacturing high quality EPS foam cold compression machine, hot melt machine, and EPS foam granulation equipment, fill the gap of domestic EPS foam high-end recycling equipment!
FAQ
TECHNICAL INNOVATION ,QUALITY FIRST
Greenland Machinery pays attention to technology research & development and product quality. Based on the company's mature R&D design team, we carry out technical reforms on traditional plastic recycling equipment. It insists on high-quality configuration for each component and detail of the equipment, compared with traditional recycling equipment ,more stable, high performance and efficiency, increase the economic benefits of recycling manufacturers!
OFFER DIFFERENT CUSTOMERS CUSTOMIZED SOLUTIONS OF PLASTIC RECYCLING
Greenland Machinery provides customized and integrated crushing washing and pelletizing solutions according to different recycling materials and capacity requirements of customers, which can help customers recycle various of materials and different pollution levels.Includ PET bottles, PP/PE Films/plastic bags/bottle, waste plastic packages agricultural film greenhouse film, jumpo bag, home appliance plastic, etc.
ONE-STOP TURNKEY PROJECT CONCEPT
Since the customer consider setting up recycling project, we will design the most suitable production line process and
installation plan according to the customer's capacity demand, workshop condition, etc. Our design and engineering team will provide customers with one-stop turnkey plastic recycling project.With complete pre-sale and after-sales service
INSTALLATION ,TRAINING & GOOD AFTER-SALES SERVICE
We have professional technicians who can come to customer's factory provide installation and commissioning, train operators, so that ensure the correct operation and maintenance of the equipment! We have dedicated after-sales personnel and spare parts warehouse to ensure the timely supply of some conventional accessories parts!
Greenland Machinery pays attention to technology research & development and product quality. Based on the company's mature R&D design team, we carry out technical reforms on traditional plastic recycling equipment. It insists on high-quality configuration for each component and detail of the equipment, compared with traditional recycling equipment ,more stable, high performance and efficiency, increase the economic benefits of recycling manufacturers!
OFFER DIFFERENT CUSTOMERS CUSTOMIZED SOLUTIONS OF PLASTIC RECYCLING
Greenland Machinery provides customized and integrated crushing washing and pelletizing solutions according to different recycling materials and capacity requirements of customers, which can help customers recycle various of materials and different pollution levels.Includ PET bottles, PP/PE Films/plastic bags/bottle, waste plastic packages agricultural film greenhouse film, jumpo bag, home appliance plastic, etc.
ONE-STOP TURNKEY PROJECT CONCEPT
Since the customer consider setting up recycling project, we will design the most suitable production line process and
installation plan according to the customer's capacity demand, workshop condition, etc. Our design and engineering team will provide customers with one-stop turnkey plastic recycling project.With complete pre-sale and after-sales service
INSTALLATION ,TRAINING & GOOD AFTER-SALES SERVICE
We have professional technicians who can come to customer's factory provide installation and commissioning, train operators, so that ensure the correct operation and maintenance of the equipment! We have dedicated after-sales personnel and spare parts warehouse to ensure the timely supply of some conventional accessories parts!
