2 Axis 1.0 mm automatic pen making machine pen spring making machine
- Category: >>>
- Supplier: Dongguan Guangjin Cnc Equipment Co. ltd.
Share on (1600138120470):
Product Overview
Description
Product Description
2 Axis 1.20 mm automatic CNC compression spring machine for 0.4mm ball pen spring mass producing
Key features and advantages:
1. Precision into 0.08mm.
2. Steel gear, powerful enough for wire max 1.4mm
3. Wire feeding mechanism’s gear always immersed in oil for best lubrication.
4. 2x1KW Sanyo Denki Servo Motors, capable of feeding and coiling wire larger 0.8mm, max to 1.40mm.

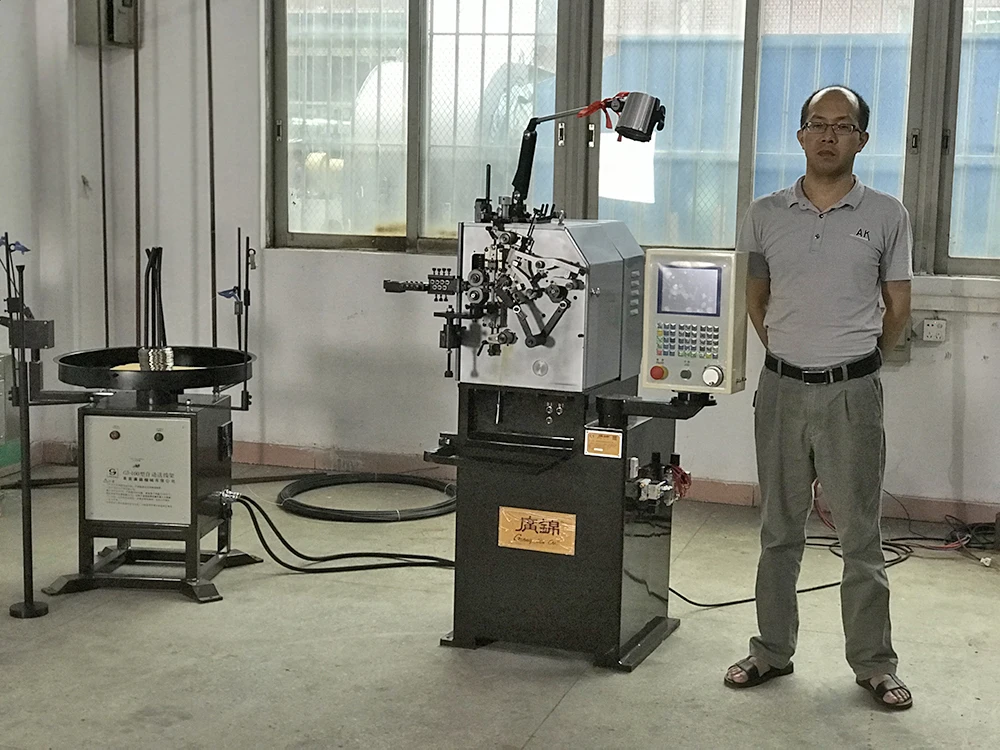

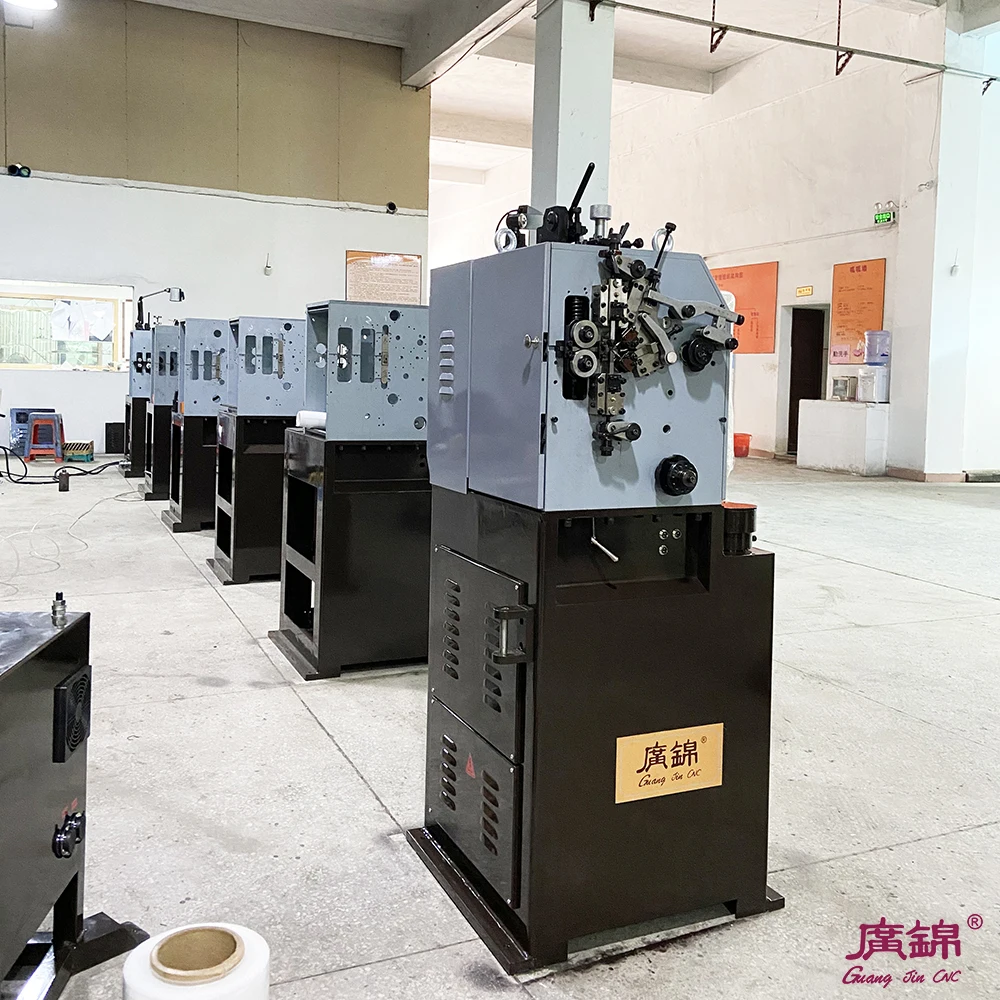

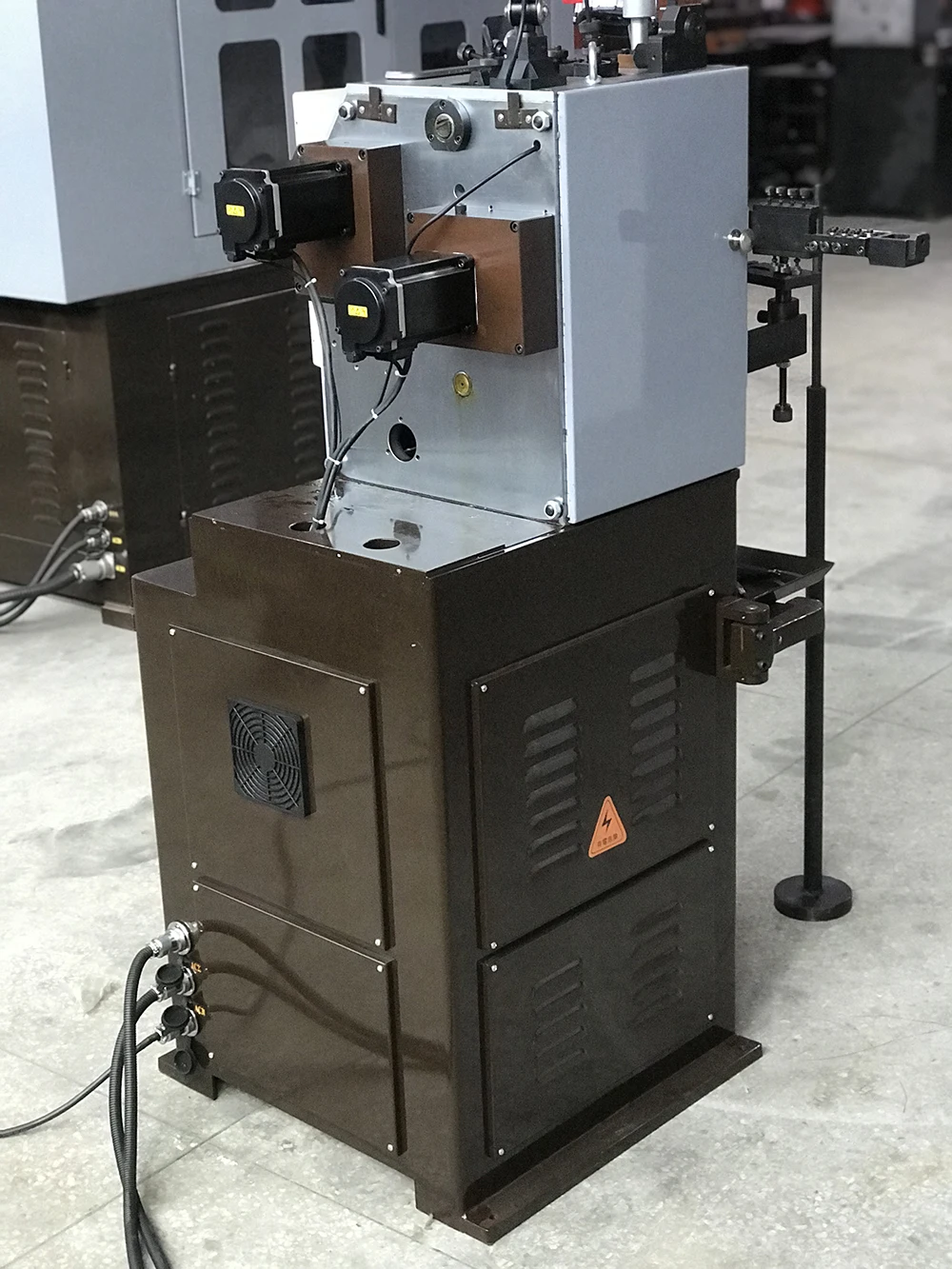

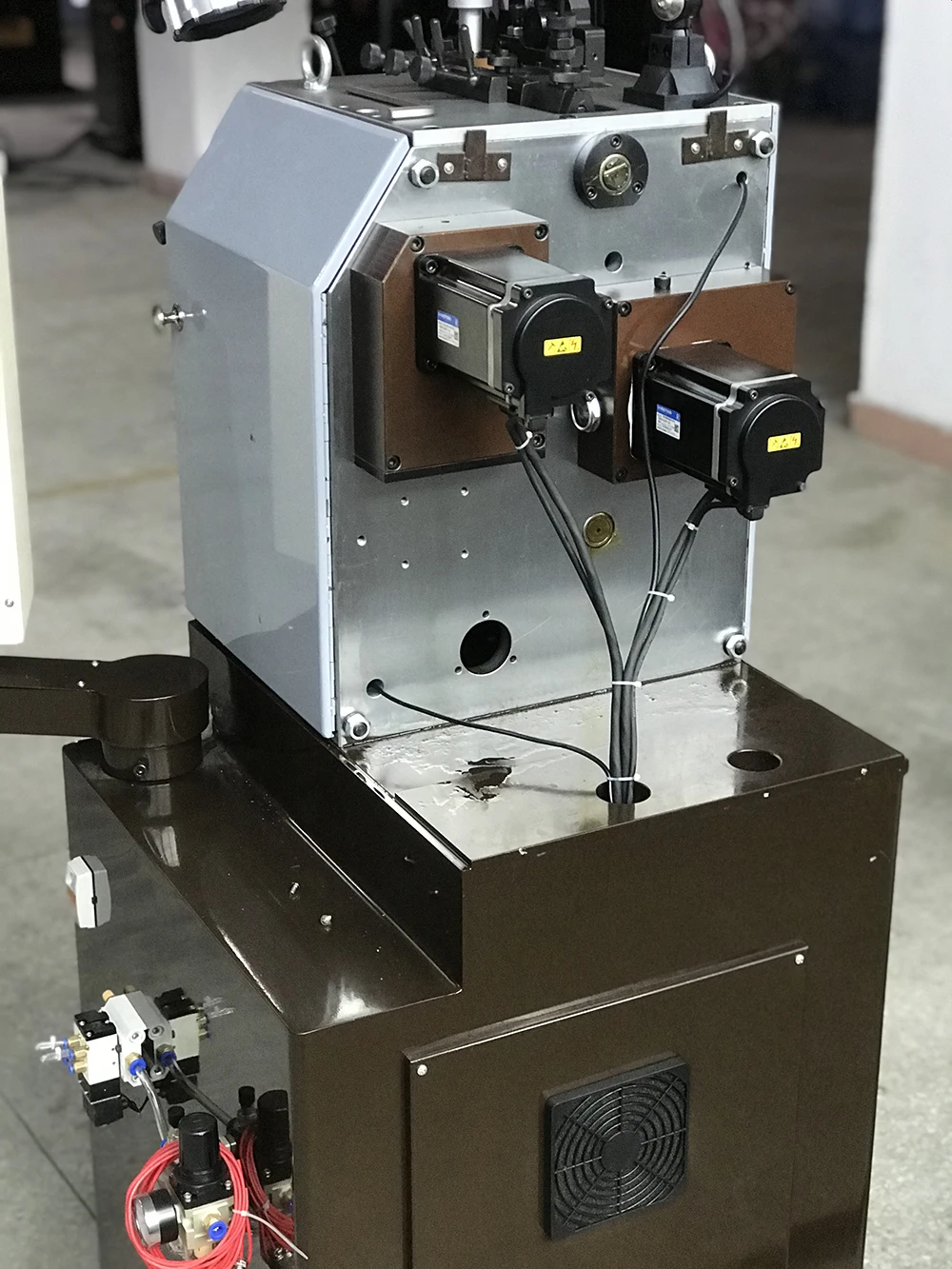

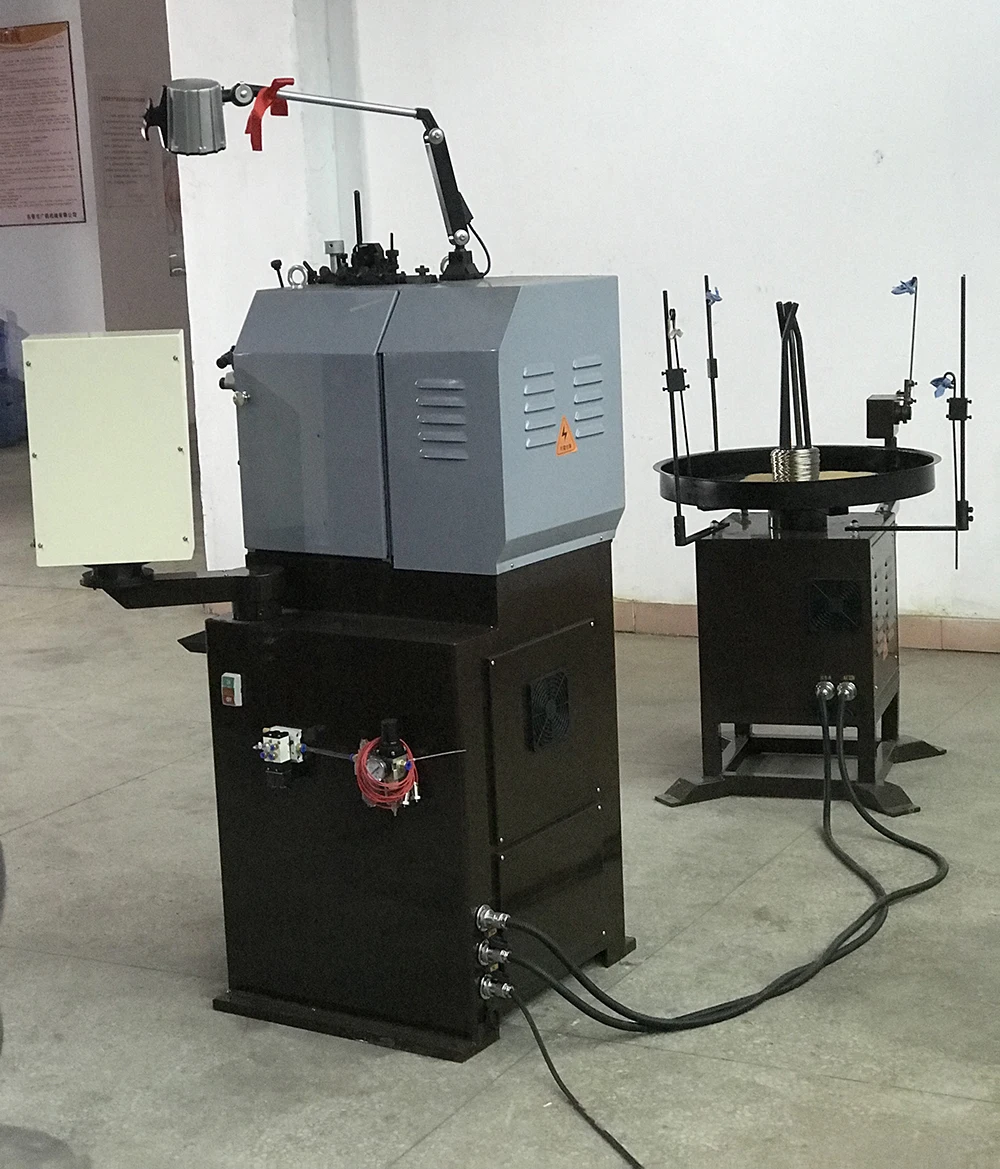

Machine pictures
Details
Technical Parameters
| Product Description | 0.08-1.20mm Micro High Precision Compression Spring Coiling Machine |
| Model | GJ-8 |
| Wire Size | Φ 0.08- 1.20 mm |
| Axis | 2 axis ( 2 Servo Motors ) |
| Producible Max Spring'S Outside Diameter | 20mm |
| Wire Feeding | 0.1mm / 1000.00mm |
| Wire Feed Speed | 0~125m/min |
| Cam Setting Value | ±0.1°~ ±359.9° |
| Cam Rotation Speed | 0~75 RPM |
Wire Feed Servo Motor Cam servo motor | 1kw 1kw |
| Power / Input | AC, 3phase, 380v±10%, 50HZ |
| Machine Size | 660*880*1400 (H) mm |
Machine Weight | 450kg |
Company Information

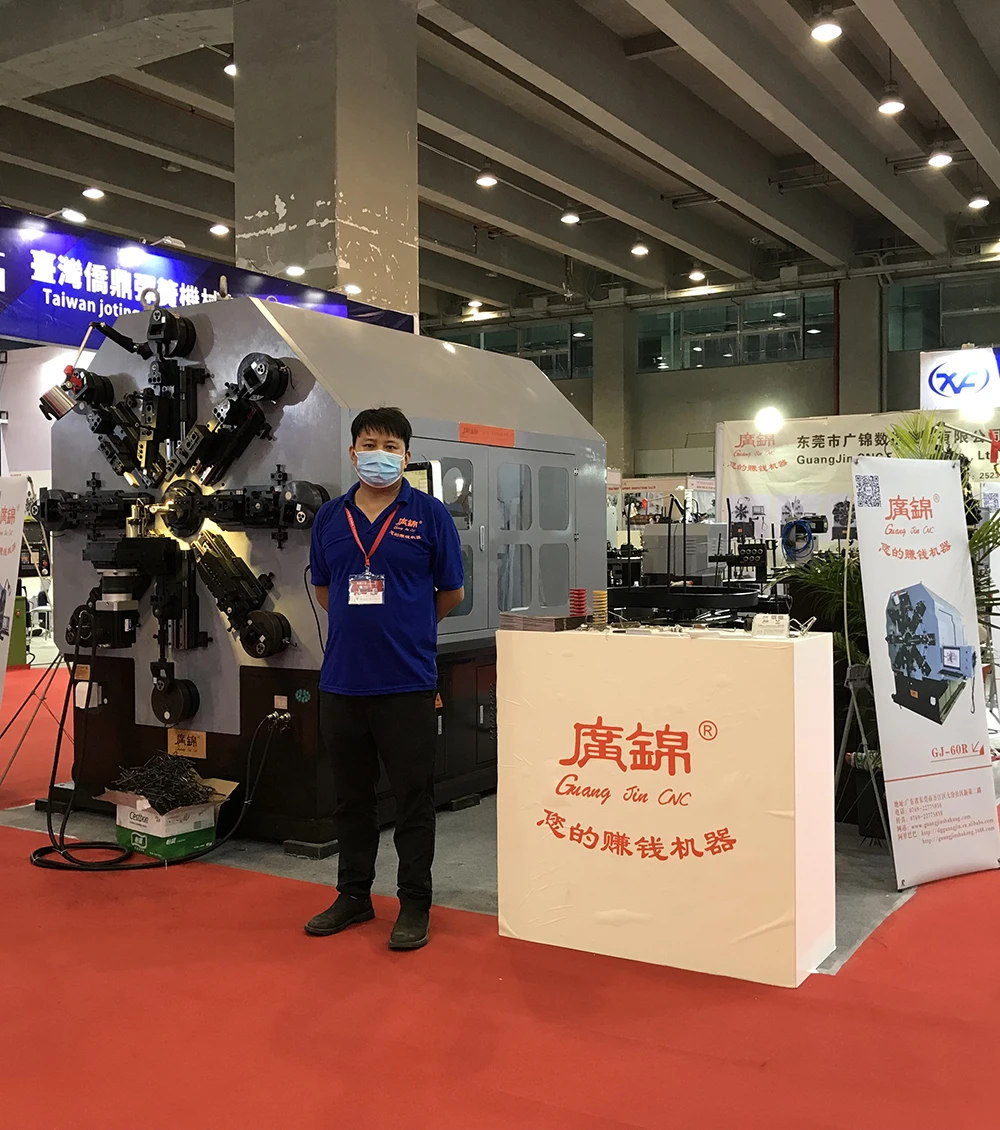

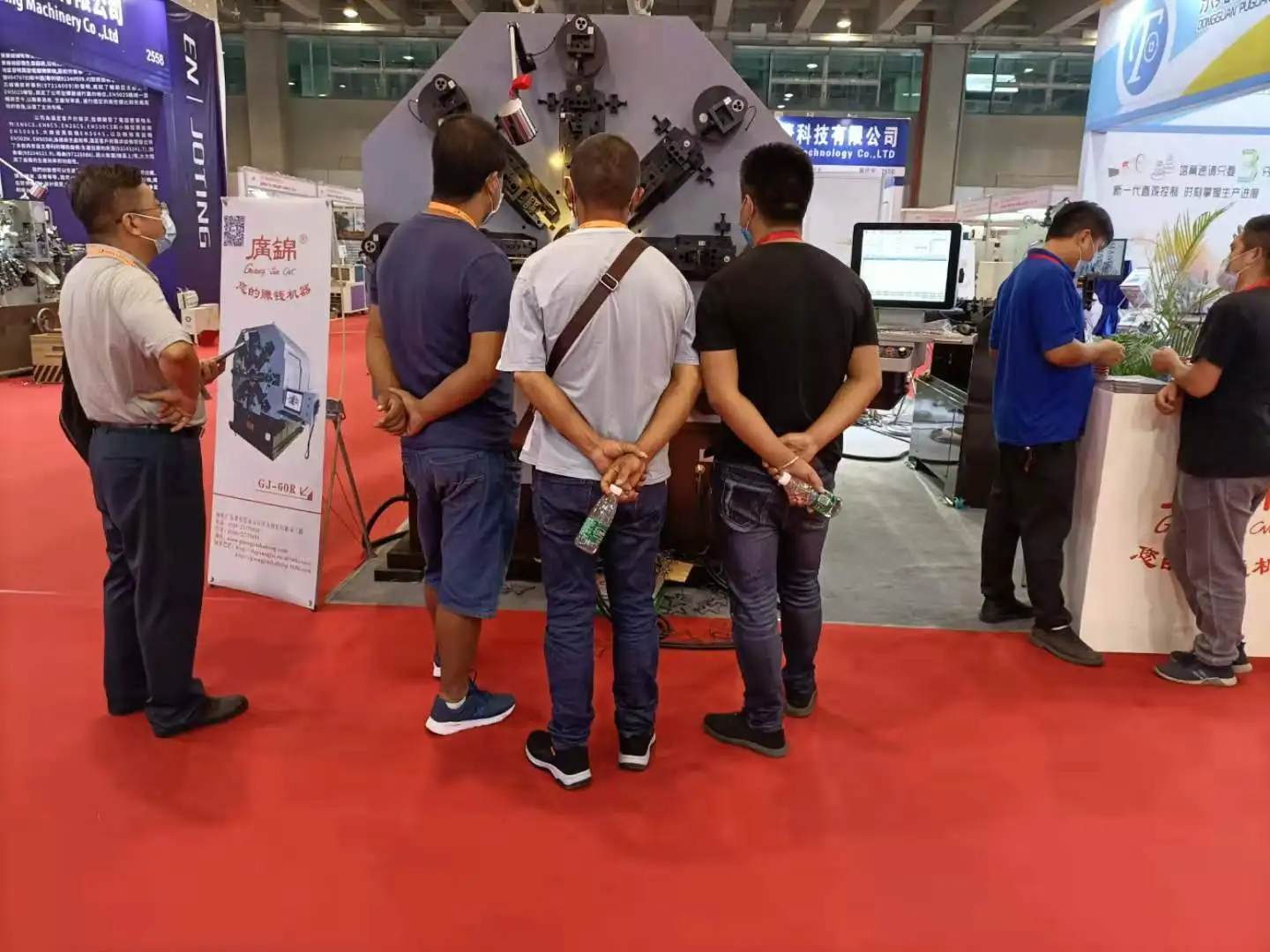

.Exhibition
Dongguan GuangJin CNC Equipment Co., Ltd.
( Factory: Spring Coiling and Wire Forming Machine )
Sales: Baker Liu / WA: +8613433629565
Add: Dongguan City, South China, 523052.
Our machines making:
1. Vary type springs, Conveyor Belt, Constant Force,
2. Customized wire forming products. C-Washer
3. Fishing snap, fish clasp, Flat spiral, Garter,
4. O-Ring, Oil seal, Wire Pin
5. Slant spring, Rake teeth.
6. Trigger sprayer spring.
