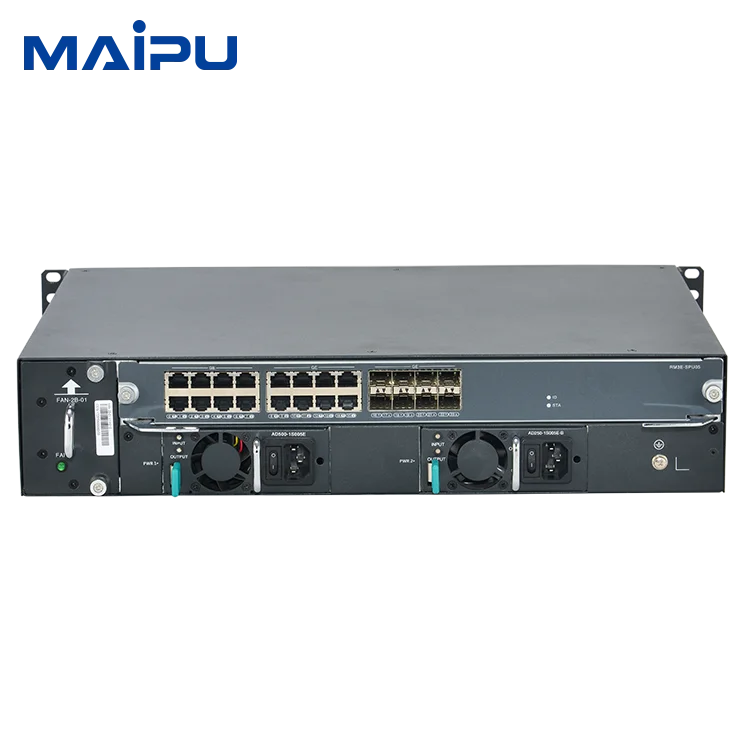

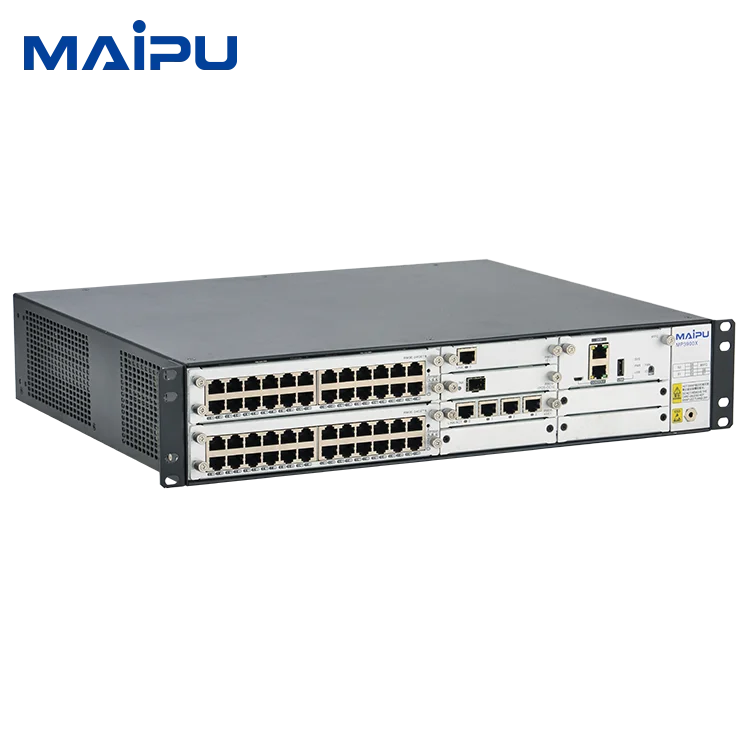

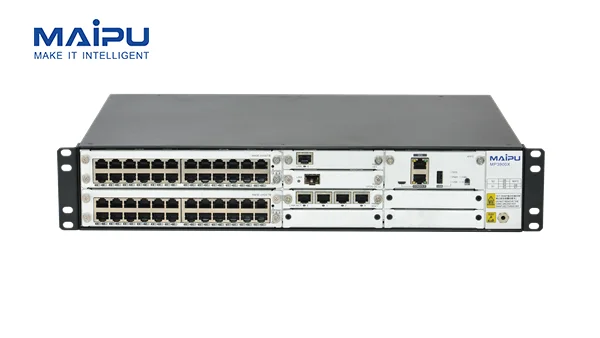

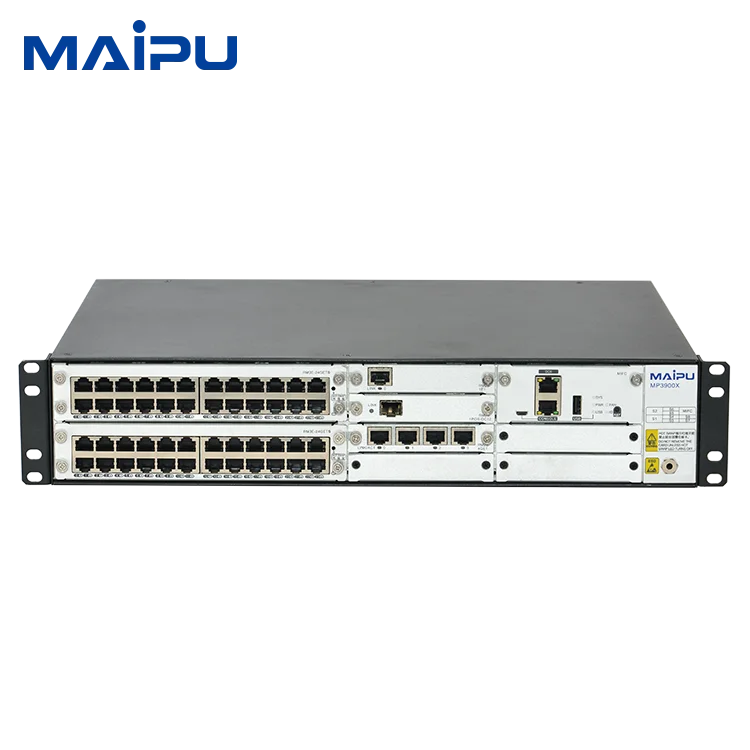

Maipu MP3900X 08 10G MPLS IPsec VPN Gigabit Enterprise Router
- Category: >>>
- Supplier: Chengdu Maipu International Infotech Co. Ltd.
Share on (1600138156704):
Product Overview
Description
Overview
At the cloud calculation and mobile interconnection times with the fast increasing of the service traffic, the development trend of the customer service diversifying and network flatting makes the aggregation capability requirement of the network for the router higher. High reliability, high performance, high density, high security, and green are the urgent requirements of the customer for the aggregation router. Based on the customer requirements, Maipu launch the new-generation centralized service aggregation router MP3900X series.
Product Specifications
Hardware specification | MP3900X-08 | |||
Processor | 1.2GHZ 8 Core | 1.2GHZ 8 Core | 1.5GHZ 16 Core | 1.6GHZ 24 Core |
USB2.0 Port | 1 | |||
Console Port (RJ45) | 1 | |||
Micro USB Port | 1 | |||
SPU Module | SPU03 | SPU05 | SPU10 | SPU40 |
Throughput Performance | 8Mpps | 8Mpps | 16Mpps | 40Mpps |
Memory | 2G | 2G | 4G | 8G |
Flash | 8G | |||
Fixed WAN interface | 2GE Combo+1GEF | 16GET+8GEF | 16GET+8GEF | 4GET+4GEF+4GE Combo+4*10GE |
SPU Slots | 1 | |||
Service Slots | 6*RM2B Slots + 2*RM3E Slots | |||
Power Supply | 2*Modular Power Slots | |||
Fan | 1*Modular Fan Slot | |||
Dimension W*D*H(mm) | 442*365*88.2 (2U) | |||
Input voltage | AC 100-240V Or DC -48V | |||
Temperature | Work temperature: 0 – 45℃ | |||
Storage temperature: -40 – 70℃ | ||||
Humidity | Work humidity: 5%-85% | |||
Storage humidity: 5%-90% | ||||
Cooling | Forced air cooling | |||
Power Consumption | 110W | 120W | 180W | 200W |
Weight | ≤20KG | |||
Software features | ||||
Link-layer protocol | DDR, PPP, Frame-Relay, Bridge, HDLC, SNA, PPPoE, LACP, Port isolation, VALN, Q-in-Q, MSTP, loopback detection, Error-Disable, MSTP, SPAN, LLDP | |||
TCP/IP Protocol | DHCP, DHCPv6, DDNS/DNS, NAT/NAT64 | |||
Routing protocol | Static Route/Static Routev6, RIP/RIPng, OSPFv2/OSPFv3, BGP/BGP4+, IS-IS/IS-ISv6, IRMP, PBR | |||
Security | Support ACL security filtering, PPP encryption, SSH, CPU protection, port security, AAA, IKE, PKI, 802.1X, URFP | |||
VPN | MPLS, LDP, L2VPN, L3VPN, MPLS QoS, MPLS OAM, 6PE, GRE/GREv6, IPIP, L2TP, L2TPv3, VRF | |||
QoS | FIFO, PQ, FQ, WFQ, CBWFQ, LLQ, RSVP, CAR, H-QoS, traffic shaping, Rate Limitation | |||
Multicast | IGMP, MLD, PIM-SM/SSM, PIM-DM/SDM PIMv6-SM/SSM, MSDP, MVPN, NG-MVPN | |||
Reliability | Backup interface, VRRP/VRRPv3, VBRP, Track, BFD/BFDv6 | |||
Management & Monitoring | Keepalive gateway, NTP, Mirroring, RMON, CWMP, CLI, SSH, WEB, SNMP V1/V2/V3, Telnet, PING, Trace Route, Login, FTP, TFTP, TR069, IPFIX traffic monitoring, IP-SLA | |||
Order Information
Host model | Description |
MP3900X-08 Host | |
MP3900X-08-MF | MP3900X-08-MF Chassis, 2U height, 1*RJ45 Console, 1*USB Port, 1*Service Engine Slot, 6*RM2B Slots, 2*RM3E Slots, 2 Power Slots, 1 Fan Slot. |
RM3E-SPU03 | RM3E-SPU03 Service Engine, integrate 2GE Combo+1GEF WAN Ports |
RM3E-SPU05 | RM3E-SPU05 Service Engine, integrate 16GET+16GEF WAN Ports |
RM3E-SPU10 | RM3E-SPU10 Service Engine, integrate 16GET+8GEF+2*10GE WAN Ports |
RM3E-SPU40 | RM3E-SPU40 Service Engine, integrate 4GET+4GEF+4GE Combo+4*10GE WAN Ports |
AD250-1S005E-B | AC Power Module, 250W, 100-240V |
DD250M-5S0N | DC Power Module, 500W, 40-57V |
FAN-2B-01 | Fan module for MP3900X-08 |
Multi-functional module | |
RM2B Module | Description |
RM2B-1E1 | Single-port un-channelized E1 module |
RM2B-4E1 | Four-port un-channelized E1 module |
RM2B-1CE1 | Single-port channelized E1 module |
RM2B-4CE1 | Four-port channelized E1 module |
RM2B-1SA | Single-port high-speed V35 serial port module |
RM2B-2SA | Two-port high-speed V35 serial port module |
RM2B-1GE | Single-port GigaEthernet module, Combo port |
RM2B-4GET | Four-port GigaEthernet electric interface module |
RM2B-4GEF | Four-port GigaEthernet fiber interface module |
RM2B-4G-LTE | Single-port 4G card, LTE-FDD (band:1/3/5/7/8),TD-LTE (band38/39/40/41), WCDMA, TDCDMA,EDGE/GPRS/GSM |
RM2B-4G-LTE-A | Single-port 4G card, LTE-FDD (band:1/3/5/7/8),TD-LTE (band38/39/40/41), WCDMA, TDCDMA,EDGE/GPRS/GSM |
RM2B-1POS-OC3 | Single-port 155M un-channelized OC3 module |
RM2B-1CPOS-OC3 | Single-port 155M channelized OC3 module |
RM2B-1POS-OC12 | Single-port 622M un-channelized OC12 module |
RM3E Module | Description |
RM2BQ-24GET-S | V1 Version:24-port GigaEthernet electrical Switching module |
