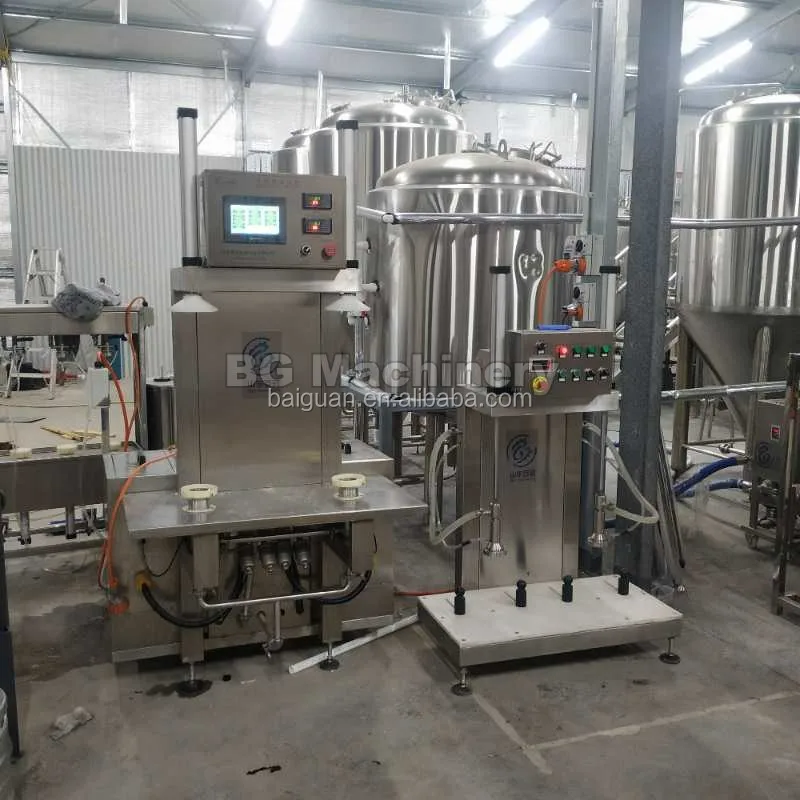

This machine is designed for the washing and sterilizing work of all kinds of beer refreshing containers(including stainless steel keg and plastic beer keg).And this machine can do the works washing,sterlizing and CO2 pressure preparing automatically.
The control unit of this machine uses the PLC of Siemens to control the whole process.All of the controls parameters(time value) can be adjusted when it is running.Clients can adjust time parameter according to diffrenet needs.Not need one part of the working routine,please adjust relevant time parameter.This machine is easy to operate.It can wash different refreshing kegs and draught beer kegs by switch selector and changing cleaning head.This machine is electricity saving and water saving type,it can save 50% water.
Detail
Model: TQX-02
Washing heads: 2
Size of platform: 510mm*1170mm
Height of the platform: 660mm
Size of the machine: 1200mm*1550mm*2070mm
The maximum stroke of the stopcock: 450kg
Net weight: 90-120kegs(plastic keg)
Capacity: 50-100kegs(stainless steel kegs)
Air consumption: 8-22.5m3/h
Water consumption: 1-3m3/h
Power: 950W
Washing type: inversion
Materials: SUS304
Washing scope:2-50L Plastic and stainless steel beer kegs
