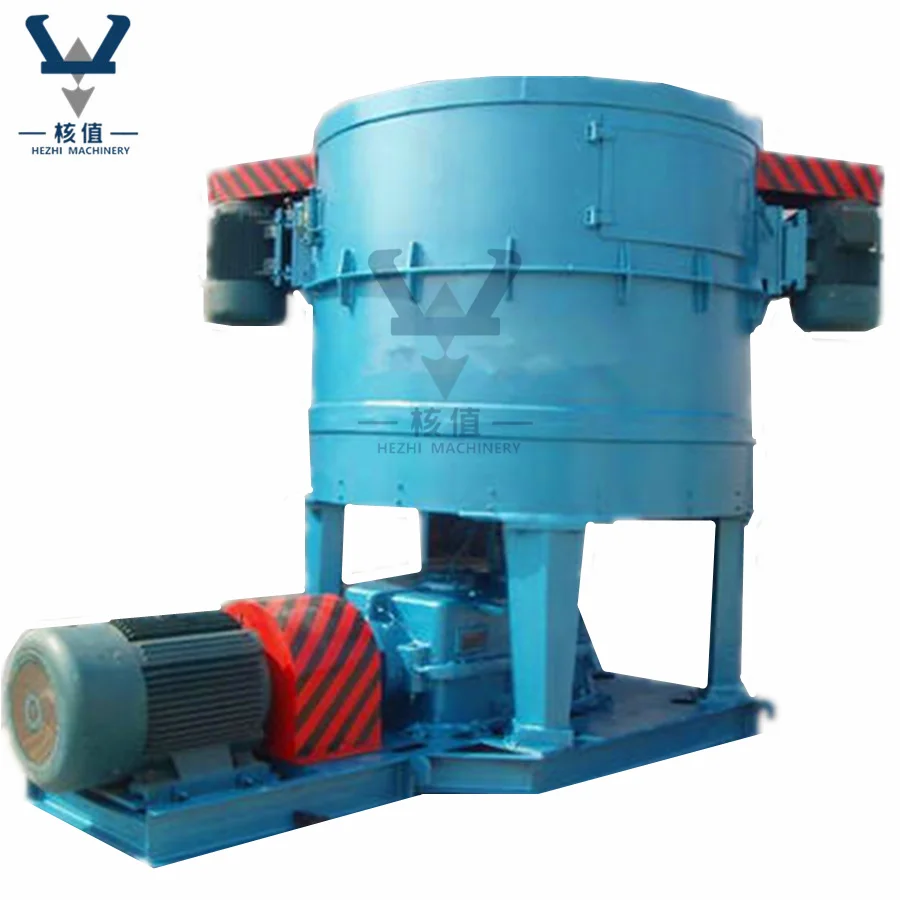

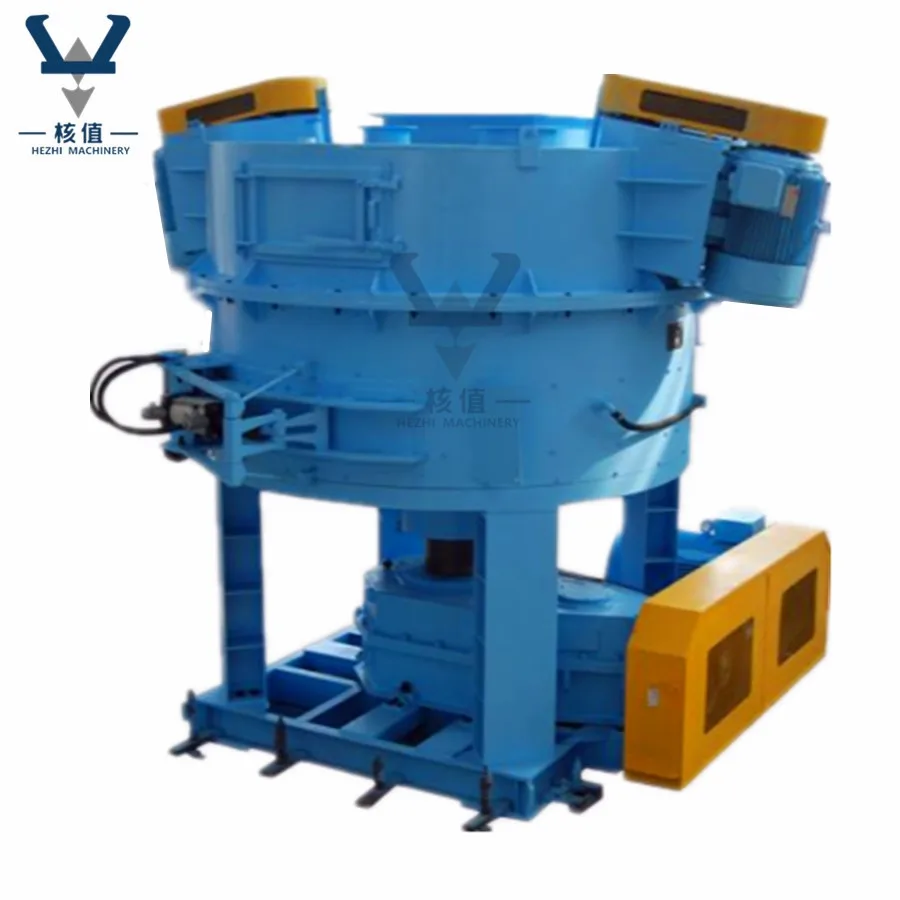

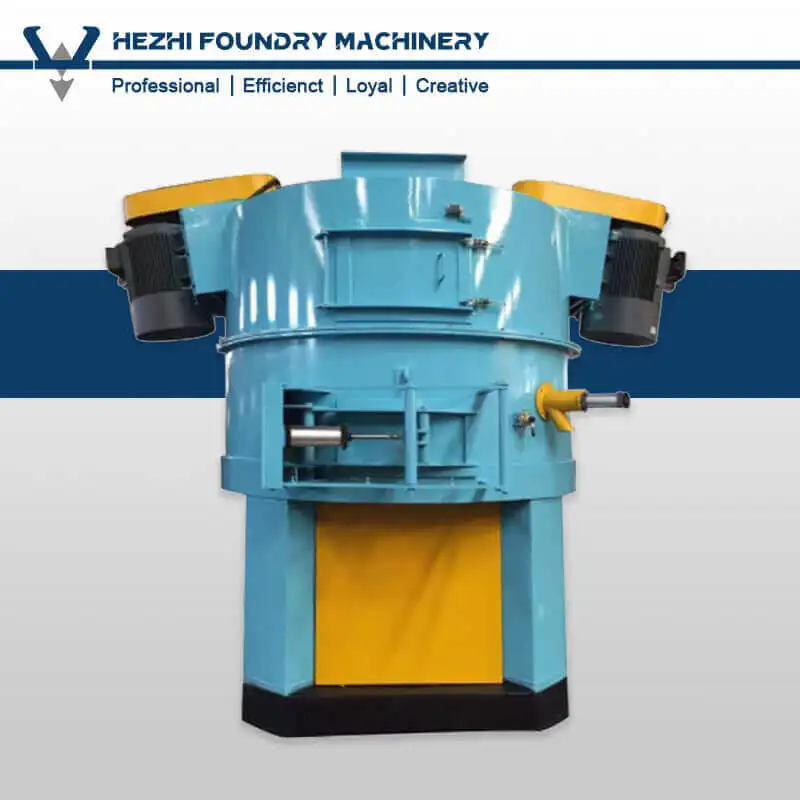

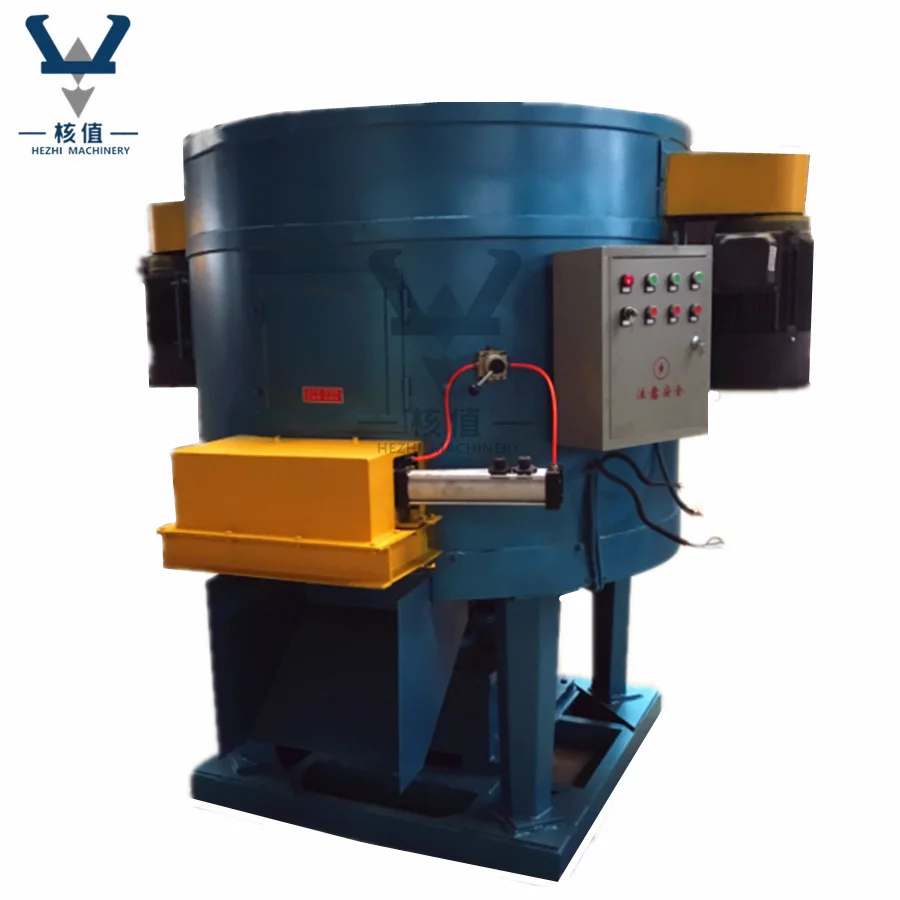

S14 Rotor Type High Speed Intense Green Clay Sand Mixer
- Category: >>>
- Supplier: Qingdao Hezhi Machinery Co. Ltd.
Share on (1600138209758):
Product Overview
Description
The sand mixer is a machine which can mix the sand, binder, additive, water, etc. for casting evenly and make it into molding sand or core sand with certain performance.can make the components of molding sand mix evenly , make the binder effectively cover the sand surface .
Rotor type Green sand mixer – Model S14 Series is used to mix clay sand or green sand as common foundry equipment. Used sands or new sands are mixed with clay, coal powder. Water is also added while mixing from special water supply device.
Rotor type Green sand mixer – Model S14 Series is used to mix clay sand or green sand as common foundry equipment. Used sands or new sands are mixed with clay, coal powder. Water is also added while mixing from special water supply device.
Foundry Green Sand Mixer Machine is mainly used for large and medium-sized foundry sand mixed system, mold can be mixed dry sand, since the hard sand, sand and core sand surface can also be used for glass, ceramics , refractories and other industries a variety of mixed powder granular materials.
Item/Model | S1420-55 | S1420-75 | S1422-75 | S1420-90 | S1425-110 | S1429-200 |
Sand mixing capacity | 20-28ton/h | 25-32ton/h | 30-35ton/h | 35-40ton/h | 40-50ton/h | 60-80ton/h |
Dis diameter | φ2000mm | φ2000mm | φ2240mm | φ2240mm | φ2500mm | φ2850mm |
Rotor rotation | 1270RPM | 1270RMP | 975RPM | 975RPM | 950RPM | 850RPM |
Rotor motor power | 2x22kw | 2x22kw | 2x30kw | 2x37kw | 2x45kw | 2x55kw |
Main motor rotation | 31.72RPM | 31.72RMP | 27.32RPM | 27.32RPM | 27.3RPM | 25.4RPM |
Main motor power | 55kw | 75kw | 75kw | 90kw | 110kw | 200kw |
We manufacture and design full scope of green sand casting equipment. including Green Sand Mixer, Sand Feeder and Conveyor, Sand Moulding machine and Sand Reclamation Machine.
We also design custom production line of green sand casting prodcution.
We also design custom production line of green sand casting prodcution.

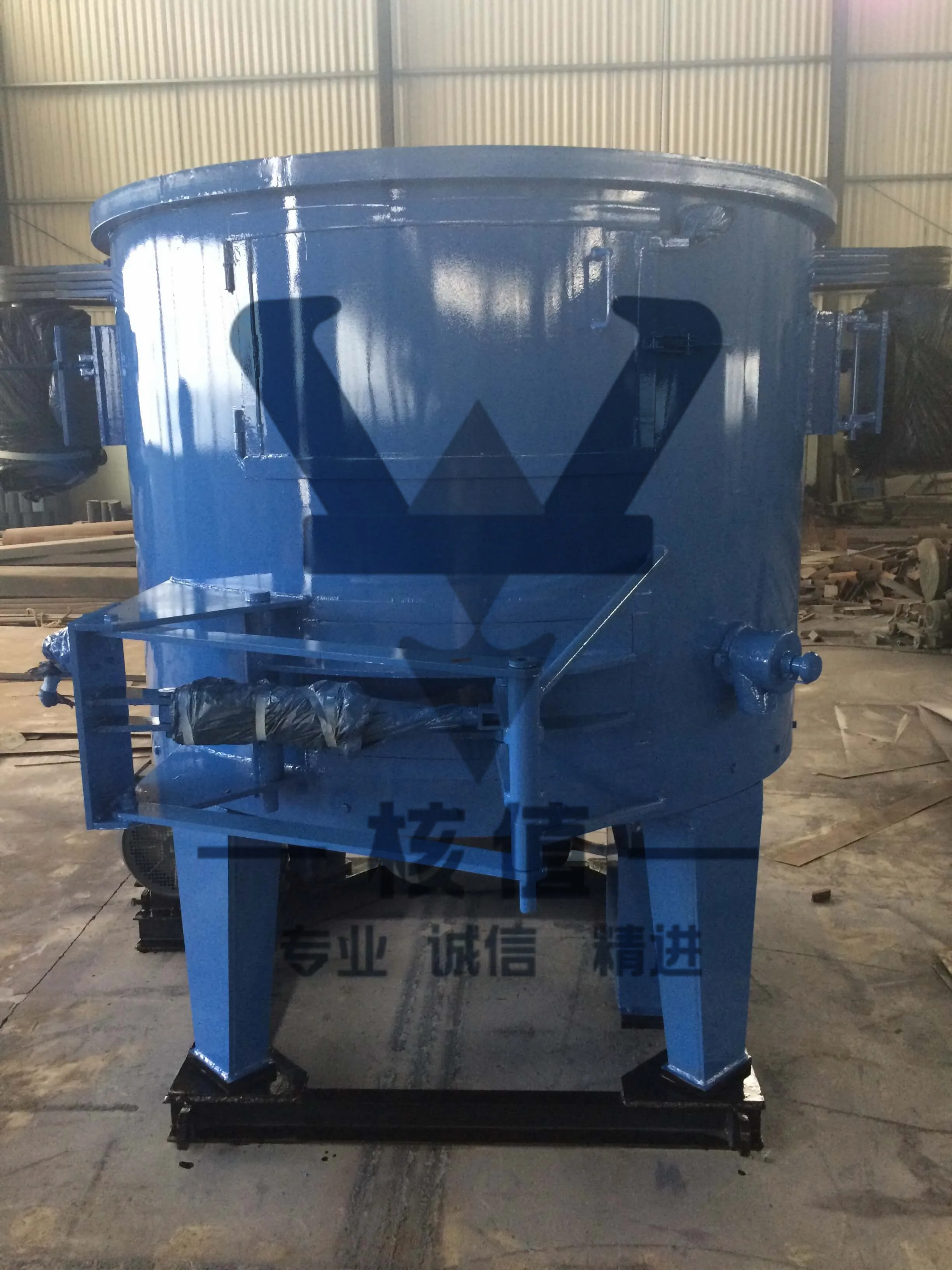

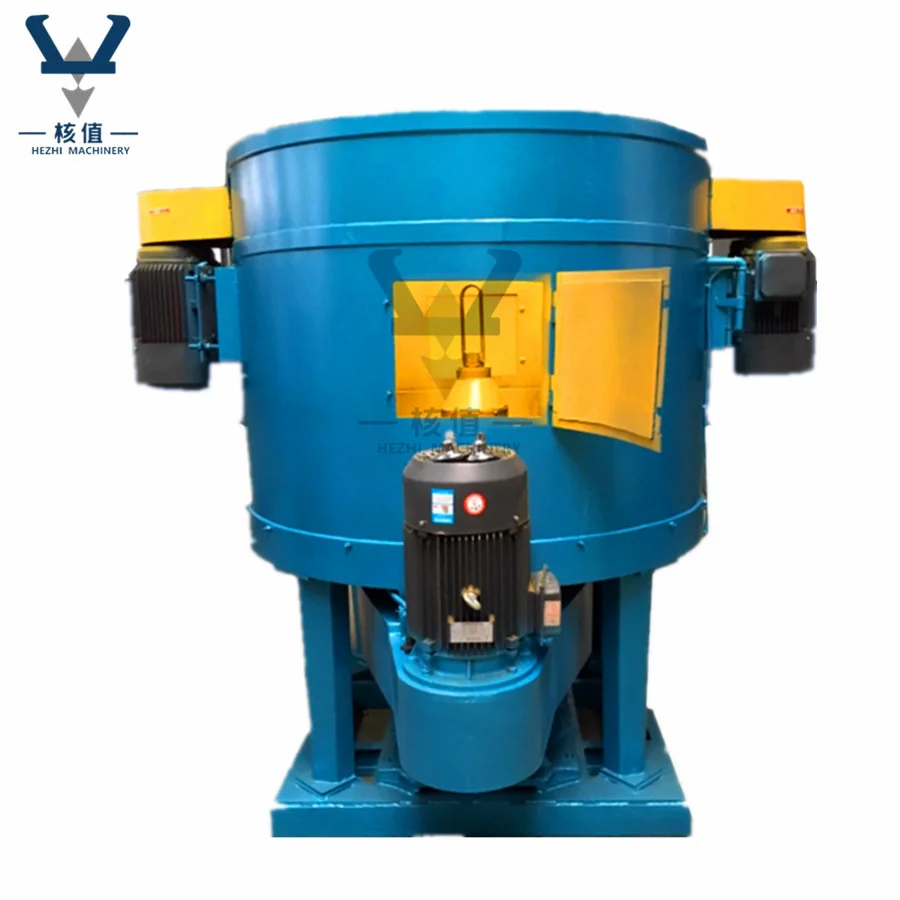

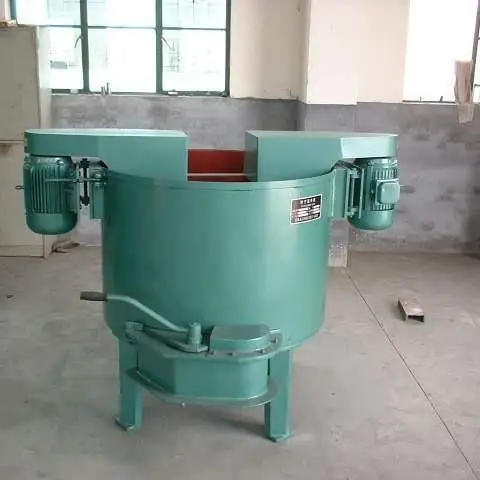

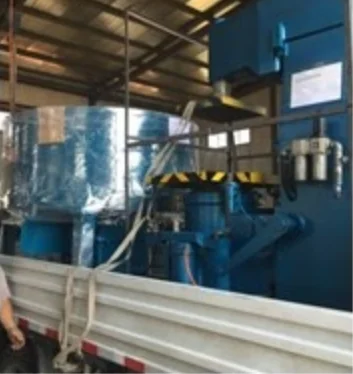

Finished rotor green sand mixer in Hezhi Workshop:
this mixer is a batch mixing machine,has two rotors, rotating by motor.

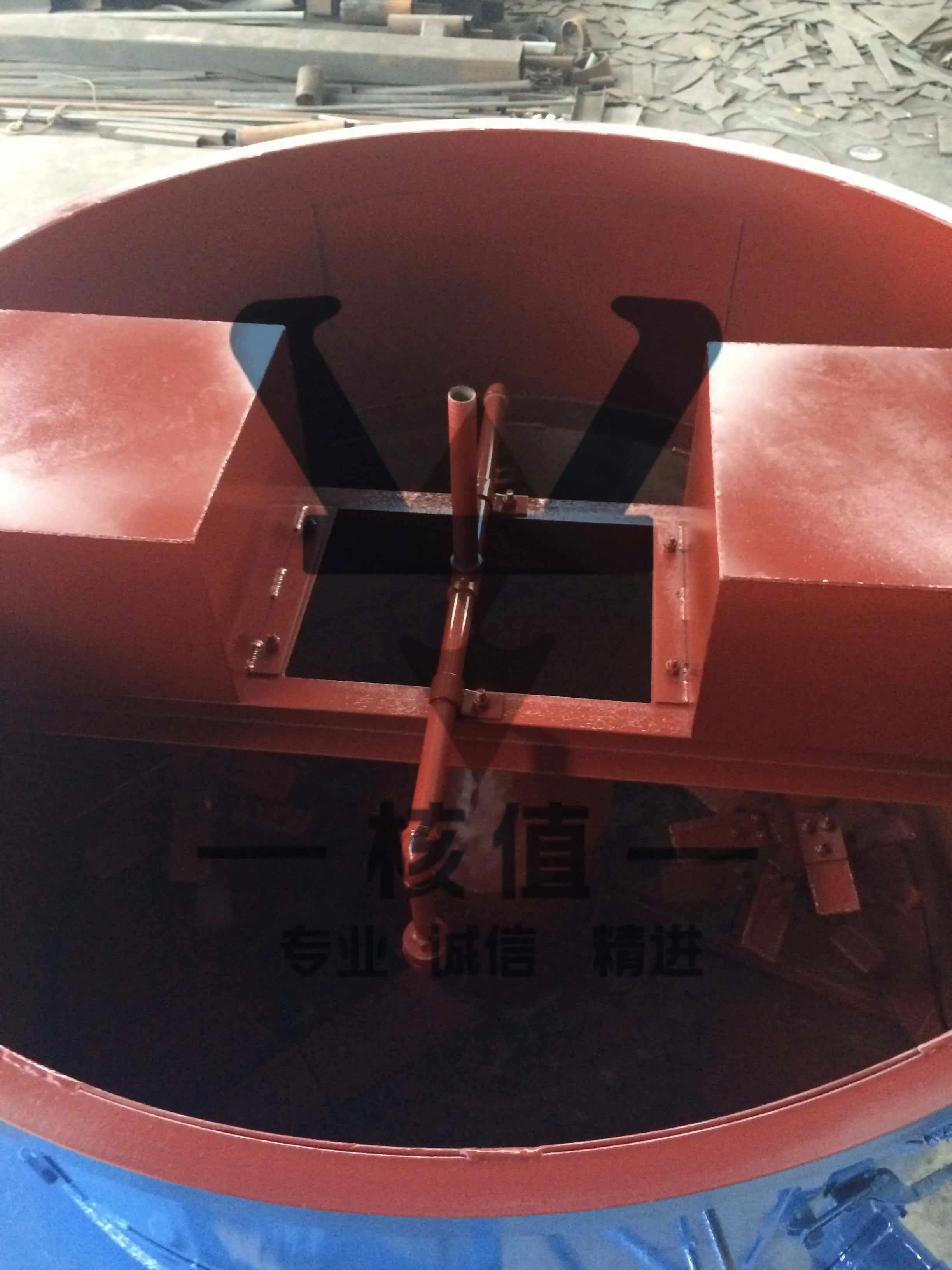

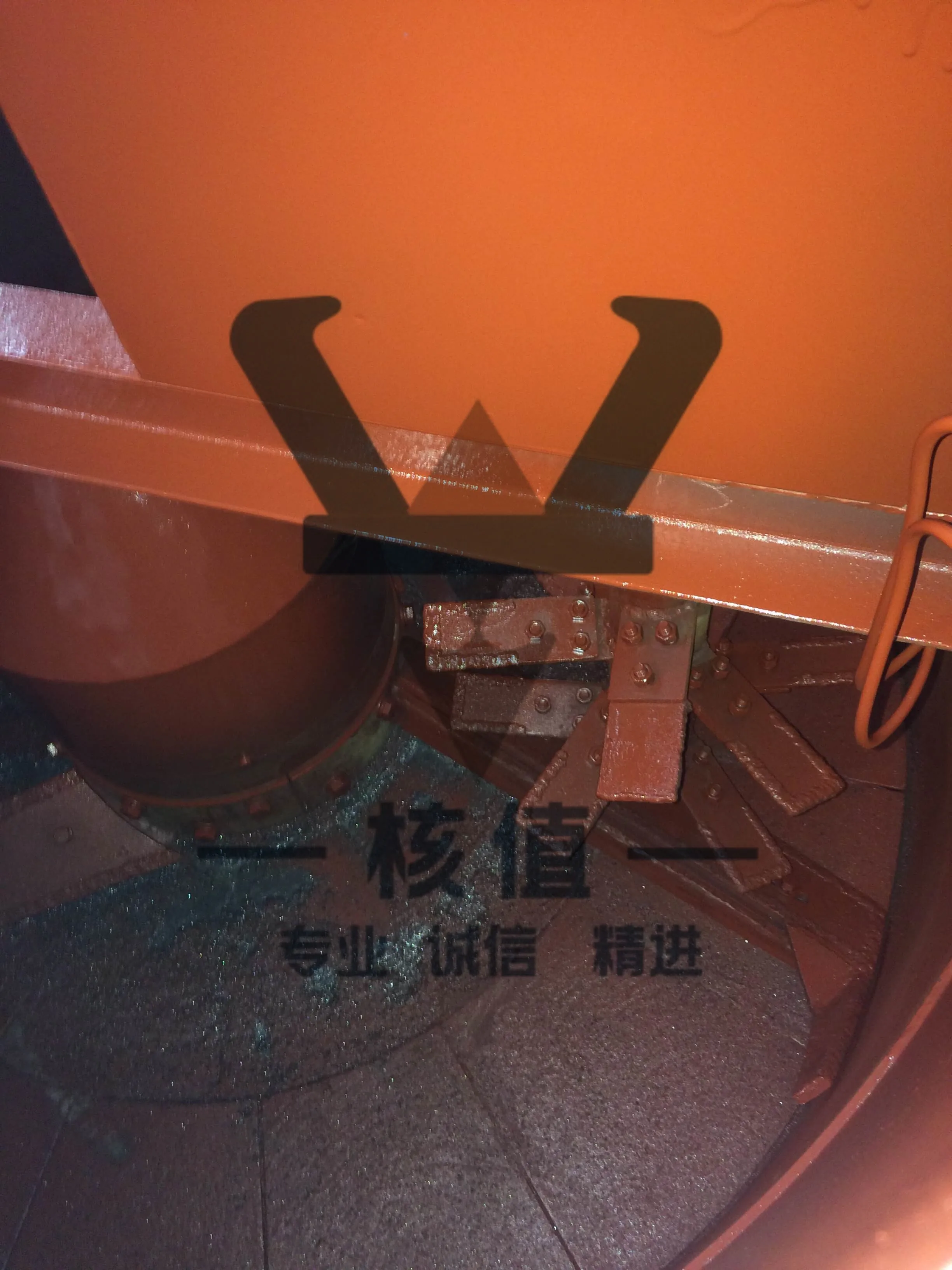

Mixing Rotor:
The blades of rotor is alloy steel, wear-resisting well. At the Mixer bottom plate has three scraper blades.

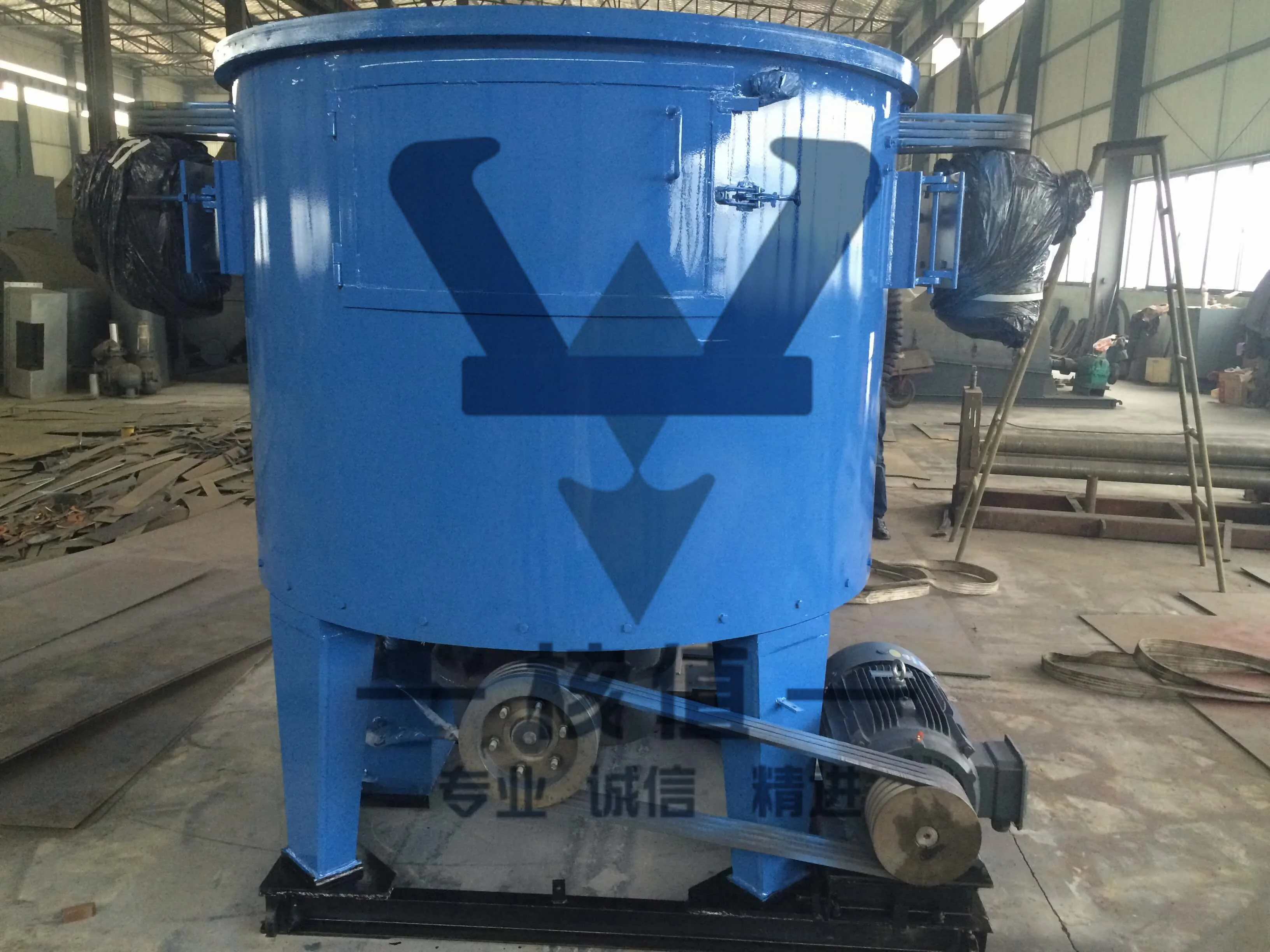

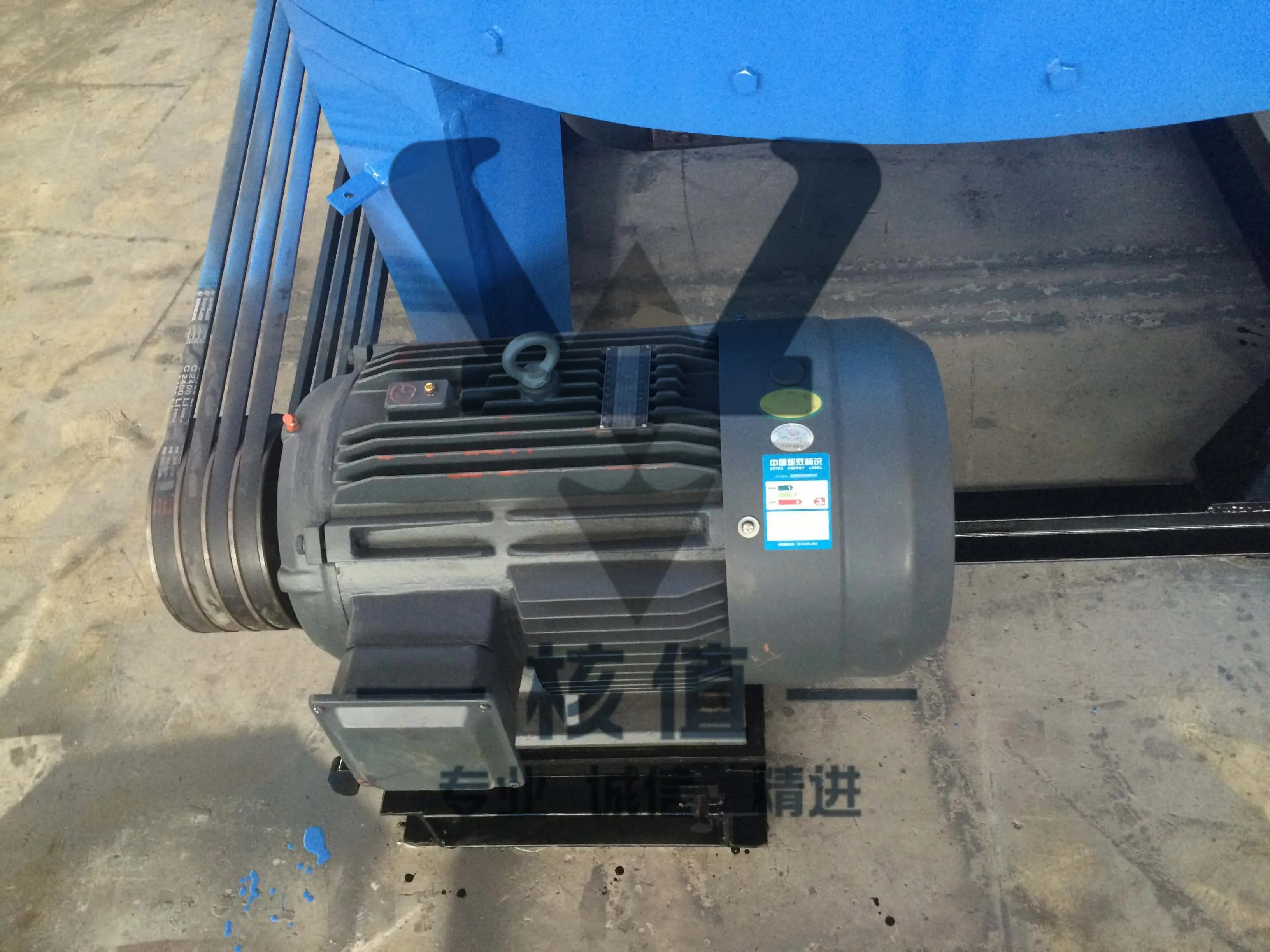

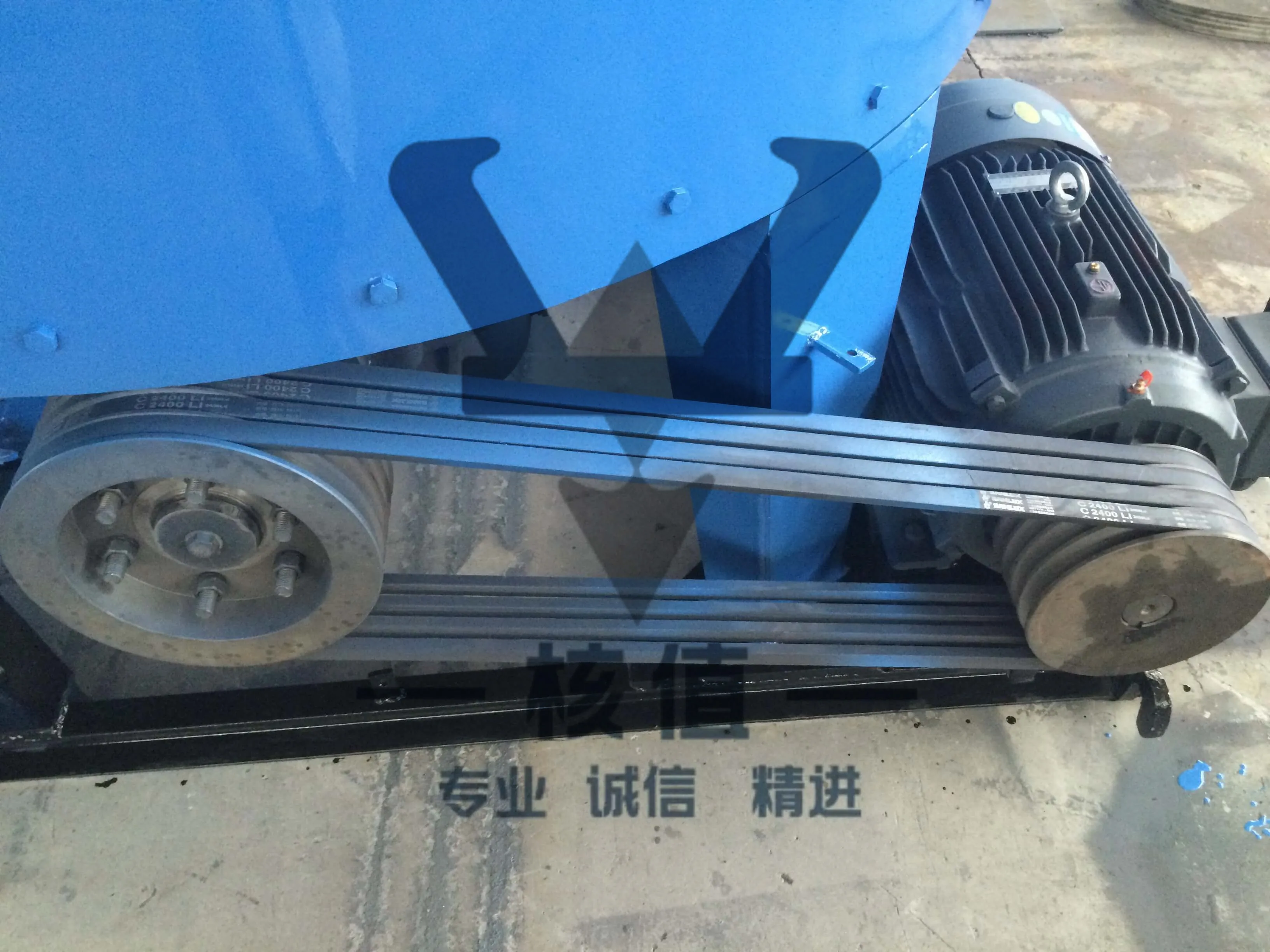

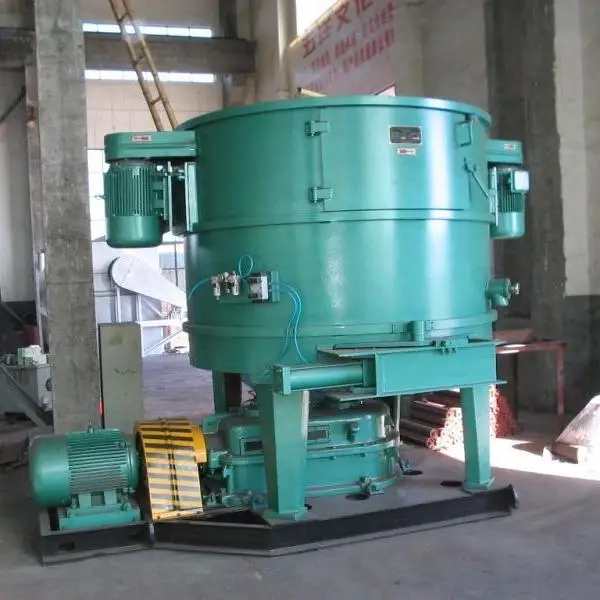

Motor and Belt :
Roller type Green sand mixer for your choice:

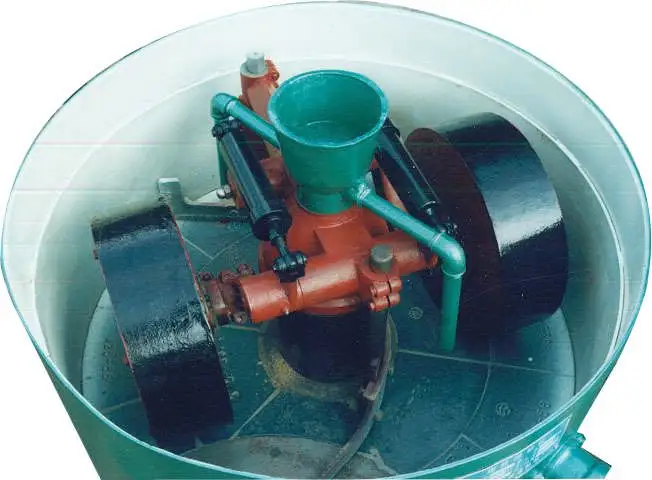

S11 type Double roller green sand mixer
S11 green sand mixer muller is economic sand mixing machine for green sand. Two wheels crush and mix foundry sands, clay, coal
power andwater.
S11 green sand mixing machine is suitable for manual and semi-automatic clay sand casting.
power andwater.
S11 green sand mixing machine is suitable for manual and semi-automatic clay sand casting.

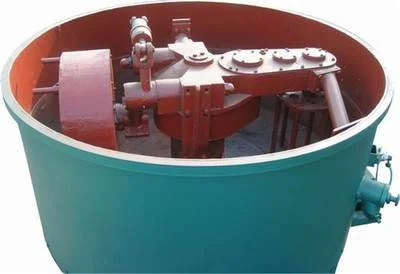

S13 type Single roller green sand mixer
The green sand mixing machine has scrapers and two high-speed rotors with a blade were installed in the machine's chassis. chassis rotates as clockwise, rotor and scraper rotate as counterclockwise. Rotor speed is higher than the speed of the chassis. Because chassis and rotor has an opposite movement, and the speed is different, so the sand of the chassis obtains different speed difference.
Rotor type green sand mixer is updated mixer equipment than Roller type mixer. It is more efficient and bigger volume. It is good option to adapt to automatic clay sand casting line.
Quality Control System In Hezhi Machinery Group:
1. The equipment raw materials (steel) and all accessories are strictly selected. Our suppliers are long-term cooperative and reputable companies to ensure that the materials meet domestic and international standards.
2.Professional engineers with15 years rich experience provide professional & accurate detailed drawings and recommendations that meet customer all requirements, proficient in various technical parameters of the equipment,also will provide professional help &solution for customers use and maintenance.
3. The workshop employees have many years of work experience in production and manufacturing, and the company also will regularly train to ensure that production strictly follows all requirements of the process, drawings and contracts.
4. Workshop equipment is regularly maintained and optimized, and the company is still planning new workshops and introducing moreadvanced new production equipment
5. The quality inspection department will conduct strict quality inspection on all raw materials, accessories and all products produced to ensure the good quality of each equipment. Eliminate worries for customers
6. The client manager have many years of export experience, can better serve customers from various countries, and will also participate in the inspection of equipment and work with the quality inspection department to ensure product quality.manager will updating the production process to clients by sending pictures and videos every week.
7. Perfect after-sales service to solve customers' worries.
1. The equipment raw materials (steel) and all accessories are strictly selected. Our suppliers are long-term cooperative and reputable companies to ensure that the materials meet domestic and international standards.
2.Professional engineers with15 years rich experience provide professional & accurate detailed drawings and recommendations that meet customer all requirements, proficient in various technical parameters of the equipment,also will provide professional help &solution for customers use and maintenance.
3. The workshop employees have many years of work experience in production and manufacturing, and the company also will regularly train to ensure that production strictly follows all requirements of the process, drawings and contracts.
4. Workshop equipment is regularly maintained and optimized, and the company is still planning new workshops and introducing moreadvanced new production equipment
5. The quality inspection department will conduct strict quality inspection on all raw materials, accessories and all products produced to ensure the good quality of each equipment. Eliminate worries for customers
6. The client manager have many years of export experience, can better serve customers from various countries, and will also participate in the inspection of equipment and work with the quality inspection department to ensure product quality.manager will updating the production process to clients by sending pictures and videos every week.
7. Perfect after-sales service to solve customers' worries.
Qingdao Hezhi is a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
We owned 3600m2 work shop area for production with 2x10 cranes.
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
FAQ ---- About Rotor type Green Sand Mixer:
Q: How long is the best sand mixing time?
A: 1-2 Min is the best time.
Q: How much to feed each time:
A: Changed according to the requirement of property of molding sand if the strength of molding sand is higher, the batch capacity
should be reduced.
Q: What is the order of feeding?
A: First add old sand and new sand, then add water, mix for a few seconds, and then add clay,coal powder and other auxiliary
materials.
Q: How many types of mixer for green sand?
A: Mainly used three types: rotor type sand mixer, double wheels type sand mixer and single wheel type sand mixer.
FAQ ---- About Hezhi Machinery:
Q: How long is the best sand mixing time?
A: 1-2 Min is the best time.
Q: How much to feed each time:
A: Changed according to the requirement of property of molding sand if the strength of molding sand is higher, the batch capacity
should be reduced.
Q: What is the order of feeding?
A: First add old sand and new sand, then add water, mix for a few seconds, and then add clay,coal powder and other auxiliary
materials.
Q: How many types of mixer for green sand?
A: Mainly used three types: rotor type sand mixer, double wheels type sand mixer and single wheel type sand mixer.
FAQ ---- About Hezhi Machinery:
Q: How many days do you need to produce this machine?
A: It depends on the size of the machine. Usually 20- 30days for shot blasting machine and sand casting machine,.45days for production line equipments.
Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.
