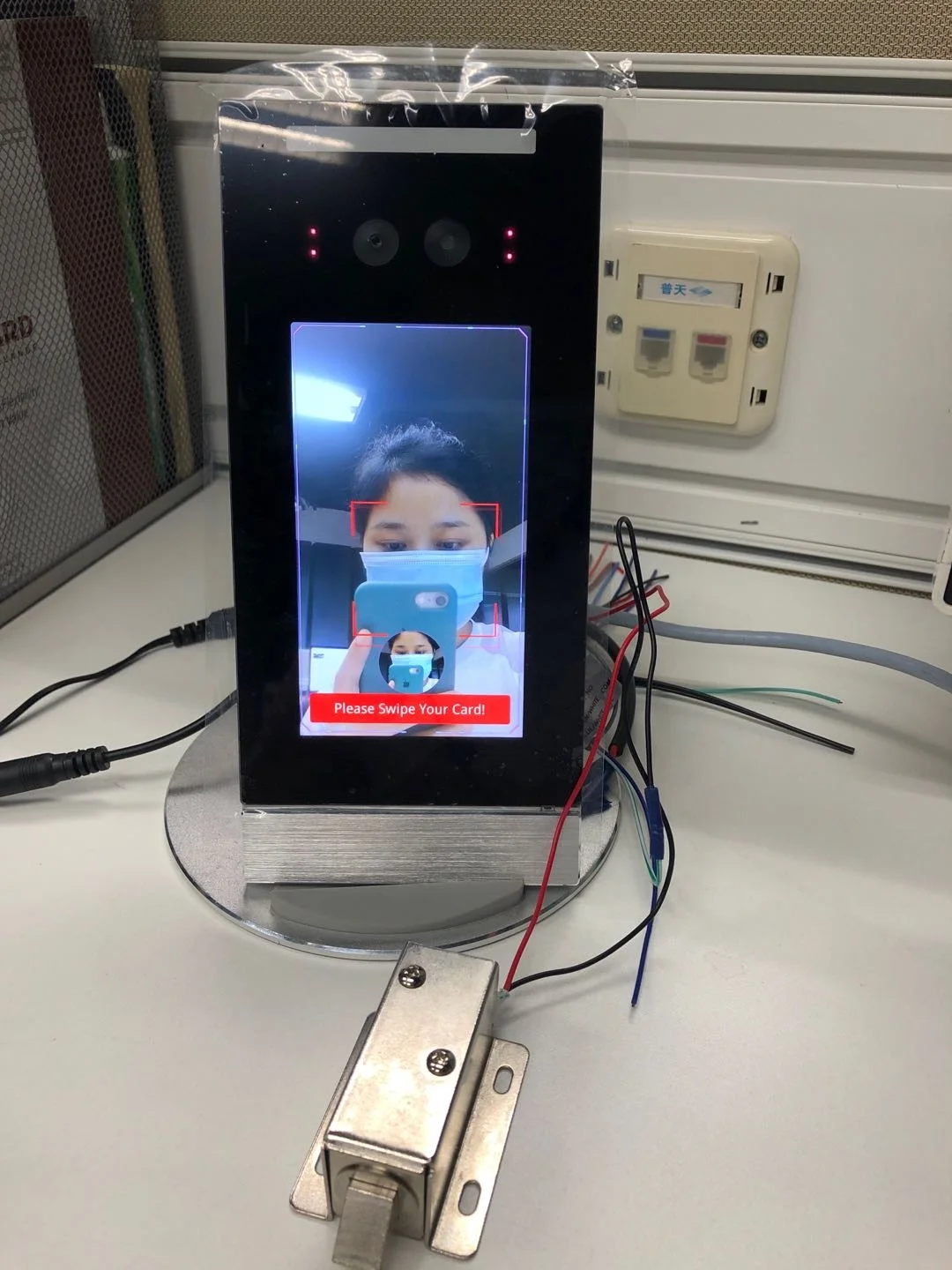

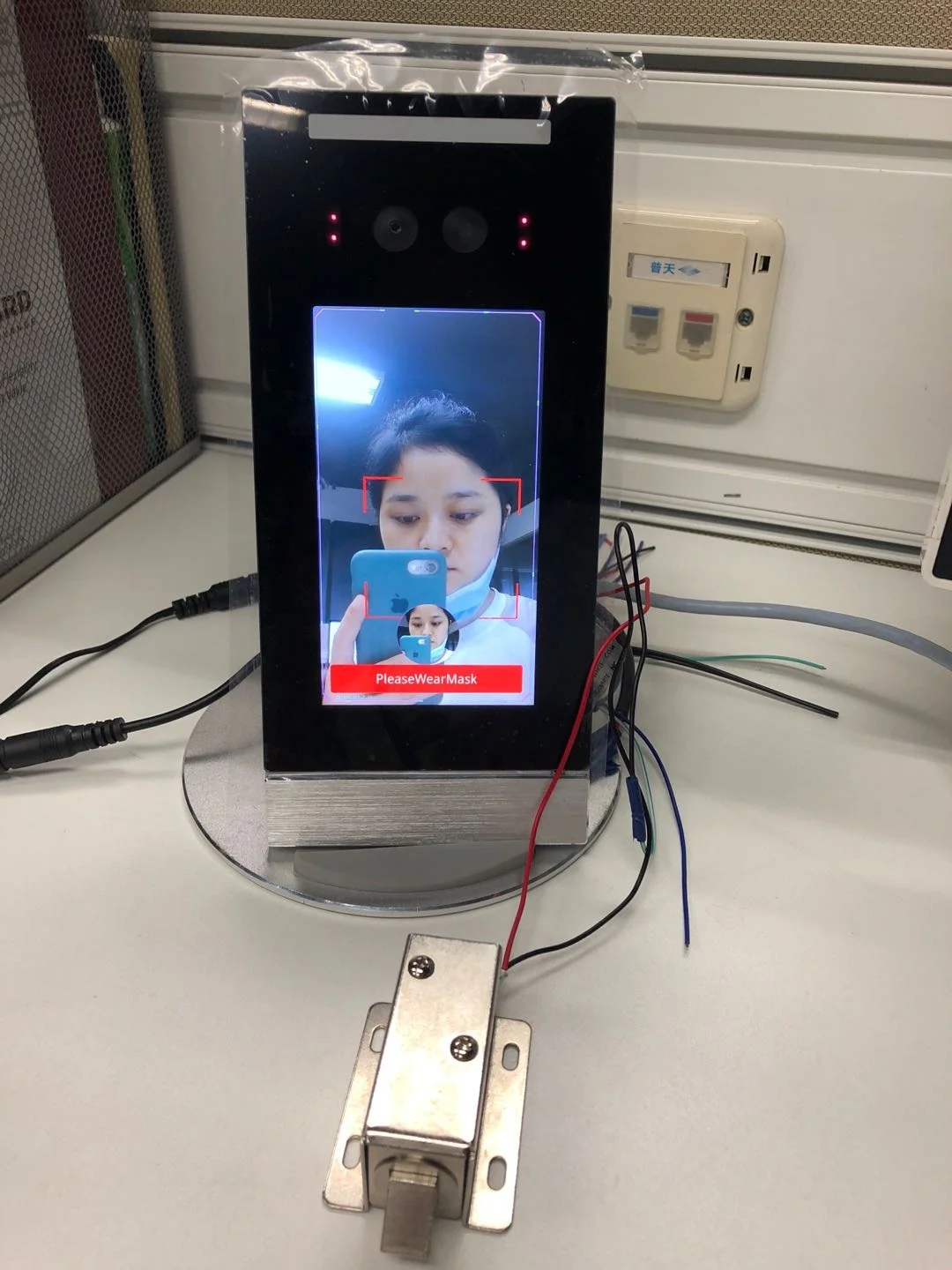

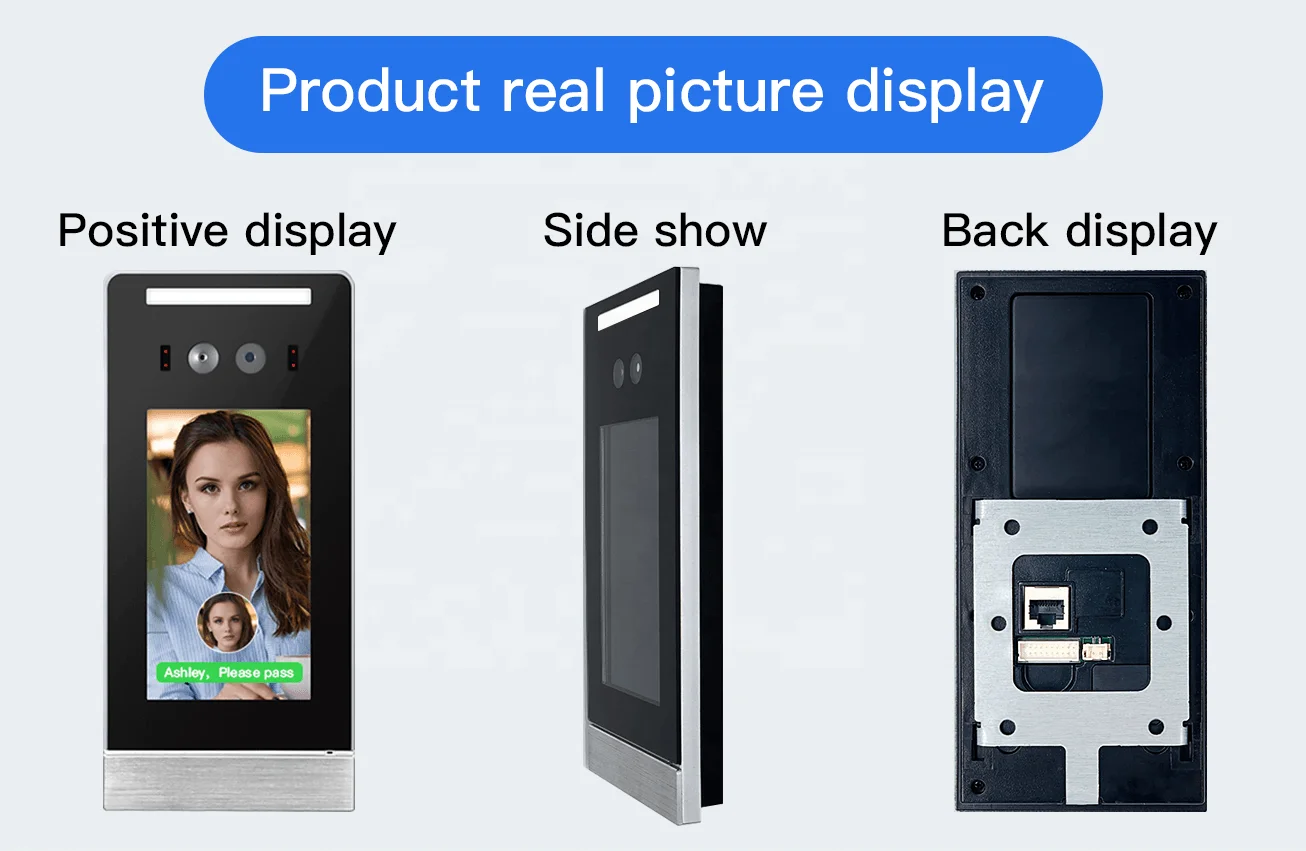

5 inch Plastic Face Recognition Camera with NFC card reader 13.56MHZ for access control
- Category: >>>
- Supplier: Shenzhen Wellcam Co. Ltd.
Share on (1600138238176):
Product Overview
Description
Product Description
Model | B2002FR-5I-RF-WM-L06 | ||
Hardware | |||
Processor | Made in China Dual-core+1G memory+8G EMMC | ||
Operating system | Linux Operating system | ||
Storage | Support TF card storage | ||
Camera | Two cameras，effective pixels, 1920 * 1080 | ||
Sensor | 1/2.8" Progressive Scan CMOS | ||
Lens | 6mm | ||
Swipe card module | Under Planning | ||
Wifi module | Optional | ||
Bluetooth module | Optional | ||
Speaker | Standard configuration, voice playback content can be customized | ||
Performance | |||
Recognition height | 1.2~2.2 meters，Angle can be adjusted | ||
Recognition distance | 0.5~1.5 meters，depends on lens | ||
Face angle | 30 degrees left and right, 30 degrees up and down | ||
Recognition time | Less than 0.5 second | ||
Capture capacity | 60,000 capture records | ||
Face capacity | 10000 | ||

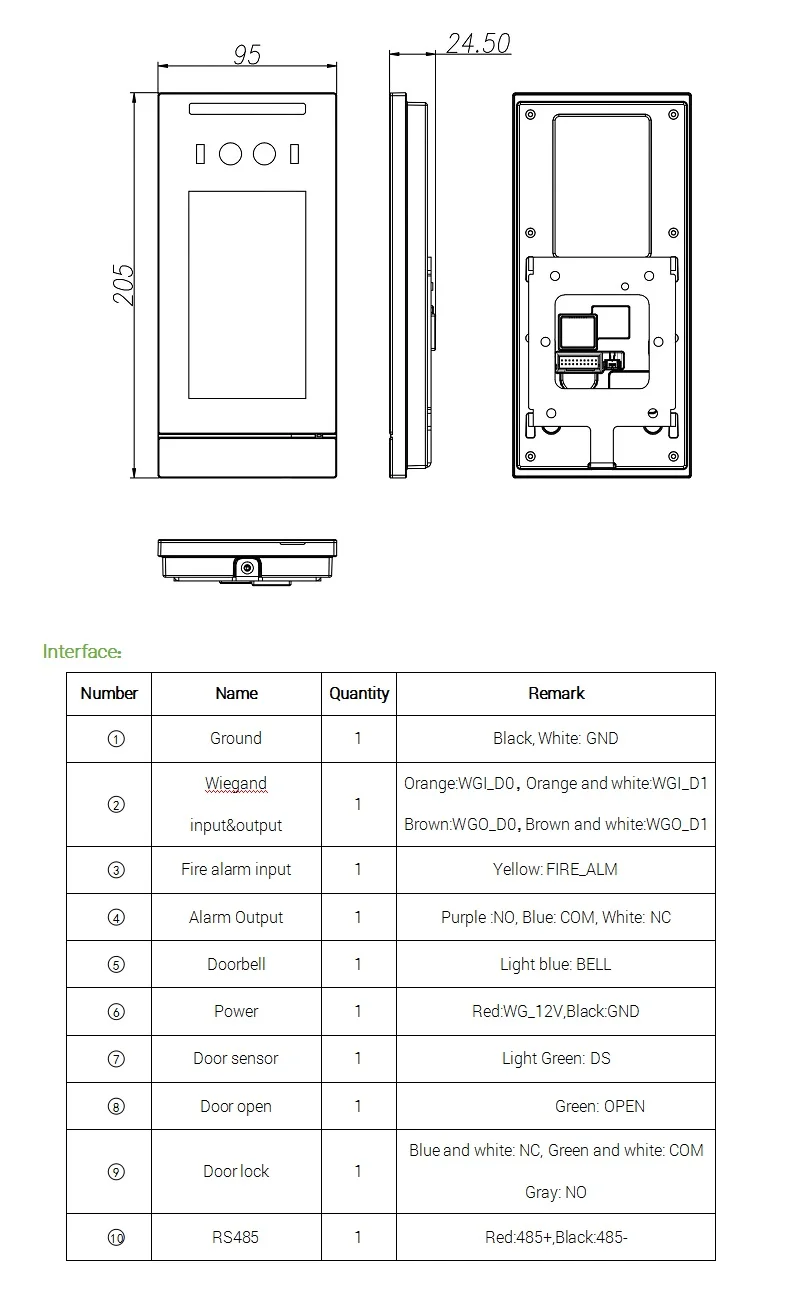

Interface | |||
Power input | DC12V/2A | ||
Network Interface | 1x RJ45 10M / 100M Adaptive Ethernet port | ||
Wiegand Interface | 1ch Wiegand interface input/output | ||
Alarm Interface | 1 fire alarm input, 1 alarm output | ||
Door magnetic interface | 1 door magnetic interface input | ||
Door opening interface | 1 door open interface input | ||
Doorbell interface | 1 doorbell interface input | ||
Door lock interface | 1 door lock interface output | ||
Communication Interface | 1 RS485 communication interface | ||
Camera | |||
Camera | Two cameras，all-glass lens, visible light and near-infrared, supports live detection | ||
Effective pixels | 2.1MP effective pixels,1920*1080 | ||
Minimum illumination | Color 0.01Lux @F1.2(ICR);black white 0.001Lux @F1.2 (ICR) | ||
SNR | ≥50db(AGC OFF) | ||
WDR | 120db, ISP algorithm | ||
Video encoding | H.265 Main Profile/H.264 BP/MP/HP/MJPEG | ||
Dual stream Resolution | Main Stream | 50Hz: 25fps (1920×1080,1280×720) | |
60Hz: 30fps (1920×1080,1280×720) | |||
Sub Stream | 720*576，1-25(30)fps/s/640*480，1-25(30)fps/s 320*240，1-25(30)fps/s | ||

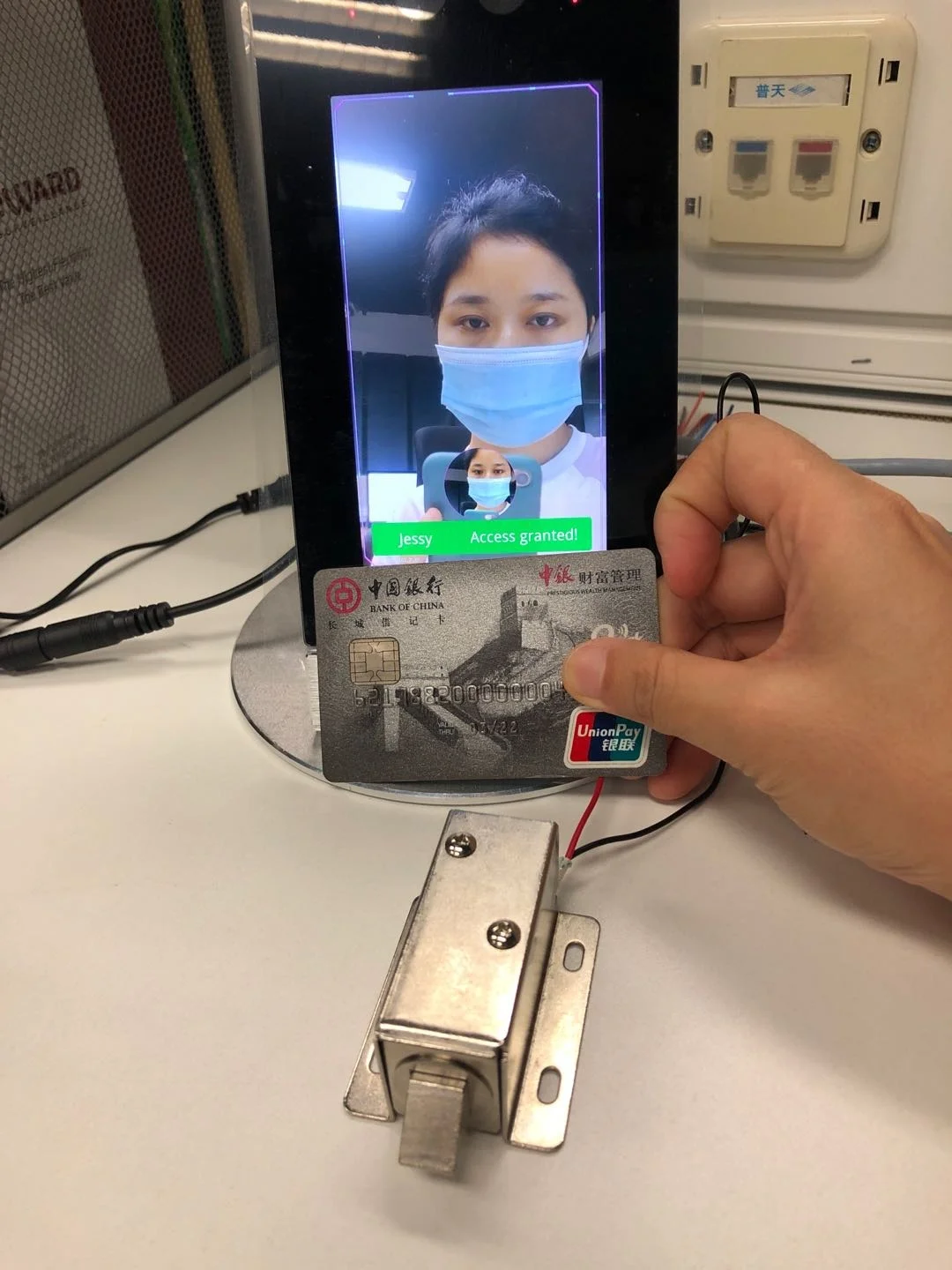

Card Reader | 13.56MHz IC or ID card (CPU、Mifare、 NFC), | ||
Operating temperature | -30℃ - +60℃ | ||
Working humidity | 0 ～ 90% relative humidity, non-condensing | ||
Power | 10W(MAX) | ||
Salt fog level | Rp6 or higher | ||
Antistatic | Contact ± 6KV, Air ± 8KV | ||
Power supply | DC12V/2A | ||
Protection class | IP54 | ||
Screen Size | 5 inch HD IPS screen | ||
Size | 205(L) * 95(W) *20(H)mm | ||

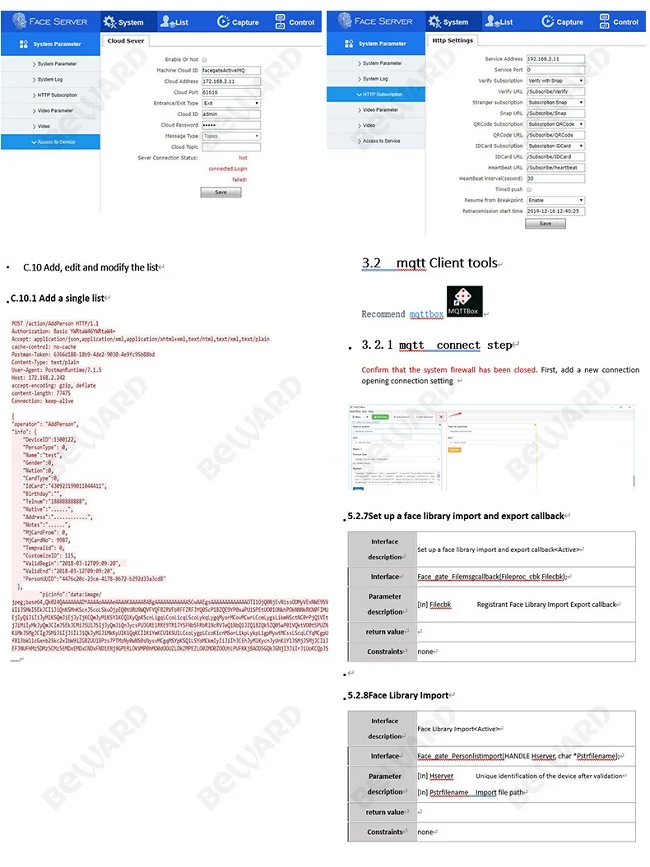

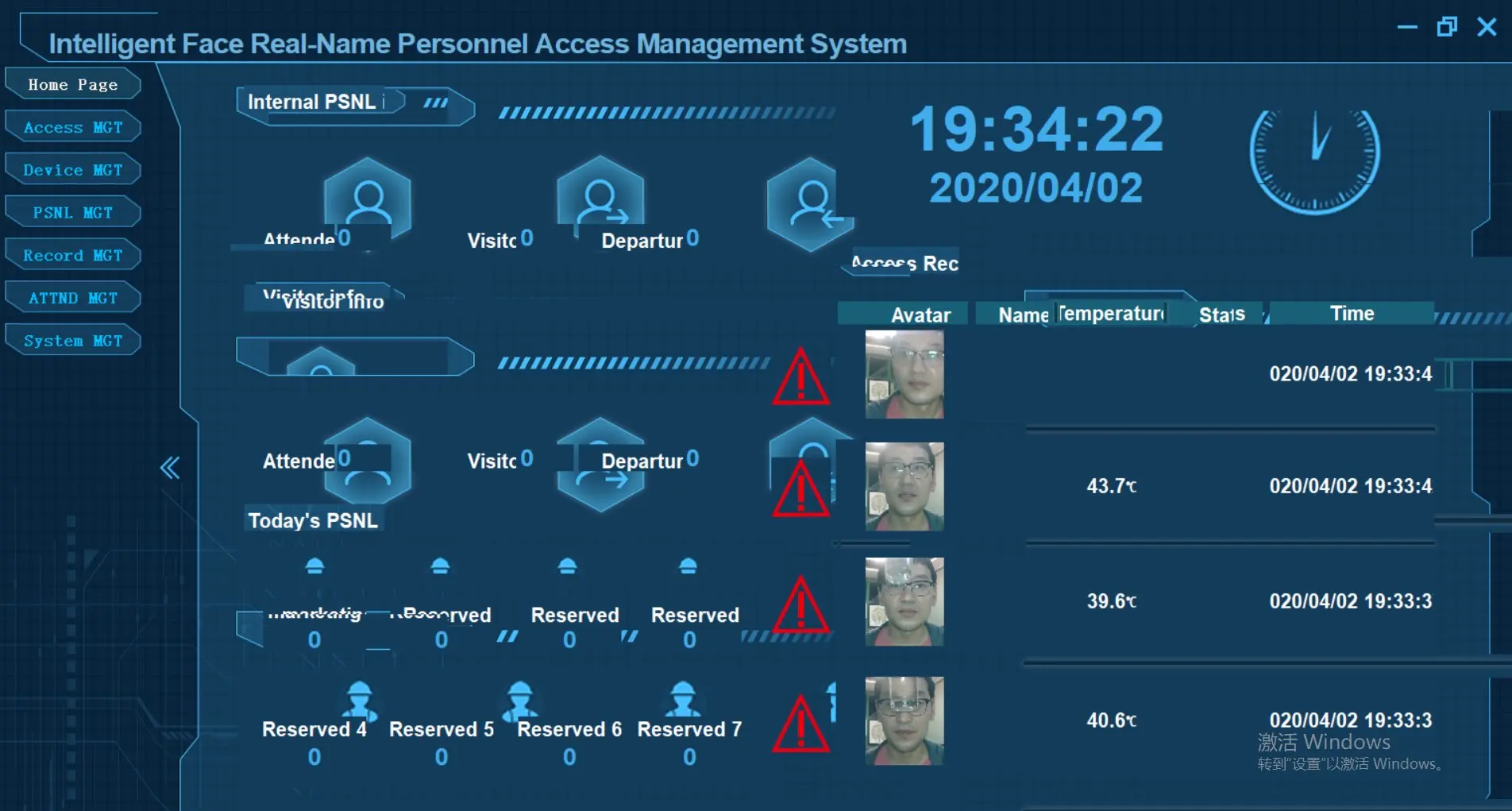

We offer SDK&API for further Integration
