Viewpro AZY3800P petrol electric power VTOL uav large industrial drone 4 hours flight time long distance and payload 15 kgs
- Category: Aircraft >>>
- Supplier: Shenzhen Viewpro Technology Co. Ltd.
Share on (1600138238564):
Product Overview
Description

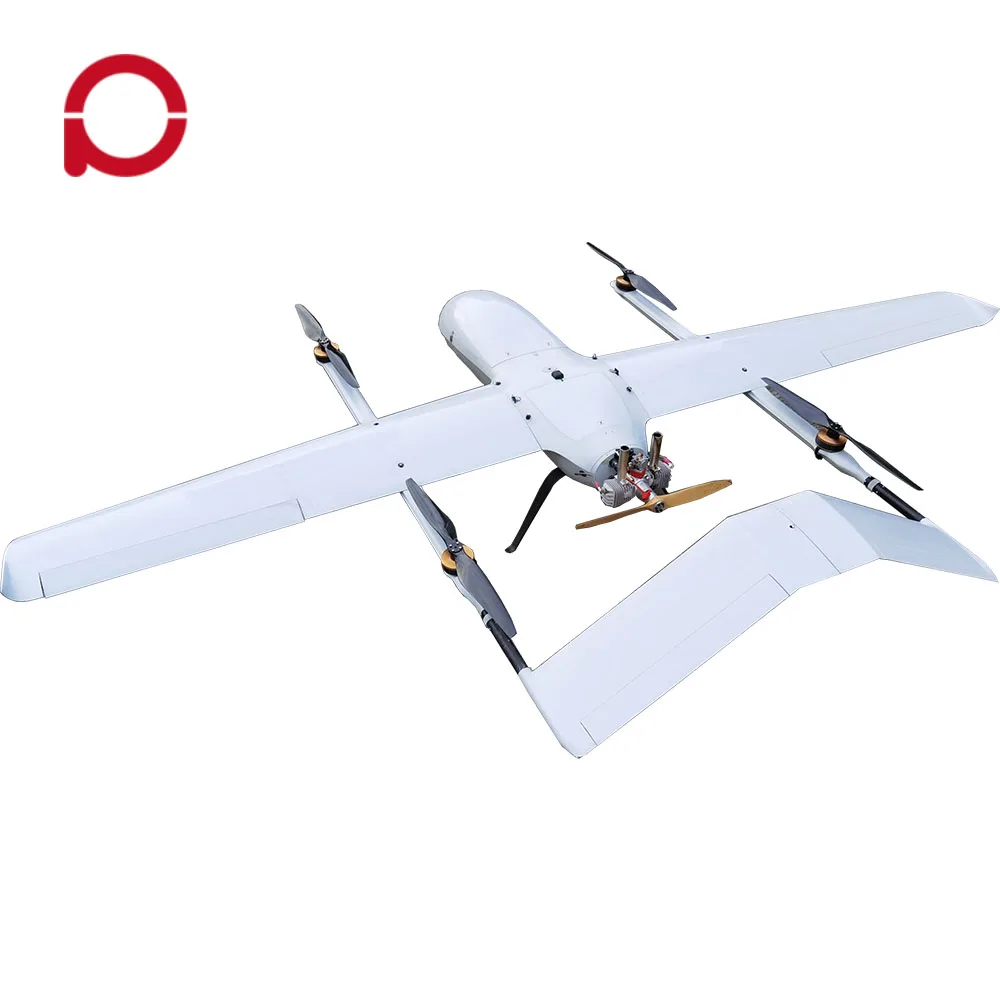

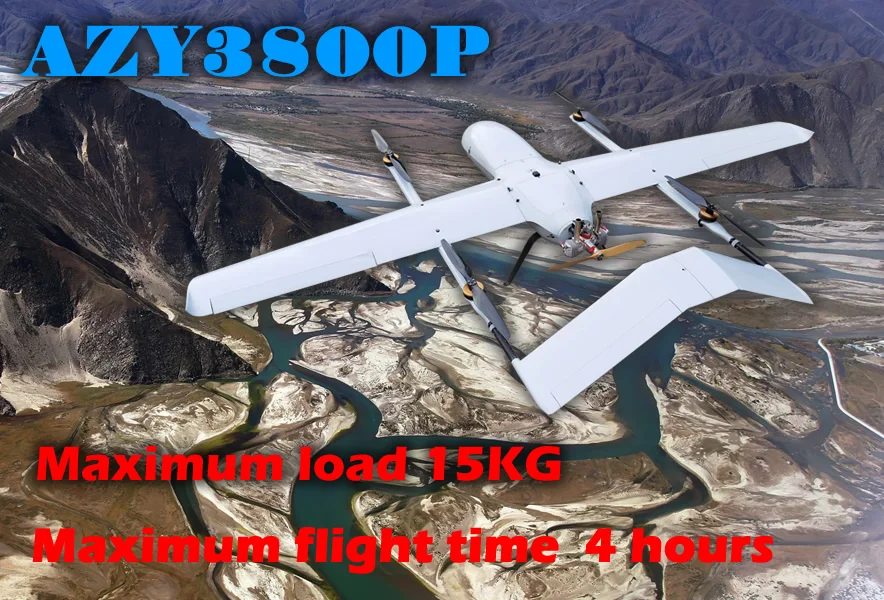

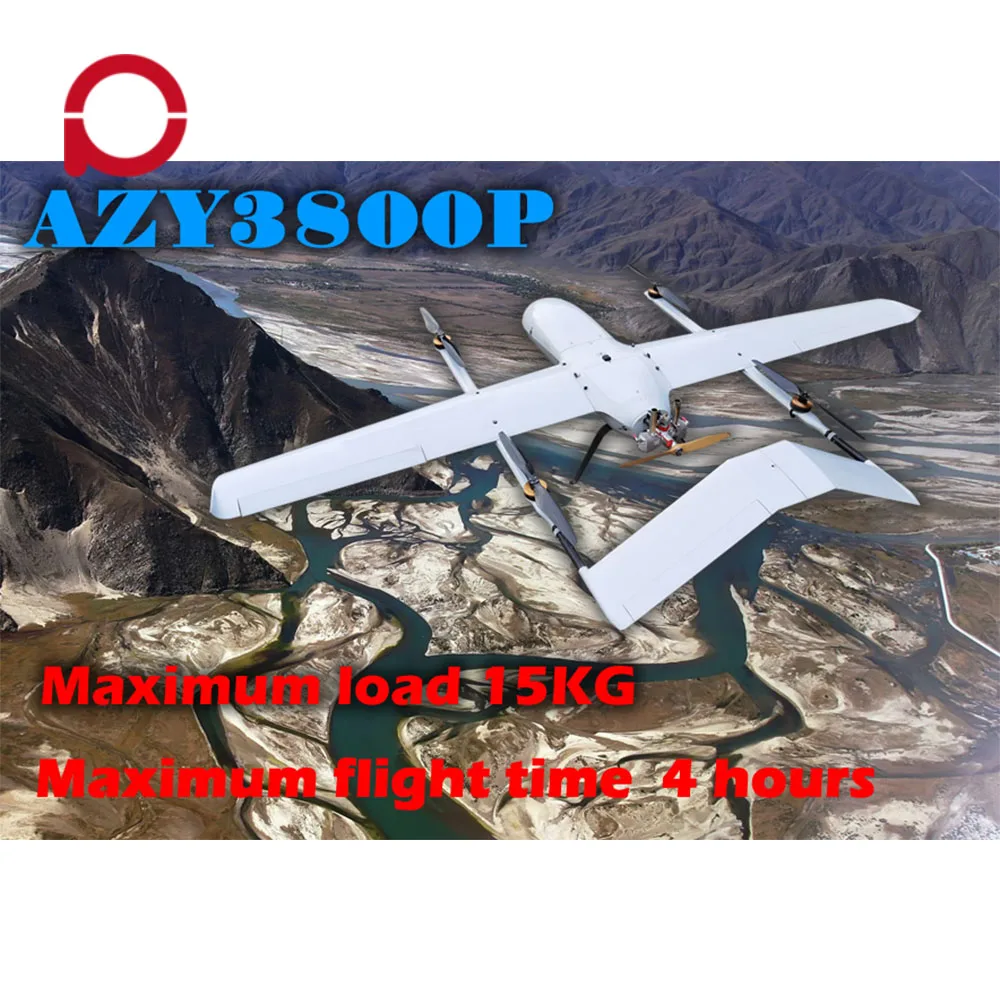

Viewpro AZY3800P petrol-electric power VTOL uav large industrial drone 4 hours flight time long distance and payload 15 kgs
Product Description

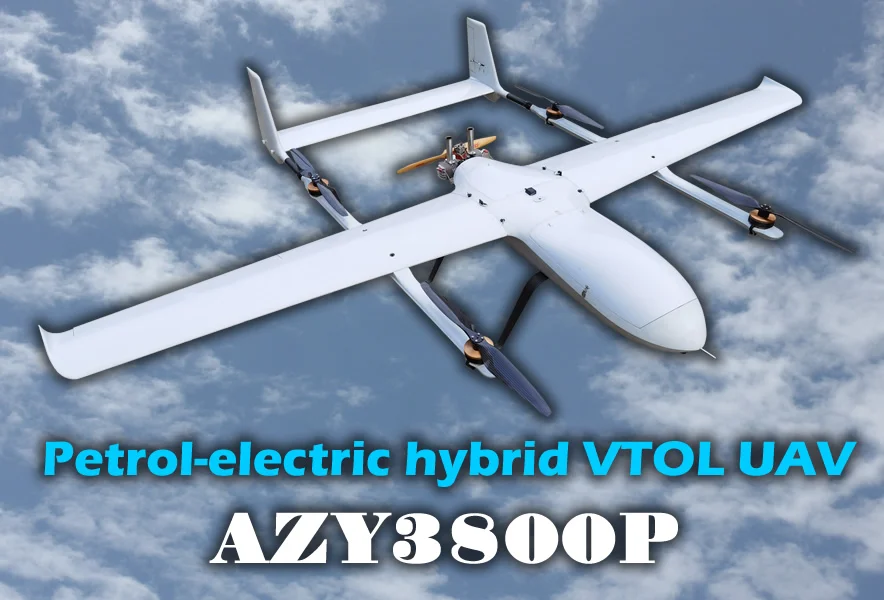

Viewpro AZY3800P petrol-electric power VTOL uav large industrial drone 4 hours flight time long distance and payload 15 kgs
Specifications

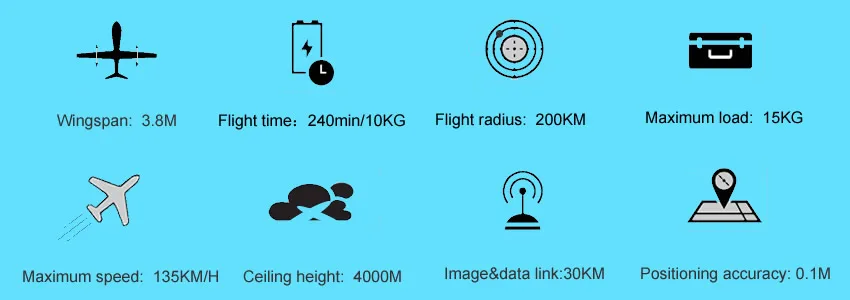

Product parameter (base version) | |||||
Item | parameter | ||||
UAV PLatform | Size | Wingspan 3800mm x Length2650mm x Belly height 300mm | |||
Wheel base | 2000mm | ||||
Maximum load | 15KG | ||||
Maximum take-off weight | 50KG | ||||
Positioning and navigation | GPS + GlONASS + BDS | ||||
Positioning accuracy | Vertical：±0.5 m（GPS ）; ±0.1 m（RTK ）. Horizontal: ±1.5 m（GPS ）;±0.1 m（RTK ）. | ||||
Maximum speed of flight | 135KM/H | ||||
Stalling speed | 16/s (Fixed wing mode) | ||||
Fixed wing thrust-to-weight ratio | 0.64 | ||||
Minimum radius of circling | 150m | ||||
Stall speed of the wing | 16m/s | ||||
Maximum flight altitude | 4000m | ||||
Maximum wind resistance level | 12m/s | ||||
IP Grade | IP44 | ||||
Endurance | 4 Hours （15KG） | ||||
Working environment | -20°C — 45°C | ||||
RC | Operating frequency | 2.4G | |||
Control mode | PPM/S-BUS/PWM | ||||
Data interface | UART（GND/TX/RX） | ||||
Control distance | 5-7KM | ||||
Data transmission distance | 5-7KM | ||||
Channels | 10 | ||||
Charging interface | Micro USB | ||||
Data output | USB2.0 | ||||
Screen bracket | Yes (Support for phones and tablets) | ||||
Independent gimbal control rocker | yes | ||||

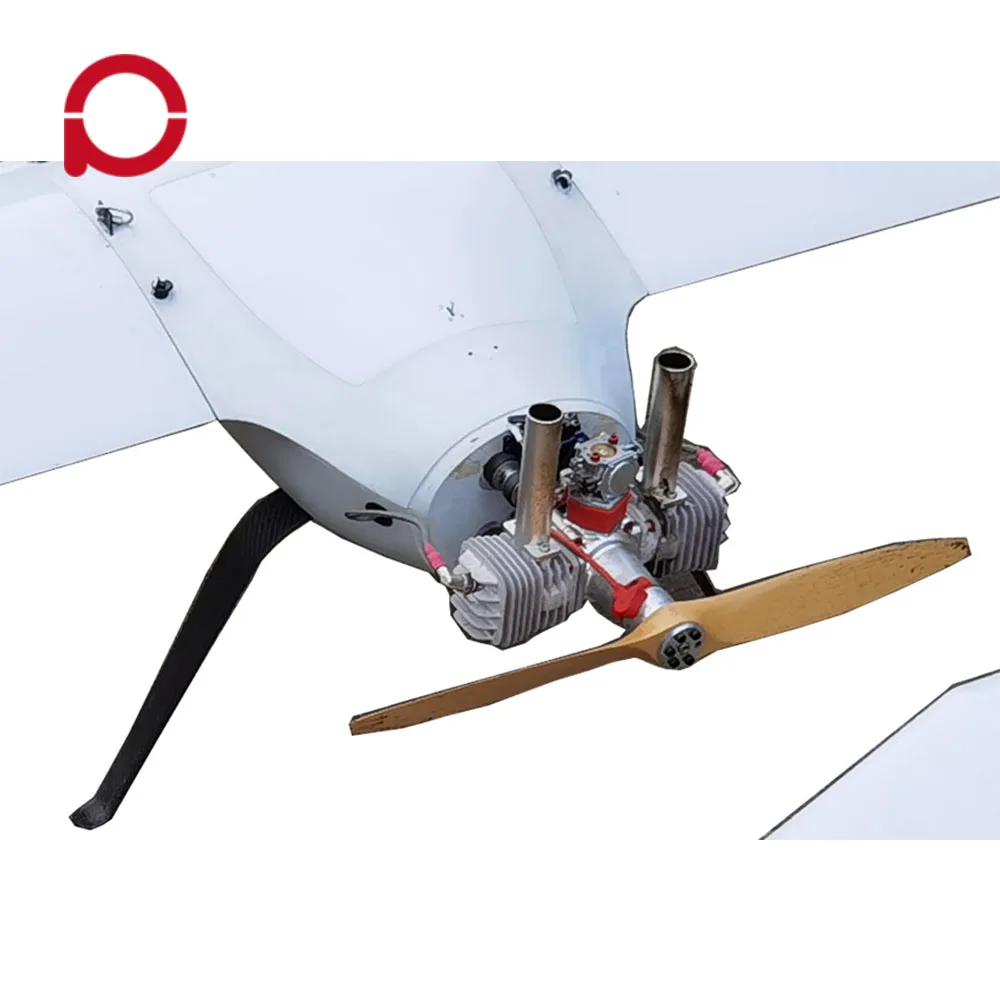

Others | Power | li battery 4*12000mAh-7S+Petrol | |||
Charger power | 200W | ||||
Charging channels | 4 | ||||
Charging mode | Charge\\fast charge\\balance charge | ||||
Discharge protection function | yes | ||||
Packing | Aeronautical aluminum equipment box | ||||
Package case | 1.80*0.8*0.45m | ||||
Optional | ||||||
Base version (RTF) | Task version | Enhanced version | ||||
1 | Please check Product configuration parameter | 10-15KM Data & hd image link | 30KM Data & hd image link | |||
2 | Network And HDMI Image input Interface/UART | Network And HDMI Image input Interface/UART | ||||
3 | RC Interface:micro USB/USB2.0/network/Type-c | RC Interface: 2*USB2.0/2*USB3.0/1*LAN/1*HDMI/1*MIC-OUT/LINE-OUT/DC | ||||
4 | Operating system: Android | Operating system: Win10 | ||||
5 | Frequency:2.4G | Screen resolution: 1920*1080 | ||||
6 | 7inch Highlight screen | 13.3inch (up) and 13.3inch(down) double screen. | ||||
7 | Hand-held ground control station.Independent Gimbal control rocker. | Ground control station, independent gimbal control rocker. | ||||
8 | RTK (differential GPS) Positioning accuracy: standalone 2.5mCEP , RTK 0.025m+1 PPM CEP3. RTK < 60 sec | |||||

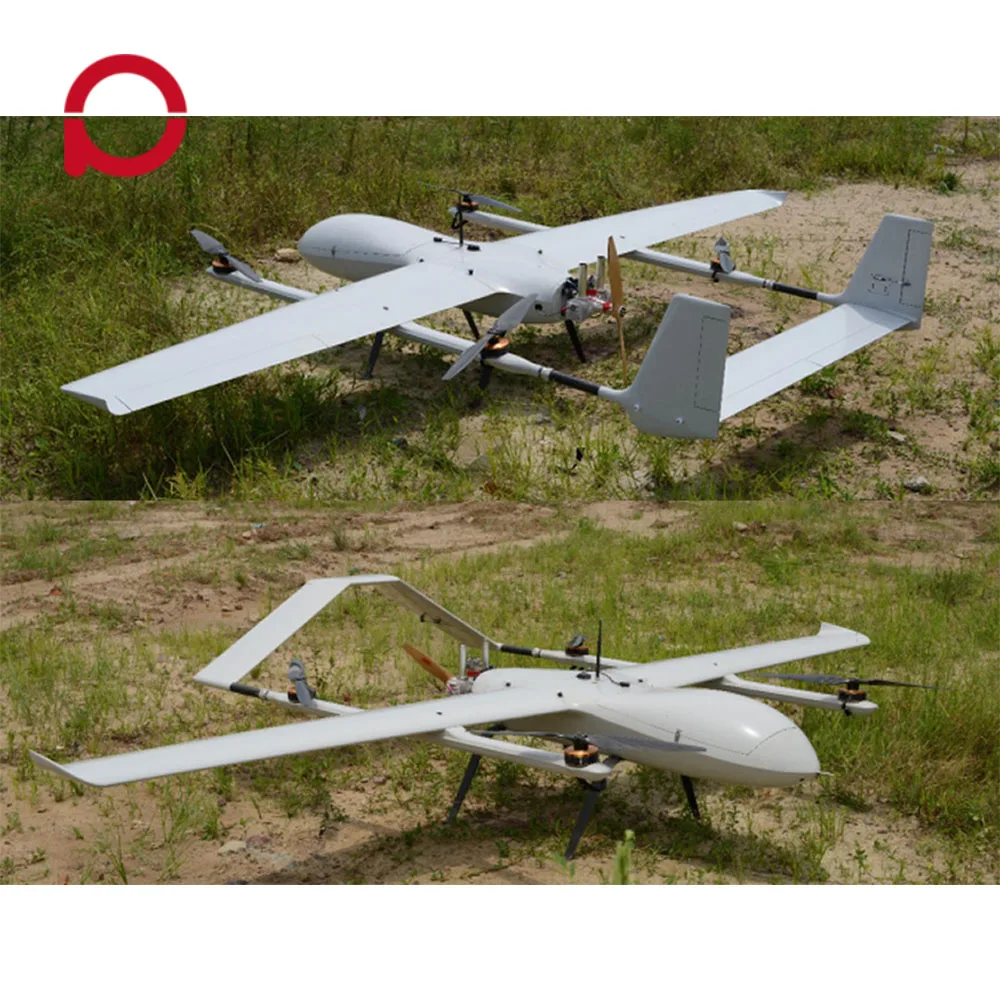

Details Images
