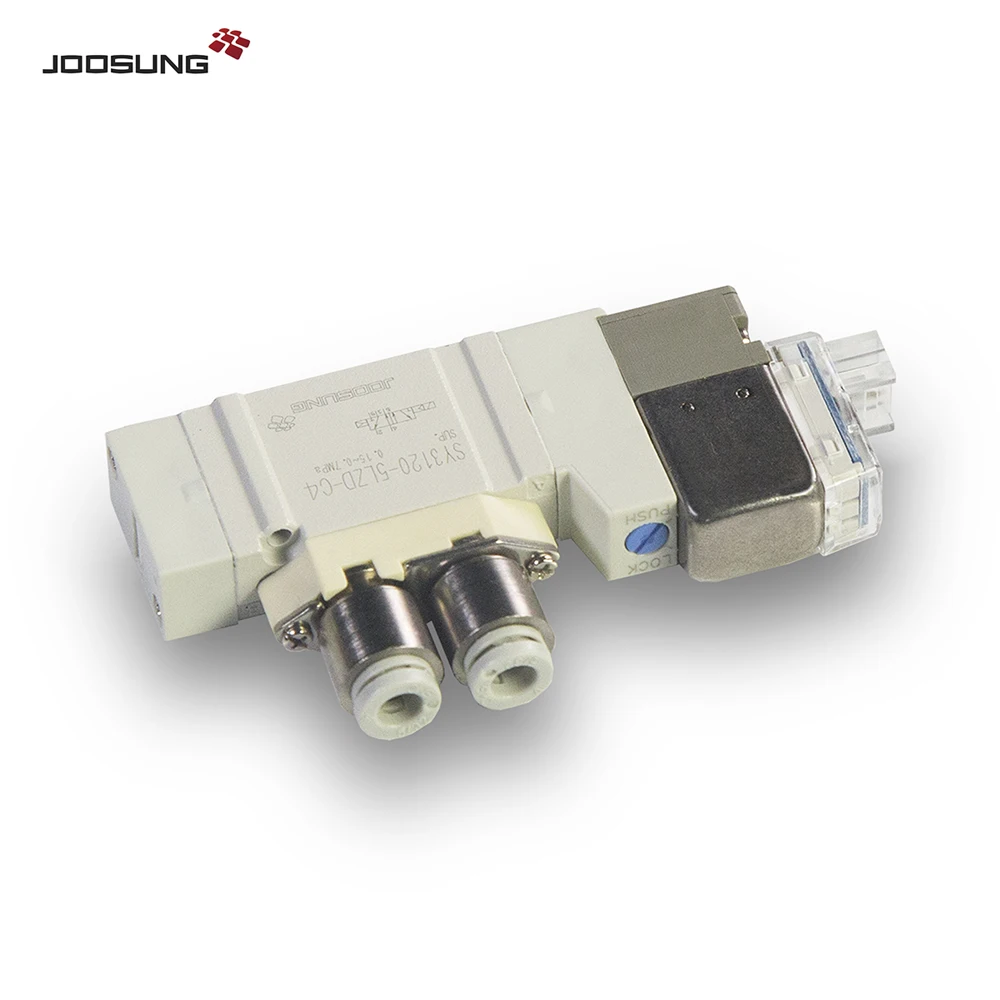

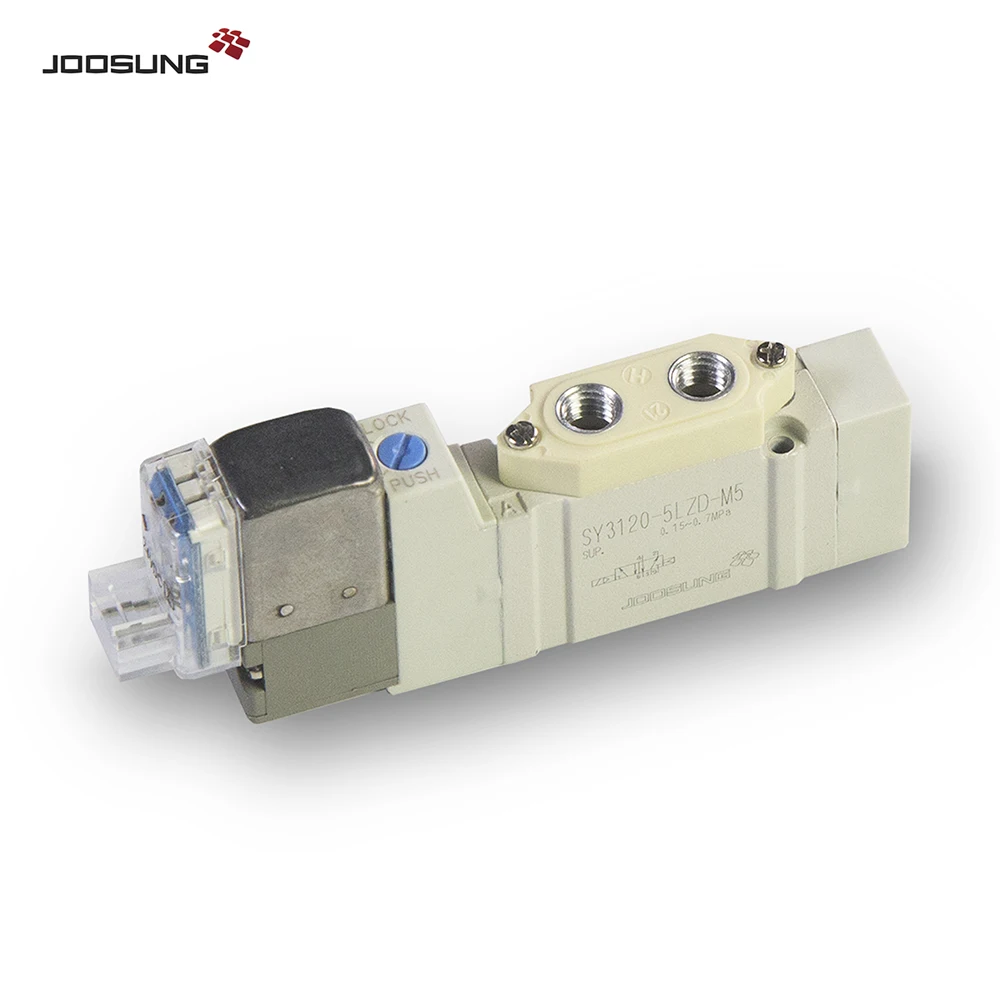

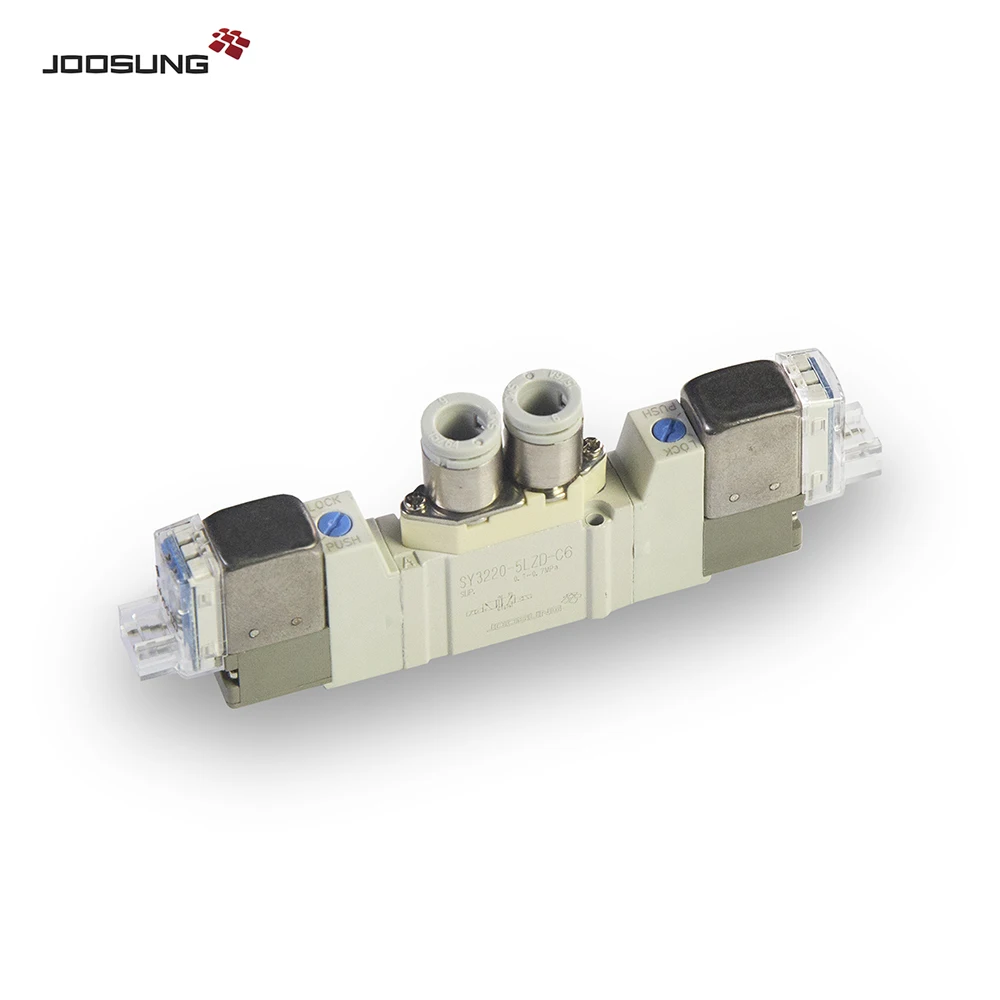

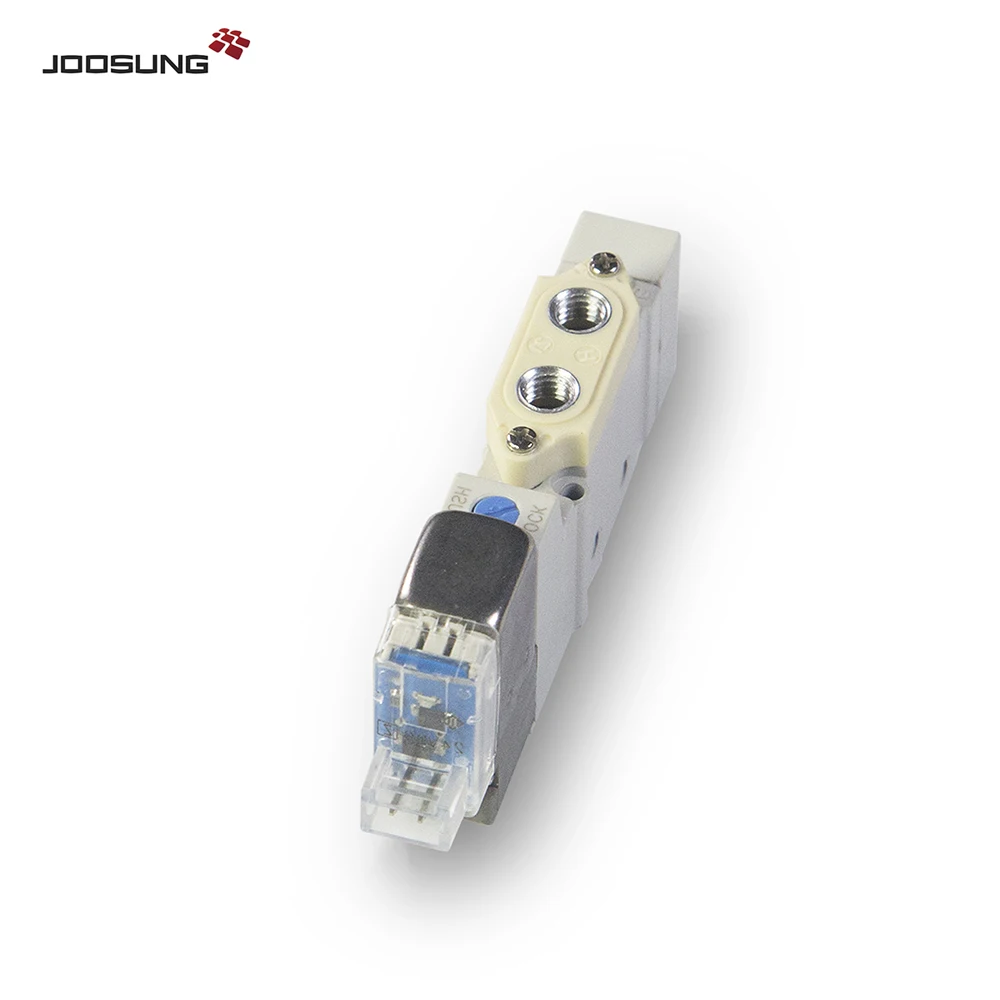

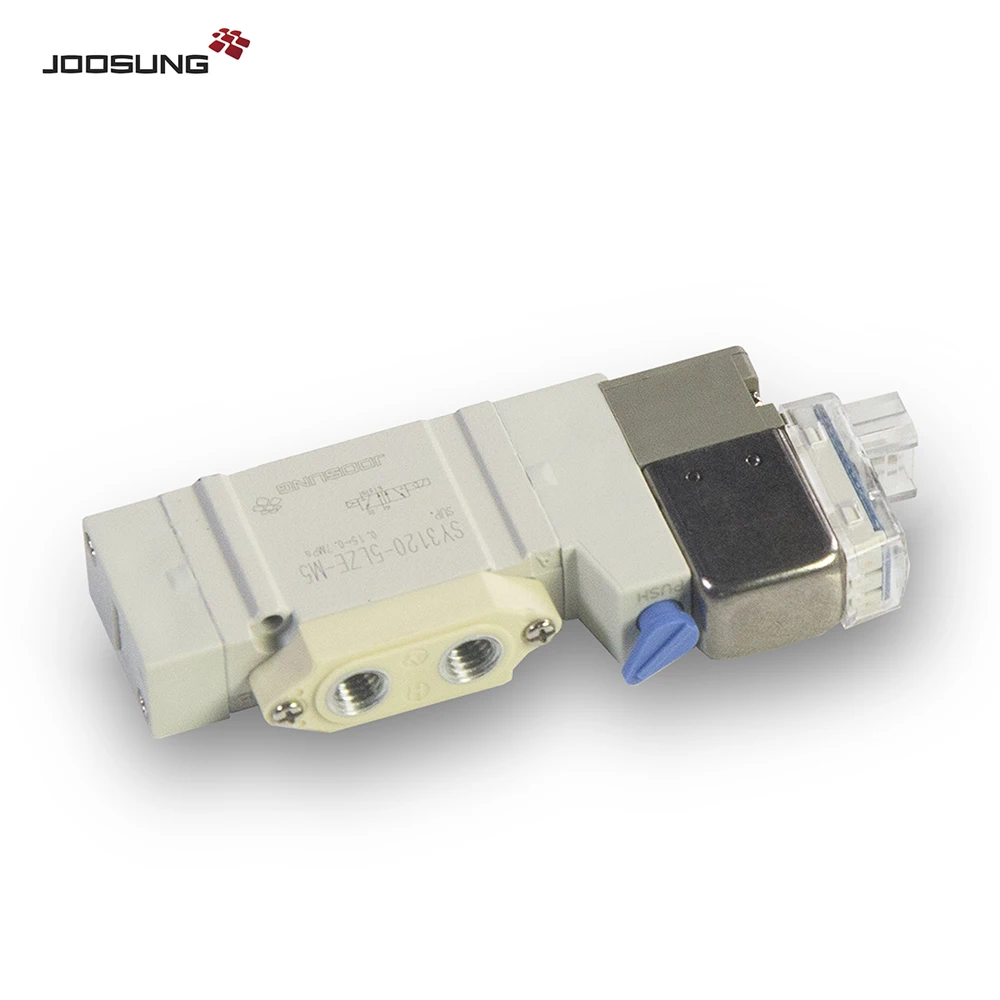

Manufacturer price SY3120 3GZE M5 asco solenoid valve pneumatic China
- Category: >>>
- Supplier: Wenzhou Qiaosen Pneumatic Co. Ltd.
Share on (1600138284090):
Product Overview
Description
Product Description
Series | SY3000 | SY5000 | SY7000 | SY9000 | |||||
fluid | Air | ||||||||
Internal pilot Operating pressure range(Mpa) | 2 position single | 0.15 to 0.7 | |||||||
2 position double | 0.1 to 0.7 | ||||||||
3 positoon | 0.2 to 0.7 | ||||||||
Ambient and fluid temperature（℃） | -10 to 50 (not freezing) | ||||||||
Max. operating frequency (Hz) | 2 position single,double | 10 | 5 | 5 | 5 | ||||
3 position | 3 | 3 | 3 | 3 | |||||
Manual override(Manual operation) | Non-locking push type, Push-turn locking slotted type Push-turn locking lever type | ||||||||
Pilot exhaust method | Common exhaust type for main and pilot valve | ||||||||
Lubrication | Not required | ||||||||
Mounting orientation | Unrestricted | ||||||||
Impact /Vibration resistance(m/s²） | 150/30 | ||||||||
Enclosure | Dust proof(DIN termianl and M8 connector:IP 65) | ||||||||

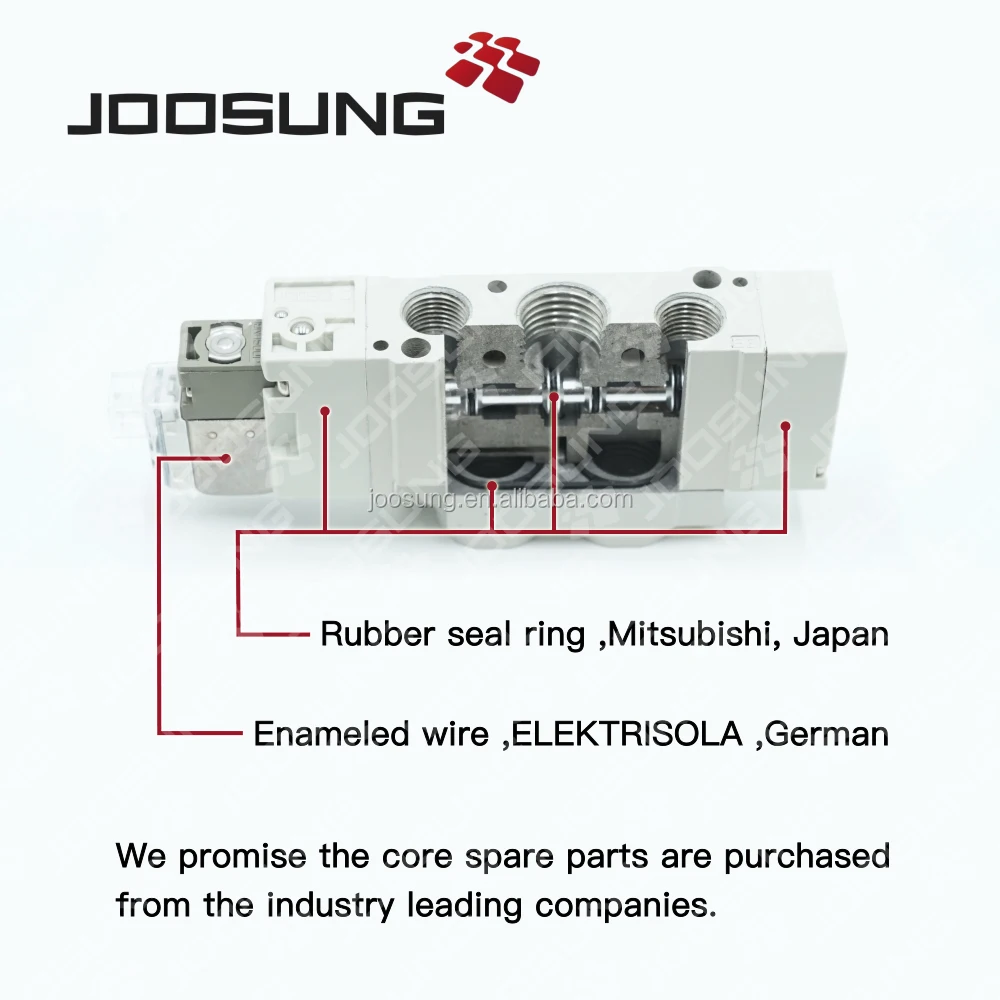

Product Advantages
The manufacturing cost of Joosung Pneumatic solenoid valve is very high while the selling price is fair. Each and every product is tested via testing facilities. What's more, all products are manually tested using hairbursh for partially air leakage test. Thus,the service life and using environment is the same as SMC's items.

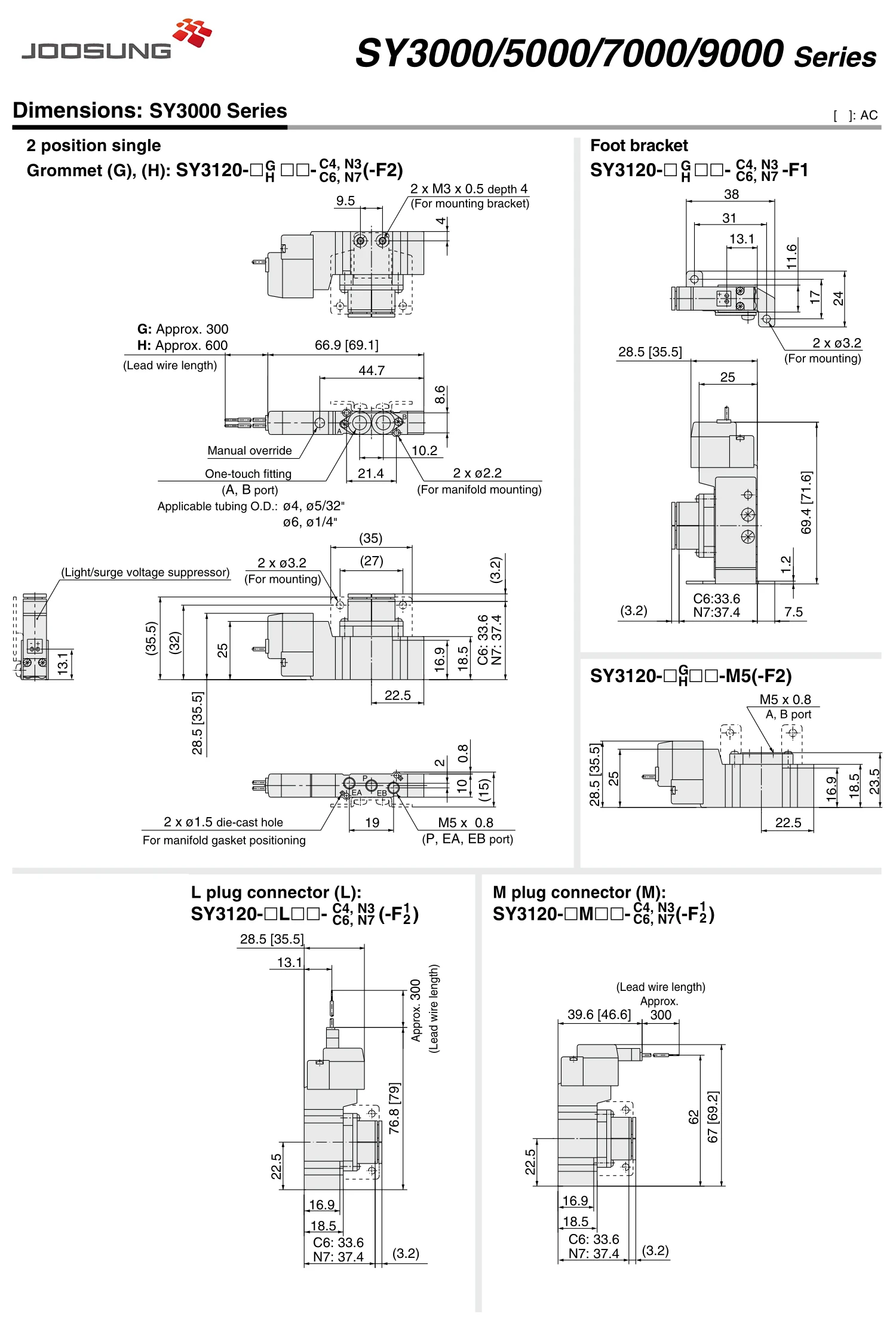

How To Order

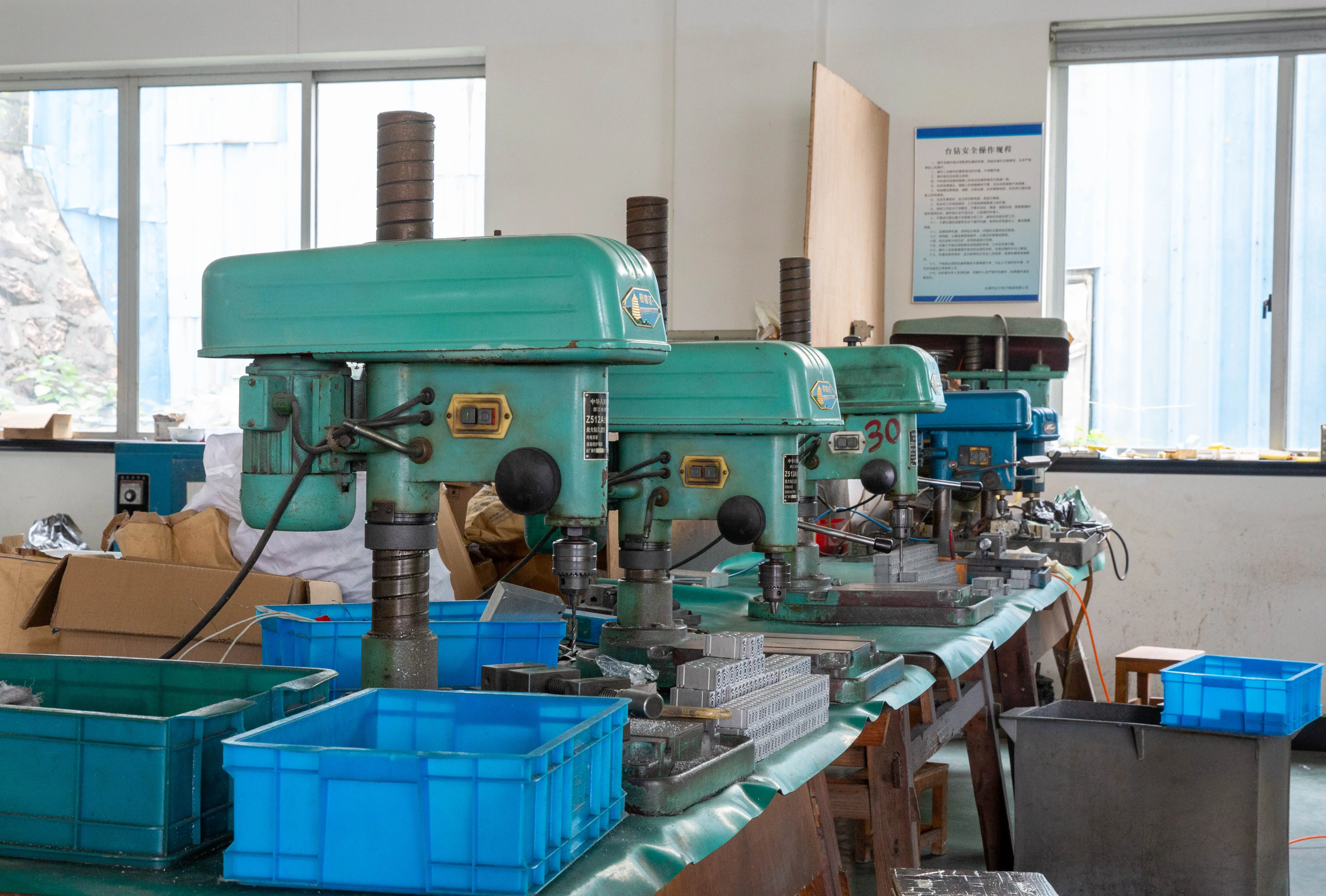

Company Profile
WENZHOU JOOSUNG PNEUMATIC CO. LTD is a professional manufacturer specialized in pneumatic valve and pneumatic parts. Established in 2012 covering 4,700 square meters, the company has 10 years of OEM experience in the area of automation and its certain industries, with technical personnel, production facilities, and testing facilities. Excellent product quality and customer satisfaction are the goal we have been pursuing. Concerning on the quality of each item we produce, the company has gain CE, ISO and other certificates on products. JOOSUNG sincerely hope more friends and guests could get to know, understand and cooperate with us on the basis of equality and win-win. And please feel free to contact us if any request.
