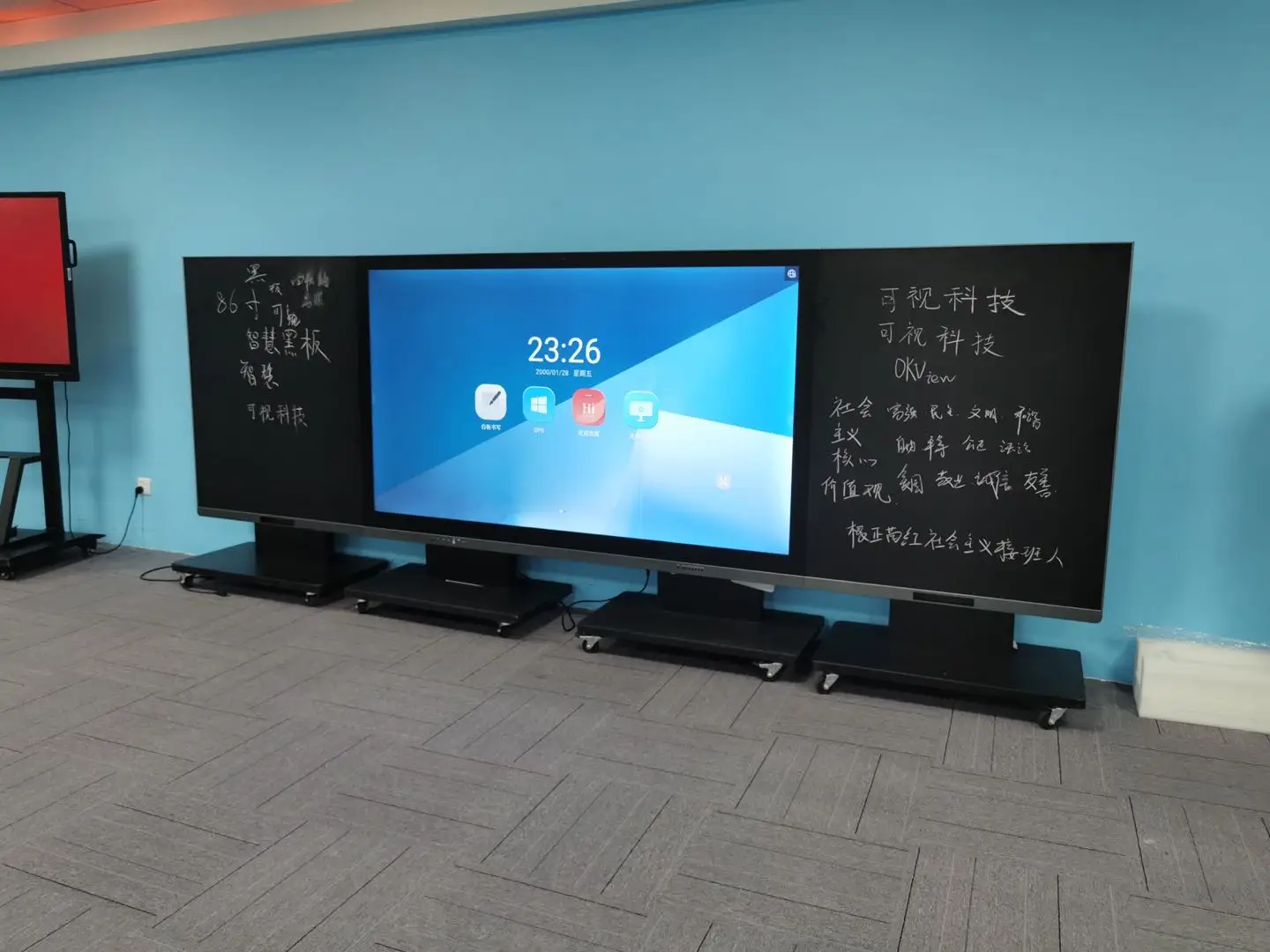

New generation classroom smart e blackboard 86inch capacitive touch screen 10 multi points for school
- Category: >>>
- Supplier: Shenzhen Okview Technology Co. Limited
Share on (1600138286117):
Product Overview
Description
Company Profile
Shenzhen OKVIEW Technology Co., Ltd, established in 2016 , is not only a visual information solution supplier, but also a national high-tech enterprise committing to the research and development, production and sales of the high-end display equipment. The headquarters is located in an international technology innovation center-Shenzhen.
Our company has a registered capital of 30million RMB, covering an area of 10000 square meters. Our main products include interactive flat panel, LCD video wall, commercial display, digital signage, electronic doorplate, related accessories and so on. OKVIEW fully implemented the ISO9001:2008, ISO14001:2004, CE and CCC,etc, and has obtained the system authentication as well.
OKVIEW adheres to the principle of mutual benefits, we have had a reliable reputation among our customers for our professional services, high-quality products and competitive prices. We warmly welcome customers at home and abroad to visit our company and cooperate with us for common success.
Products Description
1. High precision 10 points Capacitive touch
2. Support Android and Windows system
3. 4K UI Image UHD Resolution
3. 4K UI Image UHD Resolution
4. High performance modular design
5. Any notes wrote down can be scanned to take away and encrypted
6. Wireless miracast
Product Paramenters
SpecificationSpecification | Model | Parameter | |||
Panel | LCDsize | 86" | |||
Panel stock inspection standards | Astandard | ||||
Backlight source | LED | ||||
Screen resolution | 3840 x 2160pixels | ||||
Brightness | 400cd/m²(typ.) | ||||
Contrast ratio | 1200:1 (typ.) | ||||
Pixel pitch | 0.4935×0.4935mm (H×V) | ||||
Display refresh rate | 60Hz | ||||
Viewing angle | 178°(H)/178°(V) | ||||
Service life | 30,000hrs(min.) | ||||
Color Saturation | 72%（Optional 80%） | ||||
Viewing area | 1895.04 (H)mm x 1065.96(V)mm | ||||
Chromaticity | 1.07B (8-bit + Hi-FRC) | ||||
Android system properties | processor | Architecture | Quad-core Cortex 2*A53+Cortex 2*A73 andMali T820 GPU | ||
Working frequency | 1.5GHZ | ||||
Number of cores | 4 cores | ||||
RAM/ROM | DDR4: 2GB eMMC:16GB | ||||
Chip solution | MSD8386 | ||||

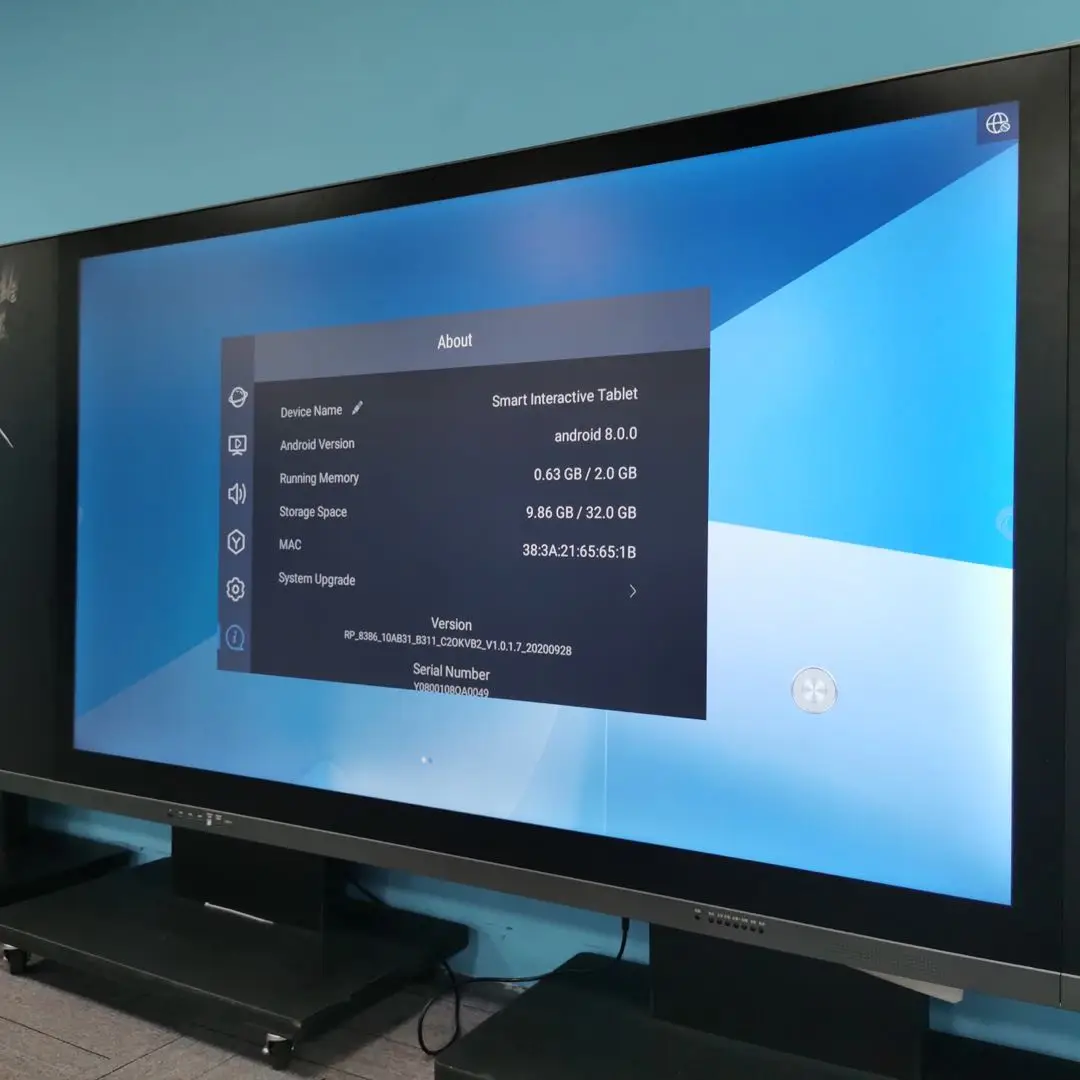

system version | Android8.0 | ||||
Power parameters | Power | AC100-240V~,MAX.90-264V~50/60Hz | |||
Power (brightness, sound100%） | ≤380W（practical testing） | ||||
Standby power | ＜0.5W | ||||
Internal speaker | 2 x 15W(max) | ||||
Power（AC)input | 100-240V | ||||
Power switch | Ship type switch | ||||
Environmental factor | Working temperature | 0℃～40℃ | |||
Storage temperature | -20℃～60℃ | ||||
Working humidity | 10%～90%No condensation | ||||
Input interface | LANIN | 1 | |||
VGAIN | 1 | ||||
PC-AUDIOIN | 1 | ||||
YPBPRIN | 1 | ||||
AVIN | 1 | ||||
Android USB | 1 | ||||
HDMIIN | 2 | ||||
USB2.0IN | 2 | ||||
RS232 | 1 | ||||
Output interface | LAN OUT | 1 | |||
AVOUT | 1 | ||||
EarphoneOUT | 1 | ||||
TOUCHUSB（TypeB） | 1 | ||||
COAX | 1 | ||||
Specification | Model | Parameter | |||
OPS(optional） | USB-IN | USB2.0 x 2;USB3.0 x 2 | |||
LAN-IN | 1 | ||||
HDMI- OUT | 1 | ||||
LINE-OUT | 1 | ||||
MIC-IN | 1 | ||||
Front interface | USB 3.0 | 3（3.0Only valid under OPS channel） | |||
TOUCH-USB(TypeB） | 1 | ||||
FRONT HDMI | 1 | ||||
USB(TYPE-C) | 1 | ||||

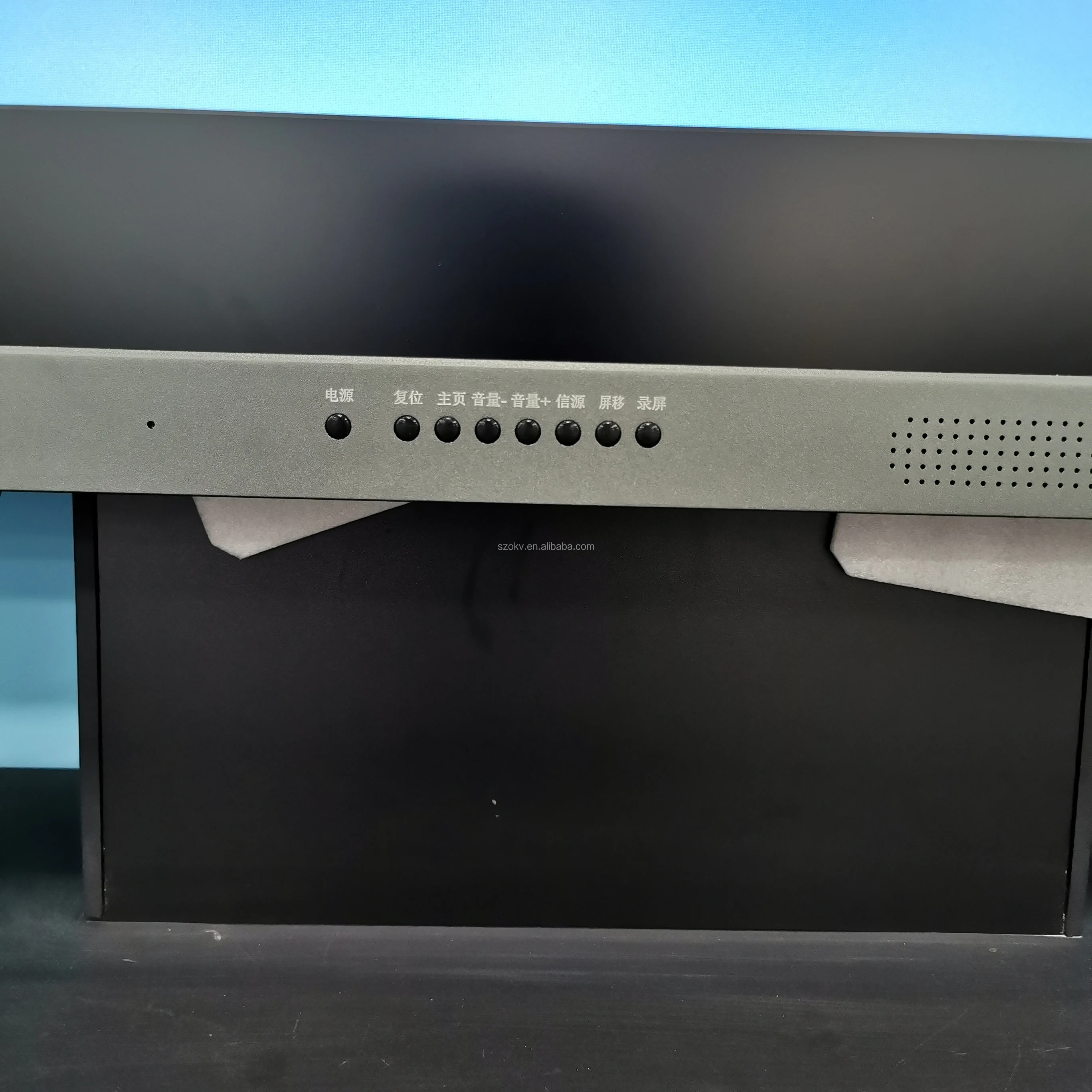

Button | 8button | TBD | |||
Structureddata | Net weight | TBD | |||
Gross weight | TBD | ||||
Bare dimensions | 4025*1250 *100mm | ||||
Package dimensions | TBD | ||||
Shell material | Aluminum alloy face frame, sheet metal back cover, honeycomb panel | ||||
Shell color | Black | ||||
Language | OSD | Chinese、English etc. | |||
Touch parameter | Touch parameter | Capacitive touch sensing technology，Support maximum touch 10 points | |||
Glass | 4MM，Physically tempered Mohs level 7 explosion-proof (optional anti-glare) | ||||
Glass transmittance | ＞75% | ||||
Frame material | Aluminum alloy face frame | ||||
Touch accuracy | Middle ±1.5mm ； edge±2.0mm | ||||
Input mode | Finger andpassive capacitive touch pen etc. | ||||
Theoretical clicks | More than 60 million times in the same location | ||||
Smallest touch object | ≥ φ5MM | ||||
Light resistance | Incandescent lamp (220V, 100W), the vertical distance is more than 350mm, the illuminance of sunlight reaches 90000Lux | ||||
Power supply | USB(USBPower supply） | ||||
Voltage | DC 5.0±5% | ||||
Touch pen
stable stand with wheels
OPS PC module

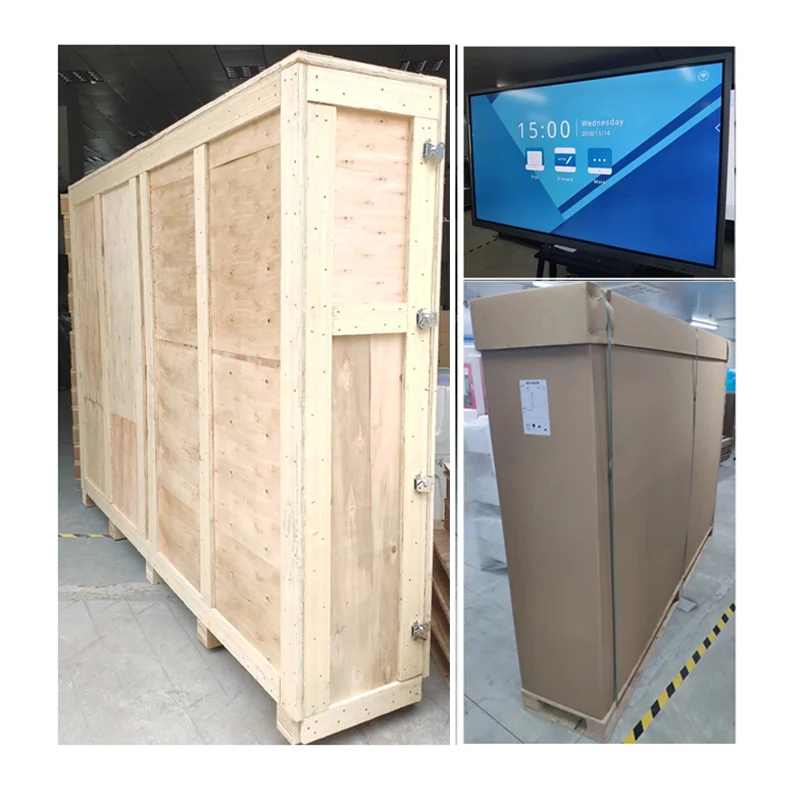

Product packaging
Recommend Products
Certifications
Exhibition
FAQ
Q:Can you provide OEM service?
A: Yes, well support any OEM/ODM service.
Q: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Shenzhen with 10000-square-meters factory. Welcomed to visit our factory
anytime.
Q: How is the quality of the product?
A: Our products have been strictly tested high quality by QC. And we do sell our products in domestic with "OKView" brand. Quality
is the first thing for us!
Q: How can I trust your product quality?
A: We have rich experience in commercial display. From material purchasing to product delivery, we have own professional staff and
procedures to prevent potential quality risk. Our products have been approved by CE.
Q: What's your after-sale service?
A: If any problems, our engineers and technicians will immediately feedback and give solutions.
A: Yes, well support any OEM/ODM service.
Q: Is your company a real manufacturer?
A: Our company is the professional manufacturer in Shenzhen with 10000-square-meters factory. Welcomed to visit our factory
anytime.
Q: How is the quality of the product?
A: Our products have been strictly tested high quality by QC. And we do sell our products in domestic with "OKView" brand. Quality
is the first thing for us!
Q: How can I trust your product quality?
A: We have rich experience in commercial display. From material purchasing to product delivery, we have own professional staff and
procedures to prevent potential quality risk. Our products have been approved by CE.
Q: What's your after-sale service?
A: If any problems, our engineers and technicians will immediately feedback and give solutions.
