Good Performance Motor Encoder Unit Sensor Bearing BMB-6209/080S2/EH106A

Nanjing Younarui Bearing Co., Ltd main products includes: Cylindrical roller bearing, Angular contact ball bearing, Deep groove ball bearing, Taper roller bearing, thrust roller bearing, thrust ball bearing, Self-aligning roller bearing, Needle roller bearing, Linear guide bearing, Slewing bearing, Bearing housing and accessories. Please enquriy us for above or special bearings according to your applications.

BALL BEARING	ROLLER BEARING	SPECIAL BEARING	OEM BEARING	OTHERS	ACCESSORIES

BALL BEARING

ROLLER BEARING

SPECIAL BEARING

OEM BEARING

OTHERS

ACCESSORIES

Product Description

YNR Motor encoder unit BMB-6209/080S2/EH106A

For many applications, monitoring the status of rotating components accurately is essential. This is particularly true for AC motors that require encoders to continuously measure speed and the direction of rotation. Motor encoder units BMB-6209/080S2/EH106A can provide a signal resolution ranging from 32 to 80 digital pulses per revolution. They are available for shaft diameters ranging from 15 to 45 mm.

YNR motor encoder units BMB-6209/080S2/EH106A (fig. 1) are compact and ready-to-mount units that combine active sensor technology with an deep groove ball bearing. These units BMB-6209/080S2/EH106A, which can be mounted at either bearing position in an AC motor, are only 6.2 mm wider than the corresponding standard deep groove ball bearing (fig. 2).

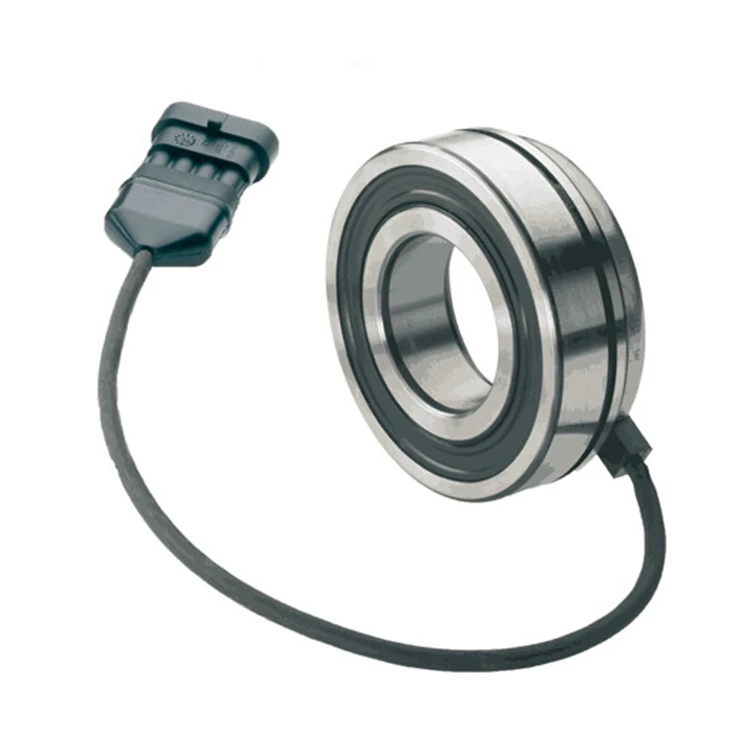

motor encoder unit fig 1

motor encoder unit fig 2

Power supply

Motor encoder units BMB-6209/080S2/EH106A require a regulated voltage supply, which can range from 5 to 16 V DC.

Working environment

Motor encoder units BMB-6209/080S2/EH106A can be used in systems operating in very arduous electromagnetic environments as described in the international standard IEC 61000-6-2.

motor encoder unit fig 3

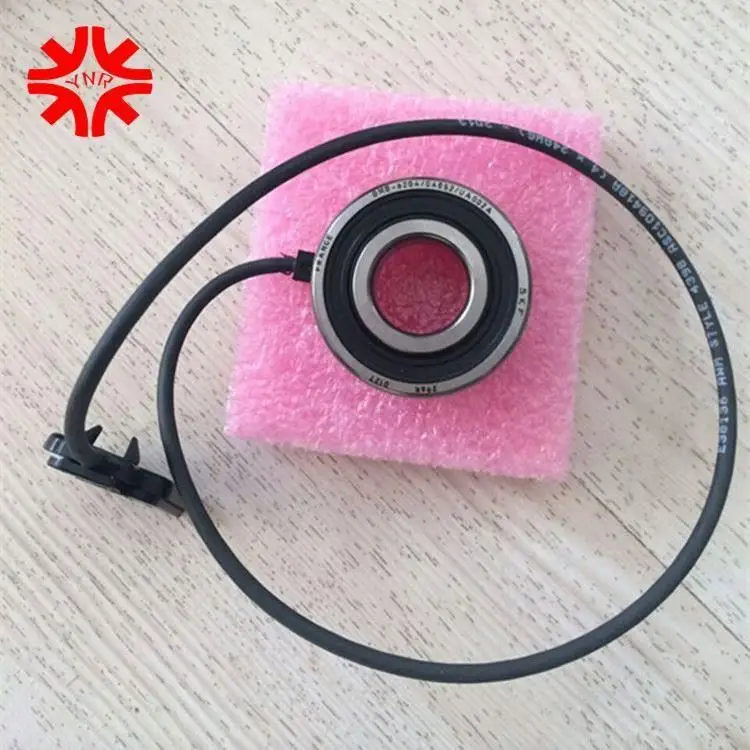

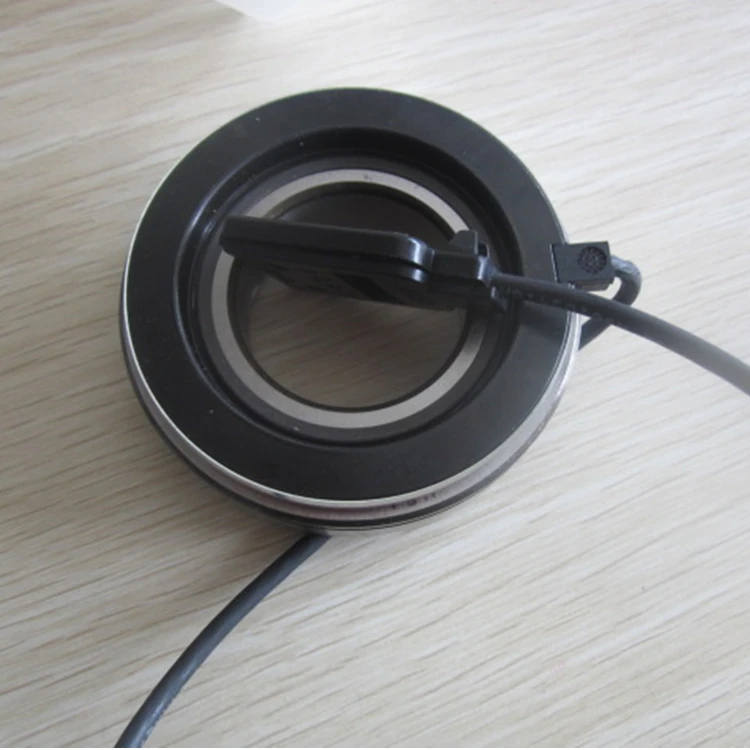

Photos of motor encoder unit BMB-6209/080S2/EH106A

motor encoder unit 1

motor encoder unit 2

BMB-6208

Drawing of motor encoder unit BMB-6209/080S2/EH106A

dimensions

Bearing dimensions (Please contact us if didn't find the bearing number you need)

Designation	Principal dimensions			Basic load ratings		Limiting speed	Sensor technology
Designation	Principal dimensions			dynamic	static	Limiting speed	No. of pulses	Period accuracy	Phase shift output signal	Tolerance phase shift output signal
	d	D	B₁	C	C₀		N
	mm			kN		r/min
BMB-6202/032S2/UB008A	15	35	17.2	7.8	3.75	13000	32	3	90	30
BMB-6202/032S2/UB108A	15	35	17.2	7.8	3.75	13000	32	3	90	30
BMO-6204/048S2/UA008A	20	47	20.2	12.7	6.55	10000	48	3	90	20
BMO-6204/048S2/UA108A	20	47	20.2	12.7	6.55	10000	48	3	90	20
BMO-6205/048S2/UA008A	25	52	21.2	14	7.8	8500	48	3	90	30
BMO-6205/048S2/UA108A	25	52	21.2	14	7.8	8500	48	3	90	30
BMD-6206/064S2/UA108A	30	62	22.2	19.5	11.2	7500	64	4	90	30
BMD-6206/064S2/UA008A	30	62	22.2	19.5	11.2	7500	64	4	90	30
BMB-6208/080S2/UB108A	40	80	24.2	30.7	19	5600	80	5	90	30
BMB-6208/080S2/UB008A	40	80	24.2	30.7	19	5600	80	5	90	30
BMB-6209/080S2/UB008A	45	85	25.2	33.2	21.6	5000	80	5	90	30
BMB-6209/080S2/UB108A	45	85	25.2	33.2	21.6	5000	80	5	90	30
