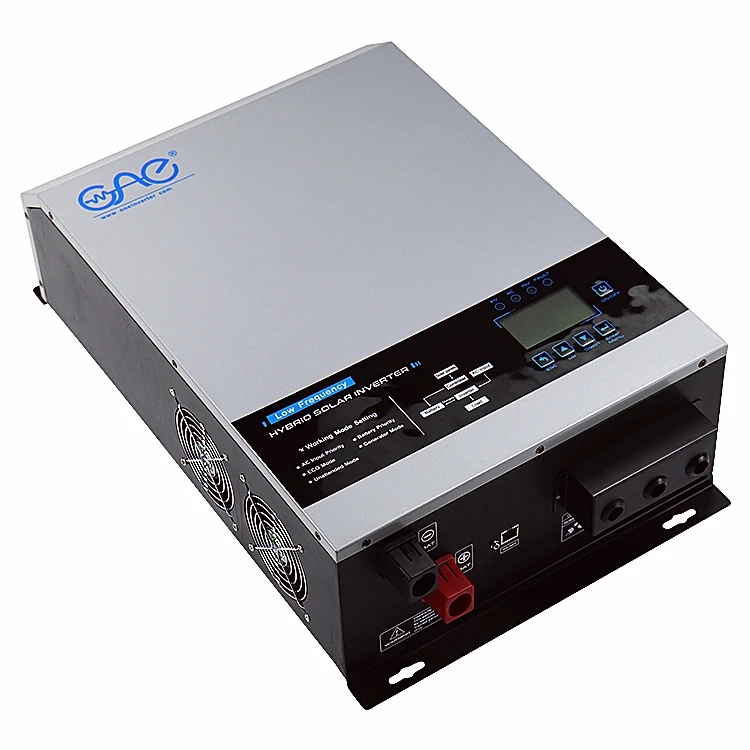

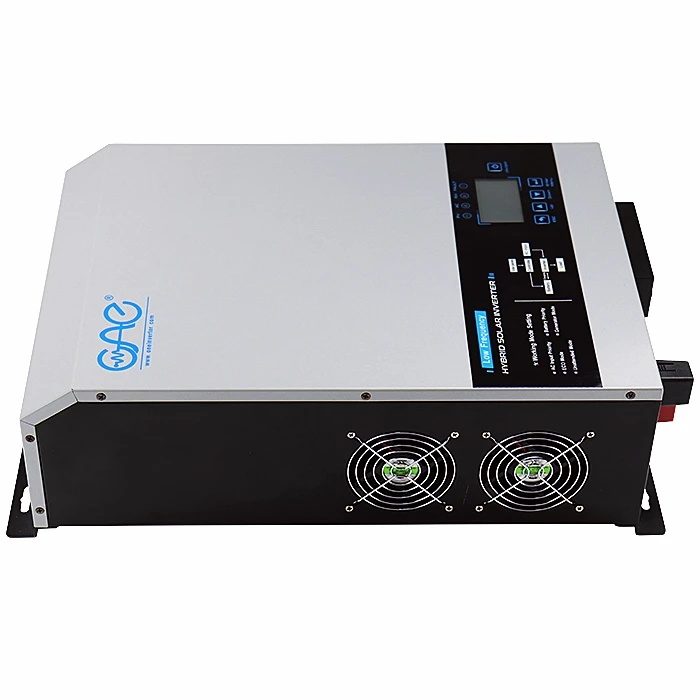

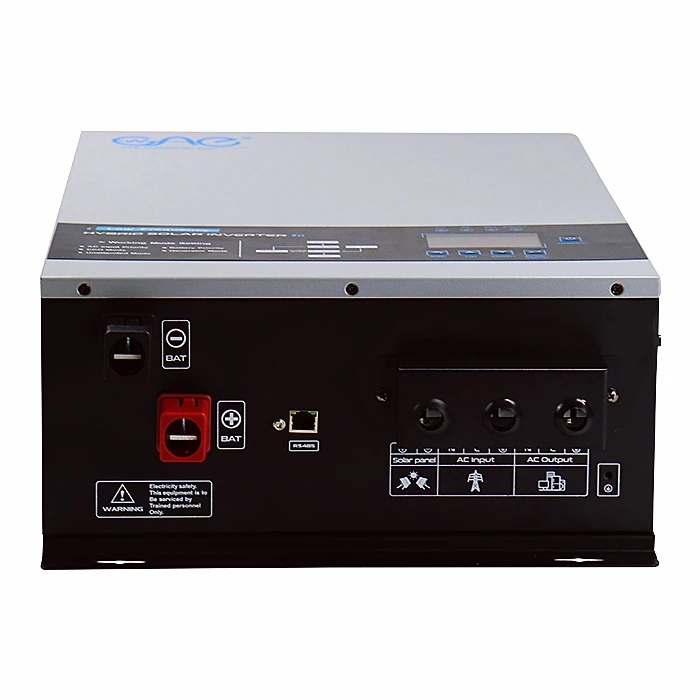

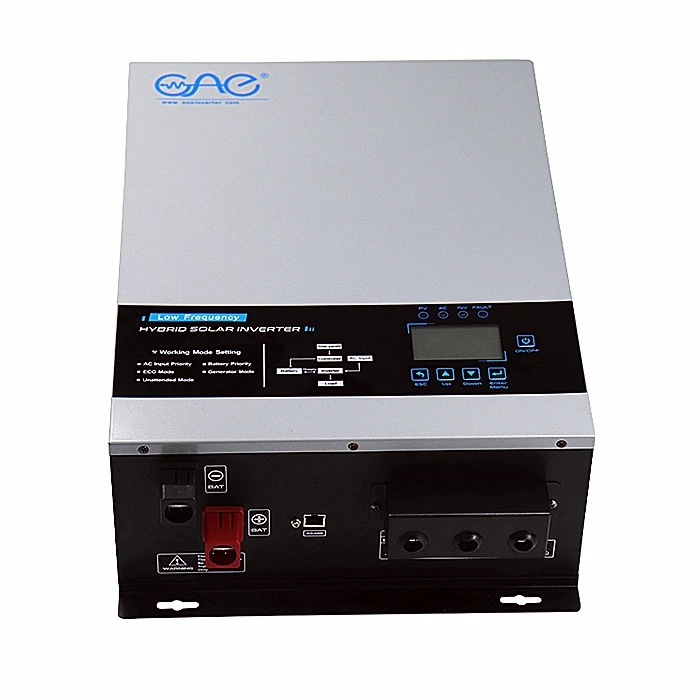

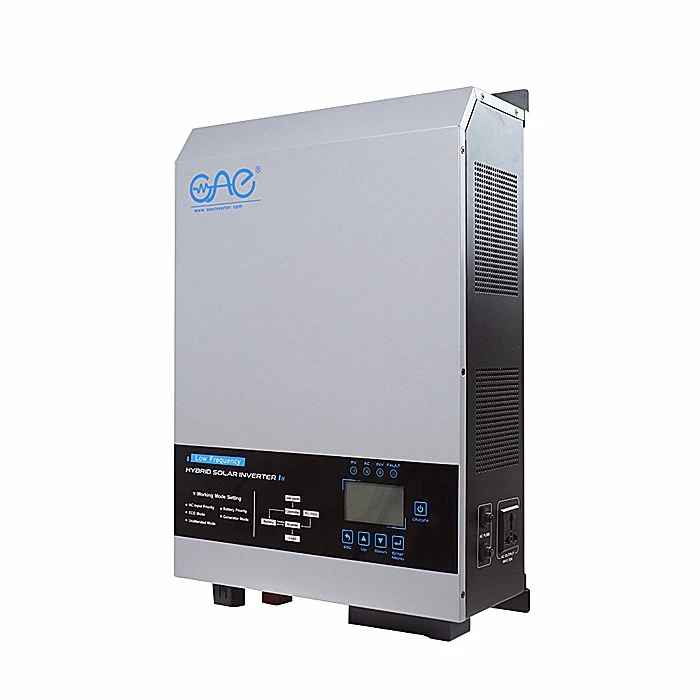

off grid 12v 24v solar wind hybrid inverter 2000watt with 60A mppt solar charge controller
off grid 12v 24v solar wind hybrid inverter 2000watt with 60A mppt solar charge controller
off grid 12v 24v solar wind hybrid inverter 2000watt with 60A mppt solar charge controller
off grid 12v 24v solar wind hybrid inverter 2000watt with 60A mppt solar charge controller
off grid 12v 24v solar wind hybrid inverter 2000watt with 60A mppt solar charge controller
off grid 12v 24v solar wind hybrid inverter 2000watt with 60A mppt solar charge controller
off grid 12v 24v solar wind hybrid inverter 2000watt with 60A mppt solar charge controller

off grid 12v 24v solar wind hybrid inverter 2000watt with 60A mppt solar charge controller

Share on (1600138441620):


Price:$268.00

Quantity:


Product Overview

Description



High Transform Efficiency DC to AC 2000watt Inverter with built in 40A MPPT
Product advantage :
1. The efficiency is upto 90%.
2. 64-bits DSP Intelligent control chip.
3. Result fetched from effective value, not average value.
4. Photoele ctricity isolation circuitry technology.
5. Switching power is supplied by the independent system.
6. True over temperature protection.
7. The full bridge rectifier and mainboard structure are highly optimized. Input and output circuits are
isolated.
8. Strong loading capacity with a true onetime soft start.
9. New and original electronic components.
10. Internal circuit lines and signal lines are based on plug-pull blocks, not welding.
11.Equipped with RS485 port, can connect to the external screen, and WiFi connector, check the receipt at any time.
12.Unattended mode: The inverter will automatically start and provide AC output ，when the battery voltage is restored.




Product Description






TG-Series Solar Inverter Selection Guide
Model
TG-102
TG-202
TG-302
TG-402
TG-502
TG-602
TG-702
Rated Power
1KW
2KW
3KW
4KW
5KW
6KW
7KW
Peak Power
3KW
6KW
9KW
12KW
15KW
18KW
21KW
Input
Voltage
220VAC
Selectable Voltage Range
170-265VAC
Frequency Range
50/60hz±1%
Output
Transfer efficiency
90%
AC Voltage Regulation (Batt.Mode）
（DC Batt.Mode） 220VAC±3%
Tansfer time
≤5ms
wave form
Pure Sine Wave
Battery
Battery Form
Optional battery type （Optional）
Battery Voltage
12/24/48V
24/48V
Floating Charge Voltage
13.8V(12V）/27.6V(24V)/55.2V(48V)
Over Charge Protection
17V（12V)/34V(24V)/68V(48V)
Solar charge & AC Charger
Maxumum pv array open circuit voltage
150V
Solar Charging Current
30A/40A/50A/60A
Maximum solar panel input power range
12V System
420W
570W
700W
850W
24V System
840W
1130W
1400W
1700W
48V System
1680W
2260W
2800W
3400W
Maximum AC charge current
35A
Communication interface
RS485
Physical
Dimension，D*W*H(mm)
56*44*19CM
57*45*24CM
65*44*22CM
G.W(KGS)
17
21
23
33
35
36
37
Envionment
Humidity
0-95%（No condesnsation)
Operating temperature
0-60℃
Storage temperature
0-60℃
*Product specifications are subject to change without further notice




















Q1: Does your company also provide other solar products except Pure Sine Wave Inverter?
A1: Yes, we also provide other solar products, like MPPT Solar Controller, poly solar panel, off grid solar inverter, on grid inverter, battery, portable solar system, solar charger and other accesories
related to the solar power system.

Q2: How to choose a right inverter?
A2: Tell us your demand, then our sales will recommend a suitable inverter to you.

Q3: How about the delivery time?
A3: 5 days for sample; 7-15 days for bulk order.

Q4: What is the warranty of inverter?
A4: 2 year warranty.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
