2020 Customizable free shipping Solar Street Light 120W Lighting Angle adjustable for Government Projects
- Category: Outdoor Lighting >>>
- Supplier: Yantai Xutai New Energy Technology Co. Ltd.
Share on (1600138442344):
Product Overview
Description
Technical Parameters | Package | ||||
Model | XT1750SELD120-J | Net Weight | 32kg±5% | ||
LED Quantity | 1 | Gross Weight | 66kg±5%(2pcs/box) | ||
Module Quantity (pcs) | 4 | Product Dimension | 1,750*525*86mm±5% | ||
Power | 120W | Package Dimension | 1,770*252*600mm ±5% | ||

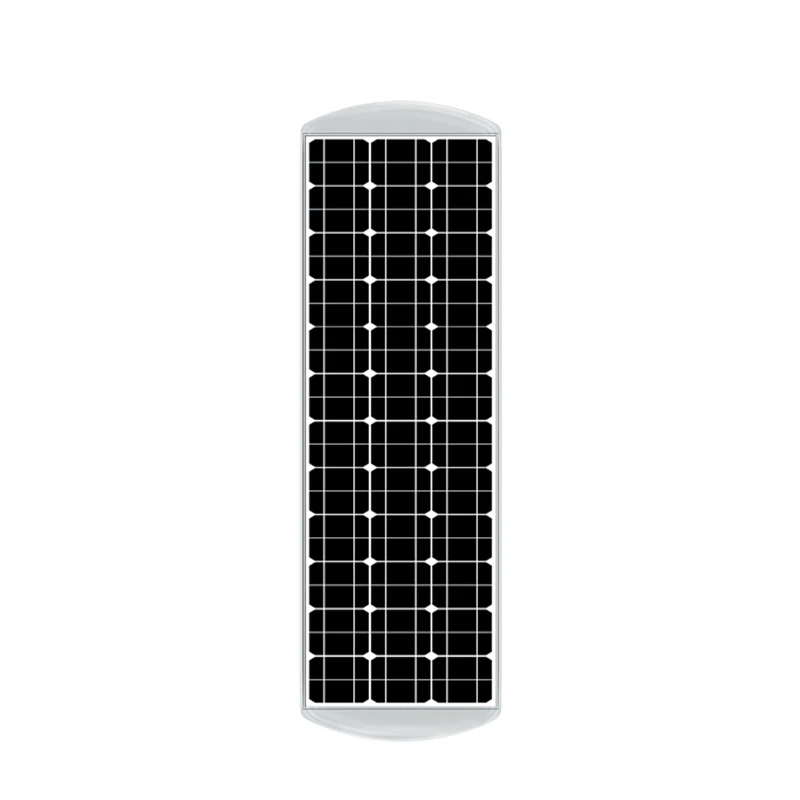

Solar Panel | Monocrystalline Silicon of 36V/140W | Quantity in 20/40 Feet Container（Pallet） | 144PCS/364 PCS | ||

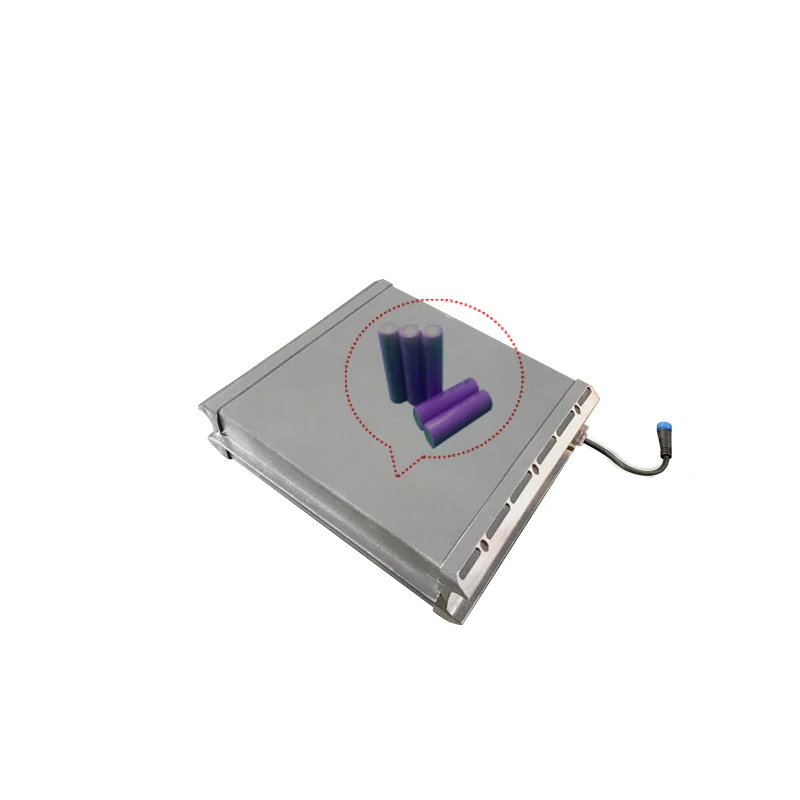

Battery | Grade A Lithium Ion Battery of model 32650 35Ah/24V | Quantity in 20/40 Feet Container（No Pallet） | 180PCS/432 PCS | ||
Adjustable Angle of Module (±15°) | Yes | Environmental Temperature | |||
Contrtol Mode | Light Control+Time Control | Discharging Temperature | -20～60 | ||
Working time under full power | 12h | Charging Temperature | -20～60 | ||
Working time under smart power control | 84h | Storage Temperature | 0～45 | ||
Charging time (1,000W/m2) | 7h | Installation | |||
On-off threshold level | on≦8LUX, OFF≧10LUX | Diameter of Pole | Ø89mm | ||
Material for secondary lighting distribution | Borosilicate | Screw Fixation | YES | ||
Beam Angle | C0~180 160°/ T90~270 80° | Wind resistance level(km/h) | 209 | ||
Protection Grade | IP65 | Installation Height (m) | 10-12 | ||
Photoelectric Parameter | Installation Distance(m) | 40-46 | |||
Color Temperature (K) | 3,000-6,500K | Irradiation Area(m2): | 576 | ||
CRI (Ra) | 70 | ||||
Lumens (lm) | 14,400-16,800lm | ||||
Intelligent Mode | Yes | ||||
Working under rainy days | 7 to 10 days | ||||
Drawing
Dialux Simulation
Product Exploded View
Detailed Images
Project Case
Certifications
