CZJB 90TZ Electric bike set 250w e bike kits electric conversion kits for bike
- Category: >>>
- Supplier: Changzhou Jiabo Machinery Manufacturing Co. Ltd.
Share on (1600138451784):
Product Overview
Description
Products Description

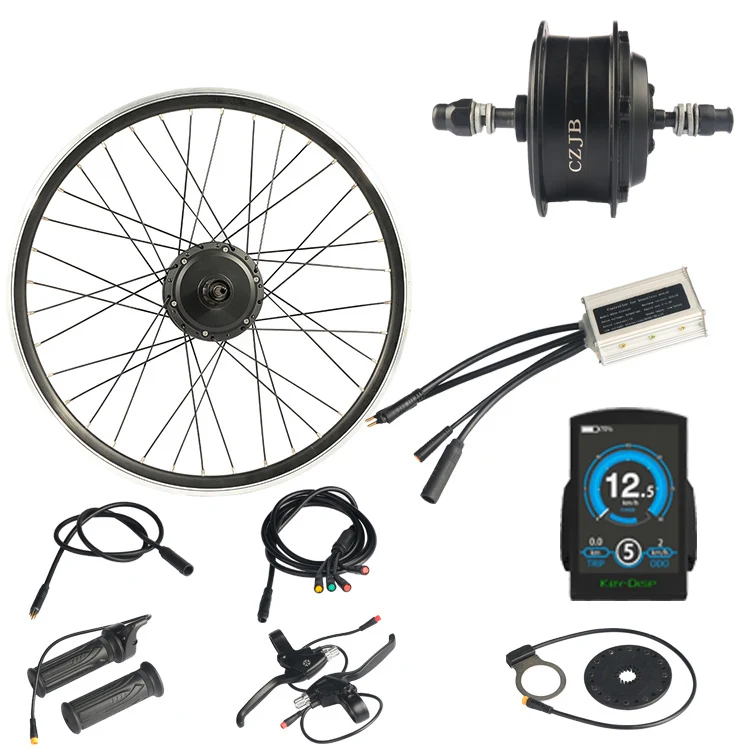

Electric bike set 250w e bike kits electric conversion kits for bike
1.E-bus cable | 1500mm,connect brake*2,throttle*1,display*1 |
2.Controller | FOC 6 Mosfet,24/36/48v 15A size：80*50*30mm |
3.Brake lever | ebrake,power cut off |
4.Pas | 1:1 12 magnets |
5.Rear geared brushless hub motor | 24v 36v 48v 250w 350w 25km/h,135mm dropout ,black,disc brake,200mm 9 pins male waterproof connector,right cable location,hall sensor,speed sensor,36H*12/13G,freewheel 6-9s |
6.Motor extension Cable | male-female 1.2*850mm |
7.Display | KD59E LED Display |
8.throttle | Full twist throttle |
Rim&spoke | 16‘’-28‘’，black double rim,black spoke 12G |

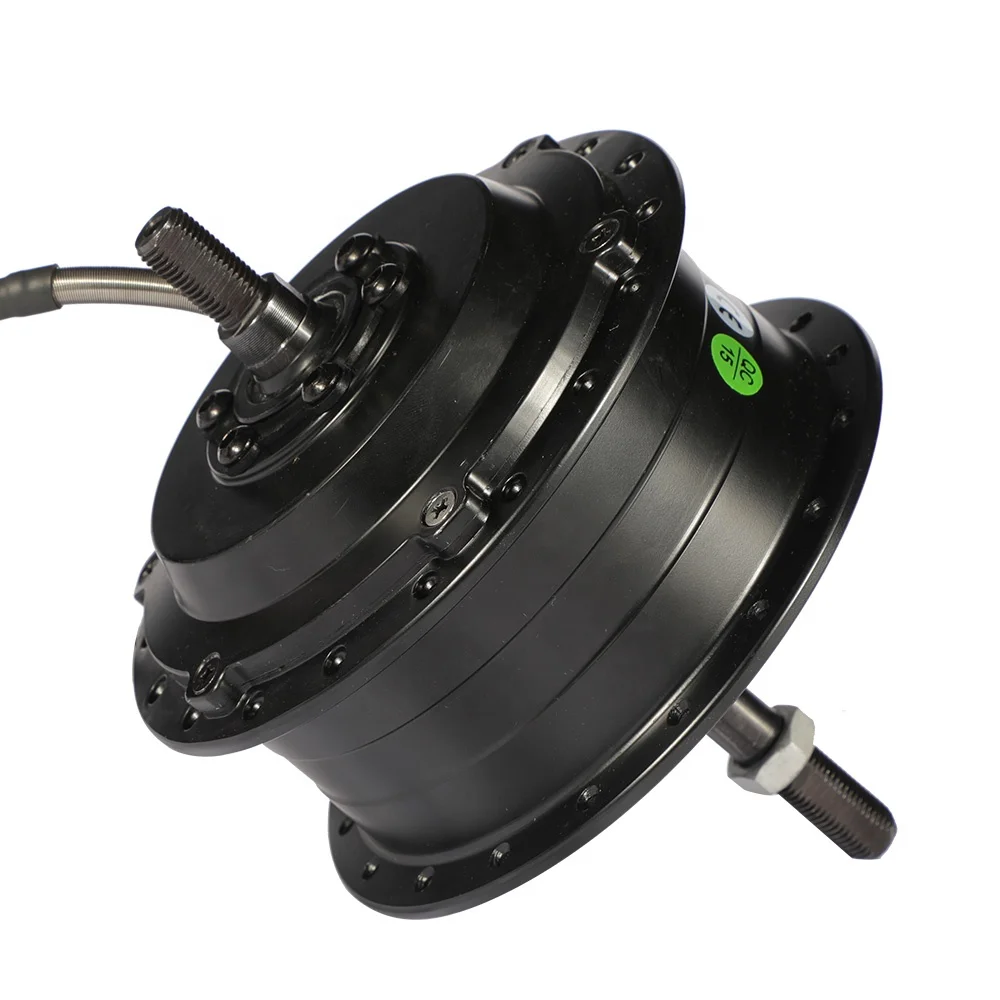

CZJB 90TZ shaft center left brushless hub motor
24v 36v 250w 350W
25km/h
135mm dropout ,black,disc brake
200mm 9 pins male waterproof connector
right cable location
hall sensor
speed sensor
36H*12/13G
freewheel 6-9s
weight 3kg
Efficiency >=82%

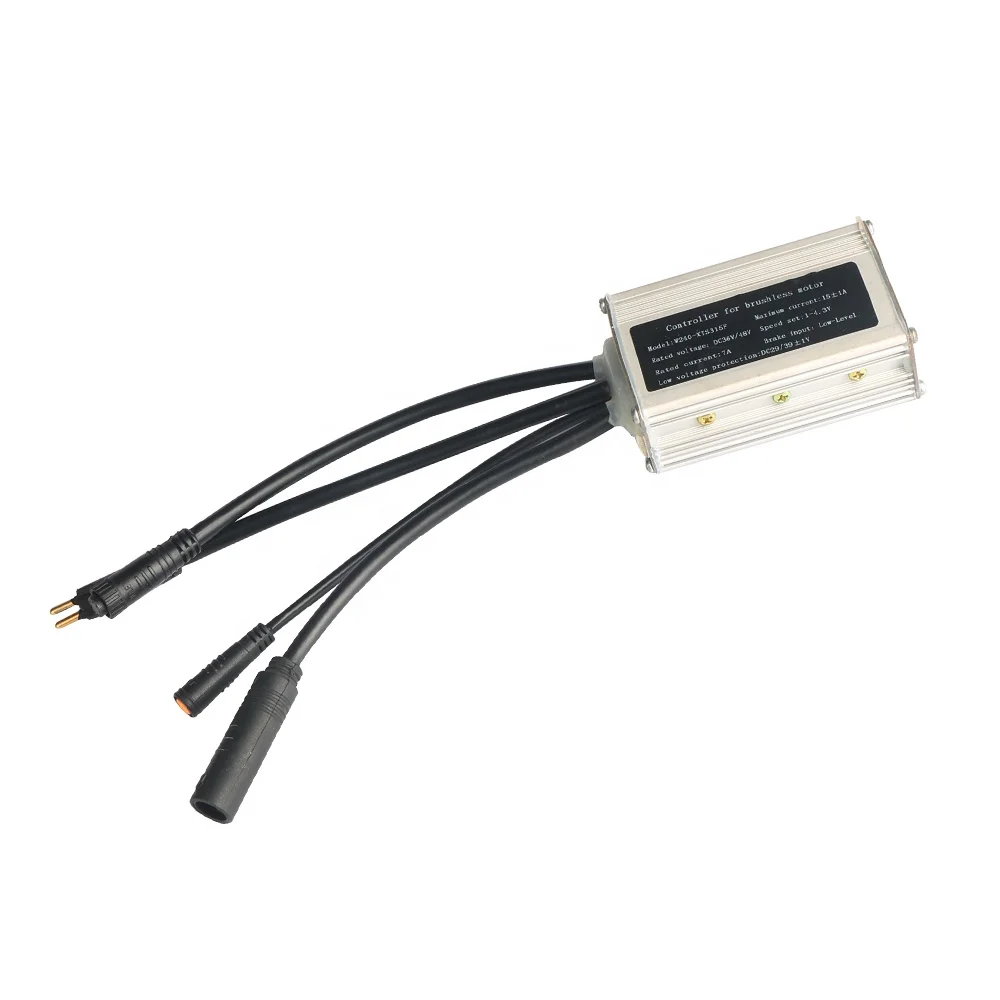

6 MOSFET FOC CONTROLLER
Type : 24/36/48V 15A Controller
Color : Silver
Dimension : 80*50*30mm
Maximum current : 15±1A
Brake input : Low-Level
Low voltage protection : DC29±1V
Cable length : 110mm
Color : Silver
Dimension : 80*50*30mm
Maximum current : 15±1A
Brake input : Low-Level
Low voltage protection : DC29±1V
Cable length : 110mm

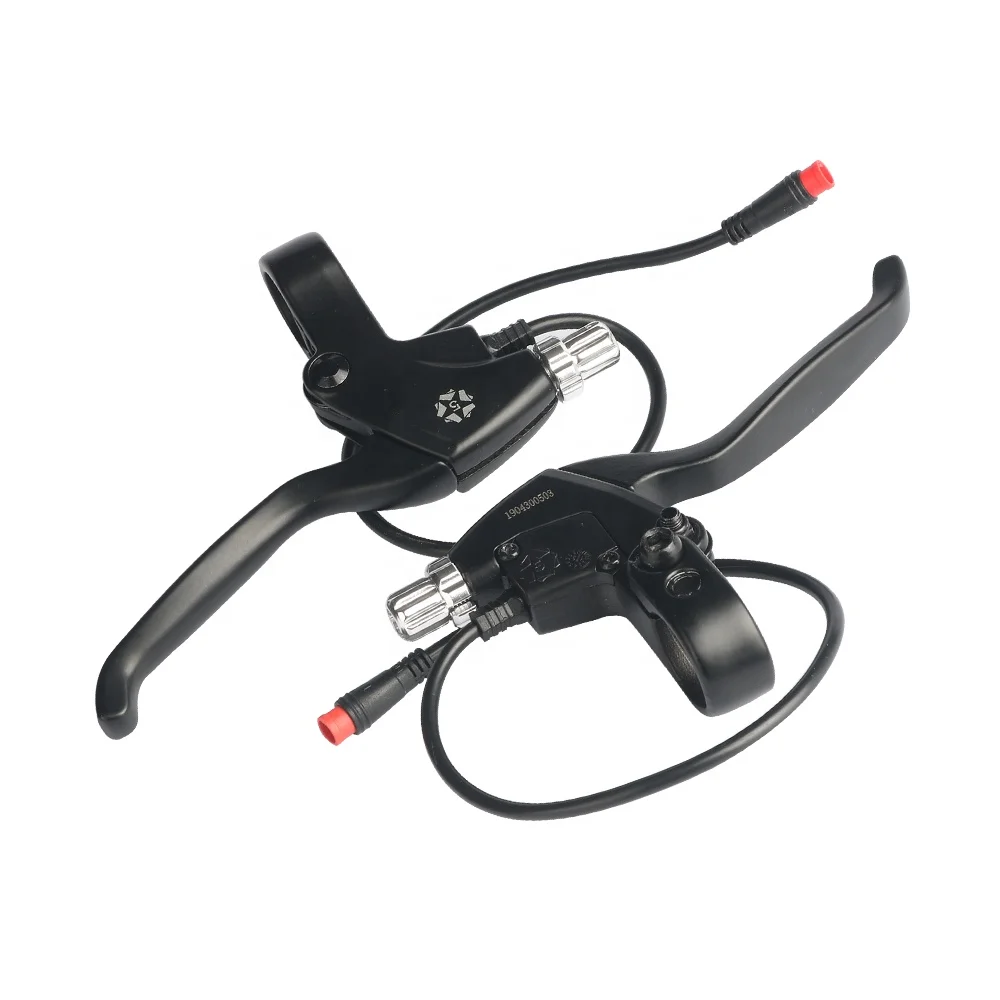

106PDD.AA E-brake
2 pins waterproof cable 300mm without connector

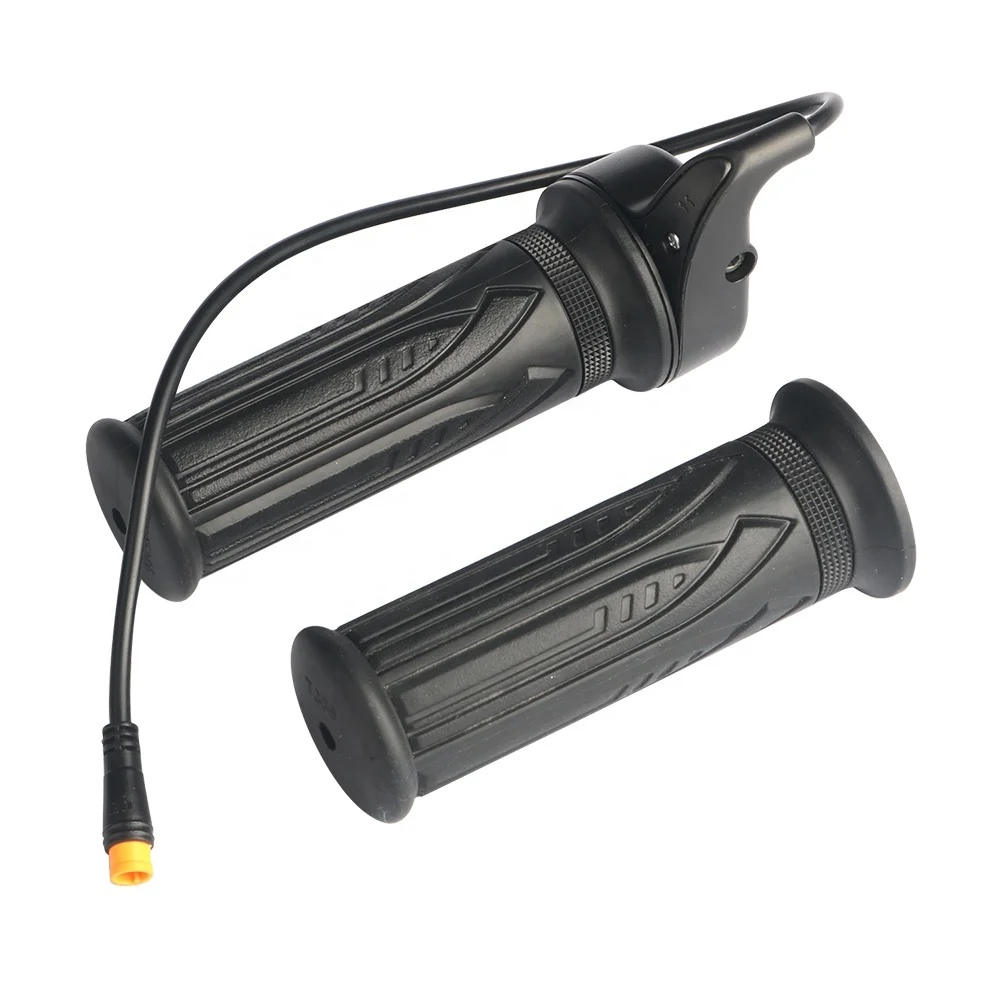

21X+T386 full twist throttle
3 pins waterproof cable 300mm
without connector
PAS 1:1 12magnets
3 pins waterproof cable 1000mm
without connector
A.Motor speed can be customized
25km/h is regular speed,if you would like to order,you can contact us,will do new one!Also motor female cable,if you want longer.
B.Wheel size is optional
Our kit regular wheel size is 26",if other wheel size,please contact us.
333
C.This kit without battery
If you want battery,please contact us.
down tube battery
36V 8.8AH samsung cells
36V 10.4AH samsung cells36V 11.6AH samsung cells
bottle battery
36V 8.8AH samsung cells
36V 10.4AH samsung cells
36V 10.4AH samsung cells
36V 11.6AH samsung cells
rear rack battery
36V 11.6AH samsung cells
36V 13AH samsung cells
36V 13AH samsung cells

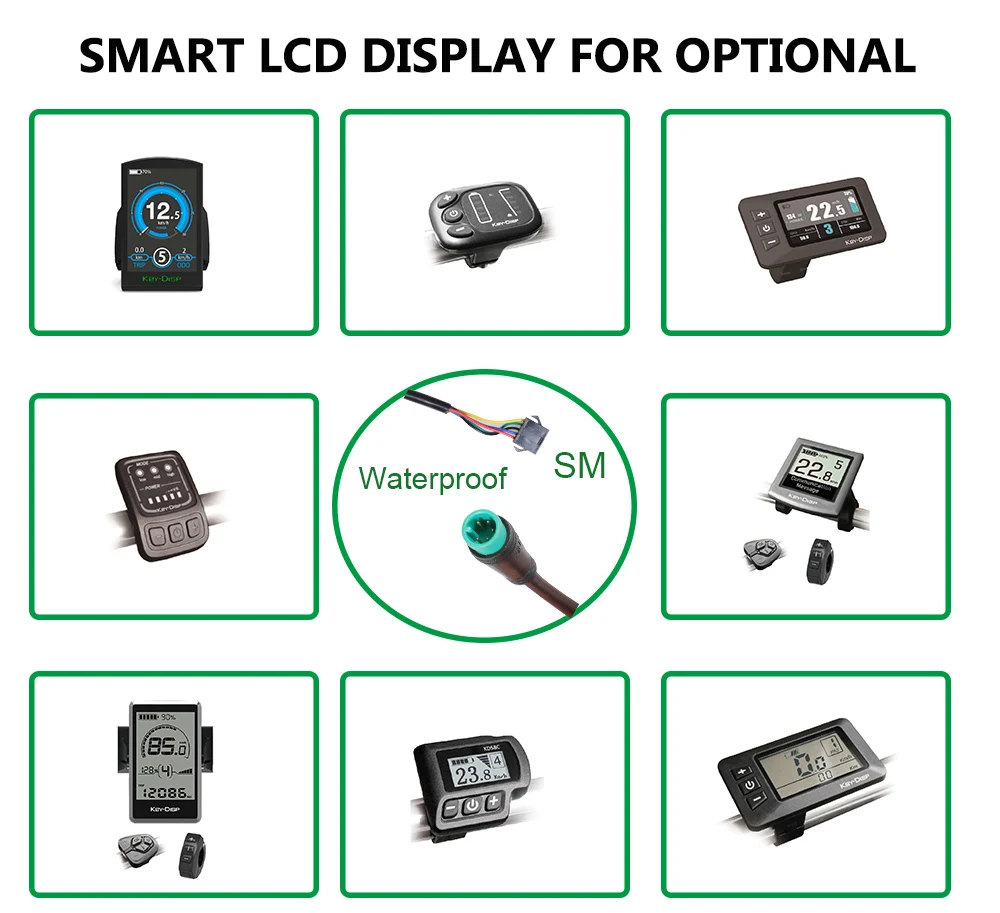

SMART LCD DISPLAY FOR OPTIONAL
Plug : 5 pin male connector
Color : Black
Cable Length : Waterproof 300mm cable without the connector)
Color : Black
Cable Length : Waterproof 300mm cable without the connector)
250W HUB MOTOR FOR OPTIONAL
CZJB 90TQ
250w-350w gear front motor
Weight:2.8KG
Reduction ratio:1:4.4
Max torque(N.m):30
CZJB 90T2
250W-350W gear cassette motor
Weight: 3.0KG
Reduction ratio: 1:5.2
Max torque(N.m): 1:35
CZJB 90TZ shaft center left
250W-350W gear motor
Weight: 3.0KG
Reduction ratio: 1:5.2
Max torque(N.m): 35
Reduction ratio: 1:5.2
Max torque(N.m): 35
THROTTLE FOR OPTIONAL
21X+T386 full twist throttle
76X+T397-375 half twist throttle
T386 with thumb throttle
